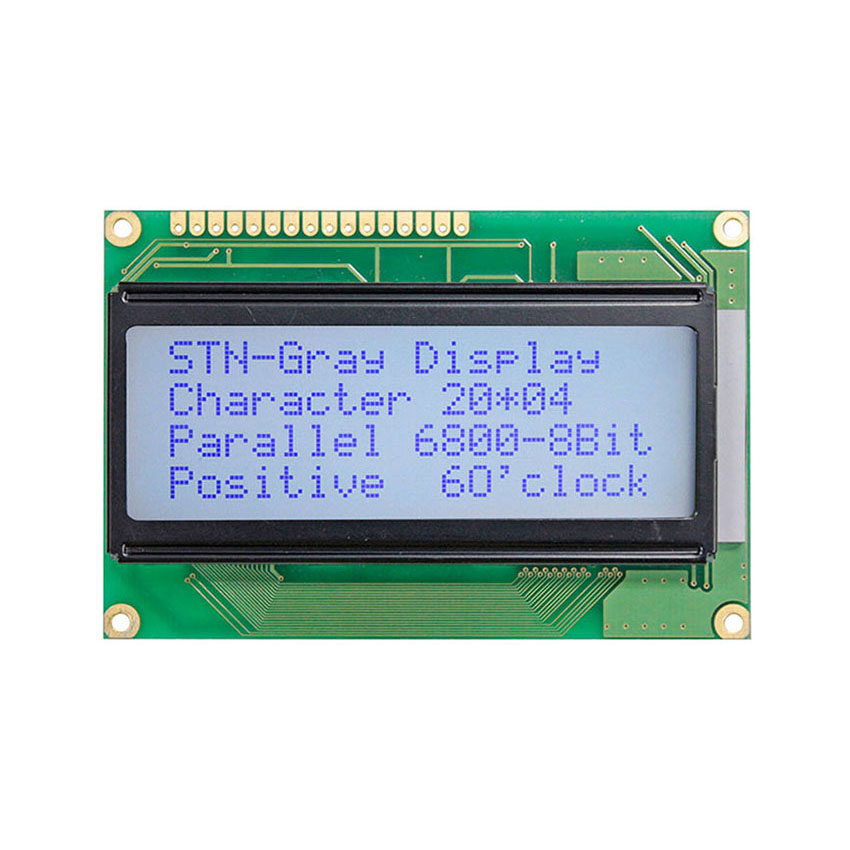

20x4 Character LCD Display
Model No. WH2004G
►Character LCD 20x4
►5x8 dots includes cursor
►Bulit-in controller (RW1063 or Equivalent)
►+5V power supply ( Also available for +3V)
►Negative voltage optional for +3V power supply
►1/16 duty cycle
►LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
►Interface : WH2004G - 6800, WH2004G1 - SPI, WH2004G2 - I2C
DESCRIPTION
This 20x4 Character LCD Display is built-in with RW1063 controller IC which are 6800, 4 line SPI or I2C interface options. The WH2004G 20x4 LCD Display have the same AA size and pin assignment as existing WH2004A and WH2004B character LCD modules but with smaller outline and VA size.
Below are the available series model numbers --
- WH2004G - 6800 interface
- WH2004G1 - 4 line SPI interface
- WH2004G2 - I2C interface

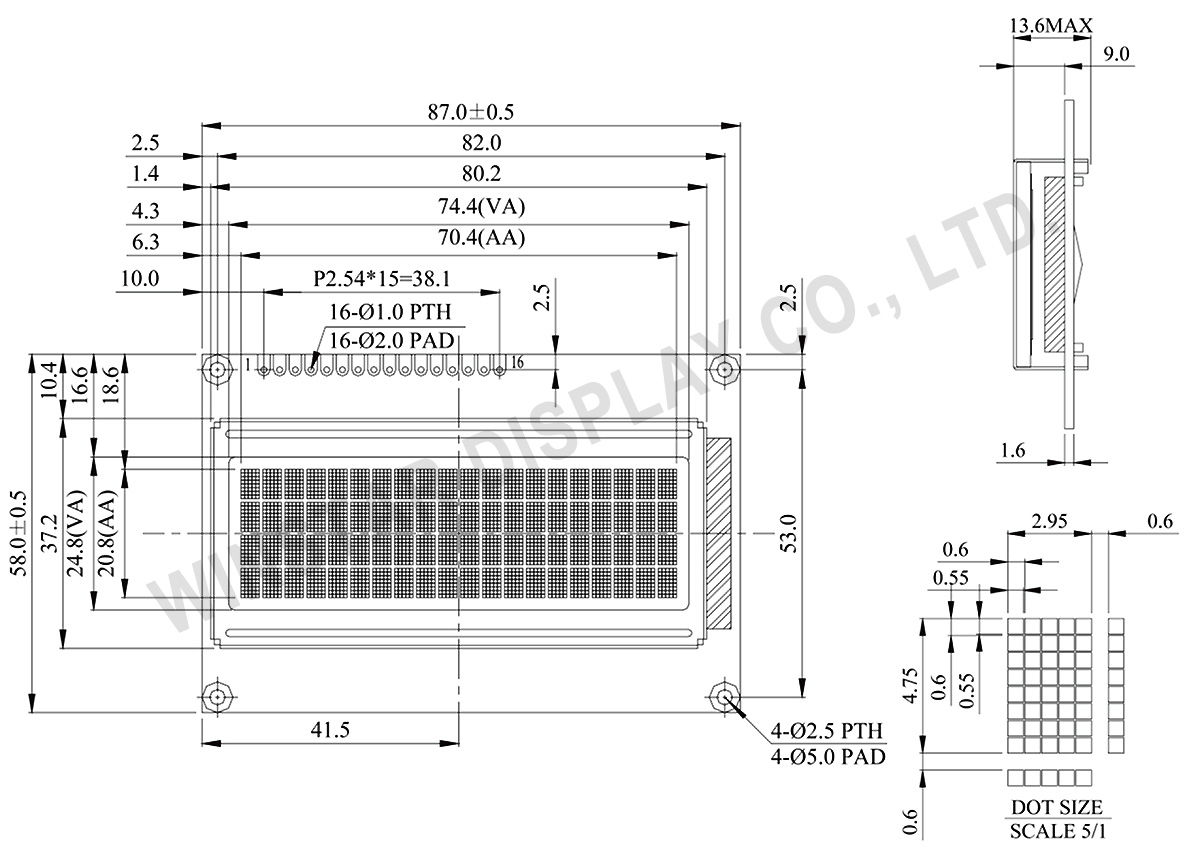

DRAWING
SPECIFICATIONS
LCD 20x4 Datasheet
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/ Instruction select signal |
| 5 | R/W | Read/Write select signal |
| 6 | E | Enable signal |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | A | Power supply for B/L + |
| 16 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 87.0 × 58.0 | mm |
| Viewing Area | 74.4 × 24.8 | mm |
| Mounting Hole | 82.0 × 53.0 | mm |
| Character Size | 2.95 × 4.75 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recmmended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 4.20 | V |
Display Character Address Code
| Display Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DD RAM Address | 00 | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 0A | 0B | 0C | 0D | 0E | 0F | 10 | 11 | 12 | 13 |
| DD RAM Address | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 4A | 4B | 4C | 4D | 4E | 4F | 50 | 51 | 52 | 53 |
| DD RAM Address | 14 | 15 | 16 | 17 | 18 | 19 | 1A | 1B | 1C | 1D | 1E | 1F | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 |
| DD RAM Address | 54 | 55 | 56 | 57 | 58 | 59 | 5A | 5B | 5C | 5D | 5E | 5F | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 |
