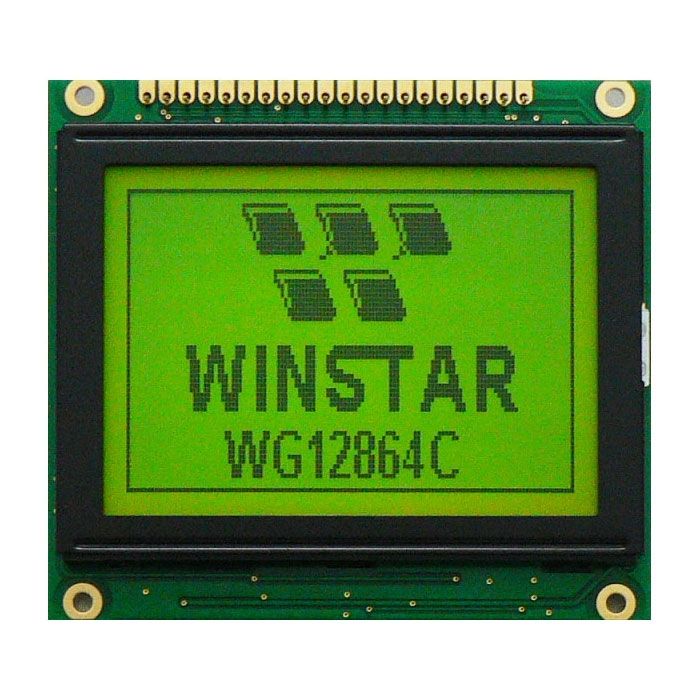

LCD Graphic Display 128x64
Model No. WG12864C
►LCD Graphic Display 128x64, LCD Display 128x64
►Built-in controller (NT7108 or equivalent)
►+5V power supply
►1/64 duty cycle
►Built-in negative voltage
►Interface: 6800
►Touch Screen: Option
DESCRIPTION
WG12864C is a mono LCD graphic display 128x64 dot matrix module, diagonal size 2.7 inch. WG12864C model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. The WG12864C LCD display is 5V power supply; it’s also negative voltage 3.3V power supply optional. This graphic display 128x64 module is available for without backlight or with LED backlight options. WG12864C is available in various LED colors including yellow/green, blue, white, red, and RGB, etc. This model graphic LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

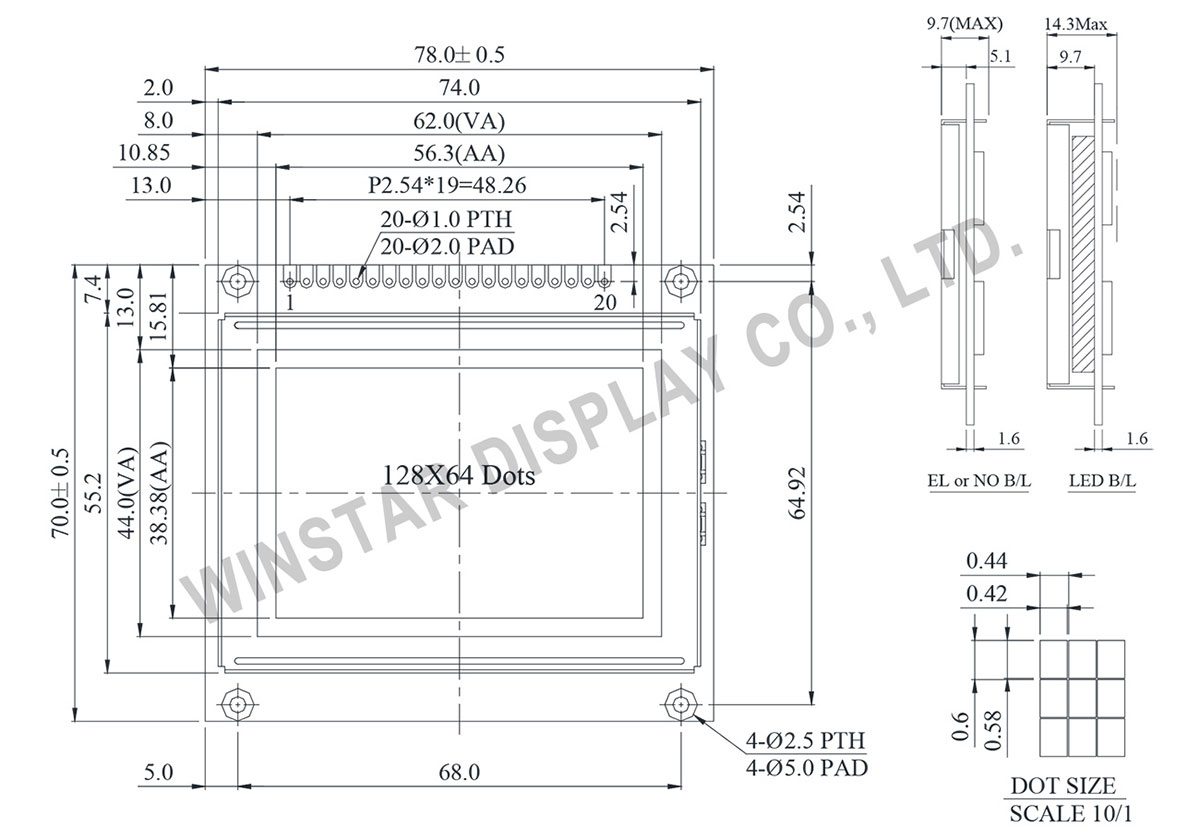

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | /CS1 | Select Column 1~ Column 64 |
| 2 | /CS2 | Select Column 65~ Column 128 |
| 3 | VSS | Ground |
| 4 | VDD | Power supply for logic |
| 5 | VO | Contrast Adjustment |
| 6 | D/I | Data/ Instruction select signal |
| 7 | R/W | Read/Write select signal |
| 8 | E | Enable signal |
| 9~16 | DB0~DB7 | Data bus line |
| 17 | RST | Controller reset signal, Active Low |
| 18 | VEE | Negative Voltage Output |
| 19 | A | Power supply for B/L + |
| 20 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 78.0 ×70.0 | mm |
| Viewing Area | 62.0 × 44.0 | mm |
| Mounting Hole | 68.0 ×64.92 | mm |
| Dot Pitch | 0.44 ×0.60 | mm |
| Dot Size | 0.42 × 0.58 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 8.50 | V |
