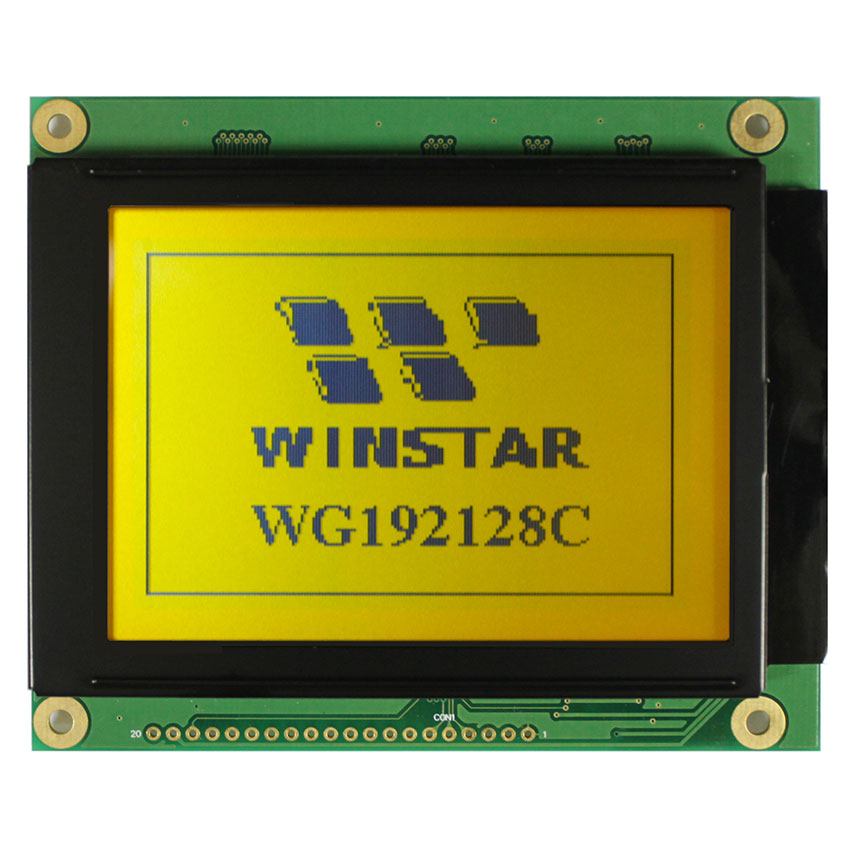

192x128 LCD Graphical Display
Model No. WG192128C
►Graphic LCD 192x128
►Built-in controller RA6963
►1/128 duty
►+5V power supply
►Same size as WG192128A
►Interface: 8080
DESCRIPTION
The Winstar standard model 192x128 LCD Graphical Display WG192128C is built in with RA6963 IC which is a replacement item of WG192128A. The graphical display is with the outline dimension 102.3 x 86.0 mm and AA size of 71.02 x 47.34 mm. This LCD module can be operating at temperatures from -20℃ to +70℃.

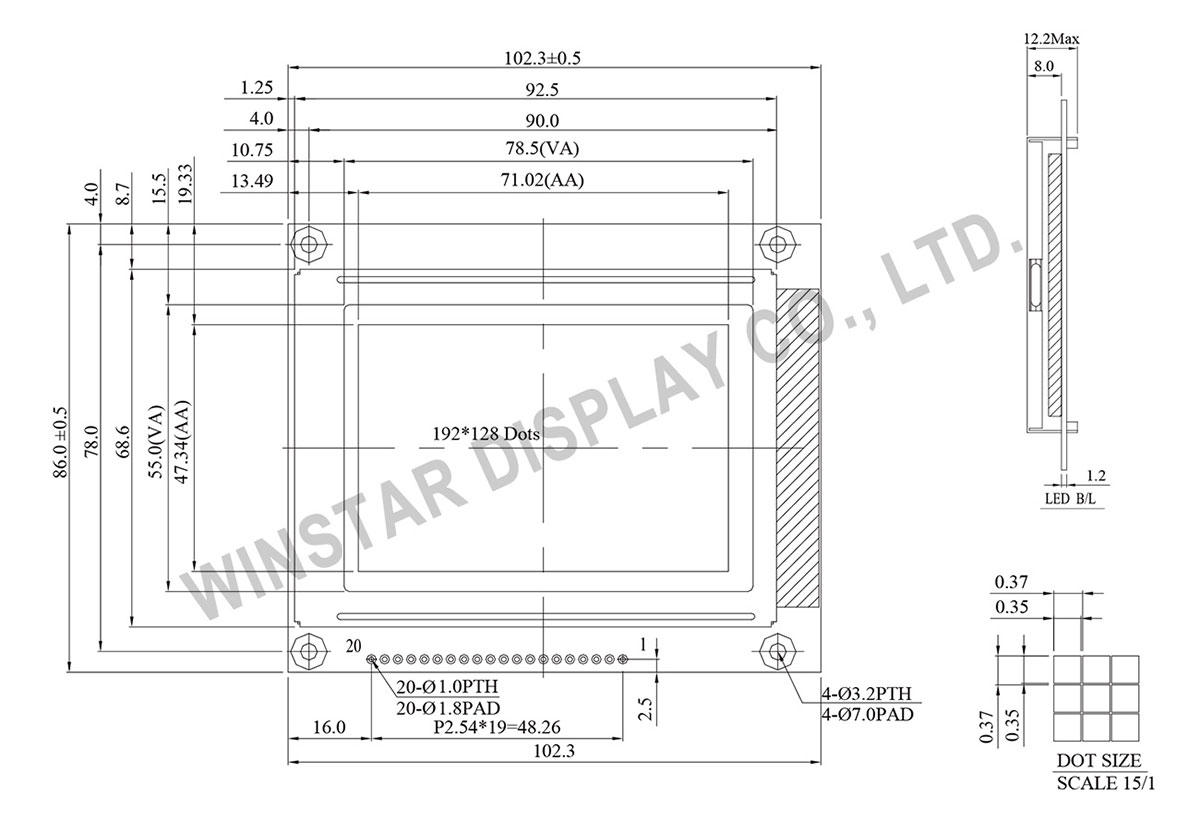

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | Vss | Ground |
| 2 | Vdd | Power supply for logic |
| 3 | Vo | Contrast Adjustment |
| 4 | C/D | Data/ Instruction select signal |
| 5 | /RD | Data read. Read data from LCD Controller |
| 6 | /WR | Data write. Write data into LCD Controller |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | /CE | Enable signal |
| 16 | /RST | Controller reset signal, Active Low |
| 17 | Vee | Negative Voltage Output |
| 18 | NC | No connection |
| 19 | A | Power supply for B/L + |
| 20 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 102.3 × 86.0 | mm |
| Viewing Area | 78.5 × 55.0 | mm |
| Mounting Hole | 90.0 × 78.0 | mm |
| Dot Pitch | 0.37 × 0.37 | mm |
| Dot Size | 0.35 × 0.35 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 15.2 | V |
