6800 / SPI LCD Display Module
Model No. WG16032D3

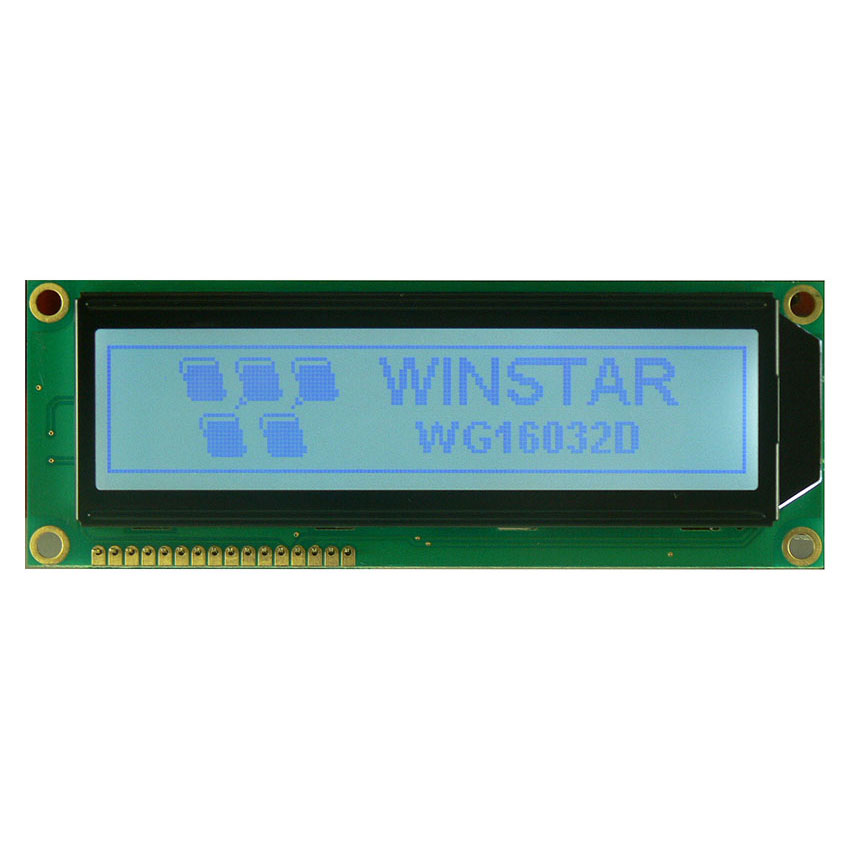

►Graphic LCD 160x32
►160x32 dots
►Built-in controller ST7920
►+3.3V power supply
►1/32 duty cycle
►Internal boost built-in
►Chinese version
►Interface: 6800 / SPI LCD Display
DESCRIPTION
Winstar 6800 / SPI LCD Module 160x32
Winstar standard 160x32 graphic LCD WG16032D type is built in ST7920 controller which supports 6800 interface, 4 Line SPI or 3 Line SPI (optional) interface. This LCD display has the same mechanical size as WH1602L with the outline size of 122.0 x 44.0.0 mm and VA size of 99.0 x 24.0 mm and the maximum thickness is 13.60 mm. The WG16032D is built in Traditional Chinese and Simplified Chinese fonts. This type of LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WG16032D3 is 3.3V power supply; WG16032D5 is 5V power supply.DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | NC | No connection |
| 4 | RS | Data/ Instruction select signal |
| 5 | R/W | Read/Write select signal |
| 6 | E | Enable signal |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | A | Power supply for B/L + |
| 16 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 122.0 × 44.0 | mm |
| Viewing Area | 99.0 × 24.0 | mm |
| Mounting Hole | 115.0 × 37.0 | mm |
| Dot Pitch | 0.6 × 0.6 | mm |
| Dot Size | 0.55 × 0.55 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
Vo-Vss | 4.75 | V |
