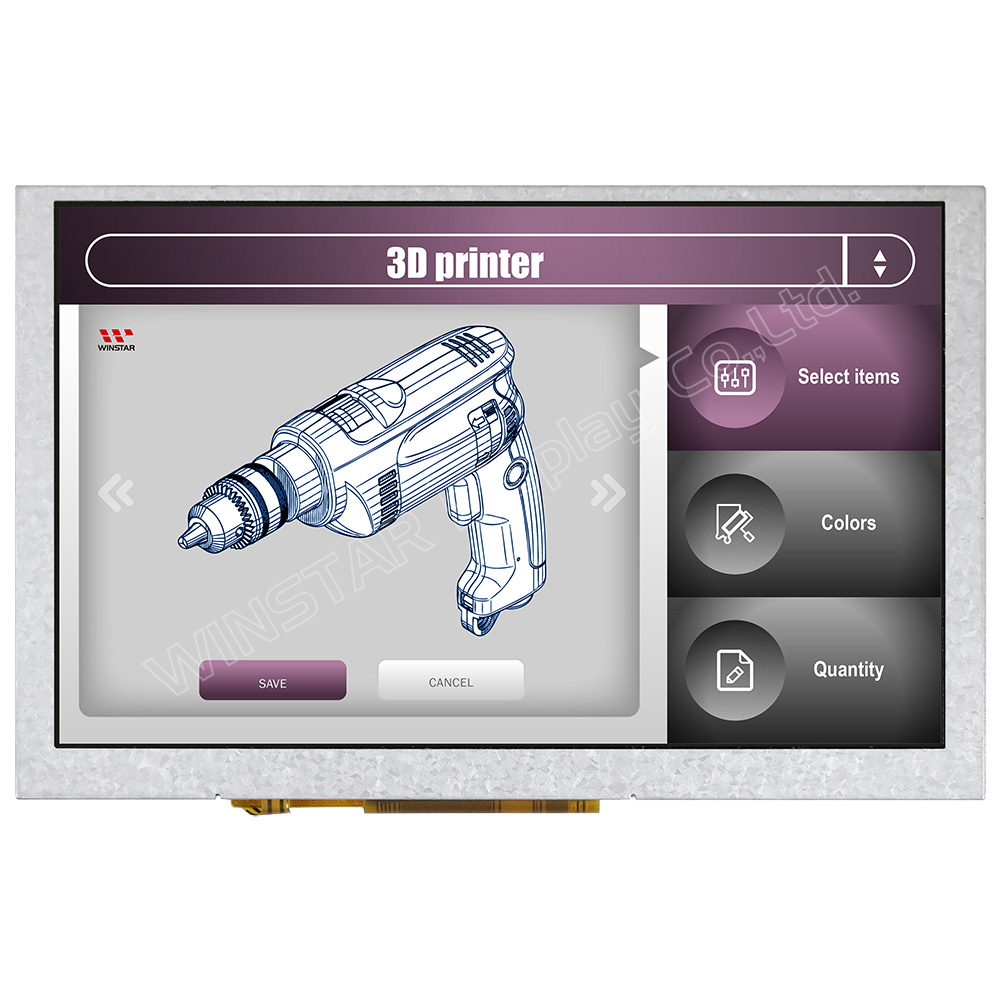

5 inch TFT Panel with LCD Controller Board
Model No. WF50QTIFGDBN0
►5 inch TFT Panel with LCD Controller Board
►Resolution : 800x480 dots
►View Direction : 12H
►Interface : 8080/MPU
►Built-in Controller : SSD1963
►Control-Board : Yes
►Brightness(cd/m²): 500
►Frame Through Hole : No
►Touch Screen : No
►O-Film: No
DESCRIPTION

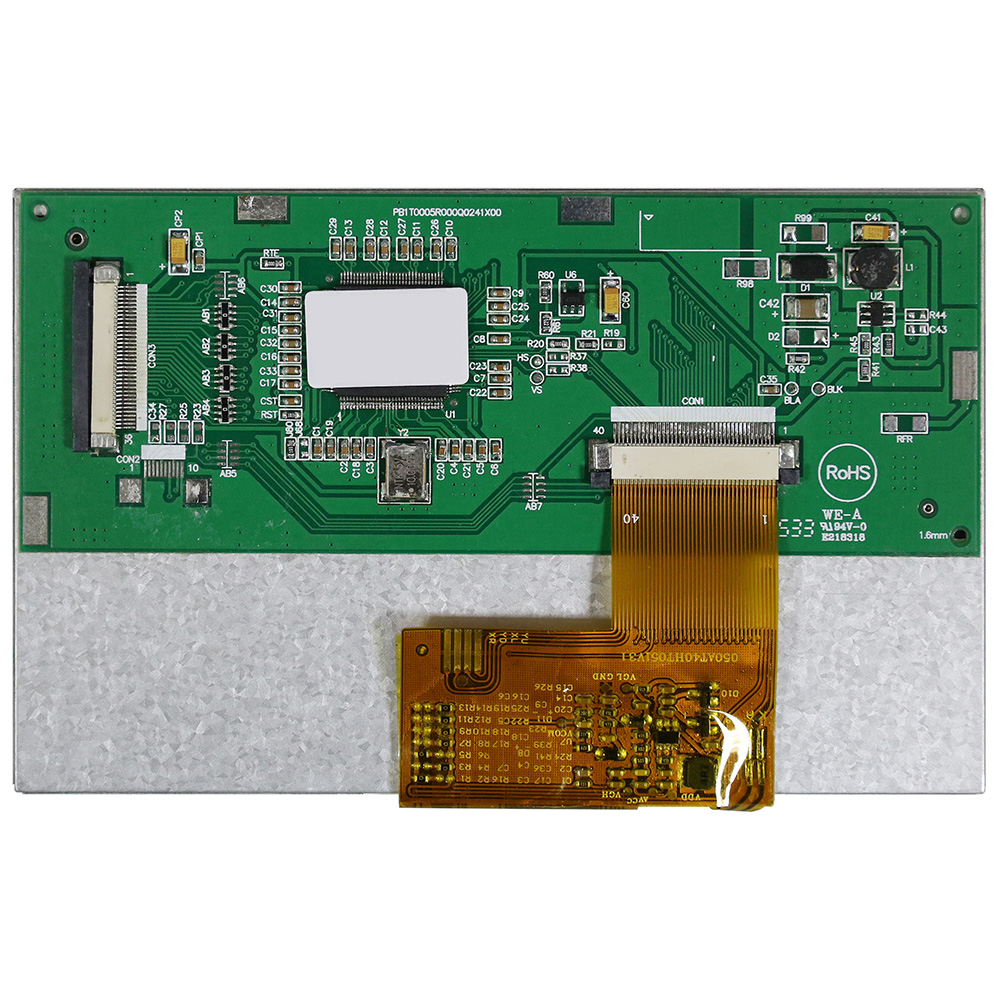

WF50Q is 5 inch size of Winstar TFT Panel Q series family featured with SSD1963 controller board plus a 36 pin-out connector on board. This Display is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply; therefore, the customers no need to design extra backlight circuit.This display is with the module dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.8mm.

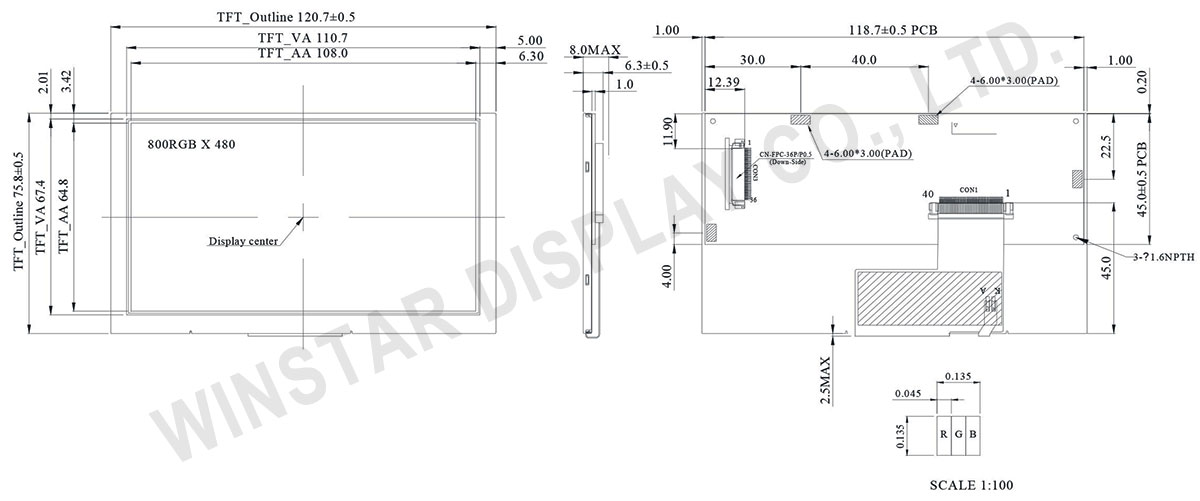

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | System round pin of the IC. Connect to system ground. |
| 2 | VDD | Power Supply : +3.3V |
| 3 | BL_E | Backlight control signal , H: On \ L: Off |
| 4 | D/C | Data/Command select |
| 5 | WR | Write strobe signal |
| 6 | RD | Read strobe signal |
| 7~14 | DB0~DB7 | Data bus |
| 15~22 | DB8~DB15 | Data bus (When select 8bits mode, this pin is NC) |
| 23~24 | NC | No connection |
| 25 | CS | Chip select |
| 26 | RST | Hardware reset |
| 27~32 | NC | No connection |
| 33~34 | VLED- | VLED- for B/L LED inverter (GND) |
| 35~36 | VLED+ | VLED+ for B/L LED inverter (+3.3V) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5 inch TFT Display | |
| Dot Matrix | 800 × 3(RGB) × 480 | dots |
| Module dimension | 120.7 × 75.8 x 8.0 (Max) | mm |
| Active area | 108.0 × 64.8 | mm |
| Dot pitch | 0.045 × 0.135 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Controller IC | SSD1963 | |
| Interface | Digital 8080 family MPU 8bit/16bit | |
| Touch Panel | Without touch panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | — | 3.0 | 3.1 | 3.3 | V |
| Supply Current For LCM | IDD | — | — | 150 | 230 | mA |
