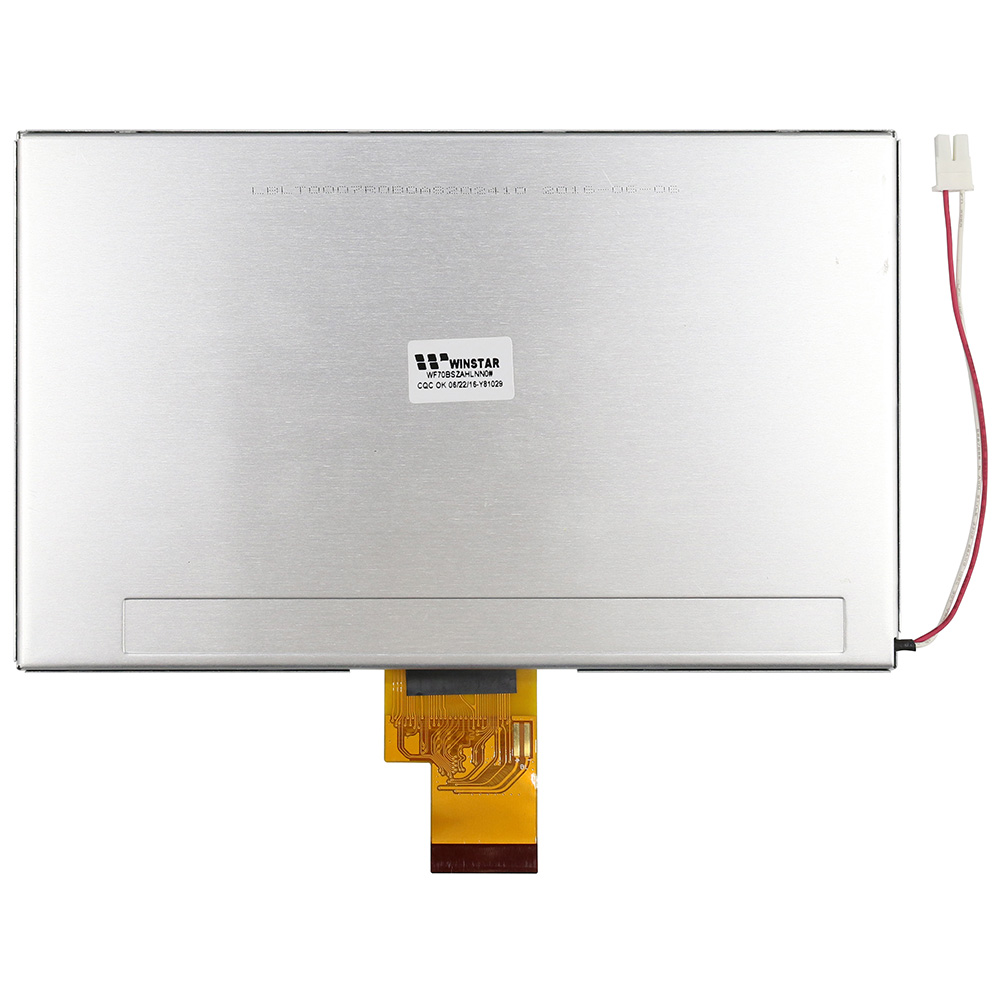

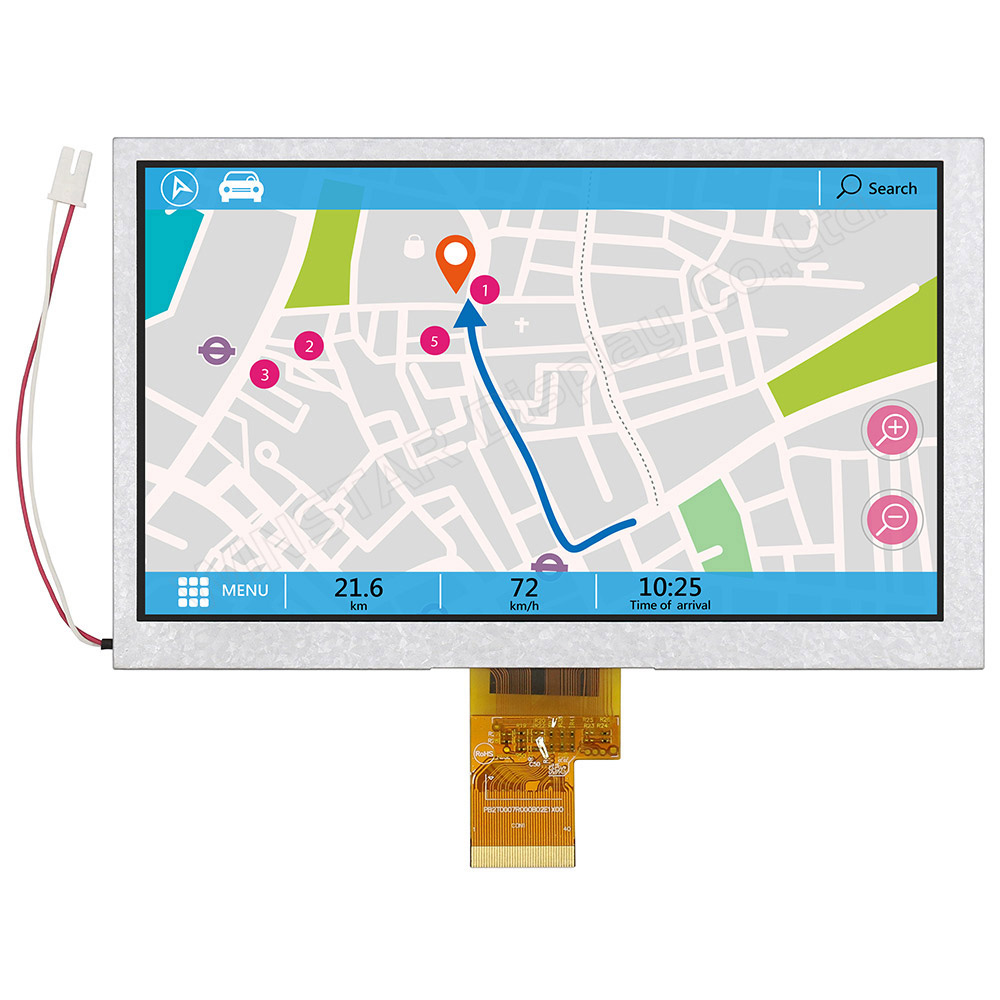

7 inch LVDS Full HD LCD Panel Display
Model No. WF70A7SZAHLNN0
►7 inch Full HD LCD Panel Display
►Size : 7”
►Resolution : 1024x600 dots
►View Direction : 12H
►Interface : LVDS
►Driver IC : EK79001HE + EK73215BCGA
►Control-Board : No
►Brightness(cd/m2): 900
►Frame Through Hole : No
►Touch Screen : Without touch panel
►O-Film : Yes
DESCRIPTION
WF70A7SZAHLNN0 is a 7 inch IPS Panel with HD 1024x600 high brightness and wider viewing angle O-Film technology on module. This 7 inch display is having the outline dimension of 169.9 x 103.4 mm and AA size of 154.2114 x 85.92 mm; resolution 1024x600 pixels, it supports 6-bit / 8-bit LVDS interface, 40-pins FPC pinout.
The power voltage (DVDD) for WF70A7SZAHLNN0 is from 3.0V to 3.6V, typical value 3.3V. This 7 inch Full HD LCD Panel Display is featured with high brightness 800 ~ 900 cd/m2 and wider view angle range of Left: 75 / Right: 75 / Up: 75 / Down: 75 degree. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This WF70A7SZAHLNN0 is very suitable for outdoor applications, for example, outdoor measuring equipment, GPS Navigation system.

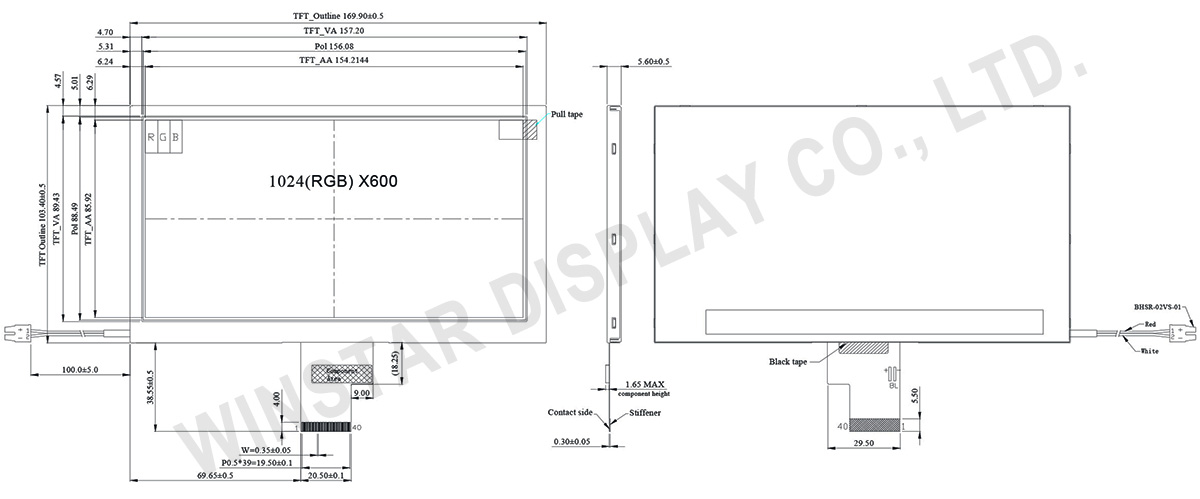

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | VCOM | P | Common Voltage |
| 2 | VDD | P | Digital circuit |
| 3 | VDD | P | Digital circuit |
| 4 | NC | --- | No connection |
| 5 | Reset | I | Global reset pin |
| 6 | STBYB | I | Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z |
| 7 | GND | P | Ground |
| 8 | RXIN0- | I | Negative LVDS differential data input |
| 9 | RXIN0+ | I | Positive LVDS differential data input |
| 10 | GND | P | Ground |
| 11 | RXIN1- | I | Negative LVDS differential data input |
| 12 | RXIN1+ | I | Positive LVDS differential data input |
| 13 | GND | P | Ground |
| 14 | RXIN2- | I | Negative LVDS differential data input |
| 15 | RXIN2+ | I | Positive LVDS differential data input |
| 16 | GND | P | Ground |
| 17 | RXCLKIN- | I | Negative LVDS differential clock input |
| 18 | RXCLKIN+ | I | Positive LVDS differential clock input |
| 19 | GND | P | Ground |
| 20 | RXIN3- | I | Negative LVDS differential data input |
| 21 | RXIN3+ | I | Positive LVDS differential data input |
| 22 | GND | P | Ground |
| 23 | NC | --- | No connection |
| 24 | NC | --- | No connection |
| 25 | GND | P | Ground |
| 26 | NC | --- | No connection |
| 27 | DIMO | O | Backlight CABC controller signal output |
| 28 | SELB | I | 6bit/8bit mode select H:6bit / L:8bit |
| 29 | AVDD | P | Power for Analog Circuit |
| 30 | GND | P | Ground |
| 31 | NC | --- | No connection |
| 32 | NC | --- | No connection |
| 33 | L/R | I | Horizontal inversion |
| 34 | U/D | I | Vertical inversion |
| 35 | VGL | P | Negative power for TFT |
| 36 | GND | P | Ground |
| 37 | GND | P | Ground |
| 38 | VGH | P | Positive power for TFT |
| 39 | NC | --- | No connection |
| 40 | NC | --- | No connection |
I: input ,O: output, P: power
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 1024 × RGB × 600(TFT) | dots |
| Module dimension | 169.9(W) × 103.4(H) × 5.6(D) | mm |
| Active area | 154.2114 × 85.92 | mm |
| Dot pitch | 0.1506 × 0.1432 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| Control IC | -- | |
| Driver IC | EK79001HE + EK73215BCGA | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Without Touch Panel | |
| Interface | LVDS | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
1.Typical Operation Conditions
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power voltage | DVDD | 3.0 | 3.3 | 3.6 | V |
| AVDD | 9.4 | 9.6 | 9.8 | V | |
| VGH | 17 | 18 | 19 | V | |
| VGL | -6.6 | -6.0 | -5.4 | V | |
| Input signal voltage | VCOM | 3.1 | 3.3 | 3.6 | V |
| Input logic high voltage | VIH | 0.7 DVDD | - | DVDD | V |
| Input logic low voltage | VIL | 0 | - | 0.3 DVDD | V |
2.Current Consumption
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Current for Driver | IGH | - | 0.2 | 1.0 | mA |
| IGL | - | 0.2 | 1.0 | mA | |
| IDVDD | - | 4.0 | 10 | mA | |
| IAVDD | - | 20 | 50 | mA | |
3.Backlight Driving Conditions
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Voltage for LED backlight | VL | 16.8 | 19.2 | 21.0 | V |
| Current for LED backlight | IL | -- | 320 | -- | mA |
| LED life time | - | - | 50,000 | - | Hr |
