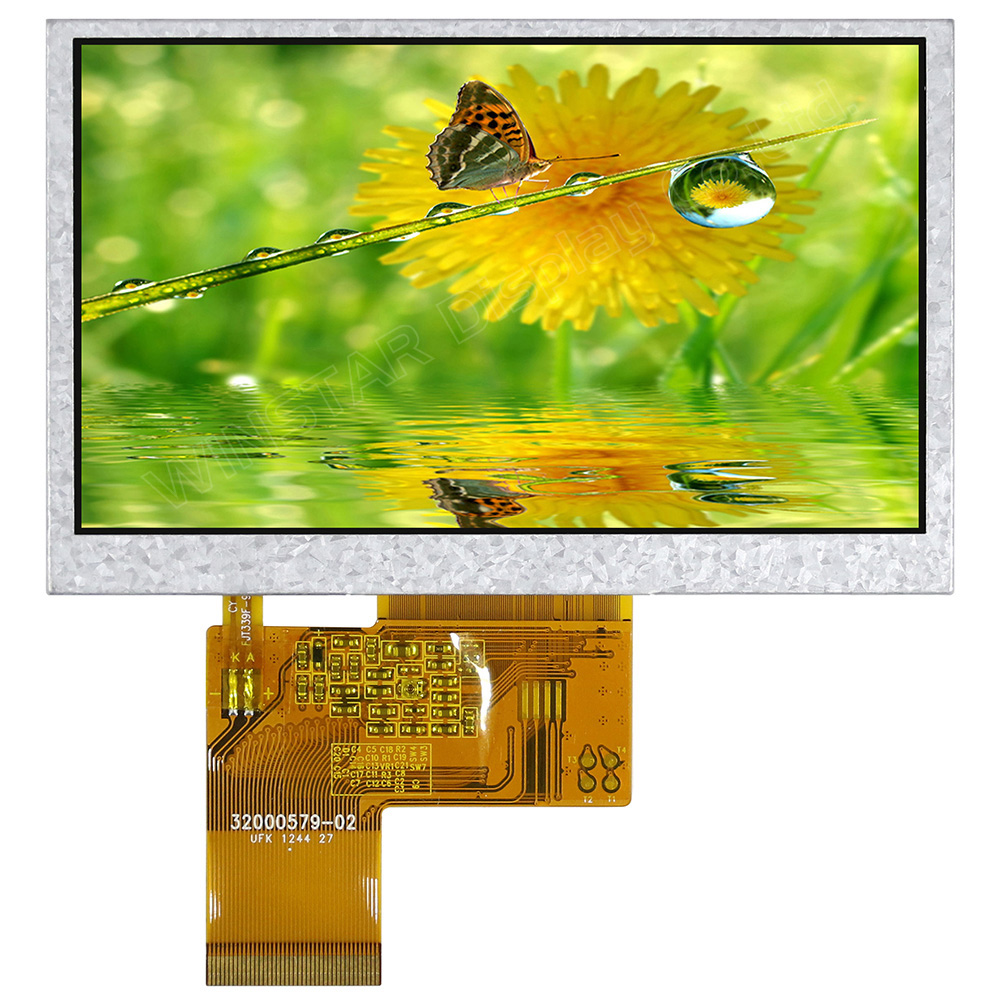

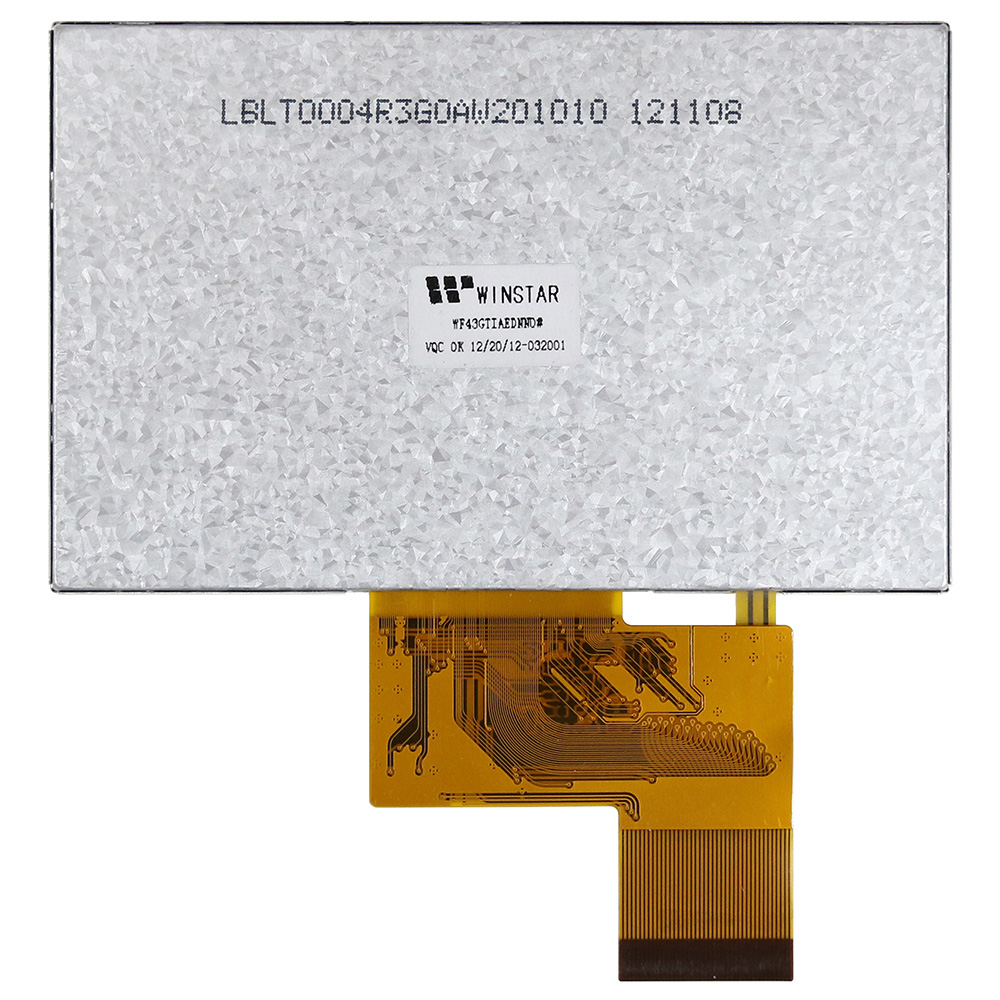

4.3" 480x272 Color TFT Display Module
Model No. WF43GTIAEDNN0
►Size: 4.3 inch
►Resolution : 480 x 272 dots
►View Direction : 12H
►Interface : RGB
►IC Part No. : --
►Control-Board : Option
►Brightness(cd/m²) : 500
►Frame Through Hole : Option
►Touch Screen : Without touch screen
DESCRIPTION
This display WF43GTIAEDNN0 TFT LCD module is a 4.3 inch diagonal, 480xRGBx272, full color TFT Module, outline dimension 105.5 x 67.2 mm, VA size 97.1x55.9 mm and AA size 95.04x53.856 mm. If you need further information about our Winstar hot sale 4.3" TFT Module, please contact us online.

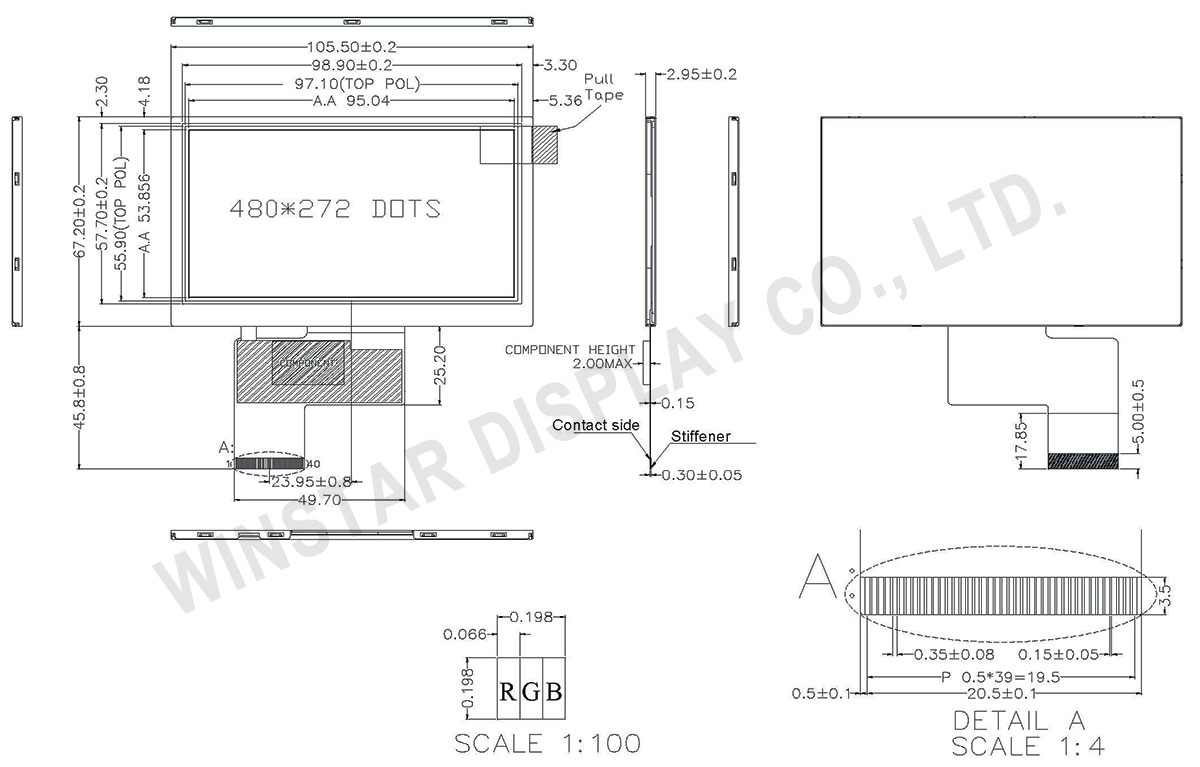

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | GND | Power ground |
| 4 | VCC | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6~11 | R1~R6 | Red data |
| 12 | R7 | Red data (MSB) |
| 13 | G0 | Green data (LSB) |
| 14~19 | G1~G6 | Green data |
| 20 | G7 | Green data (MSB) |
| 21 | B0 | Blue data (LSB) |
| 22~27 | B1~B6 | Blue data |
| 28 | B7 | Blue data (MSB) |
| 29 | GND | Power ground |
| 30 | CLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32~33 | NC | No connection |
| 34 | DE | Data Enable |
| 35 | NC | No connection |
| 36 | GND | Power ground |
| 37~40 | NC | No connection |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 4.3 | inch |
| Dot Matrix | 480 × RGB × 272 (TFT) | dots |
| Module dimension | 105.5(W) × 67.2(H) × 2.95(D) | mm |
| Active area | 95.04 × 53.86 | mm |
| Dot pitch | 0.066 × 0.198 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Without touch screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | － | 3.0 | 3.3 | 3.5 | V |
| Digital operation current | Icc | － | - | 17 | 25 | mA |
