7 inch O Film TFT LCD

Model No. WF70GTZAGDNN0

►Size : 7 inch
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►Built-in Controller : --
►Control-Board : No
►Brightness (cd/m²): 360
►Frame Through Hole : No
►Touch Screen : No
►O-Film : Yes

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

If your applications require a wider viewing angle, Winstar O Film TFT technology will be what you need. There are many wider view angle technology for TFT displays in the market such as MVA (Multi-domain Vertical Alignment) and IPS (In-Plane Switching). Comparing to the MVA or IPS technology, O Film TFT has the advantage of pricing. More importantly, the specifications and dimensions of MVA and IPS TFT in the market now are more suitable for consumer products (like tablets and smartphones) not for industrial products.

Most industrial application of TFT-LCD glasses that are available in the market are TN-LCD type. However, TN technology suffers from phenomenon called gray scale inversion. This means the display have one viewing side in which color of the image change suddenly after exceeding specified view angle. Therefore, the normal TFT models we offer which the viewing angle are limited. Currently, we offer a solution to enhance TN glass viewing angle and can overcome gray scale inversion. This is our TFT O-Film solution.

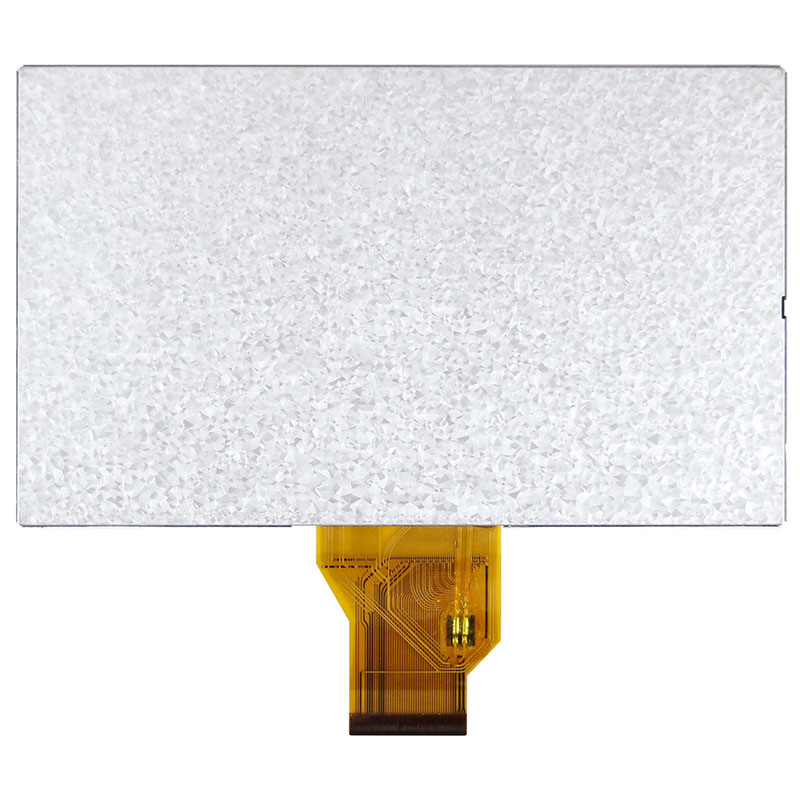

The item no. WF70GTZAGDNN0 is a O-Film TFT-LCD display is with the module dimension of 165.0 x 100 mm and VA size of 154.08x 85.92 mm. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

DRAWING

Winstar 7 inch TFT, O Film TFT, O Film TFT LCD

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	Function
1	A	Power supply for backlight
2	A	Power supply for backlight
3	K	Backlight ground
4	K	Backlight ground
5	GND	Power ground
6	VCOM	Common voltage
7	VCC	Power for Digital Circuit
8	MODE	DE/SYNC mode select
9	DE	Data Input Enable
10	VS	Vertical Sync Input
11	HS	Horizontal Sync Input
12	B7	Blue data(MSB)
13	B6	Blue data
14	B5	Blue data
15	B4	Blue data
16	B3	Blue data
17	B2	Blue data
18	B1	Blue data
19	B0	Blue data(LSB)
20	G7	Green data(MSB)
21	G6	Green data
22	G5	Green data
23	G4	Green data
24	G3	Green data
25	G2	Green data
26	G1	Green data
27	G0	Green data(LSB)
28	R7	Red data(MSB)
29	R6	Red data
30	R5	Red data
31	R4	Red data
32	R3	Red data
33	R2	Red data
34	R1	Red data
35	R0	Red data(LSB)
36	GND	Power Ground
37	DCLK	Sample clock
38	GND	Power Ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reset pin.
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function
48	GND	Power Ground
49	NC	No connection
50	NC	No connection

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	165.0(W) × 100(H) × 5.7(D)	mm
Active area	154.08 × 85.92	mm
Dot pitch	0.0642 × 0.179	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Touch Panel	Without touch panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	3.0	3.3	3.6	V
Power Supply For Current	VCC =3.3V		4	10	mA
Power Consumption	VCC =3.3V		13.2	36	mW
Power voltage	AVDD	10.2	10.4	10.6	V
Power voltage	VGH	15.3	16.0	16.7	V
Power voltage	VGL	-7.7	-7.0	-6.3	V
Input signal voltage	VCOM	2.6	(3.6)	4.6	V
