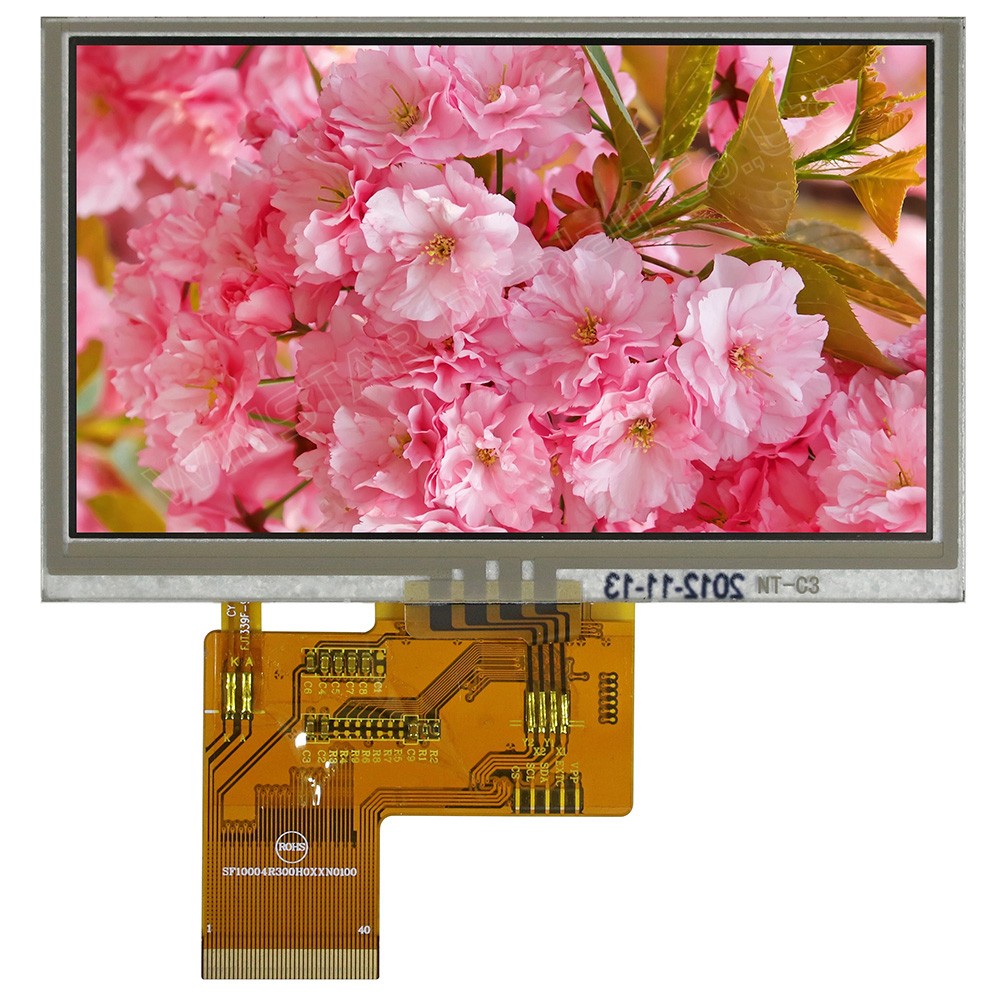

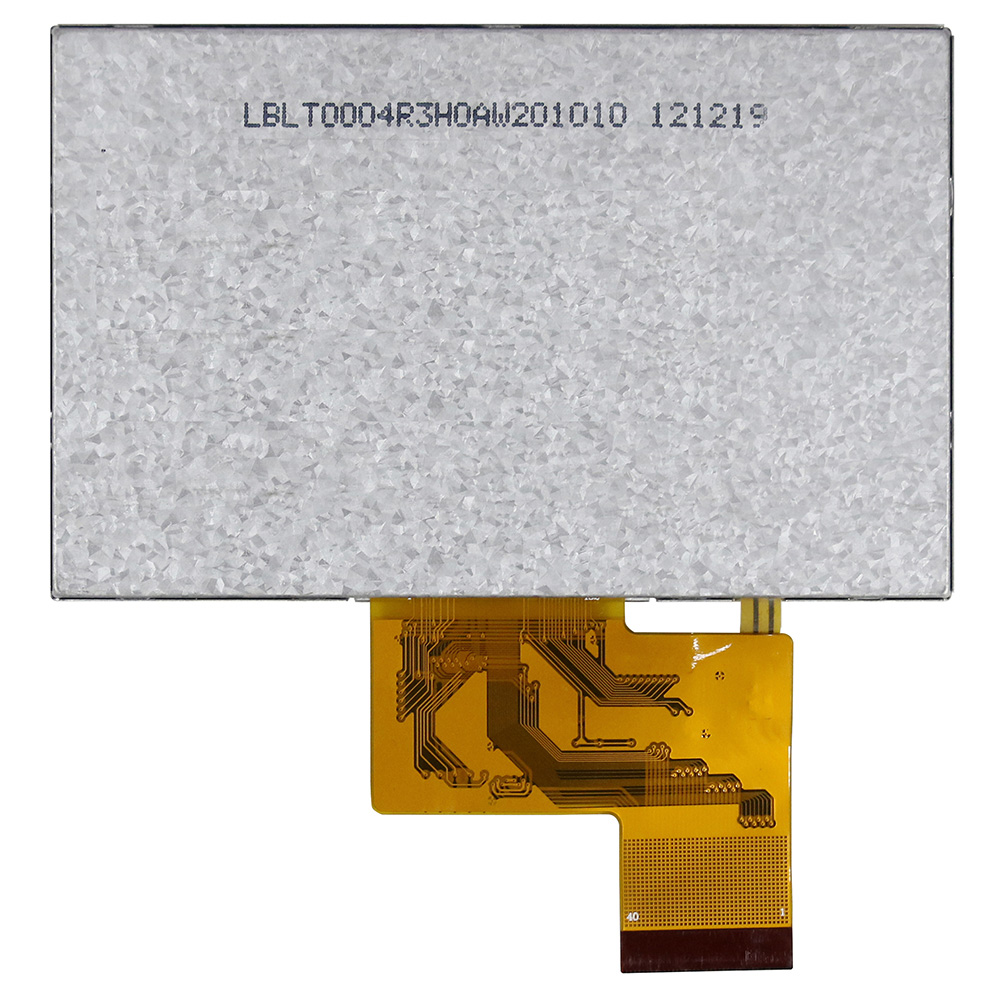

4.3" Resistive Touch Panel TFT LCD
Model No. WF43VTIAEDNT0
►Size : 4.3 inch
►Resolution : 480 x 272 dots
►View Direction : 12H
►Interface : RGB
►TFT Driver IC : ST7282
►Control-Board : No
►Brightness(cd/m²) : 350
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel
DESCRIPTION
Winstar WF43VTIAEDNT0 is TFT touch panel module. This TFT module outline dimension 105.5x67.2 mm, viewing area size 98.7x57.5 mm, active area size 95.04x53.856 mm. This 4.3" TFT LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

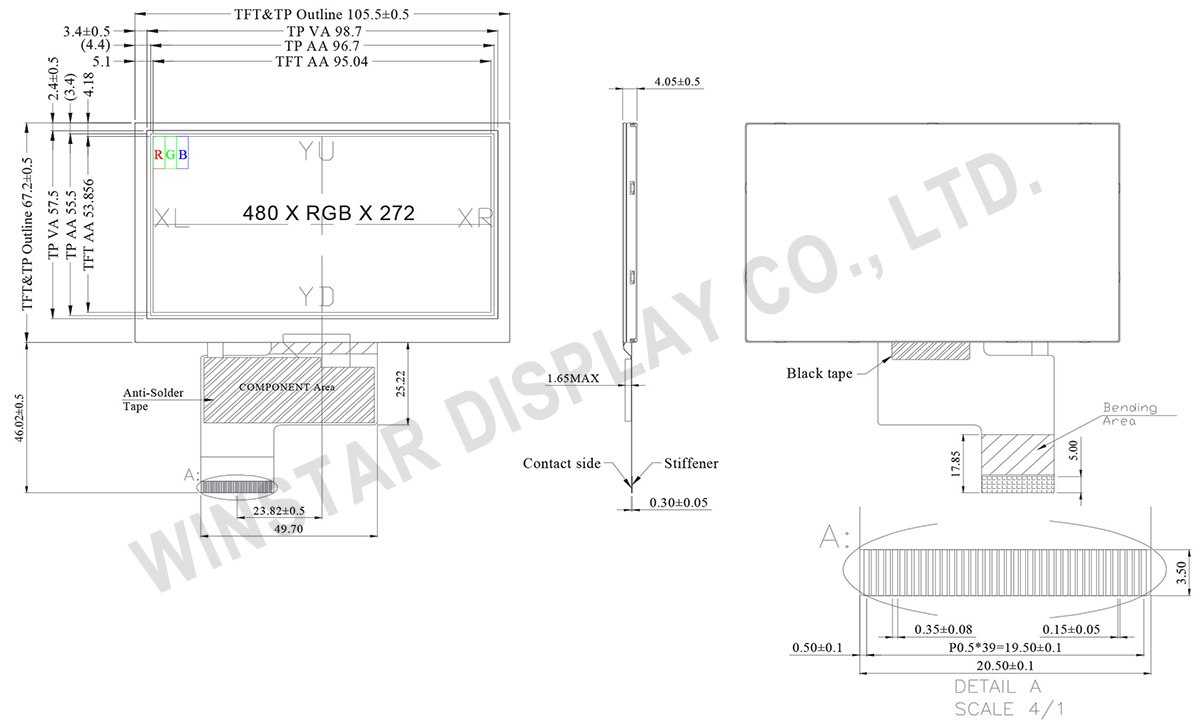

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | GND | Power ground |
| 4 | VDD | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6~11 | R1~R6 | Red data |
| 12 | R7 | Red data (MSB) |
| 13 | G0 | Green data (LSB) |
| 14~19 | G1~G6 | Green data |
| 20 | G7 | Green data (MSB) |
| 21 | B0 | Blue data (LSB) |
| 22~27 | B1~B6 | Blue data |
| 28 | B7 | Blue data (MSB) |
| 29 | GND | Power ground |
| 30 | CLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal; negative polarity |
| 33 | VSYNC | Vertical sync signal; negative polarity |
| 34 | DE | Data Enable |
| 35 | NC | No connection |
| 36 | GND | Power ground |
| 37 | XR | Right electrode |
| 38 | YD | Down electrode |
| 39 | XL | Left electrode |
| 40 | YU | Top electrode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 4.3 | inch |
| Dot Matrix | 480 × RGB × 272 (TFT) | dots |
| Module dimension | 105.5(W) × 67.2(H) × 4.05(D) | mm |
| Active area | 95.04 × 53.856 | mm |
| Dot pitch | 0.066 × 0.198 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| TFT Driver IC | ST7282 | |
| Interface | 24-bit RGB | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Resistive Touch Panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD | - | 3.1 | 3.3 | 3.5 | V |
| Digital operation current | IDD | - | - | 22 | 33 | mA |
