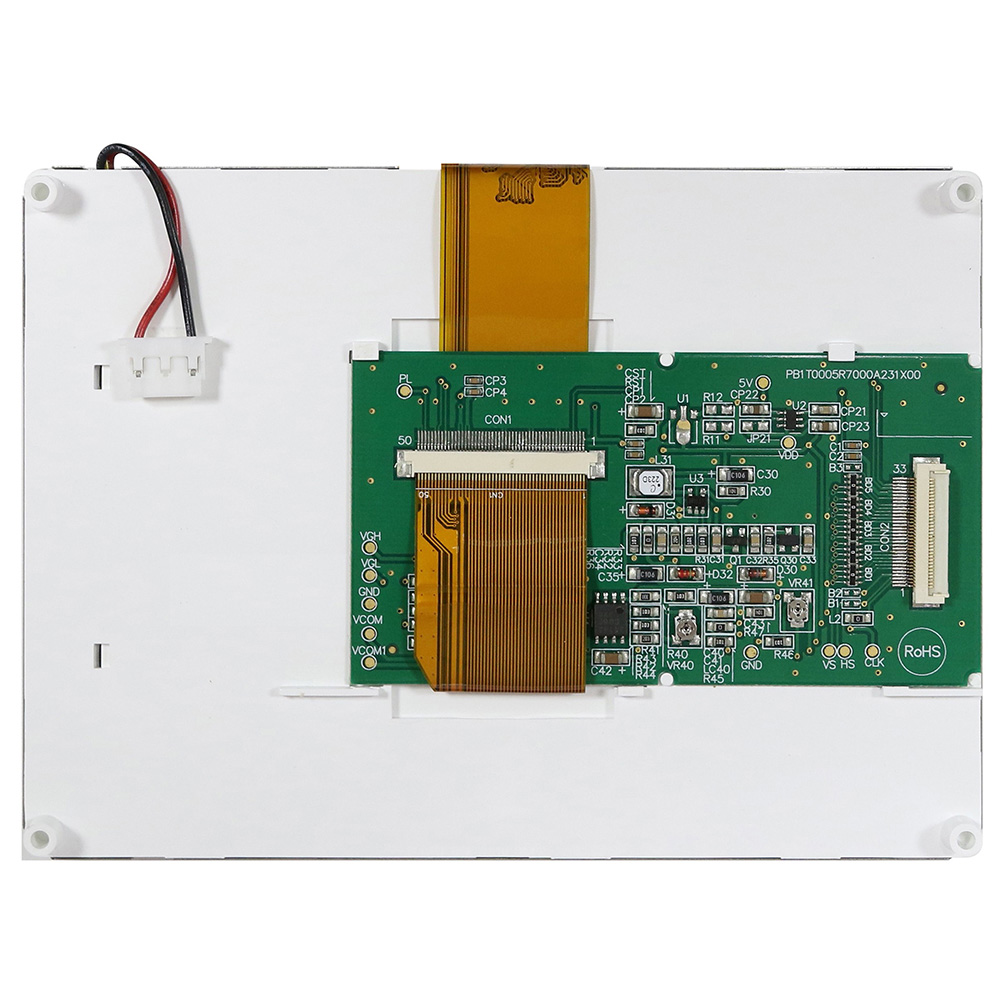

Interface
| Pin |
Symbol |
Function |
| 1 |
GND |
Ground |
| 2 |
CK |
Clock signal for sampling each data signal |
| 3 |
Hsync |
Horizontal synchronous signal |
| 4 |
Vsync |
Vertical synchronous signal |
| 5 |
GND |
Ground |
| 6 |
R0 |
Red Data bit(LSB) |
| 7~10 |
R1~R4 |
Red Data bit |
| 11 |
R5 |
Red Data bit(MSB) |
| 12 |
GND |
Ground |
| 13 |
G0 |
Green Data bit(LSB) |
| 14~17 |
G1~G4 |
Green Data bit |
| 18 |
G5 |
Green Data bit(MSB) |
| 19 |
GND |
Ground |
| 20 |
B0 |
Blue Data bit(LSB) |
| 21~24 |
B1~B4 |
Blue Data bit |
| 25 |
B5 |
Blue Data bit(MSB) |
| 26 |
GND |
Ground |
| 27 |
NC |
No connect |
| 28~29 |
VCC |
+3.3V power supply |
| 30 |
R/L |
Selection signal for horizontal scanning direction (L: Normally H: Right-and-left reversal) |
| 31 |
U/D |
Selection signal for vertical scanning direction (H: Normally L: Up-and-Down reversal) |
| 32 |
NC |
No connect |
| 33 |
GND |
Ground |

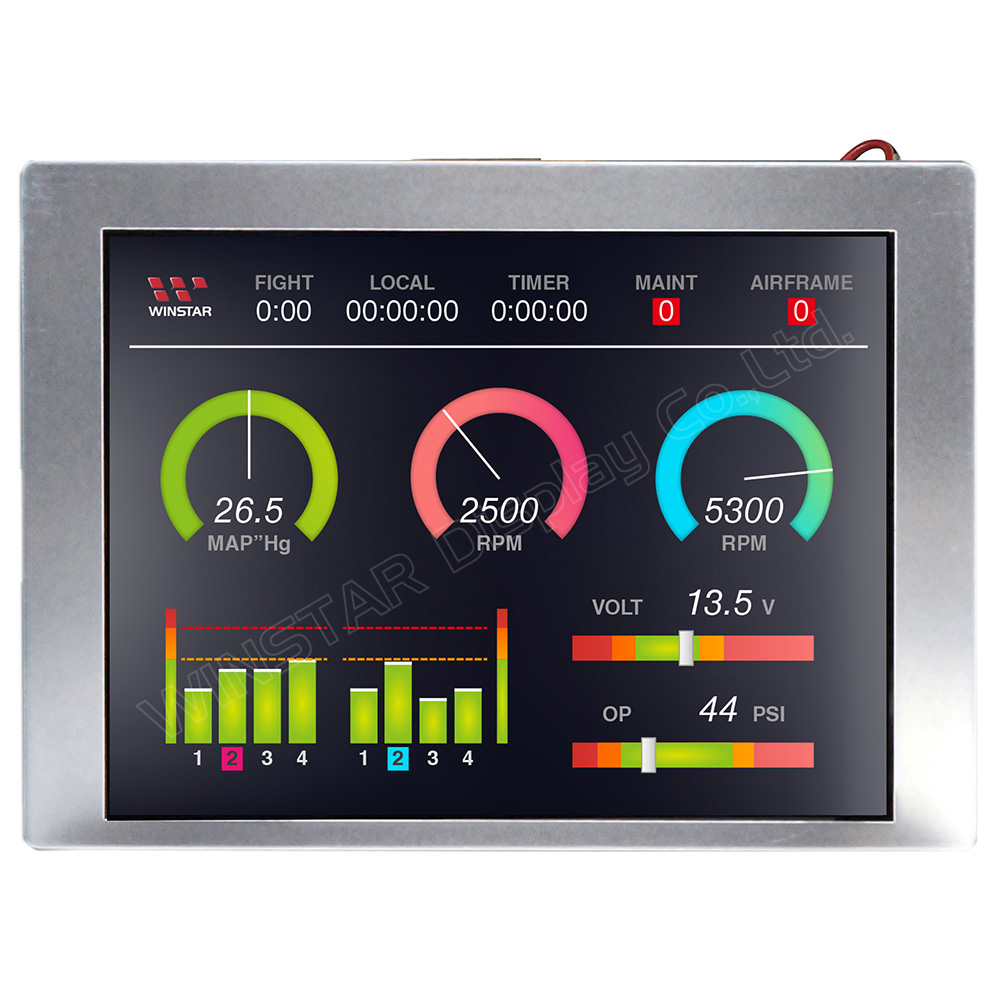

General Specifications
| Item |
Dimension |
Unit |
| Size |
5.7 |
inch |
| Dot Matrix |
320 × RGB × 240 (TFT) |
dots |
| Module dimension |
143.5 × 104.1 × 12.35 |
mm |
| Active area |
115.2 × 86.4 |
mm |
| Dot pitch |
0.12 × 0.36 |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| View direction |
6 o'clock |
| Gray Scale Inversion direction |
12 o'clock |
| Aspect Ratio |
4:3 |
| Backlight Type |
LED, Normally White |
| Touch Panel |
Without touch panel |
| Surface |
Glare |
Absolute Maximum Ratings
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
Electrical Characteristics
| Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Supply Voltage For LCM |
VCC |
－ |
3.0 |
3.3 |
3.6 |
V |
| Supply Current For LCM |
ICC |
－ |
－ |
110 |
170 |
mA |
| Power Consumption |
－ |
－ |
－ |
363 |
612 |
mW |
