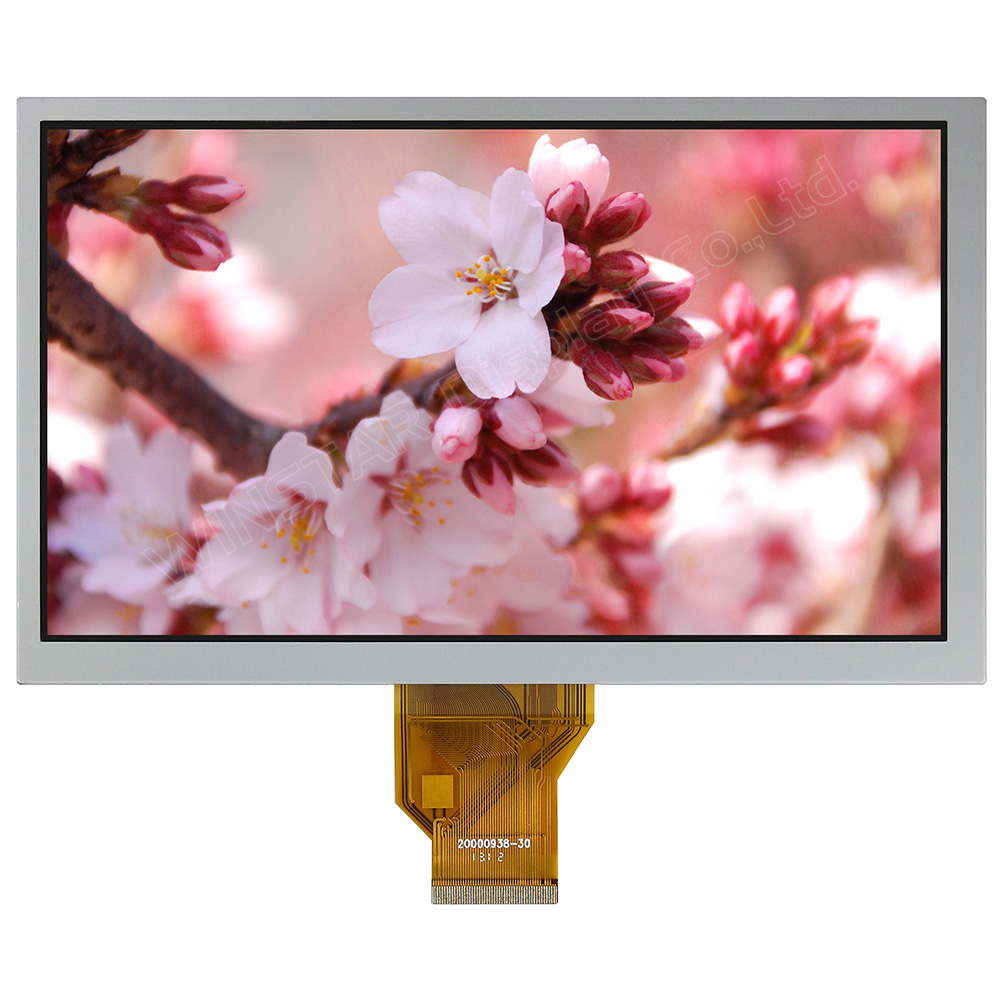

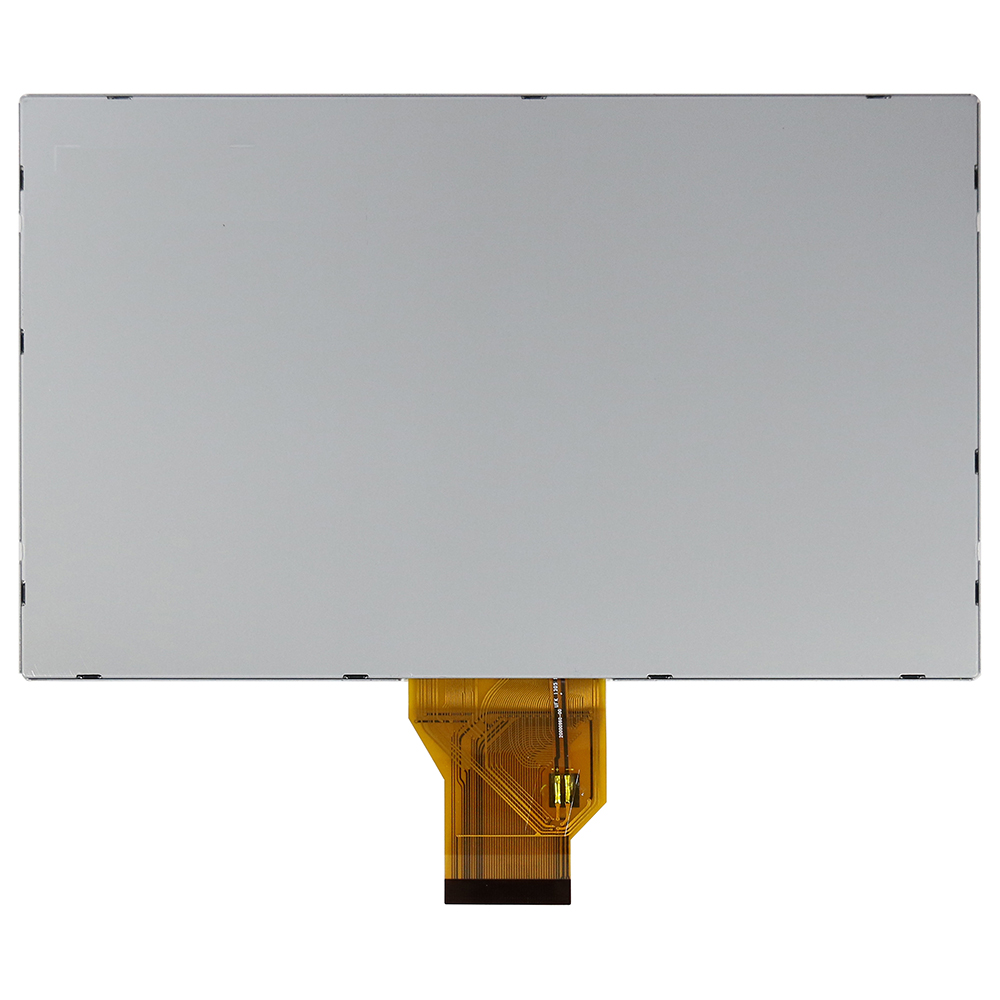

8" TFT LCD Display ( Wide Temperature)

Model No. WF80BTIAGDNN0

►8" TFT LCD Display
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►IC Part No.: --
►Control-Board : No
►Brightness(cd/m²) : 450
►Frame Through Hole : No
►Touch Screen : No
►Operating Temperature : -30~+85°C

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

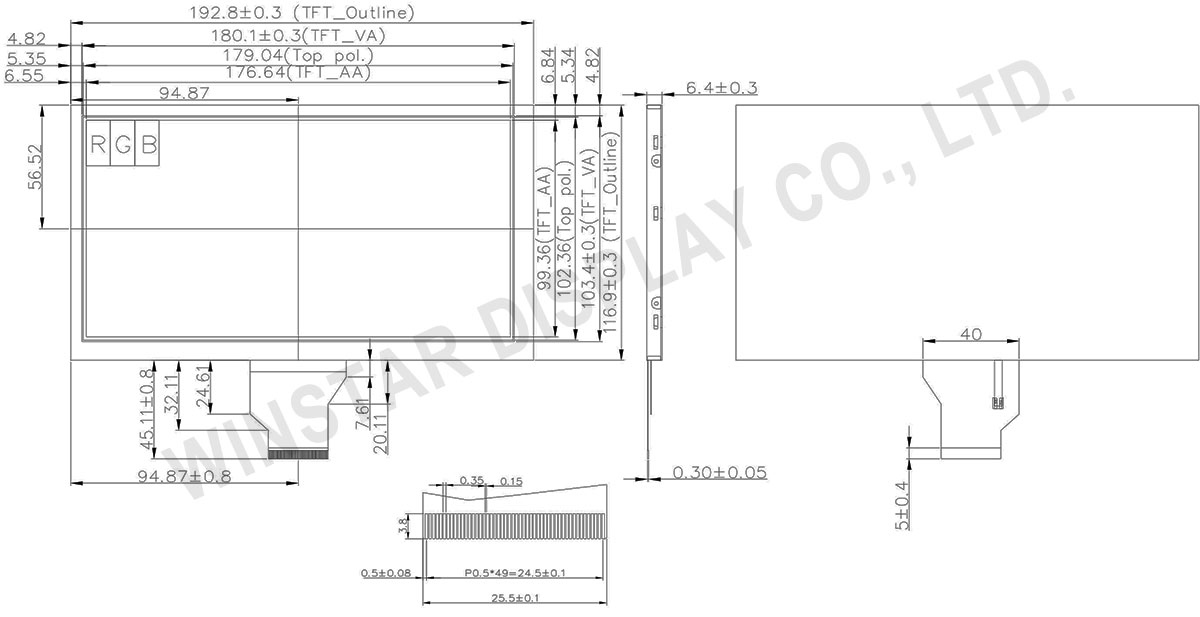

DRAWING

8 TFT LCD, 8 TFT Display - WF80BTIAGDNN0 - Winstar Display

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	I/O	Function
1	VLED+	P	Power for LED backlight(Anode)
2	VLED+	P	Power for LED backlight(Anode)
3	VLED-	P	Power for LED backlight(Cathode)
4	VLED-	P	Power for LED backlight(Cathode)
5	GND	P	Power ground
6	VCOM	I	Common voltage
7	VCC	P	Power for Digital Circuit
8	MODE	I	DE/SYNC mode select
9	DE	I	Data Input Enable
10	VS	I	Vertical Sync Input
11	HS	I	Horizontal Sync Input
12	B7	I	Blue data(MSB)
13	B6	I	Blue data
14	B5	I	Blue data
15	B4	I	Blue data
16	B3	I	Blue data
17	B2	I	Blue data
18	B1	I	Blue data
19	B0	I	Blue data(LSB)
20	G7	I	Green data(MSB)
21	G6	I	Green data
22	G5	I	Green data
23	G4	I	Green data
24	G3	I	Green data
25	G2	I	Green data
26	G1	I	Green data
27	G0	I	Green data(LSB)
28	R7	I	Red data(MSB)
29	R6	I	Red data
30	R5	I	Red data
31	R4	I	Red data
32	R3	I	Red data
33	R2	I	Red data
34	R1	I	Red data
35	R0	I	Red data(LSB)
36	GND	P	Power Ground
37	DCLK	I	Sample clock
38	GND	P	Power Ground
39	L/R	I	Left / right selection
40	U/D	I	Up/down selection
41	VGH	P	Gate ON Voltage
42	VGL	P	Gate OFF Voltage
43	AVDD	P	Power for Analog Circuit
44	RESET	I	Global reset pin.
45	NC	-	No connection
46	VCOM	I	Common Voltage
47	DITHB	I	Dithering function
48	GND	P	Power Ground
49	NC	-	No connection
50	NC	-	No connection

I: input, O: output, P: Power

General Specifications

Item	Dimension	Unit
Size	8	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	192.80 × 116.90 × 6.4	mm
Active area	176.64 × 99.36	mm
Dot pitch	0.0736 × 0.2070	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Touch Screen	Without touch screen
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+85	℃
Storage Temperature	TST	-30	－	+85	℃
Power voltage	VCC	-0.3	－	5.0	V
	AVDD	6.5	－	13.5	V
	VGH	-0.3	－	40.0	V
	VGL	-20.0	－	0.3	V
	VGH-VGL	-	－	40.0	V

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Power voltage	VCC	3.0	3.3	3.6	V
	AVDD	10.2	10.4	10.6	V
	VGH	15.3	16.0	16.7	V
	VGL	-7.7	-7.0	-6.3	V
Input signal voltage	VCOM	3.4	4.4	5.4	V
