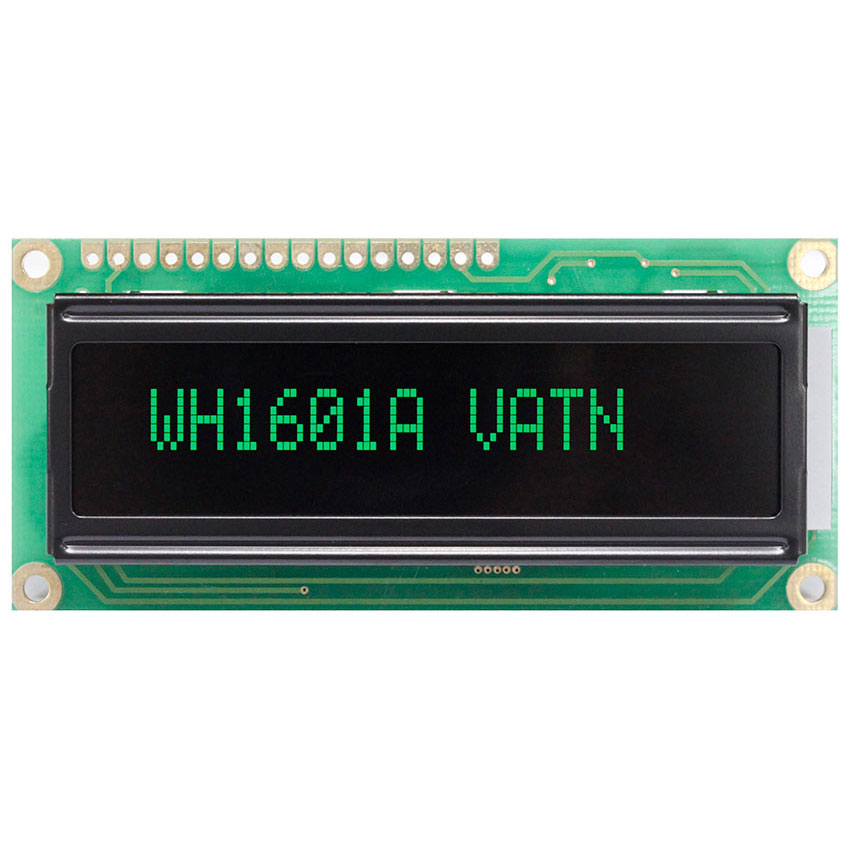

16x1 Highlight Green Backlight VATN LCD
Model No. WH1601A-GLL
►16 Character x 1 line LCD Display
►5x8 dots includes cursor
►Bulit-in controller (RW1063 or Equivalent)
►+5V power supply only
►1/16 duty cycle
►LED type : Green LCD
►LED can be driven by PIN1, PIN2 or K
►Interface : Option 6800, SPI, I2C
DESCRIPTION
WH1601A-GLL is a 16 character by 1 line lcd display, Green LED, ST7066 controller, LEDs can be driven by pin 1, pin 2, 5V power supply and optional 6800 / SPI / I2C interface. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications. Below are the examples for reference.
- Industrial: Automotive application, Digital meter, UPS
- Medical: medical device & medical equipment
- Home appliance: audio, coffee machine, microwave oven
- Automobile: dashboard, car audio
- VATN WH1601A: Parallel interface (RW1063 IC)
- VATN WH1601A1: SPI interface (RW1063 IC)
- VATN WH1601A2: I2C interface (RW1063 IC)
DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/ Instruction select signal |
| 5 | R/W | Read/Write select signal |
| 6 | E | Enable signal |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | VEE | Negative Voltage Output |
| 16 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 80.0 × 36.0 | mm |
| Viewing Area | 66.0 × 16.0 | mm |
| Mounting Hole | 75.0 × 31.0 | mm |
| Character Size | 3.07 × 6.56 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 6.50 | V |
Display Character Address Code
| Display position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DD RAM Address | 00 | 01 | 07 | 40 | 41 | 47 |
