Character LCD Display 16x2

Model No. WH1602M

►Character LCD 16x2
►5x8 dots includes cursor
►Bulit-in controller (ST7066 or Equivalent)
►+5V power supply (Also available for +3V)
►Negative voltage optional for +3V power supply
►1/16 duty cycle
►LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
►Interface : 6800, option SPI/I2C (RW1063 IC)

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

Winstar WH1602M is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602M is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH1602M series, details as below:
►WH1602M : 6800 interface (ST7066 IC)
►WH1602M1 : SPI interface (RW1063 IC)
►WH1602M2 : I2C interface (RW1063 IC)

DRAWING

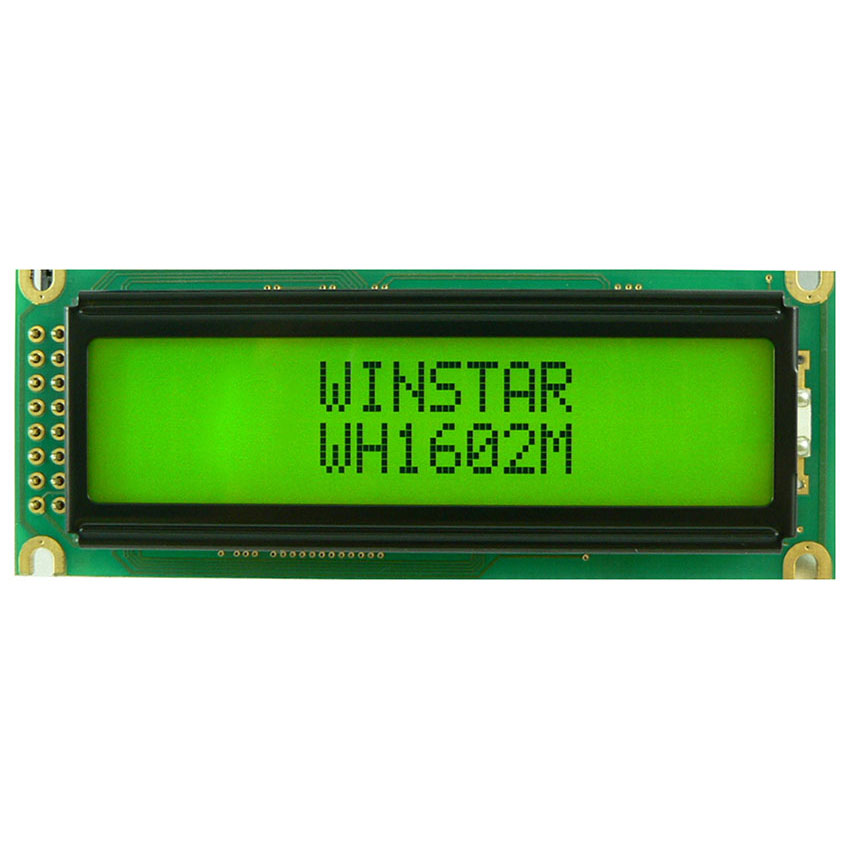

Winstar WH1602M Character LCD Display 16x2

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	V_O	Contrast Adjustment
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -
