160x128 LCD Display Graphic
Model No. WG160128C
►160x128 Graphic LCD
►Built-in controller RA6963
►+5V power supply
►1/128 duty cycle
►Optional Negative Voltage
►Interface: 8080
DESCRIPTION
WG160128C is a monochrome graphic 160x128 LCD module which is having the module dimension of 150x111 mm and AA size of 95.96x75.76 mm. This WG160128C model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This 160x128 lcd display is available for graphic mode or Character Generator mode (Character font) optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

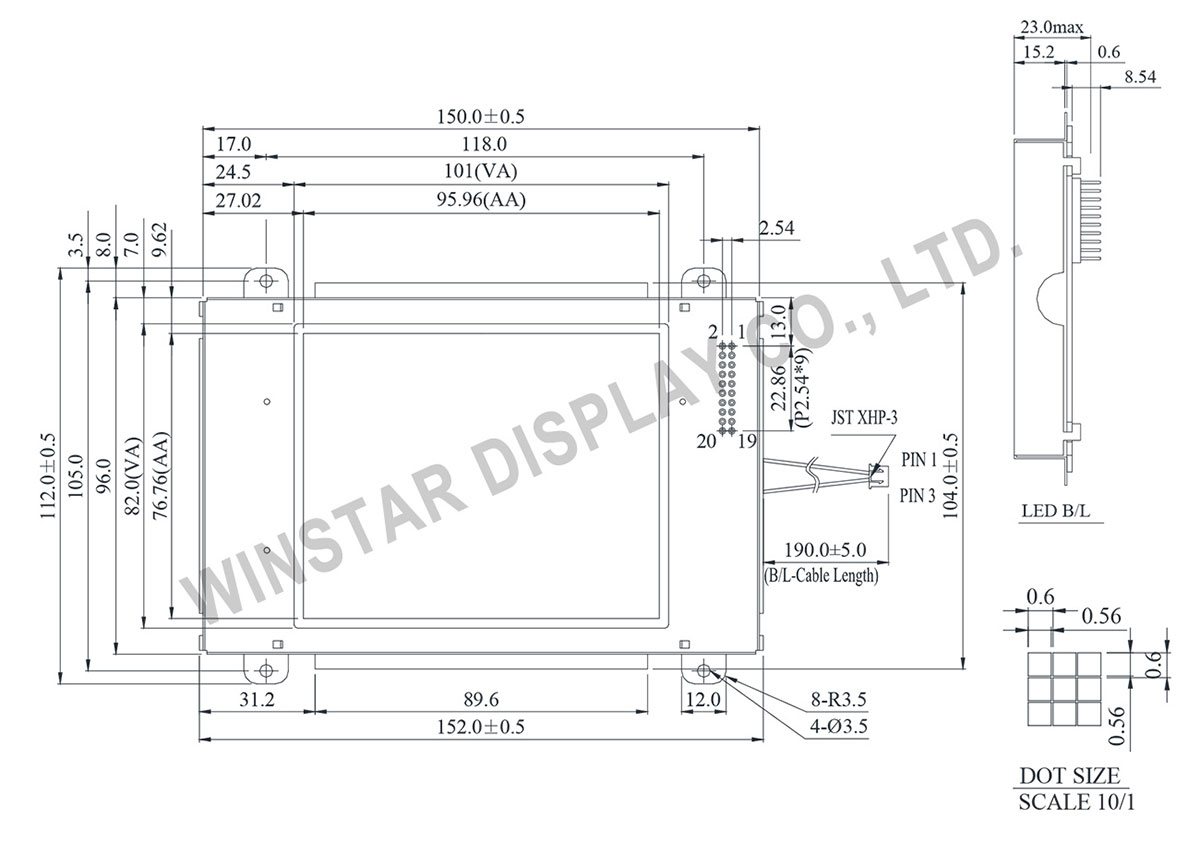

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | FG | Frame ground |
| 2 | Vss | Ground |
| 3 | Vdd | Power supply for logic |
| 4 | Vo | Contrast Adjustment |
| 5 | Vee | Negative Voltage Output |
| 6 | /WR | Data write. Write data into LCD Controller |
| 7 | /RD | Data read. Read data from LCD Controller |
| 8 | /CE | Enable signal |
| 9 | C/D | Data/ Instruction select signal |
| 10 | /HALT | Clock operating stop signal |
| 11 | /RESET | Controller reset signal, Active Low |
| 12~19 | DB0~DB7 | Data bus line |
| 20 | NC | No connection |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 150.0 x 112.0 | mm |
| Viewing Area | 101.0 x 82.0 | mm |
| Mounting Hole | 118.0 x 105.0 | mm |
| Dot Pitch | 0.60 x 0.60 | mm |
| Dot Size | 0.56 x 0.56 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 18.95 | V |
