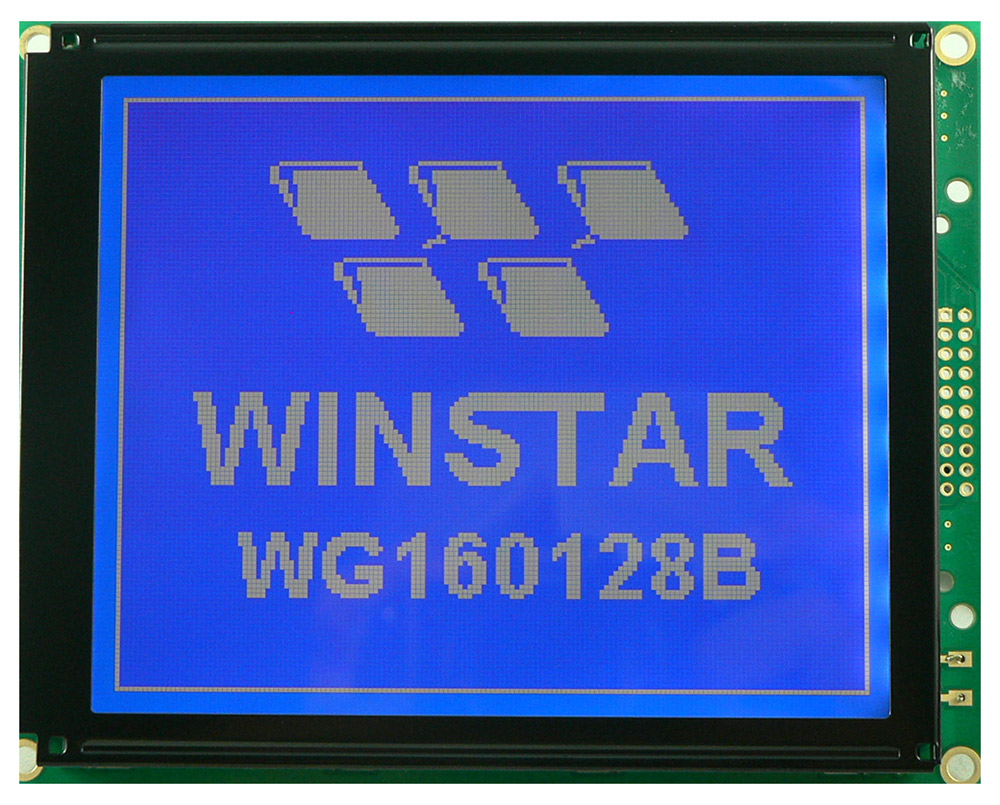

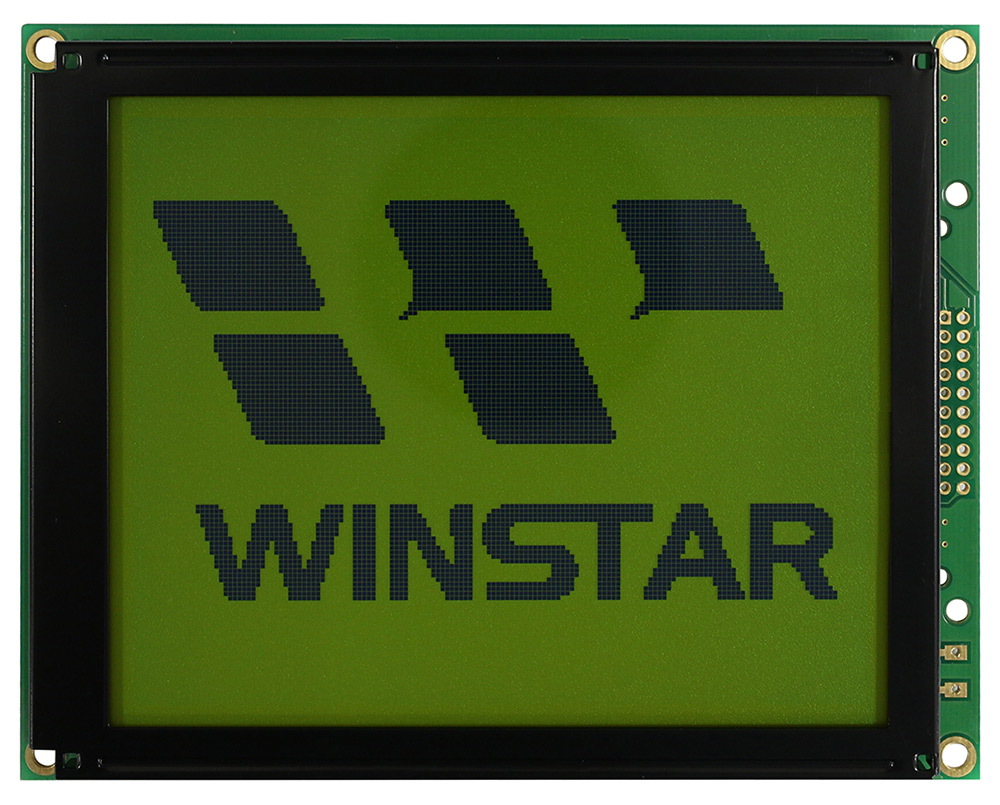

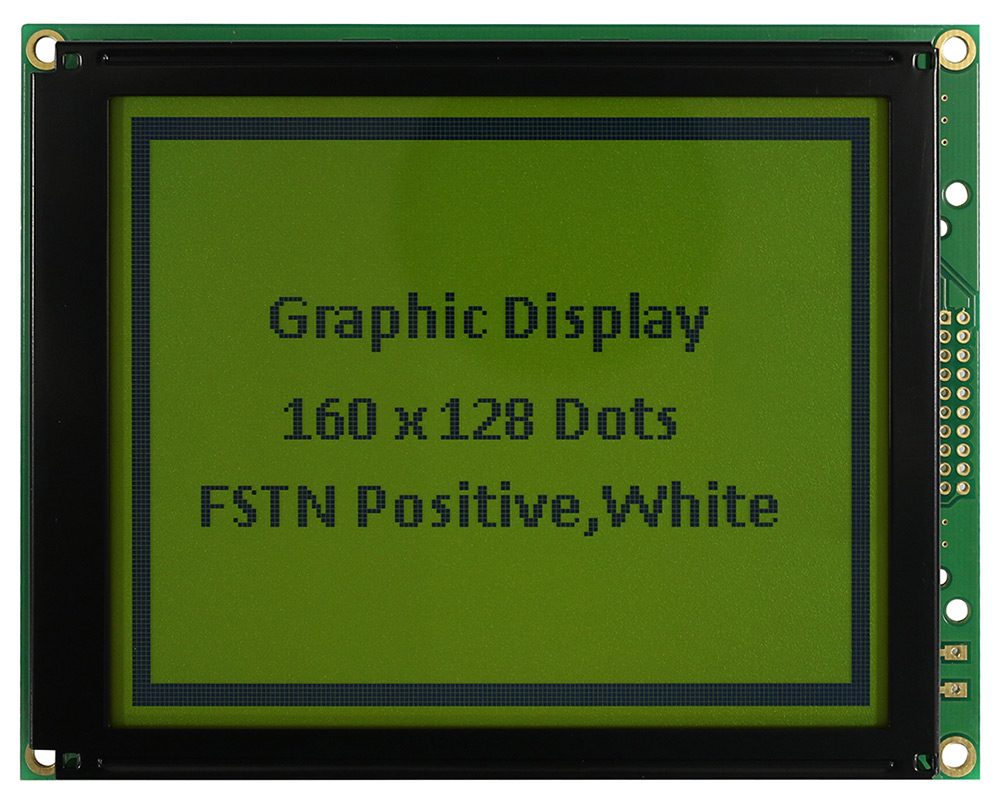

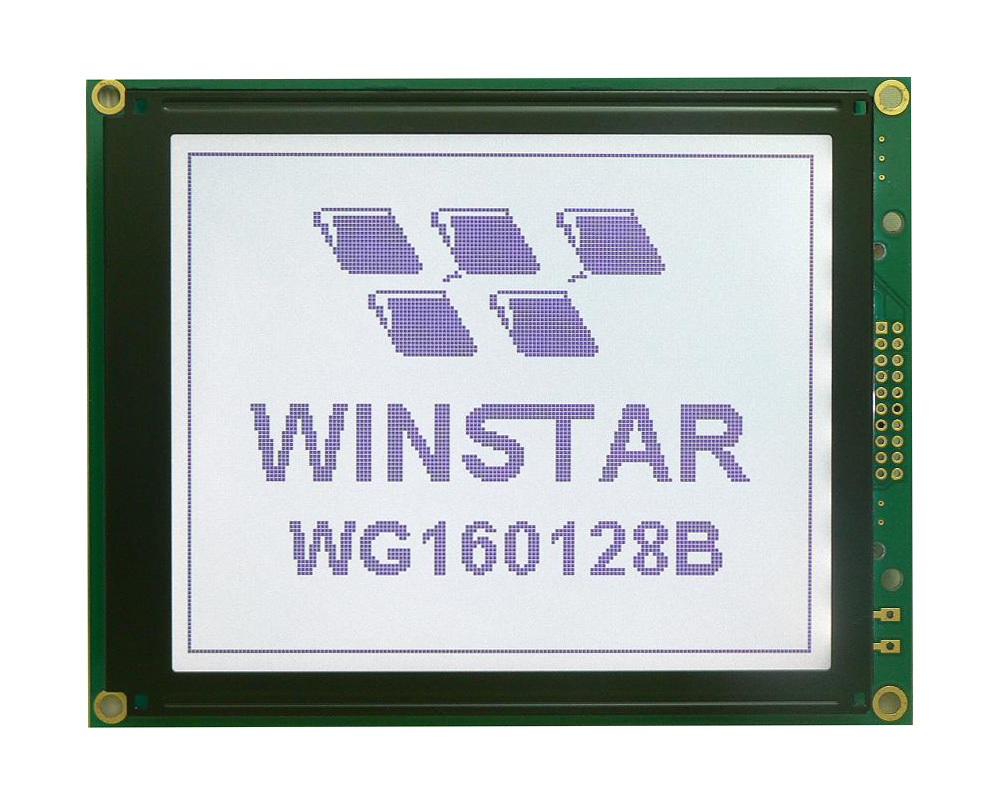

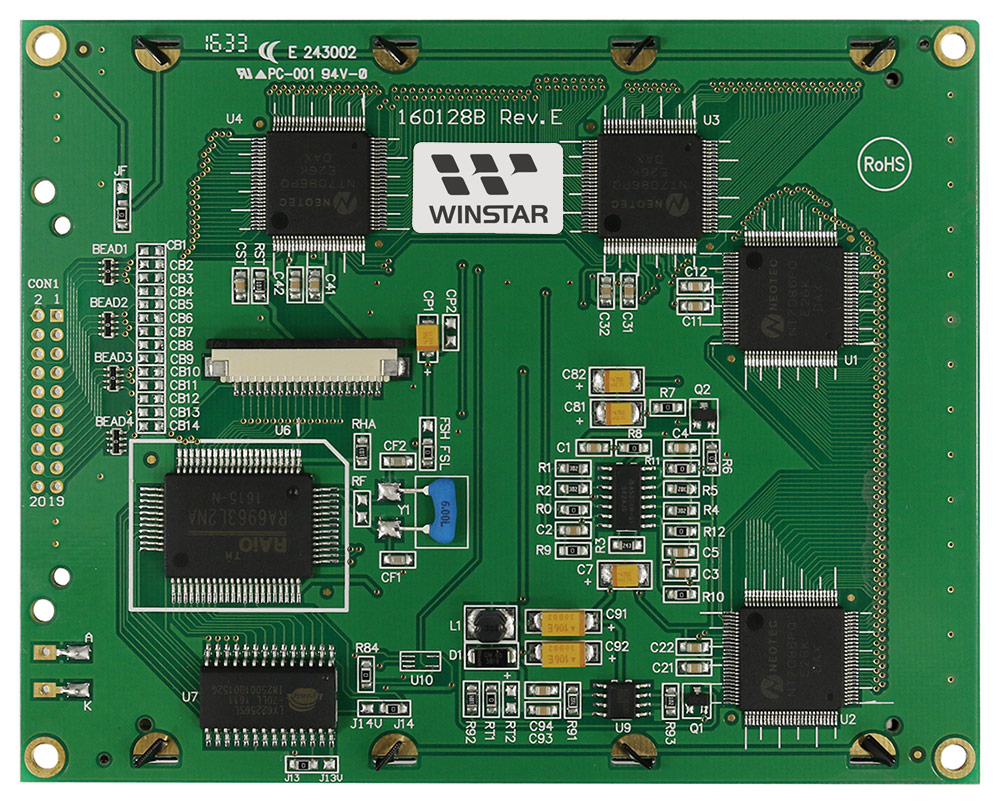

Graphic LCD 160x128, LCD Display 160x128
Model No. WG160128B
►Graphic LCD 160x128
►Built-in controller RA6963
►+5V power supply
►1/128 duty cycle
►Optional Negative Voltage
►Interface: 8080
DESCRIPTION
WG160128B is a monochrome graphic LCD 160x128 dot matrix display module which is having the module dimension of 129x102 mm and AA size of 95.96x75.76 mm. This WG160128B model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply or 3.3V negative voltage optional. This lcd display 160x128 module is available for graphic mode or Character Generator mode (Character font) optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

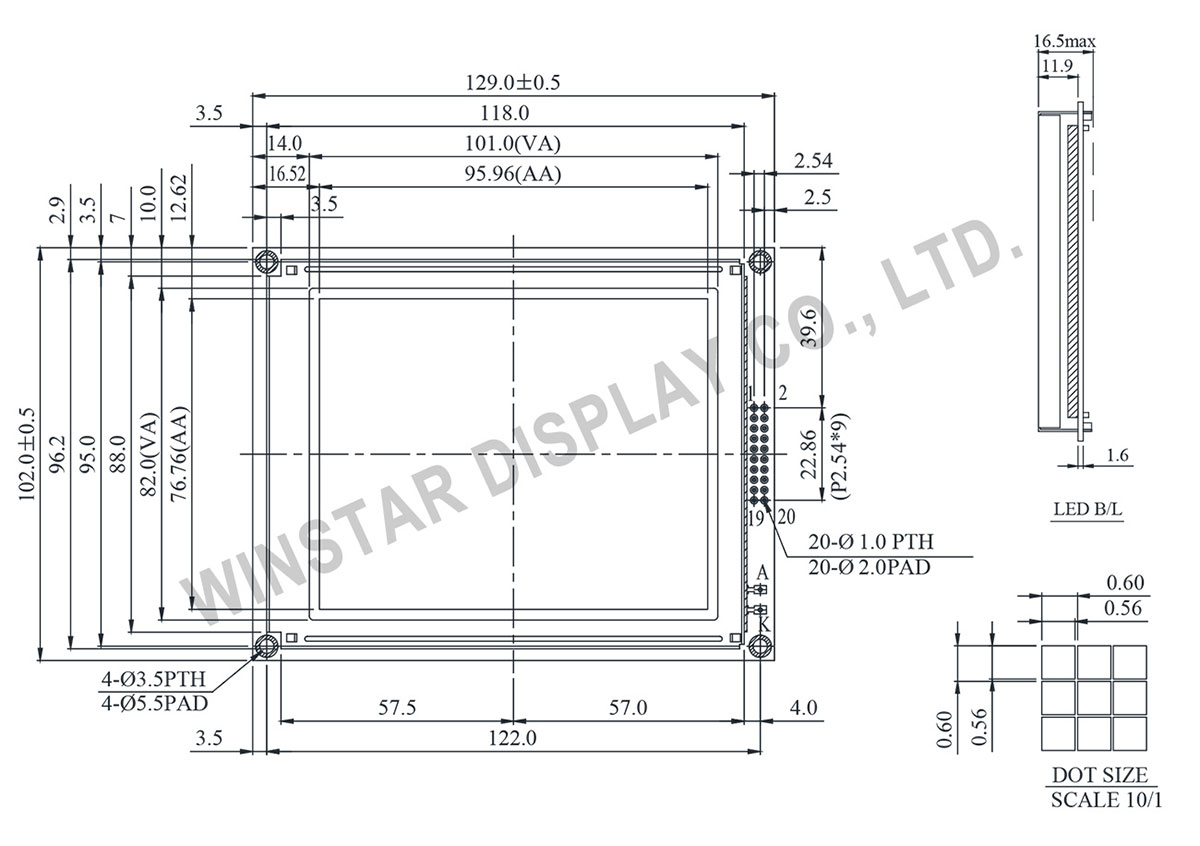

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | FG | Frame ground |
| 2 | VSS | Ground |
| 3 | VDD | Power supply for logic |
| 4 | VO | Contrast Adjustment |
| 5 | VEE | Negative Voltage Output |
| 6 | /WR | Data write. Write data into LCD Controller |
| 7 | /RD | Data read. Read data from LCD Controller |
| 8 | /CE | Enable signal |
| 9 | C/D | Data/ Instruction select signal |
| 10 | /HALT | Clock operating stop signal |
| 11 | /RESET | Controller reset signal, Active Low |
| 12~19 | DB0~DB7 | Data bus line |
| 20 | NC | No connection |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 129.0 × 102.0 | mm |
| Viewing Area | 101.0 × 82.0 | mm |
| Mounting Hole | 122.0 × 96.2 | mm |
| Dot Pitch | 0.60 × 0.60 | mm |
| Dot Size | 0.56 × 0.56 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 19.2 | V |
