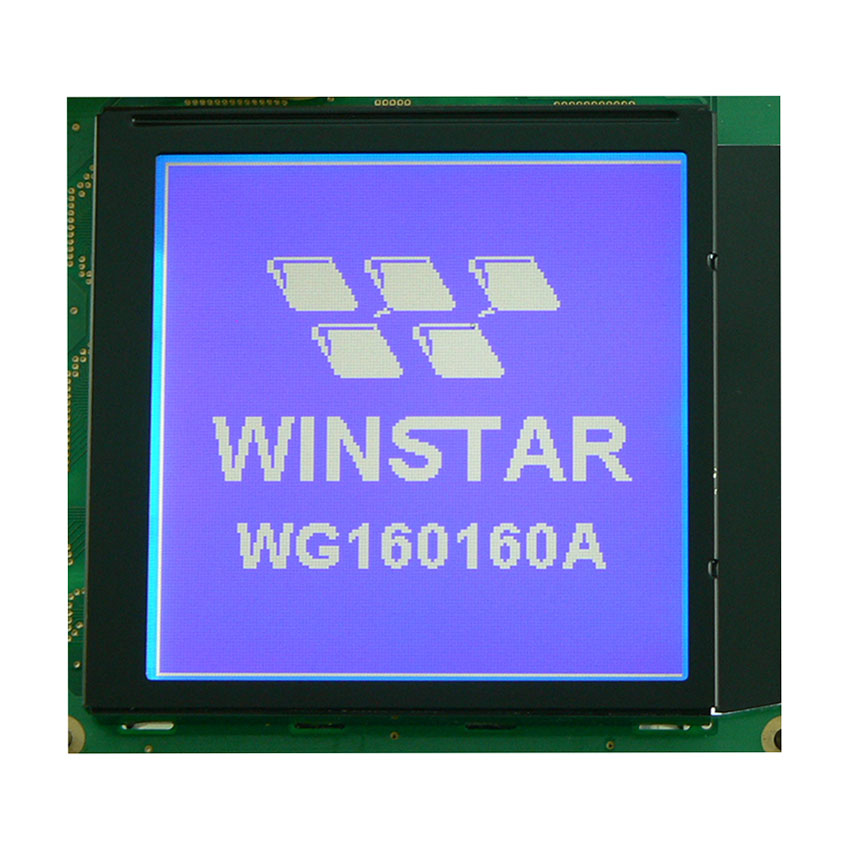

160x160 LCD Graphic Display
Model No. WG160160A
►160x160 LCD Graphic Display
►No controller
►+5V power supply
►1/160 duty cycle
DESCRIPTION
WG160160A is a monochrome graphic 160x160 LCD module which is having the module dimension of 89.28x85 mm and AA size of 60.76x60.76 mm. This WG160160A model is without controller on module. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | M | Frame reverse signal(alternate signal) |
| 3 | FLM | Scan start-up signal |
| 4 | CL1 | Data latch pulse |
| 5 | CL2 | Data shift pulse |
| 6~9 | DB3~DB0 | Data bus line |
| 10 | VEE | Negative Voltage Output |
| 11 | VDD | Power supply for logic |
| 12 | VO | Contrast Adjustment |
| 13 | DISP OFF | Display off H:ON L:OFF |
| 14 | A | Power supply for B/L + |
| 15 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 89.2 × 85.0 | mm |
| Viewing Area | 62.0 × 62.0 | mm |
| Mounting Hole | 84.2 × 80.0 | mm |
| Dot Pitch | 0.38 × 0.38 | mm |
| Dot Size | 0.36 × 0.36 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 18.75 | V |
