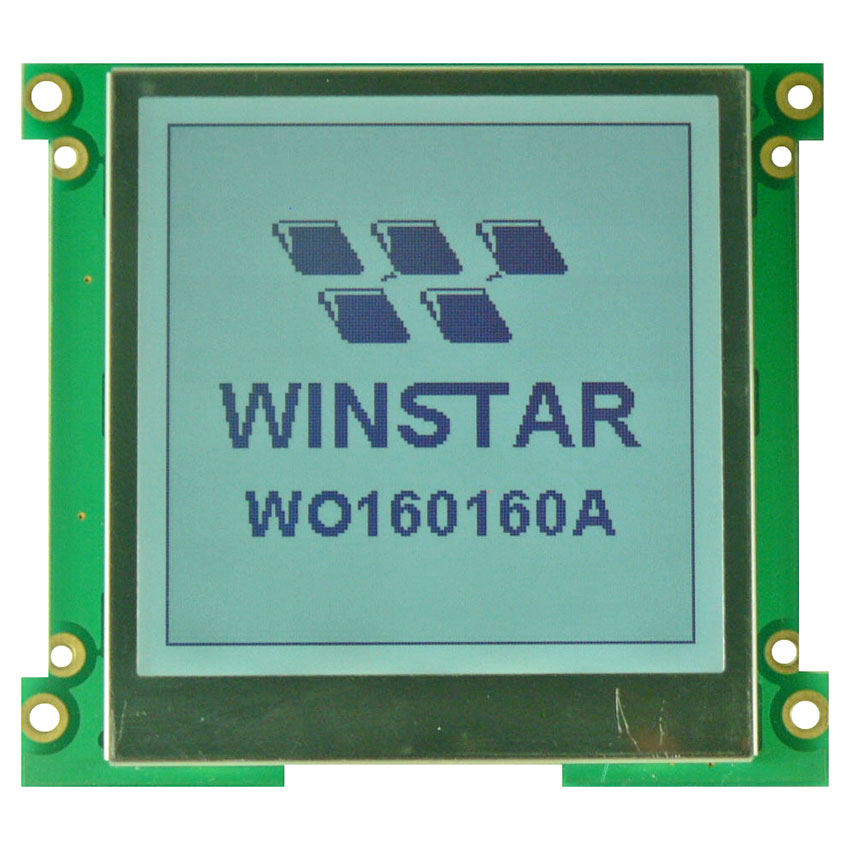

160x160 COG LCD Display
Model No. WO160160A
►COG LCD Display
►Graphic LCD
►160 x 160 dots includes cursor
►Built-in controller UC1698U
►3.3V power supply
►1/160 duty cycle
►Interface : 6800/8080

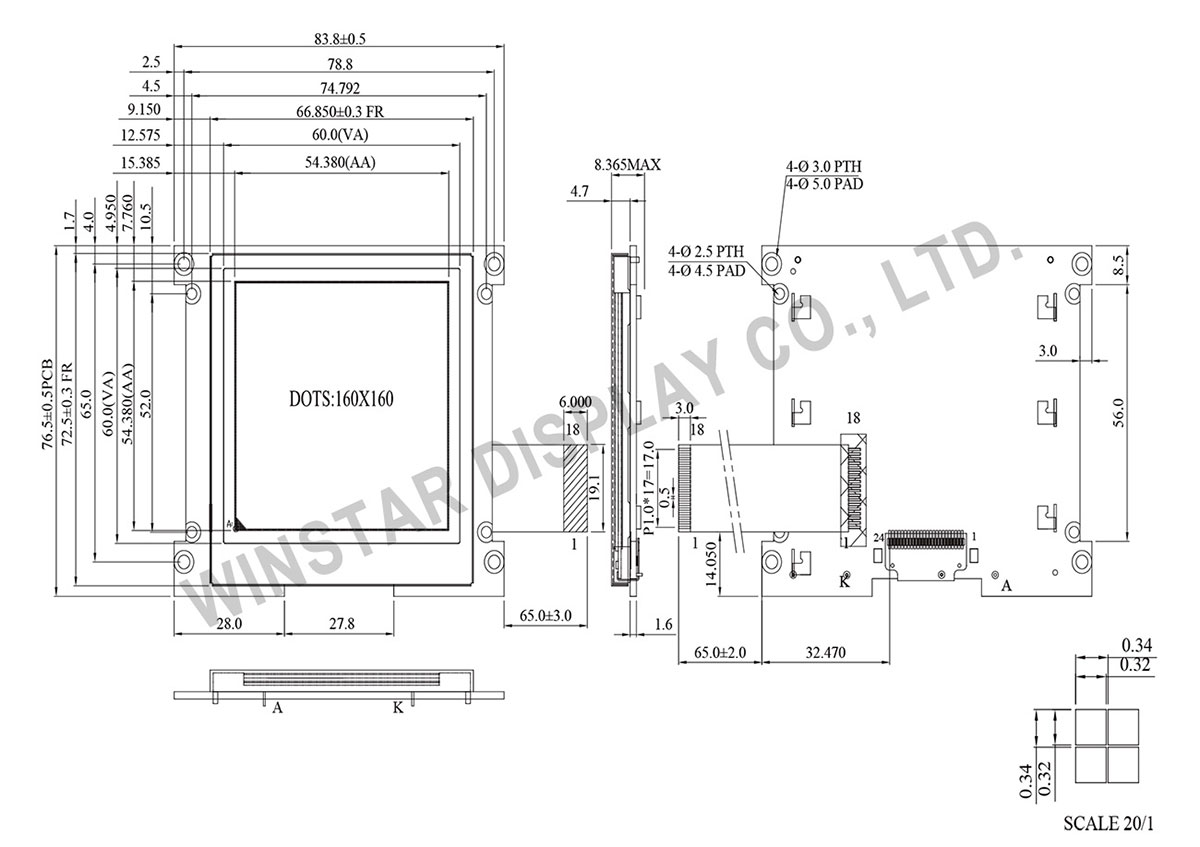

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | A0 | Data/ Instruction select signal |
| 3 | WR | Data write. Write data into LCD Controller |
| 4 | RD | Data read. Read data from LCD Controller |
| 5 | XCS | Chip select input pins |
| 6 | RST | Controller reset signal, Active Low |
| 7 | VDD | Power supply for logic |
| 8~15 | DB0~DB7 | Data bus line |
| 16 | LED- | Power supply for B/L - |
| 17 | NC | No connection |
| 18 | LED+ | Power supply for B/L + |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 83.8 × 76.5 | mm |
| Viewing Area | 60.0 × 60.0 | mm |
| Mounting Hole | 78.8 × 65.0 | mm |
| Dot Pitch | 0.34 × 0.34 | mm |
| Dot Size | 0.32 × 0.32 | mm |
Electrical Characteristics
| Item | Symbol | Standard value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
Vo-Vss | 16.5 | V |
