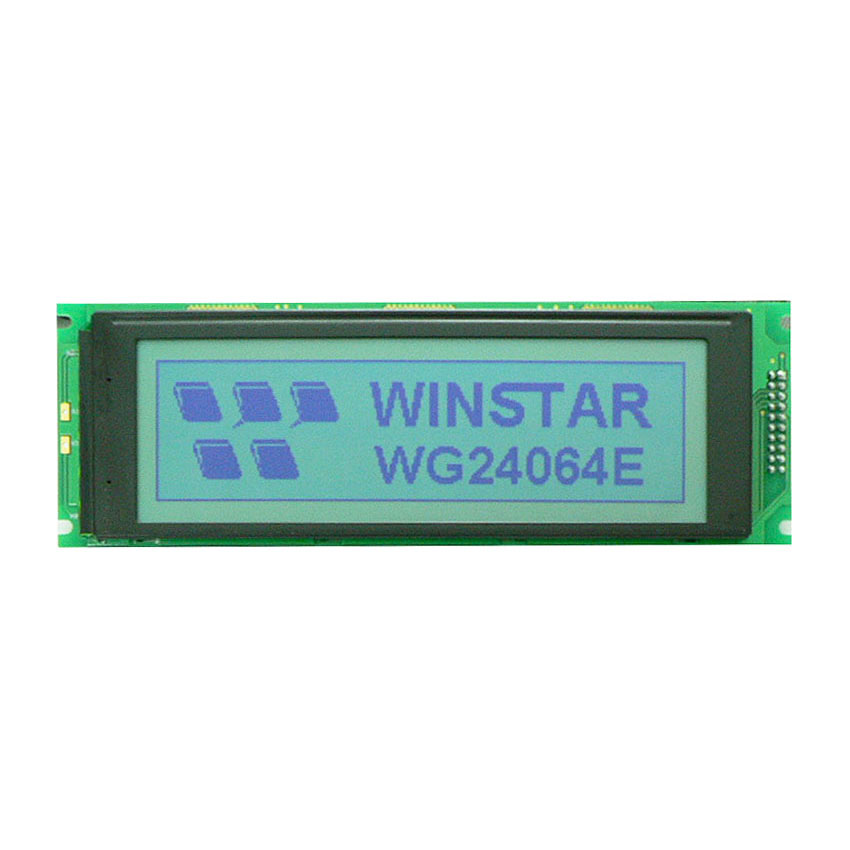

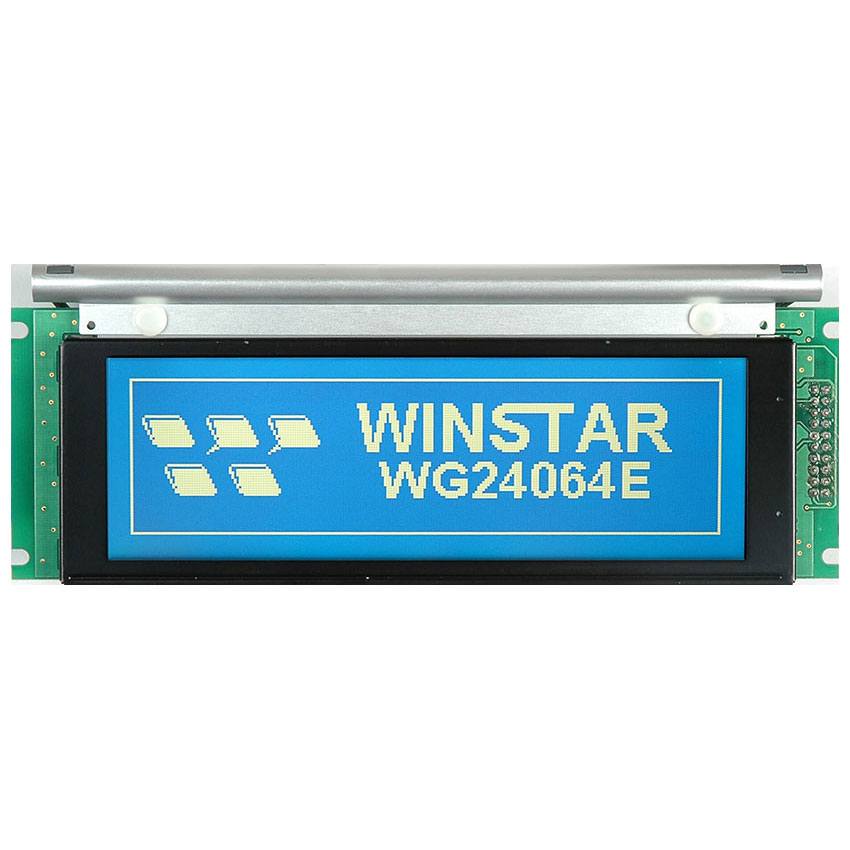

240x64 Graphic LCD Module
Model No. WG24064E
►Graphic LCD 240x64
►240 x 64 dots
►Controller (RA6963 or equivalent)
►Built-in negative voltage option
►1/64 duty cycle
►Interface: 8080
DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | FG | Frame ground |
| 2 | VSS | Ground |
| 3 | VDD | Power supply for logic |
| 4 | VO | Contrast Adjustment |
| 5 | /WR | Data write. Write data into LCD Controller |
| 6 | /RD | Data read. Read data from LCD Controller |
| 7 | /CE | Enable signal |
| 8 | C/D | Data/ Instruction select signal |
| 9 | VEE | Negative Voltage Output |
| 10 | /RESET | Controller reset signal, Active Low |
| 11~18 | DB0~DB7 | Data bus line |
| 19 | FS | Selection of font; H : 6 * 8 , L : 8 * 8 |
| 20 | NC / LED K | No connection /Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 180.0 × 60.0 | mm |
| Viewing Area | 137.0 × 38.0 | mm |
| Mounting Hole | 176.0 × 50.0 | mm |
| Dot Pitch | 0.53 × 0.53 | mm |
| Dot Size | 0.50 × 0.50 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3/5 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 13.25 | V |
