4.9" OLED Graphic Display 200x16
Model No. WEG020016A
►Type: Graphic
►Structure: COB
►Size: 4.9 inch
►200 x 16 Dot Matrix
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080, SPI

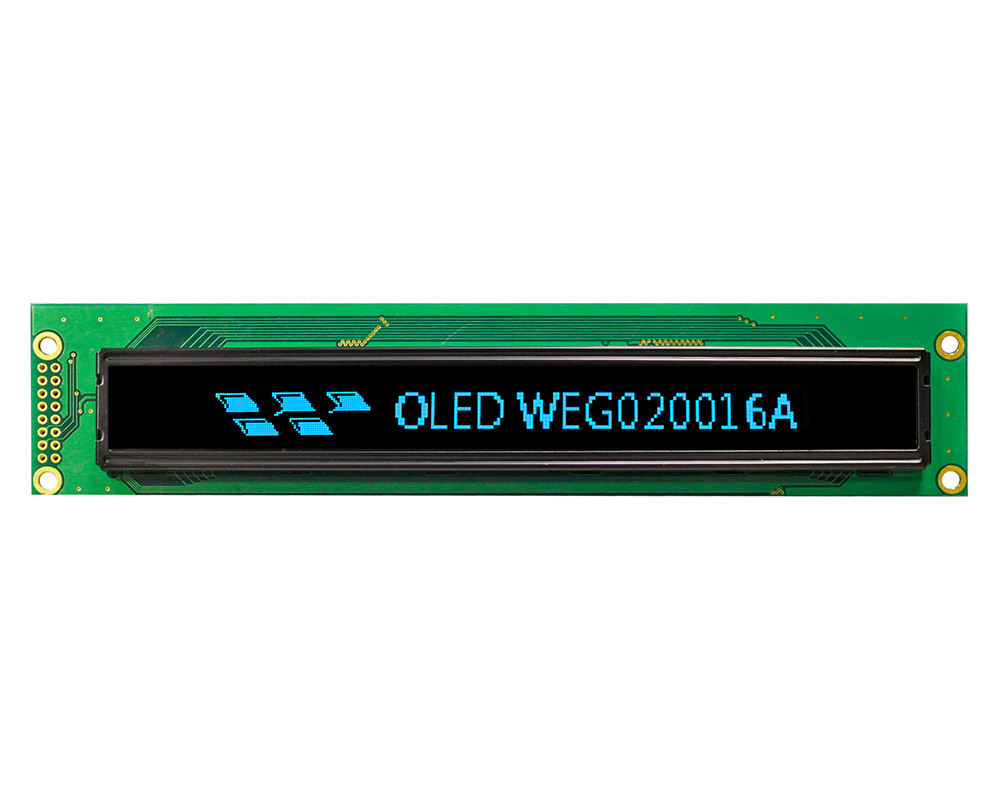

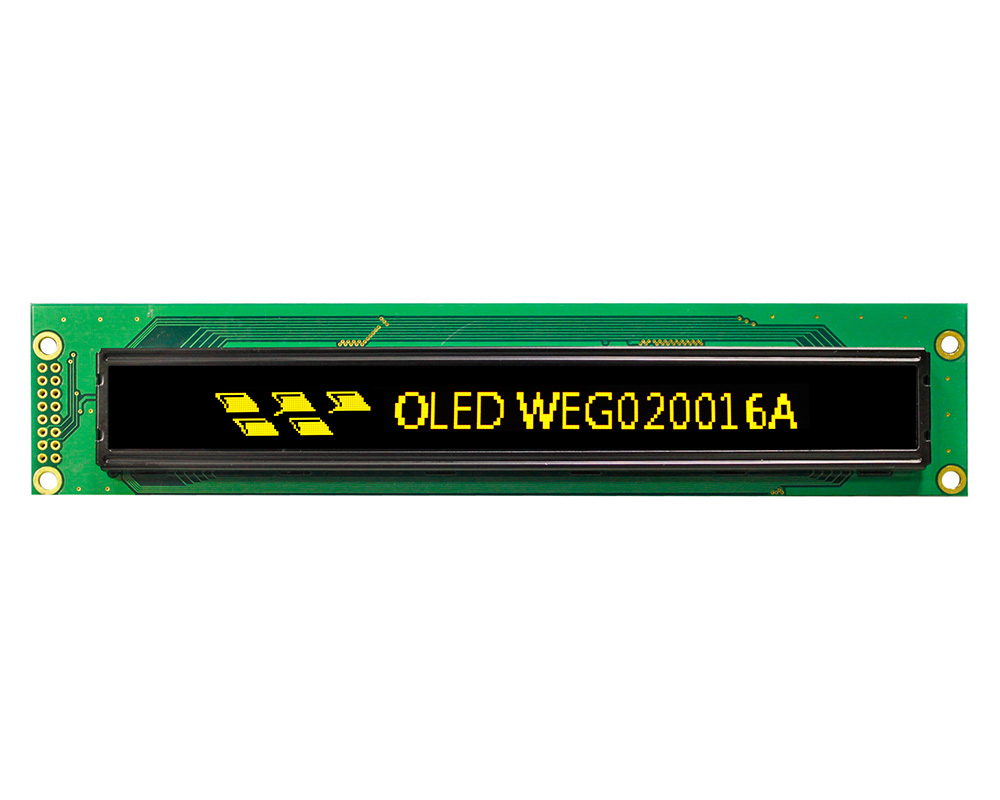

►Display Color: White / Yellow / Sky Blue
DESCRIPTION
Winstar OLED standard items of WEG020016A which have the same outline size, VA size and pin out as Winstar STN LCD standard item of WH4002A. It is easy for the customers to upgrade your applications from LCD modules to OLED modules. WEG020016A is the equivalent Graphic type of WEH004002A. If your applications need Graphic mode to display the contents, you can choose WEG020016A which featured with display format of 200x16 dots.

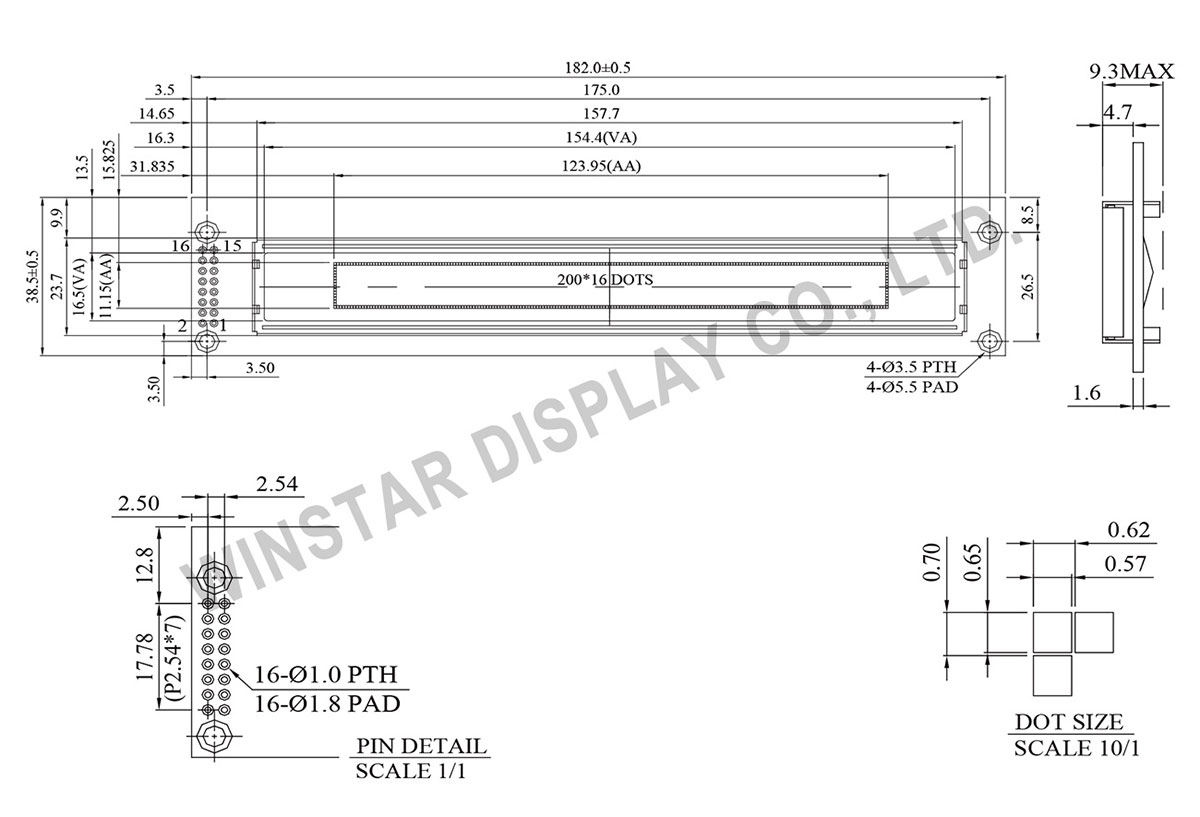

DRAWING
Data source ref: WEG020016ALPP5N00000
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | CS1~CS2 | Chip select pin |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 182.0 × 38.5 | mm |
| Viewing area | 154.4 × 16.5 | mm |
| Active area | 123.95 × 11.15 | mm |
| Dot pitch | 0.62 × 0.70 | mm |
| Dot size | 0.57 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
