Graphic LCD Module 320x240
Model No. WG320240D/D1
►Graphic LCD Module 320x240
►320 x 240 dots
►No controller
►1/240 duty cycle
►+5V power supply
►Touch screen option
DESCRIPTION

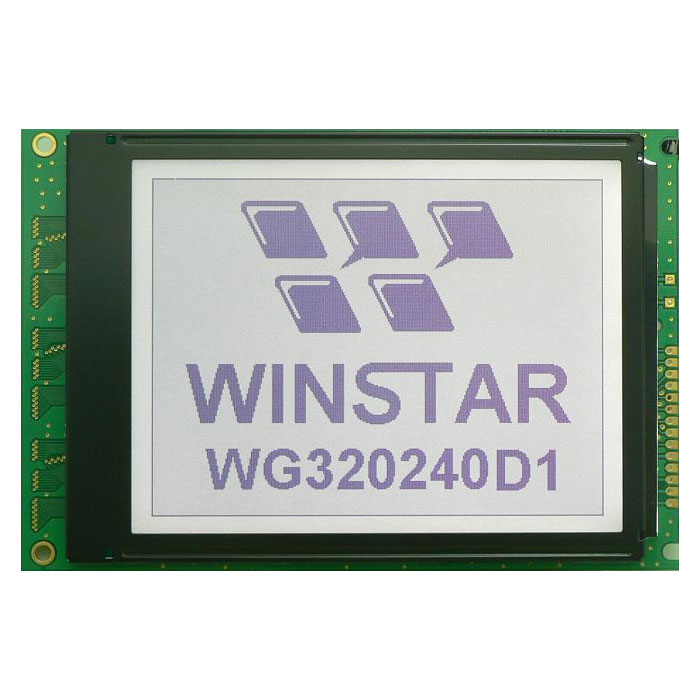

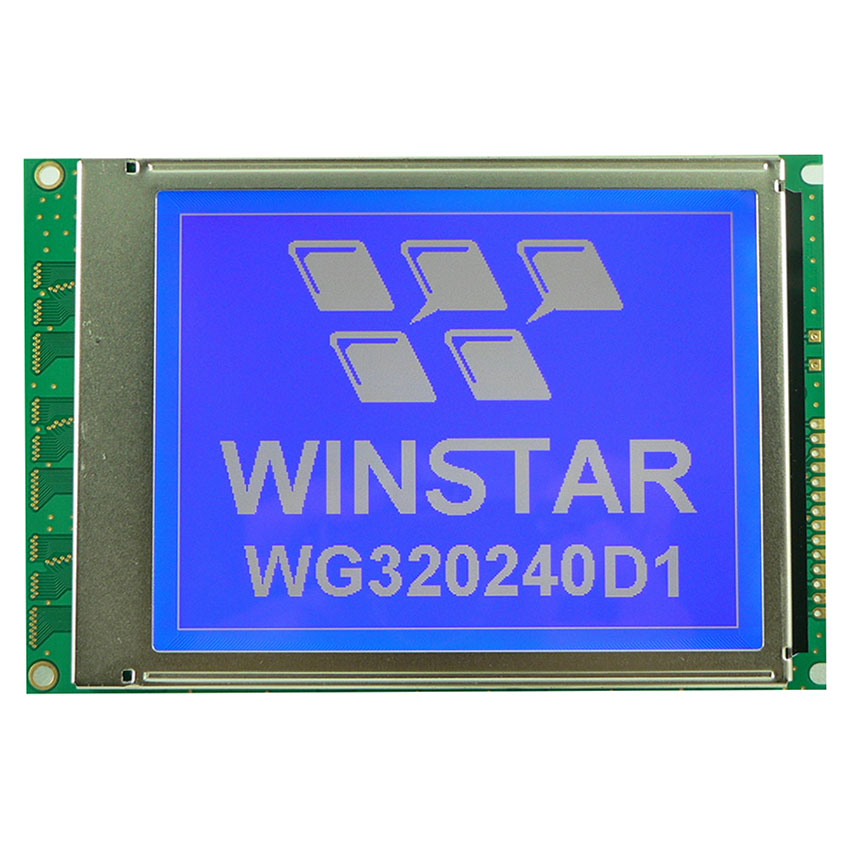

WG320240D1 is monochrome 320x240 LCD graphic displays which is having the module dimension of 142x96 mm and AA size of 95.97x71.97 mm, diagonal size 4.7 inch. This LCD graphic display is without controller on module. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

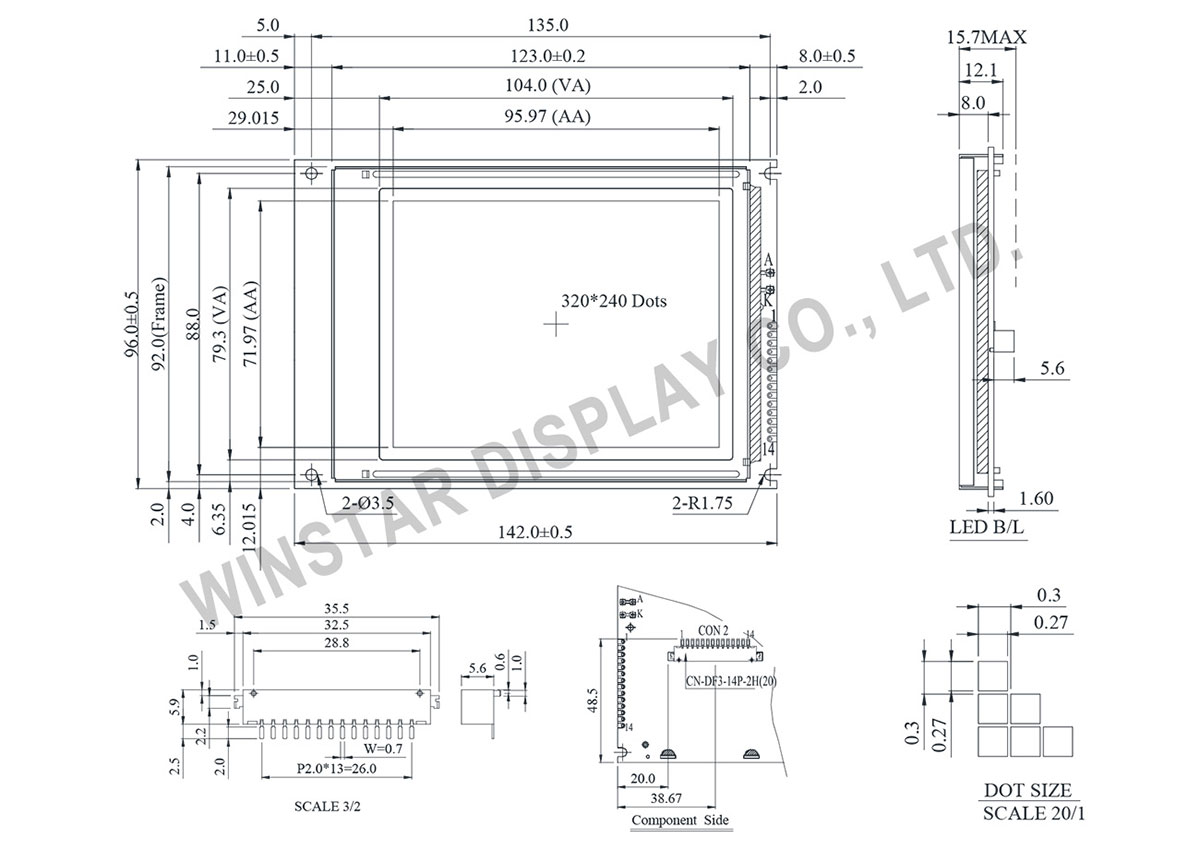

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | FRAME | Scan start-up signal |
| 2 | DF | Frame reverse signal(alternate signal) |
| 3 | LOAD | Data latch pulse |
| 4 | CP | Data shift pulse |
| 5 | DISPOFF | Display off H:ON L:OFF |
| 6~9 | D0~D3 | Data bus line |
| 10 | VDD | Power supply for logic |
| 11 | VSS | Ground |
| 12 | VEE | Negative Voltage Output |
| 13 | VO | Contrast Adjustment |
| 14 | FG | Frame ground |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 142.0 × 96.0 | mm |
| Viewing Area | 104.0 × 79.3 | mm |
| Mounting Hole | 135.0 × 88.0 | mm |
| Dot Pitch | 0.30 × 0.30 | mm |
| Dot Size | 0.27 × 0.27 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 21.6 | V |
