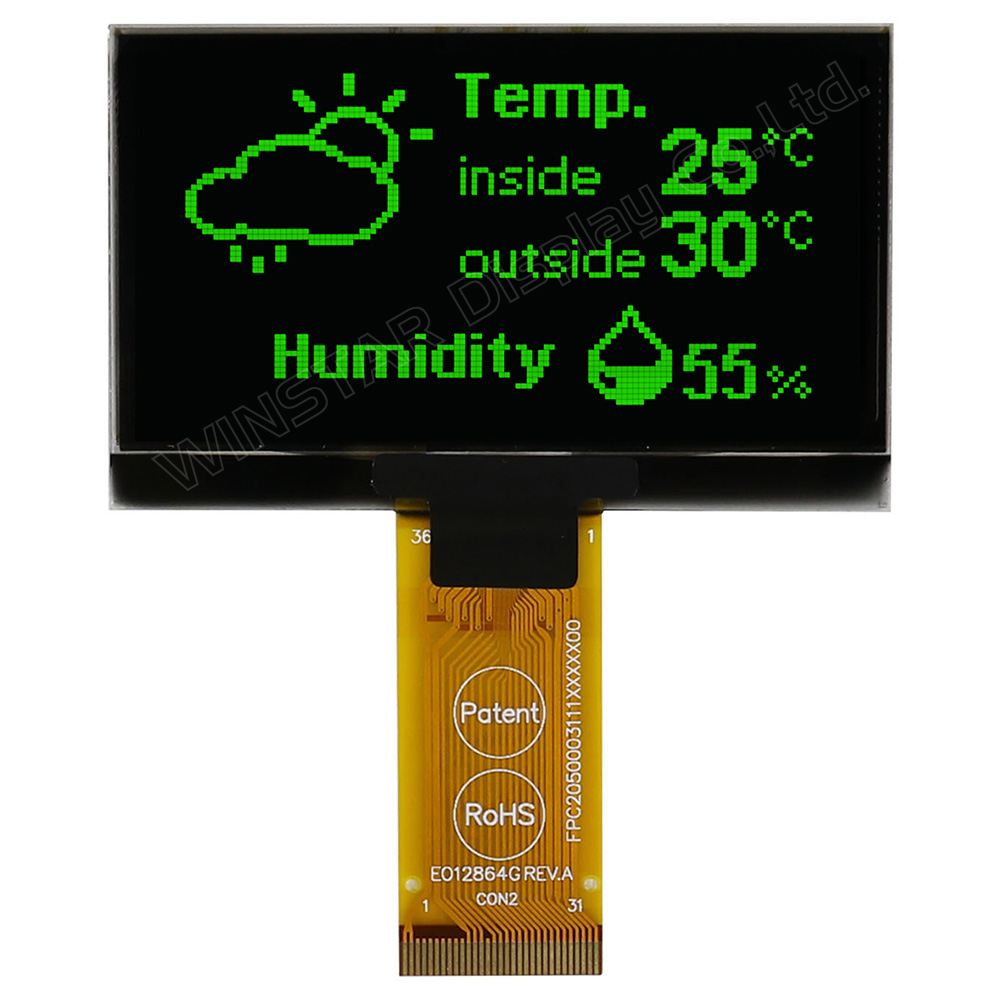

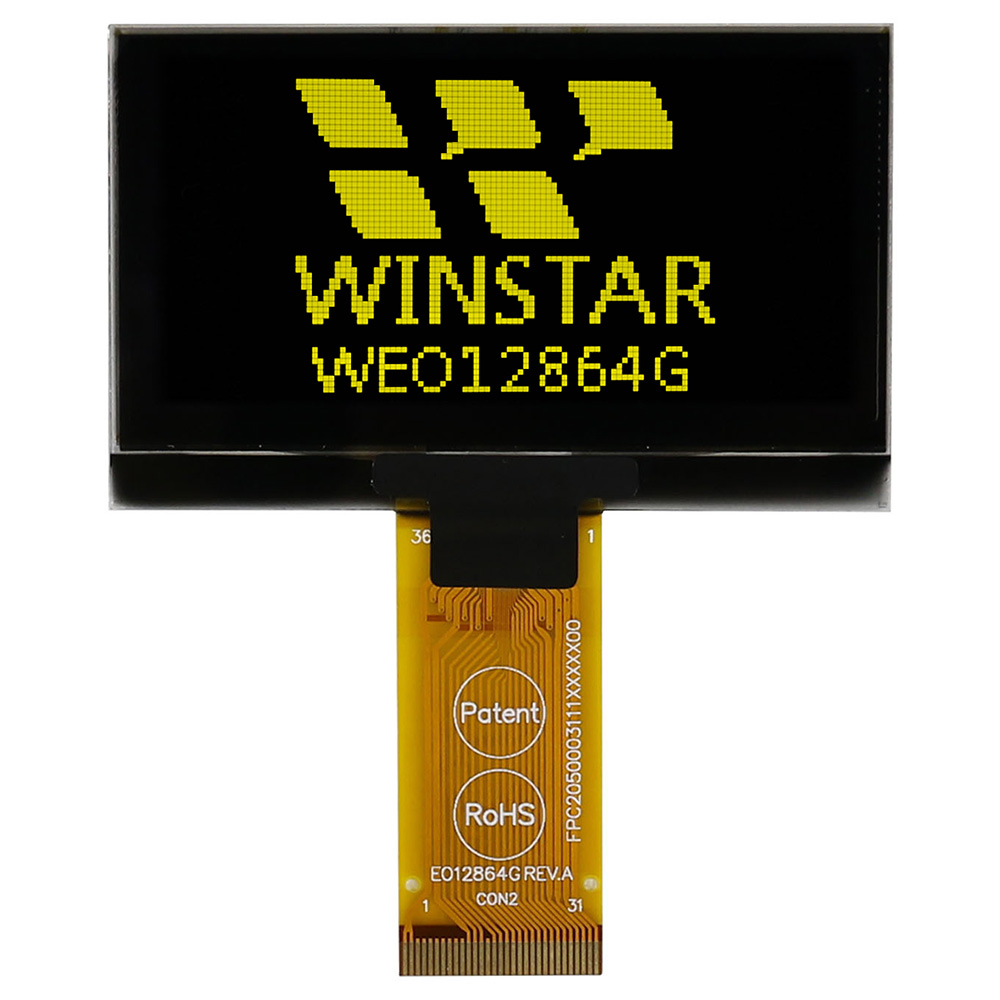

2.42" OLED Graphic Display 128x64
Model No. WEO012864G
►Type: Graphic
►Structure: COG; Frame Option
►Size: 2.42"
►128 x 64 Dot Matrix
►Built-in controller SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow / Sky Blue / Green
►Other FPC options available in below table
DESCRIPTION

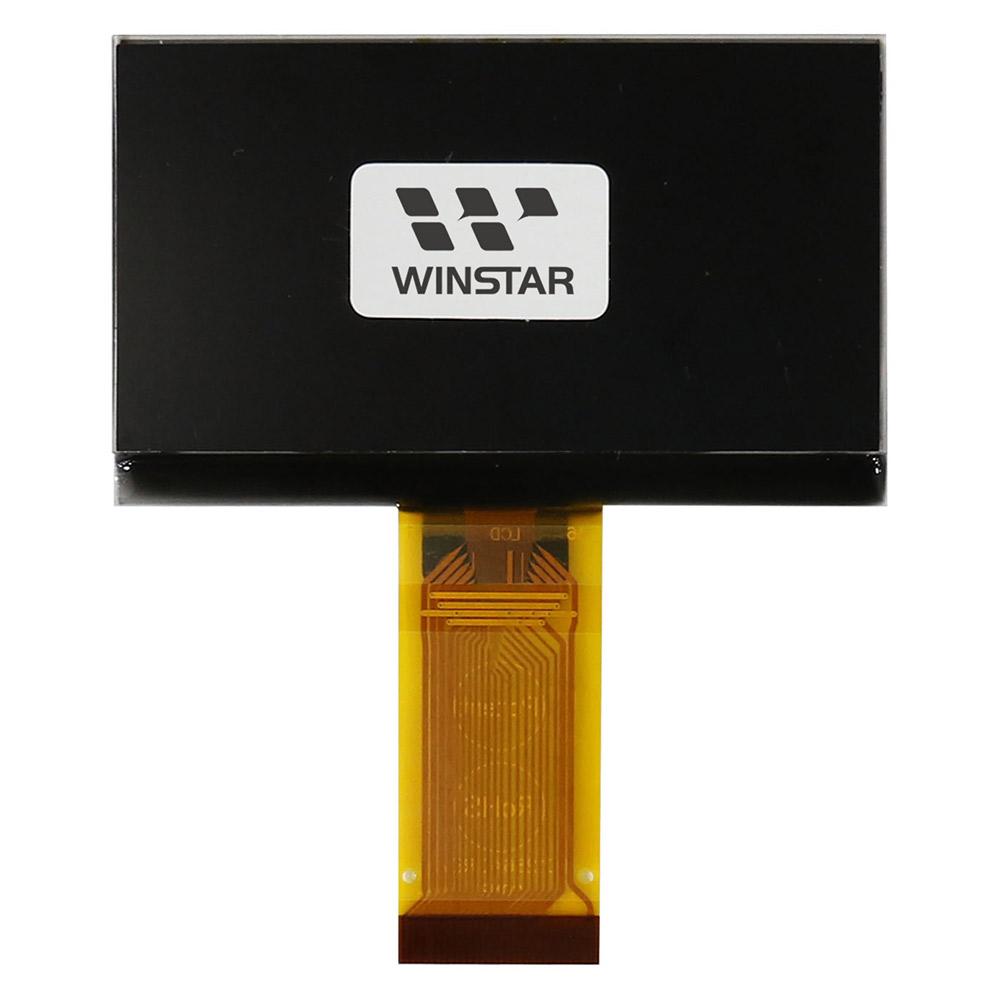

Winstar 2.42" OLED item no. WEO012864G and WEO012864H are made of 12864 pixels which are all with COG OLED structure. These two models are having the same 128x64 OLED panel but with different FPC pin out. WEO012864G is including ZIF FPC; WEO012864H is including Hot Bar FPC. The WEO012864G 128x64 oled display is built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, IoT, etc.
.png)

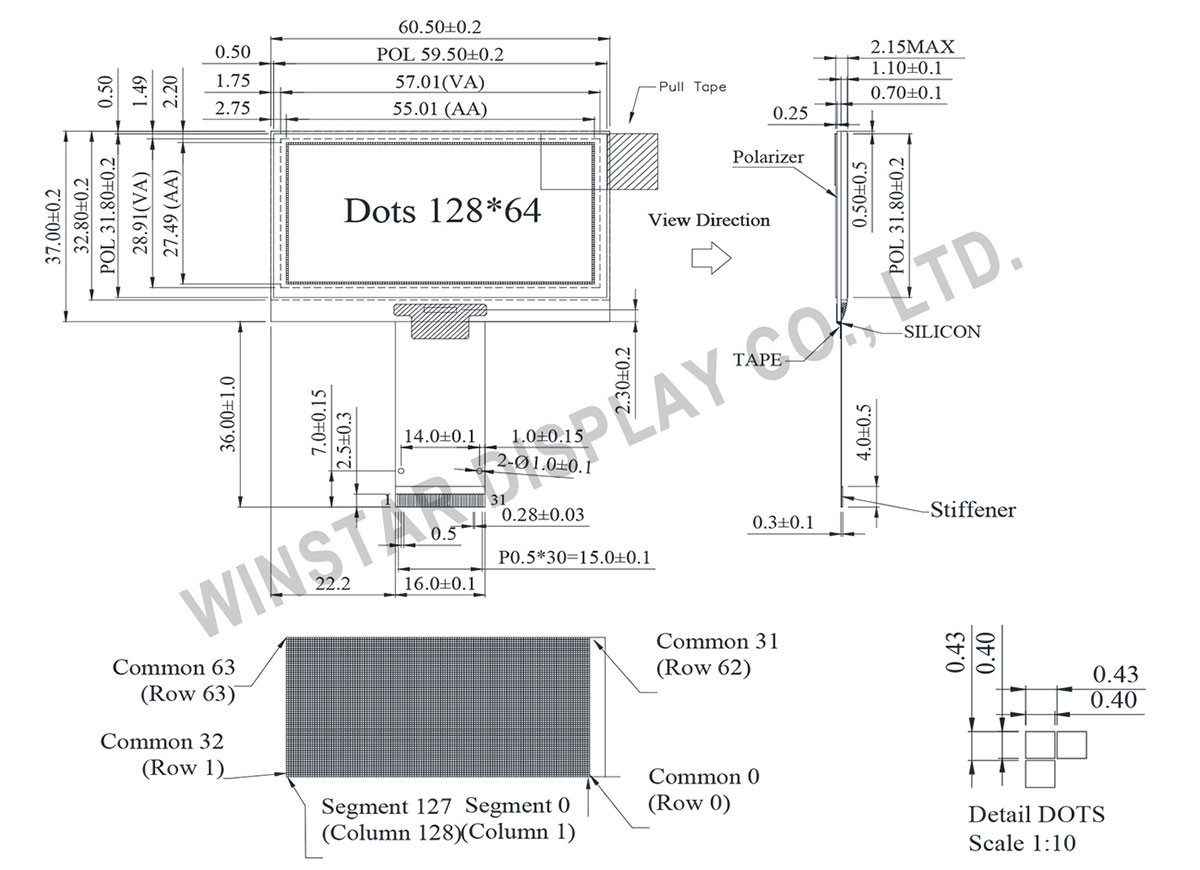

Frame Option | FPC Options DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | No Connection |
| 2 | VSS | Ground Oin |
| 3~10 | NC | No Connection |
| 11 | VDD | Voltage for logic |
| 12~13 | BS1~BS2 | Interface selection |
| 14 | NC | No Connection |
| 15 | CS# | Chip Select Pin |
| 16 | RES# | Reset Signal Pin |
| 17 | D/C# | Data/Command Control Pin |
| 18 | R/W# | Read/Write Control |
| 19 | E/RD# | Chip Enable Signal |
| 20~27 | D0~D7 | Data Bus |
| 28 | IREF | SEG output current refer pin |
| 29 | VCOMH | COM deselected level |
| 30 | VCC | Panel driving voltage |
| 31 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 60.5 × 37.0 | mm |
| Viewing area | 57.01 × 28.91 | mm |
| Active area | 55.01 × 27.49 | mm |
| Dot pitch | 0.43 × 0.43 | mm |
| Dot size | 0.40 × 0.40 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | --- | 2.8 | 3.0 | 3.3 | V |
Frame Option:
| Drawing | Material | FR No. | Detailed Drawing | Create Date |
|---|---|---|---|---|
 |
SUS-304 | FFL6D00049AA121XXX00 | View | 20160429 |
FPC Options:
| Drawing | FPC Length | PIN | pitch | ZIF FPC or HOTBAR FPC | Interface | FPC No. | Create Date |
|---|---|---|---|---|---|---|---|
 |
37 | 31 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050003111XXXXX01 | 20130625 |
 |
19.75 | 31 | 1 | HOTBAR | 6800,8080,SPI,I2C | FPC2100003101XXXXX02 | 20140220 |
 |
37.15 | 24 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2000502411XXXXX01 | 20160803 |
 |
70.85 | 22 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050002211XXXXX03 | 20161228 |
 |
106.57 | 30 | 0.5 | ZIF | 6800,8080,SPI,I2C | FPC2050003011XXXXX11 | 20180620 |
