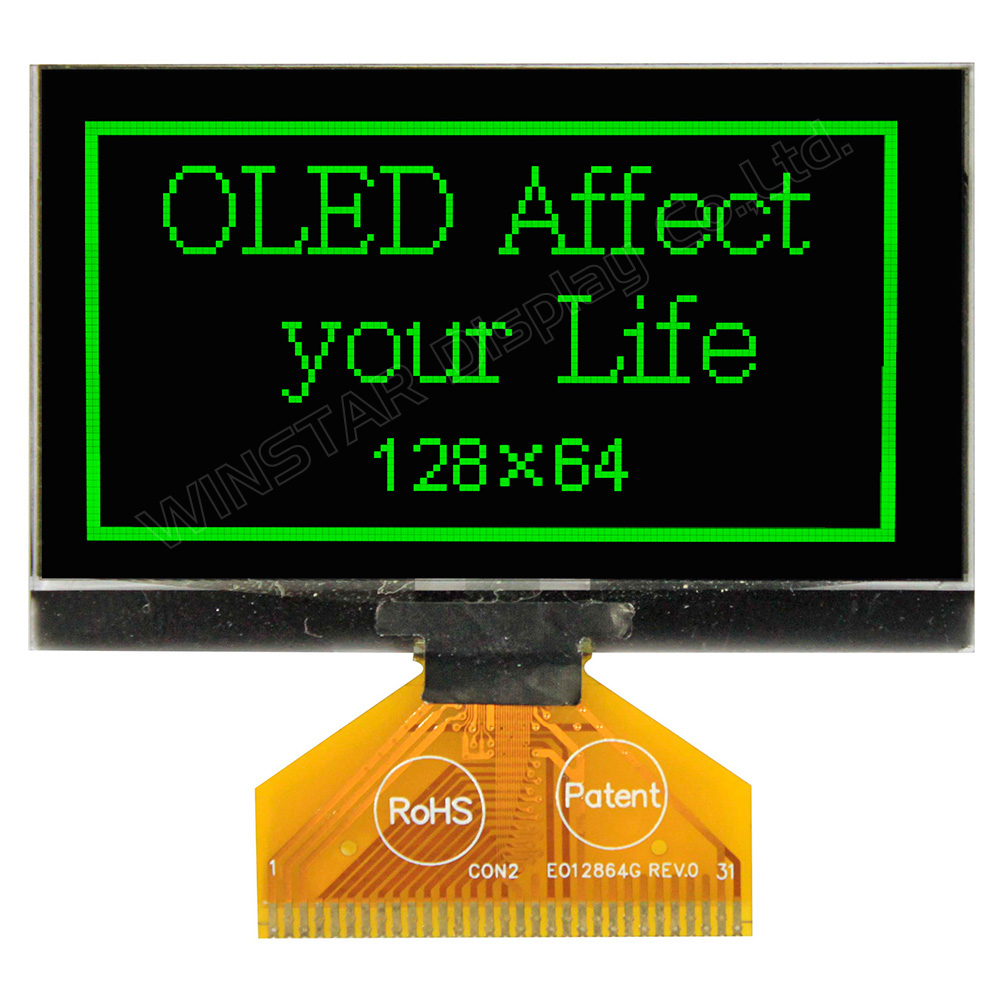

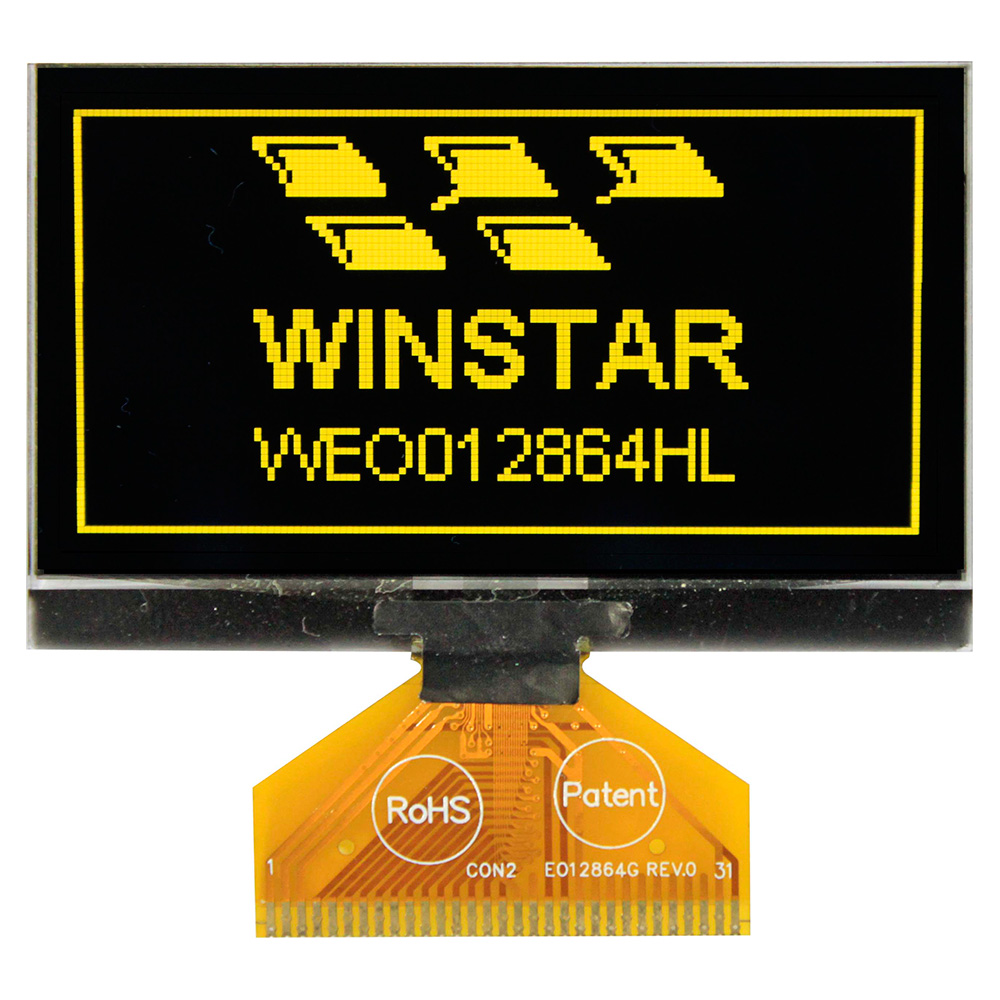

Monochrome 128x64 OLED Graphic Display
Model No. WEO012864H
►Type: Graphic
►OLED 128x64 Dot Matrix
►Structure: COG; Frame Option
►Size: 2.42"
►Built-in controller SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow / Sky Blue / Green
DESCRIPTION
The Monochrome 128x64 OLED Graphic Display WEO012864H have the same OLED panel as WEO012864G but with Hot Bar FPC. This display is also built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, IoT, etc.
.png)
Frame Option DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | No Connection |
| 2 | VCC | Panel driving voltage |
| 3 | VCOMH | COM deselected level |
| 4 | IREF | SEG output current refer pin |
| 5~12 | D7~D0 | Data Bus |
| 13 | E/RD# | Chip Enable Signal |
| 14 | R/W# | Read/Write Control |
| 15 | D/C# | Data/Command Control Pin |
| 16 | RES# | Reset Signal Pin |
| 17 | CS# | Chip Select Pin |
| 18 | NC | No Connection |
| 19~20 | BS2~BS1 | Interface selection |
| 21~29 | VDD | Voltage for logic |
| 30 | VSS | Ground Pin |
| 31 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 60.5 × 37.0 | mm |
| Viewing area | 57.01 × 28.91 | mm |
| Active area | 55.01 × 27.49 | mm |
| Dot pitch | 0.43 × 0.43 | mm |
| Dot size | 0.40 × 0.40 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | --- | 2.8 | 3.0 | 3.3 | V |

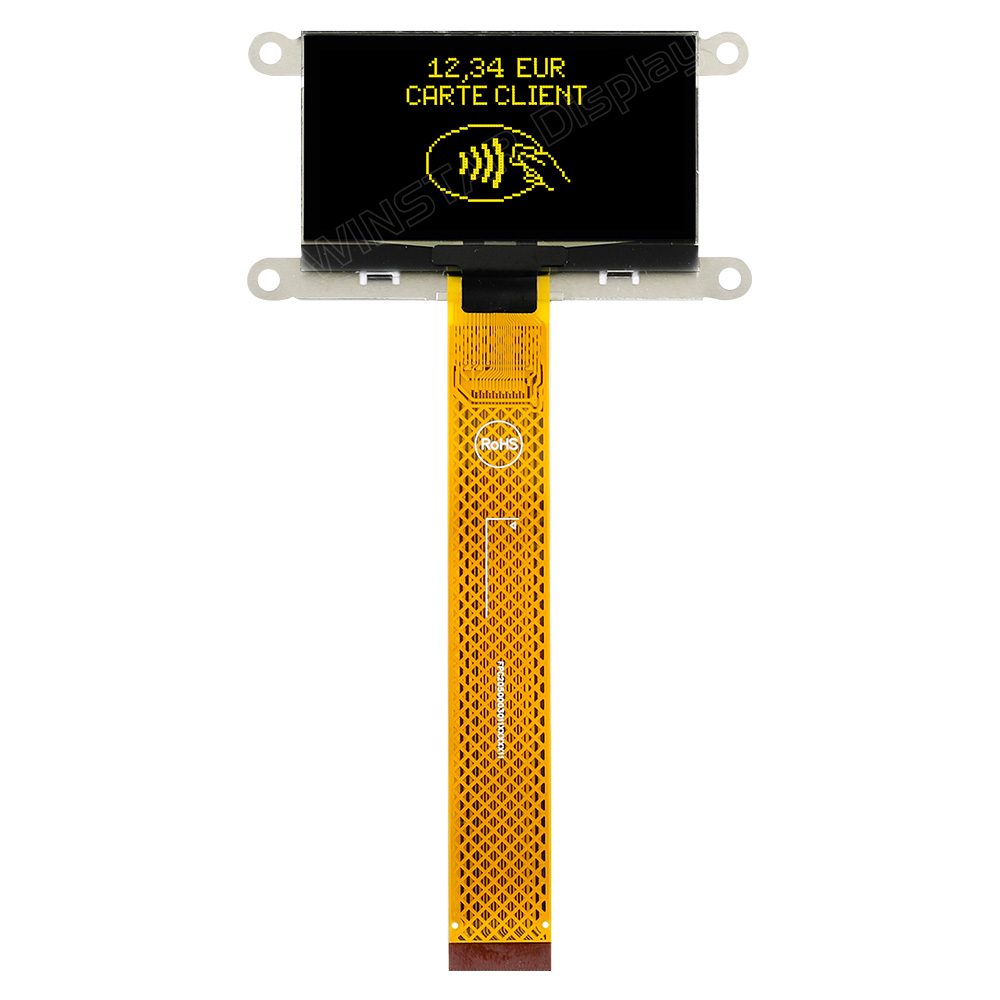

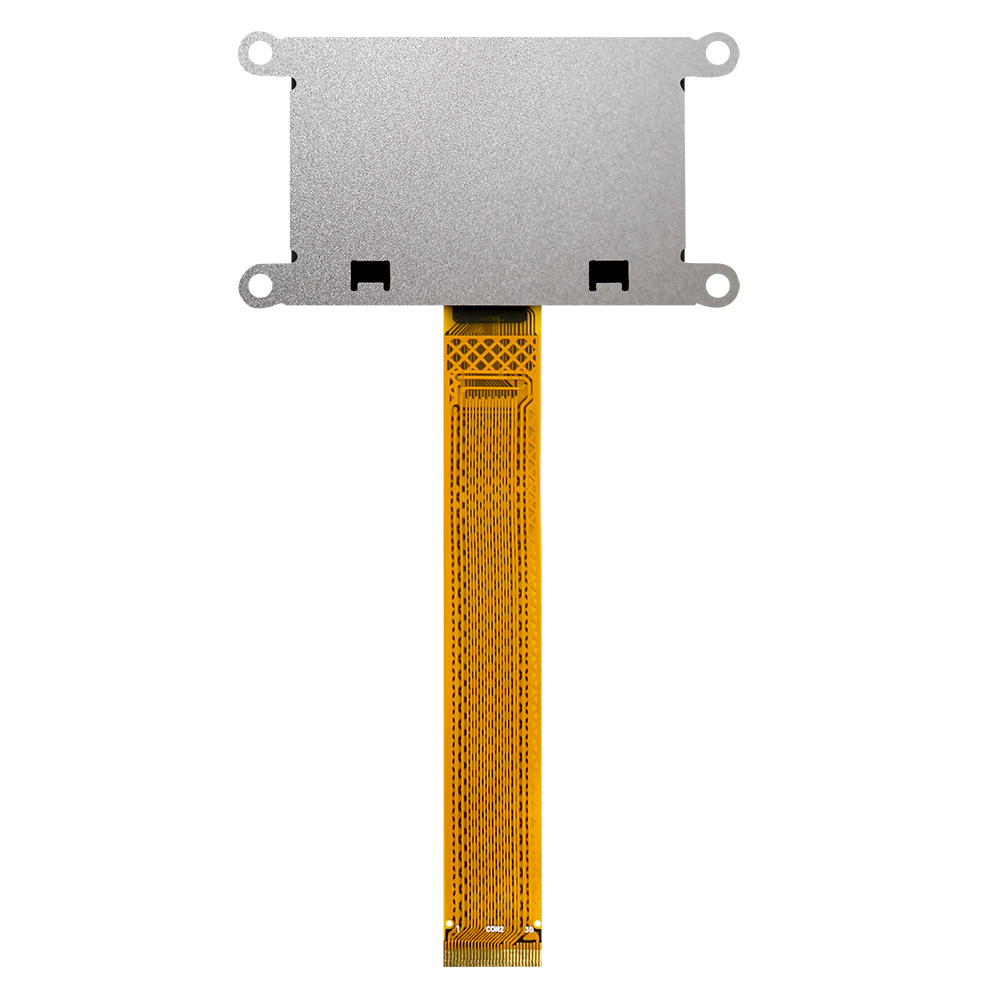

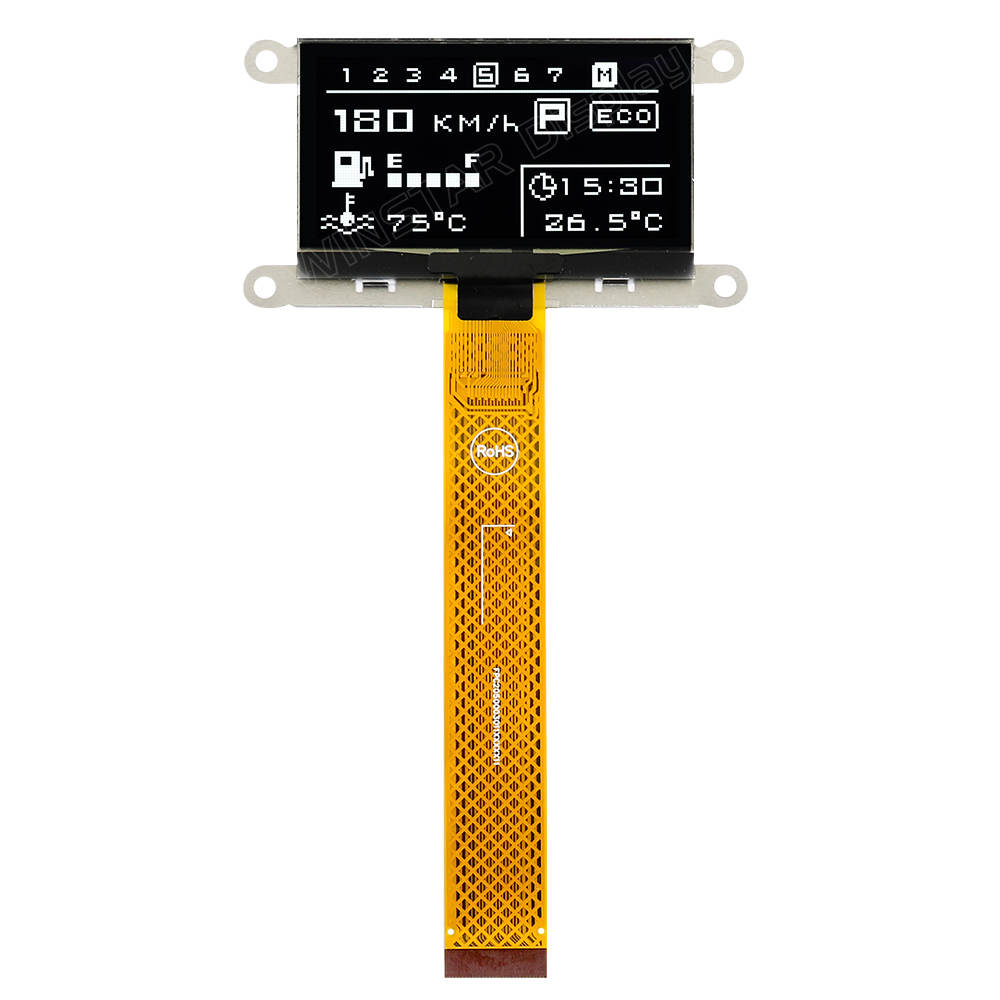

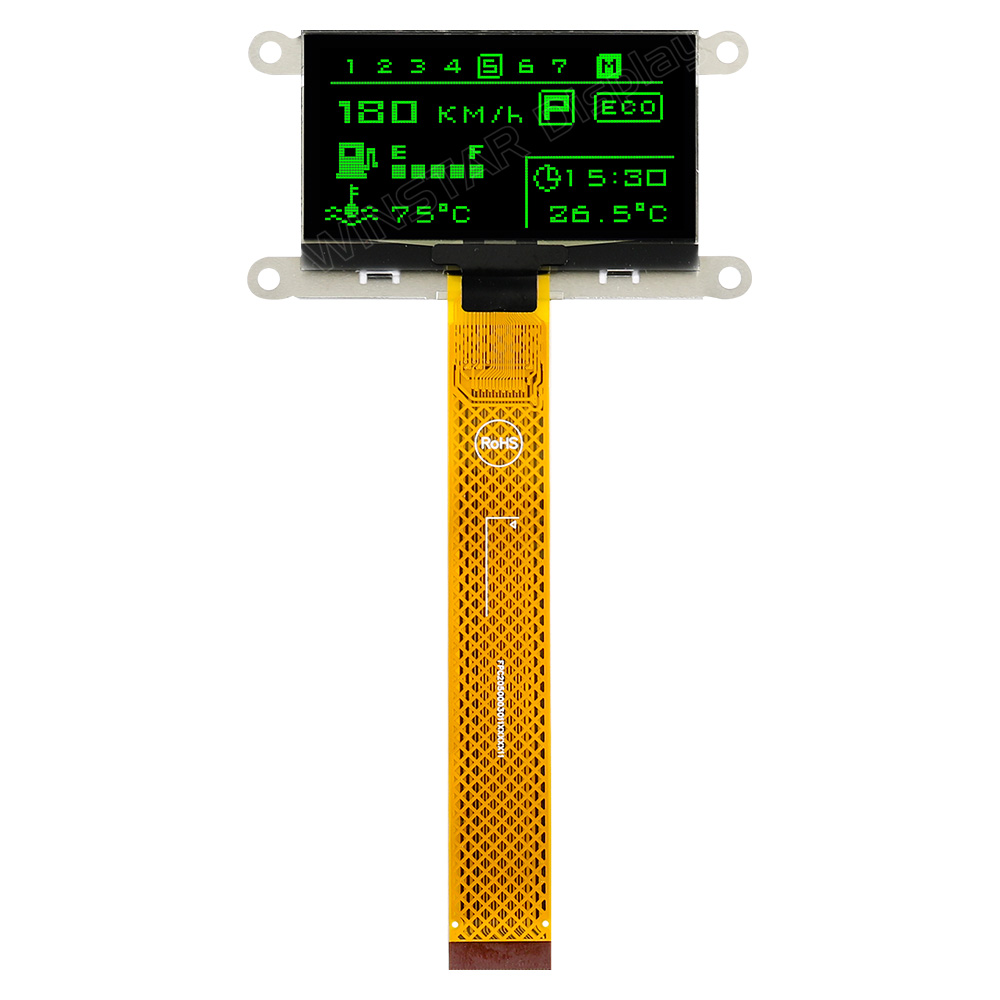

Frame Option:
| Drawing | Material | FR No. | Detailed Drawing | Create Date |
|---|---|---|---|---|
 |
SUS-304 | FFL6D00049AA121XXX00 | View | 20160429 |
