Monochrome OLED Display 100x16
Model No. WEG010016D
►Monochrome OLED Display
►Type: Graphic
►Structure: COB
►Size: 2.4"
►100 x 16 Dot Matrix
►Built-in Controller WS0010
►+5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080

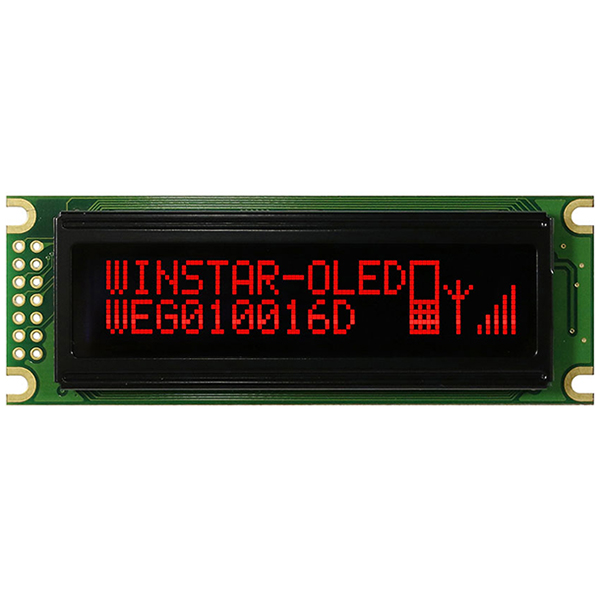

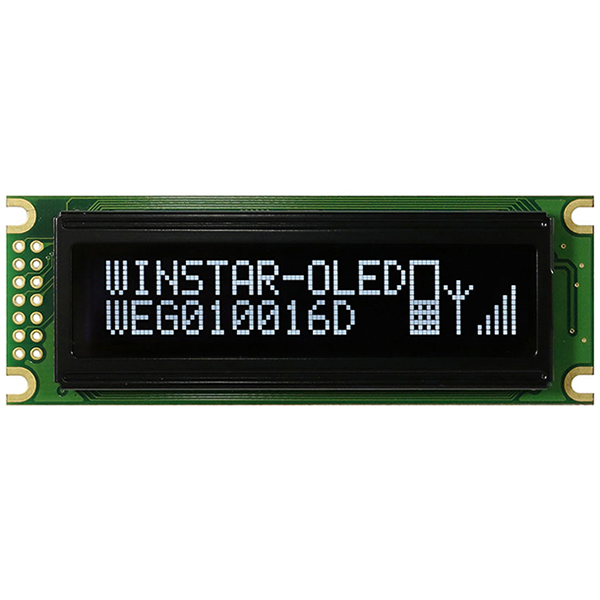

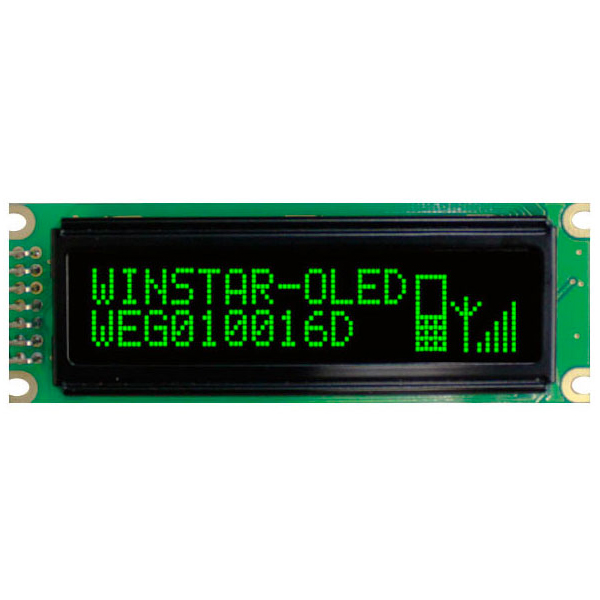

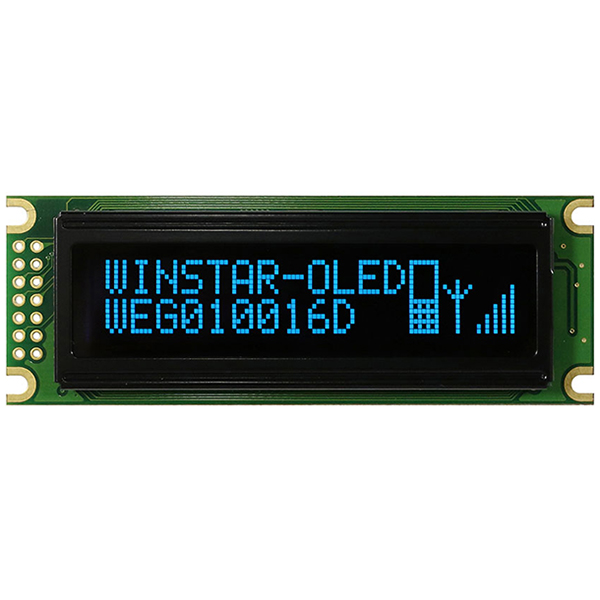

►Display Color: White / Yellow / Blue / Green / Red
DESCRIPTION
Winstar WEG010016D graphic monochrome OLED display module has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This monochrome OLED display 100x16 pixels display module features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. Operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃”.

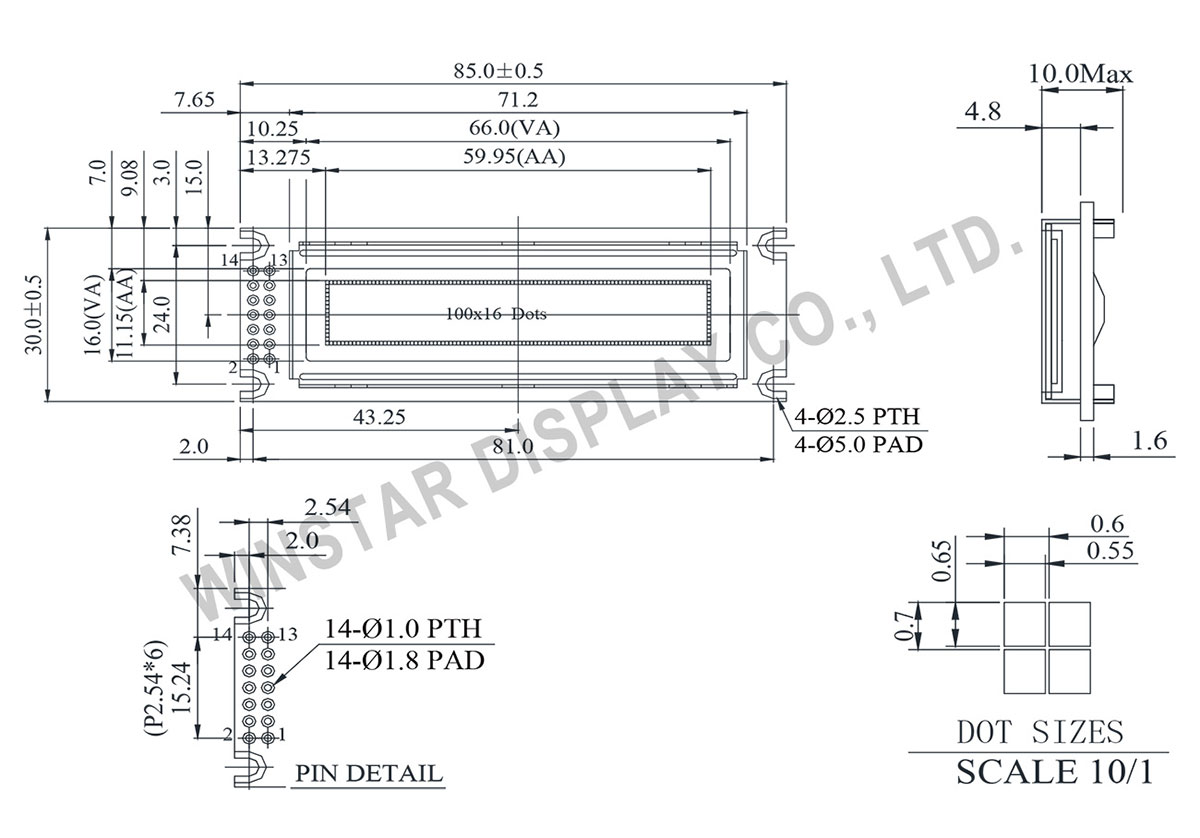

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VDD | Supply Voltage for logic |
| 2 | VSS | Ground |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 85.0 × 30.0 | mm |
| Viewing area | 66.0 × 16.0 | mm |
| Active area | 59.95 × 11.15 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.55 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
