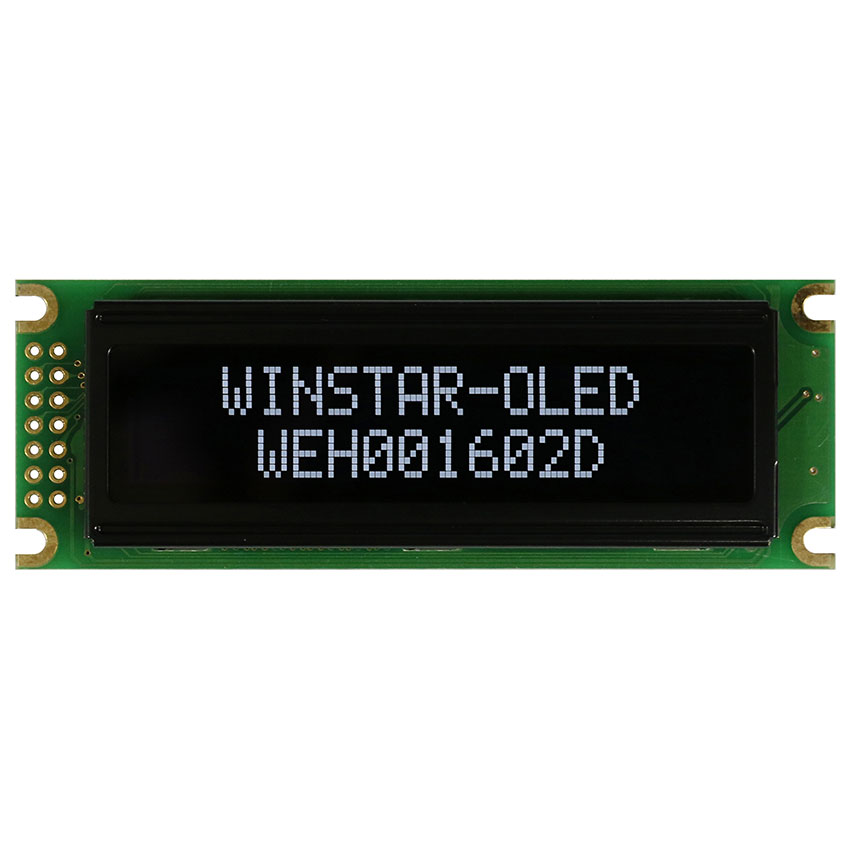

Character OLED Display 16x2
Model No. WEH001602D
►Type: Character
►Structure : COB
►16 characters x 2 Lines
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080
►Compatible to STN LCD WH1602D

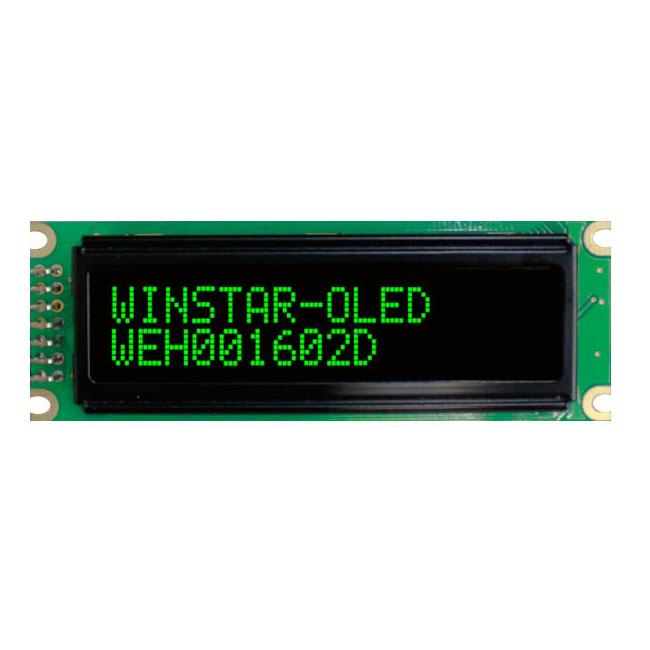

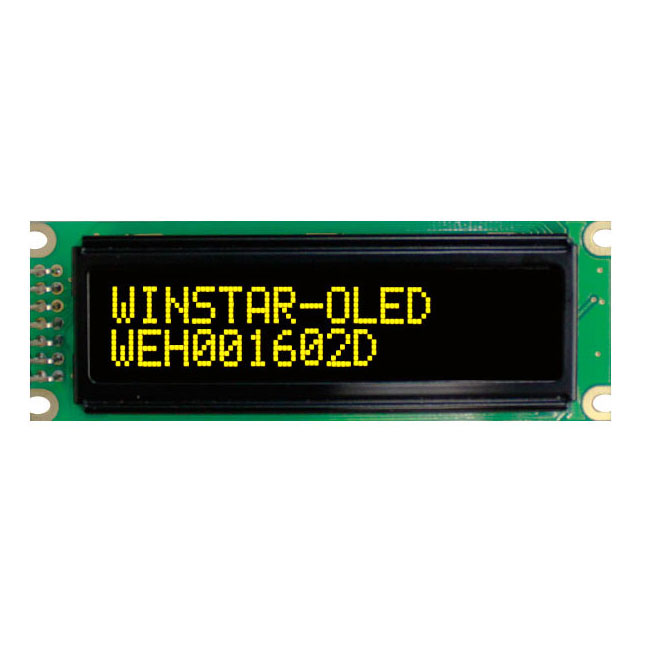

►Display Color: White / Yellow / Blue / Green / Red
DESCRIPTION
The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This model no. WEH001602D Character OLED Display 16x2 modules are available in Yellow and White color, but options Green or Blue OLED emitting colors. This OLED 16x2 Character Display is lightweight, low power and small, there are different interface optional; it is default 6800, available options 8080. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

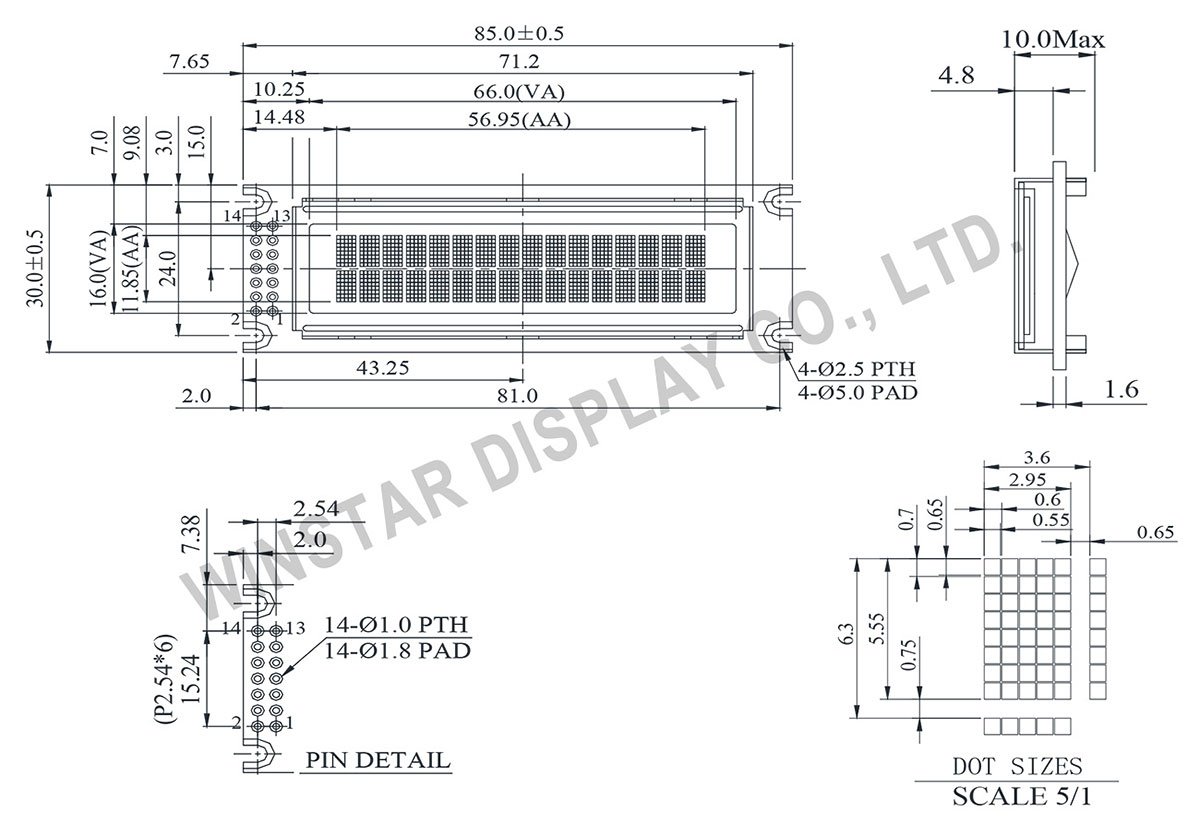

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VDD | Supply Voltage for logic |
| 2 | VSS | Ground Pin |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 85.0 × 30.0 | mm |
| View area | 66.0 × 16.0 | mm |
| Active area | 56.95 × 11.85 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.55 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
