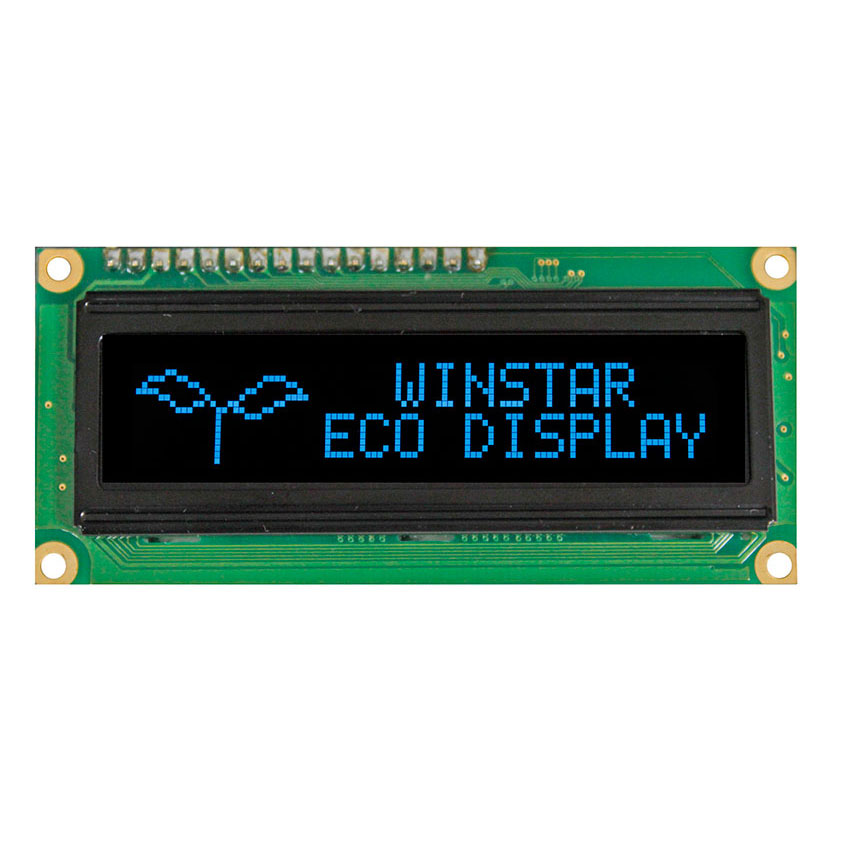

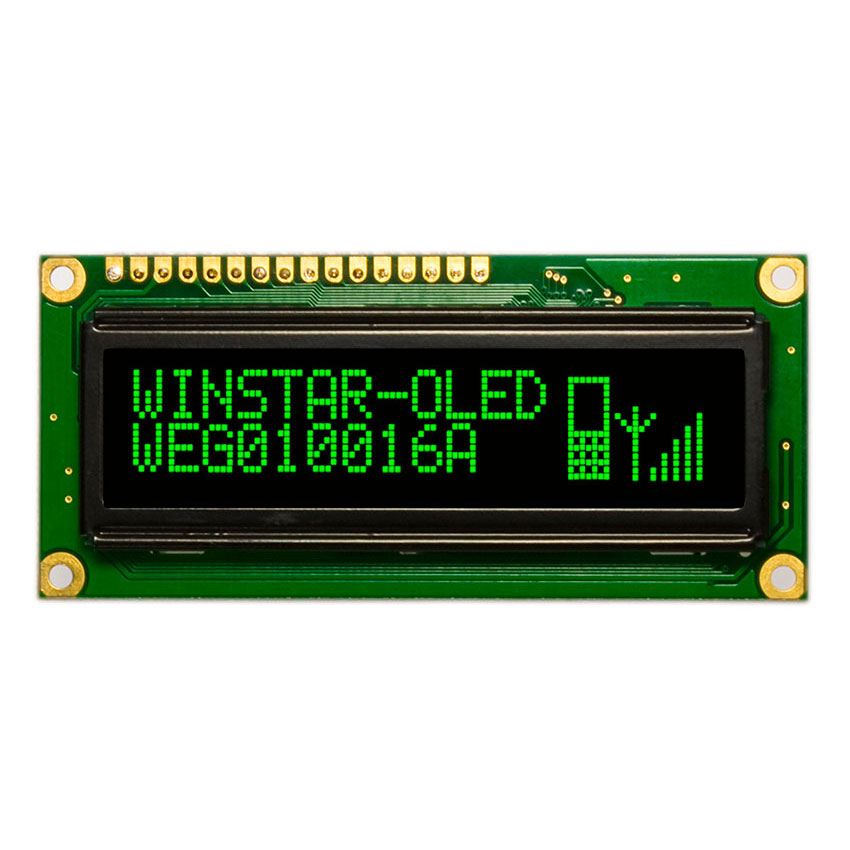

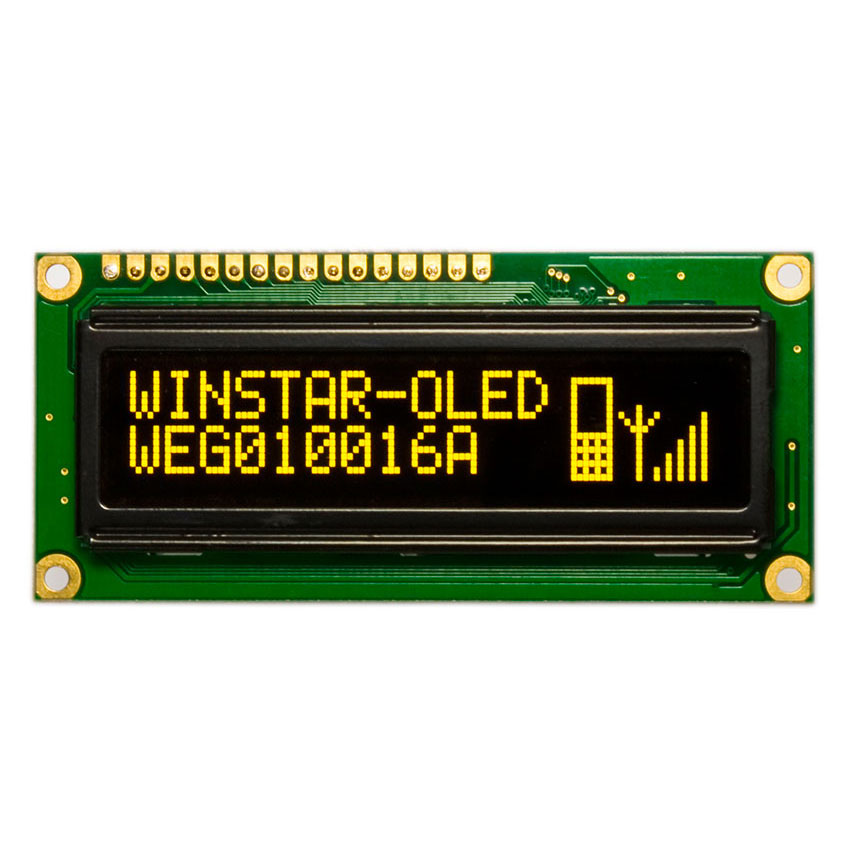

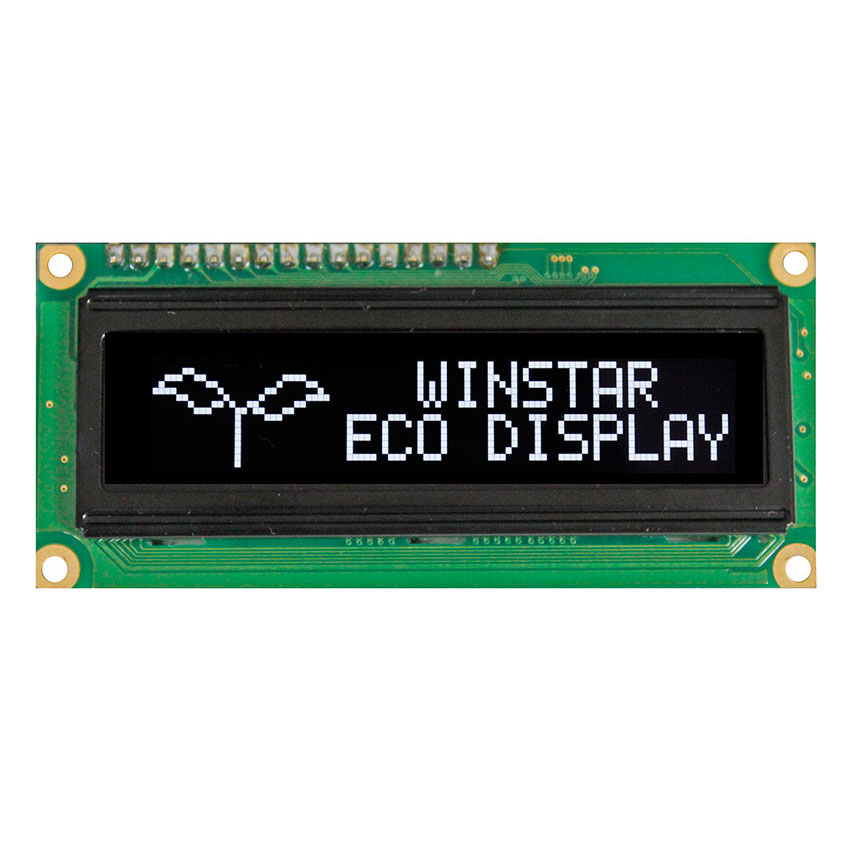

OLED 2.4, Organic Light Emitting Diode Display
Model No. WEG010016A
►Type: Graphic
►Structure: COB
►Size: 2.4"
►100 x 16 Dot Matrix
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080, SPI
►Display Color: White / Yellow / Blue / Green / Red
DESCRIPTION
Winstar Organic Light Emitting Diode Display
The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.4" model no. WEG010016A OLED display is made of 100 x 16 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 6800, available options 8080 and SPI. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.

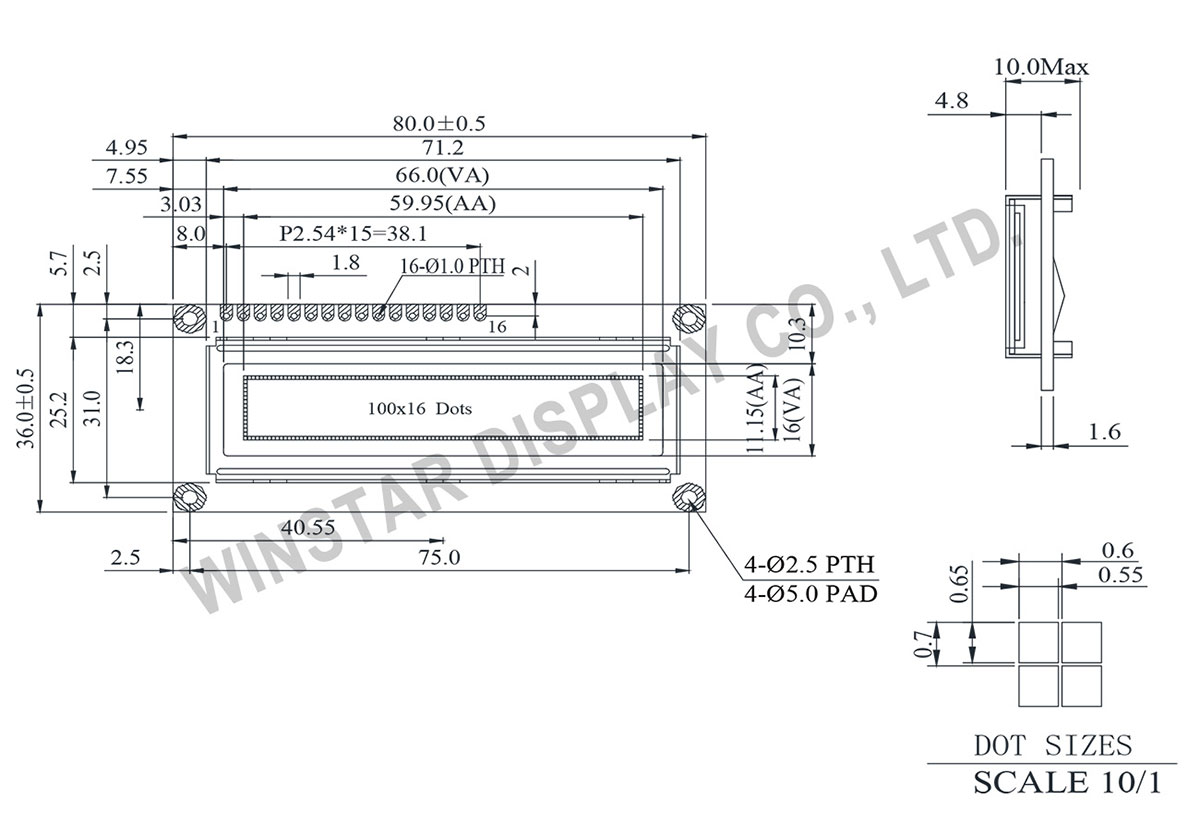

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 80.0 × 36.0 | mm |
| Viewing area | 66.0 × 16.0 | mm |
| Active area | 59.95 × 11.15 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.55 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Standard Value | Unit | ||
|---|---|---|---|---|---|---|
| Min | Typ | Max | ||||
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
