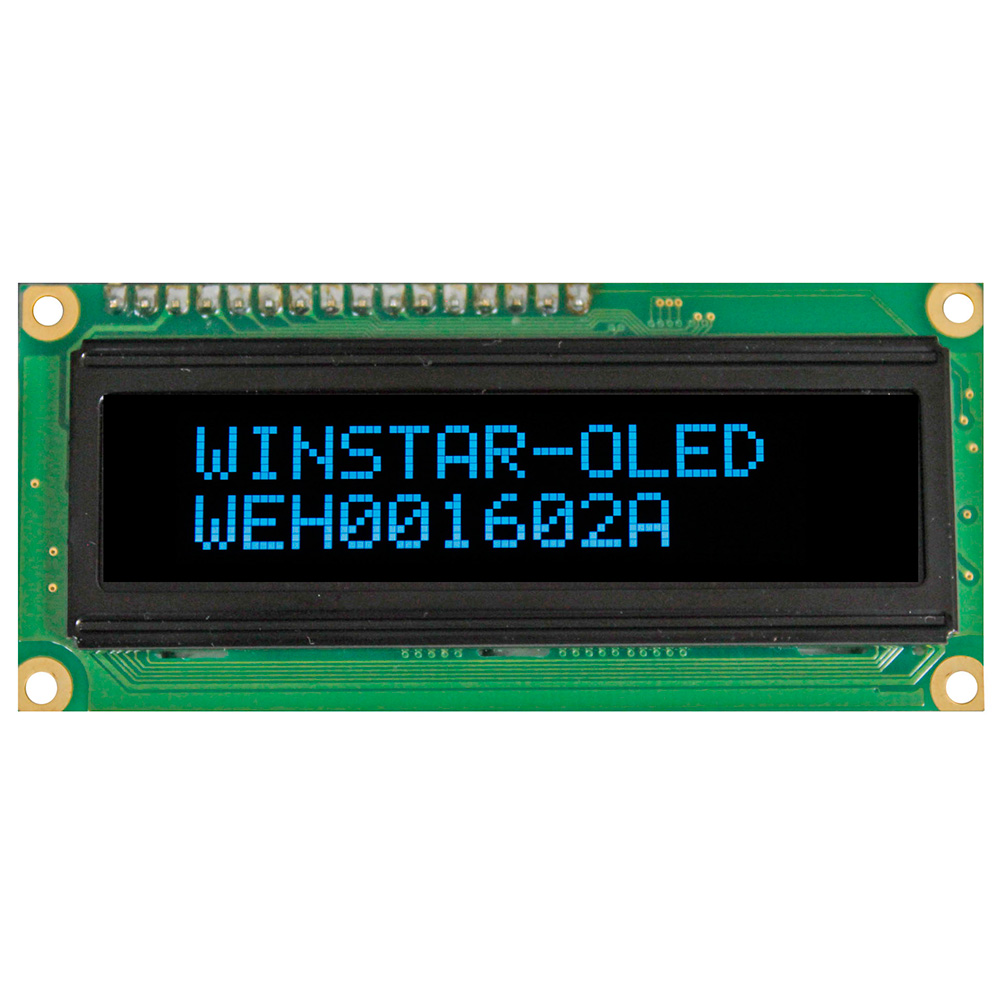

16x2 COB OLED Character Display
Model No. WEH001602A
►Type: Character
►Structure : COB
►16 characters x 2 Lines
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080, SPI
►Compatible to STN LCD WH1602B

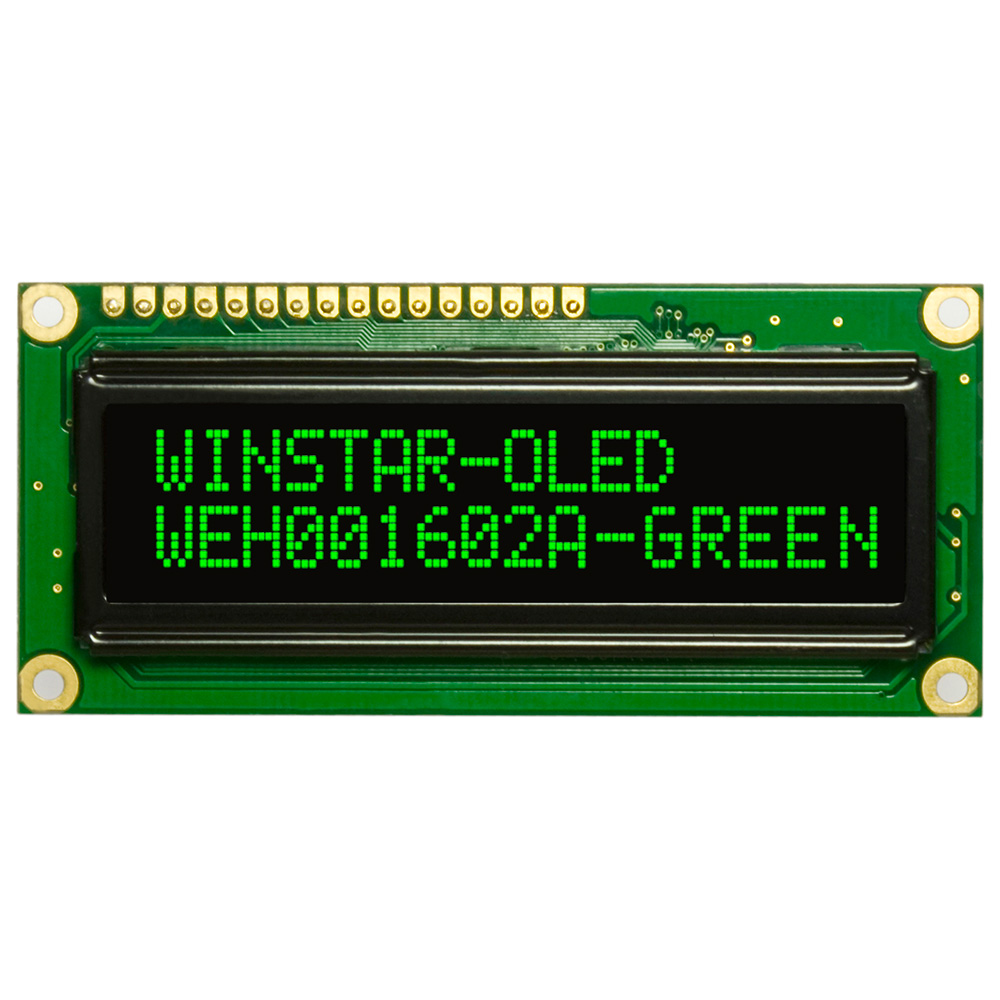

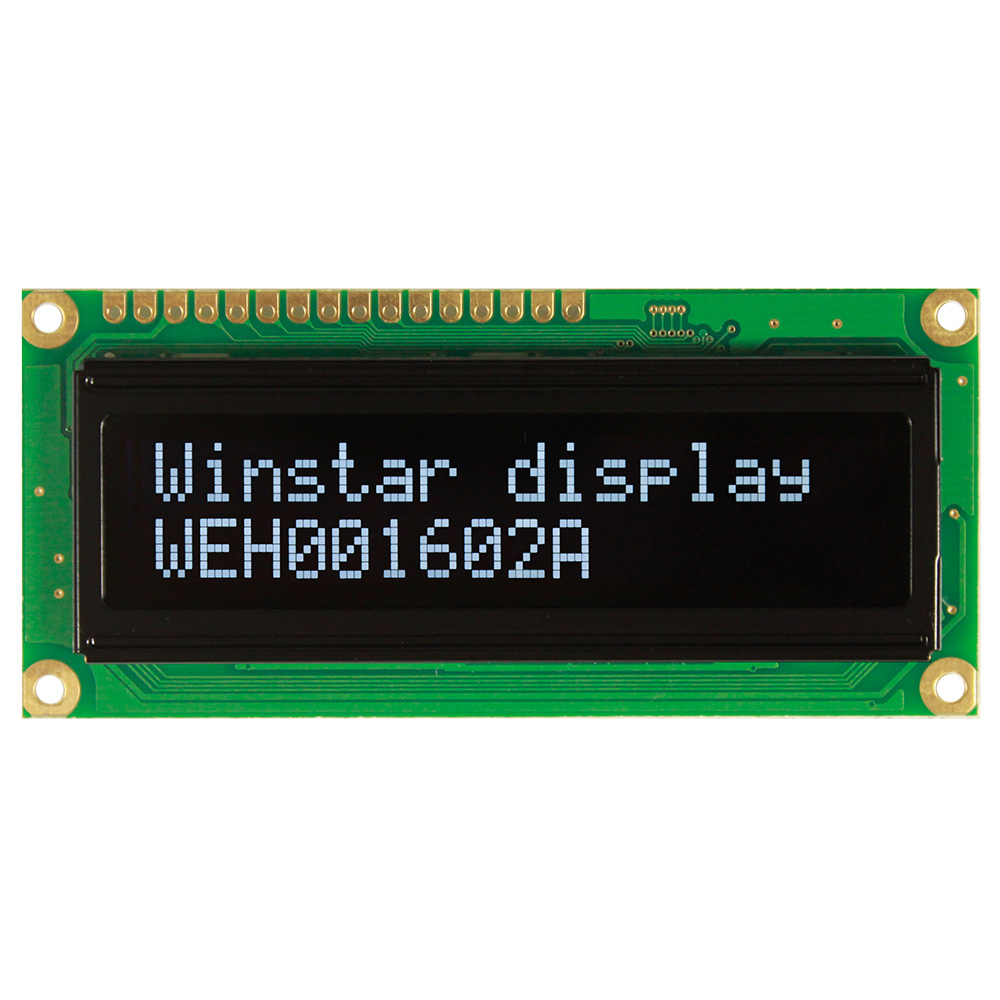

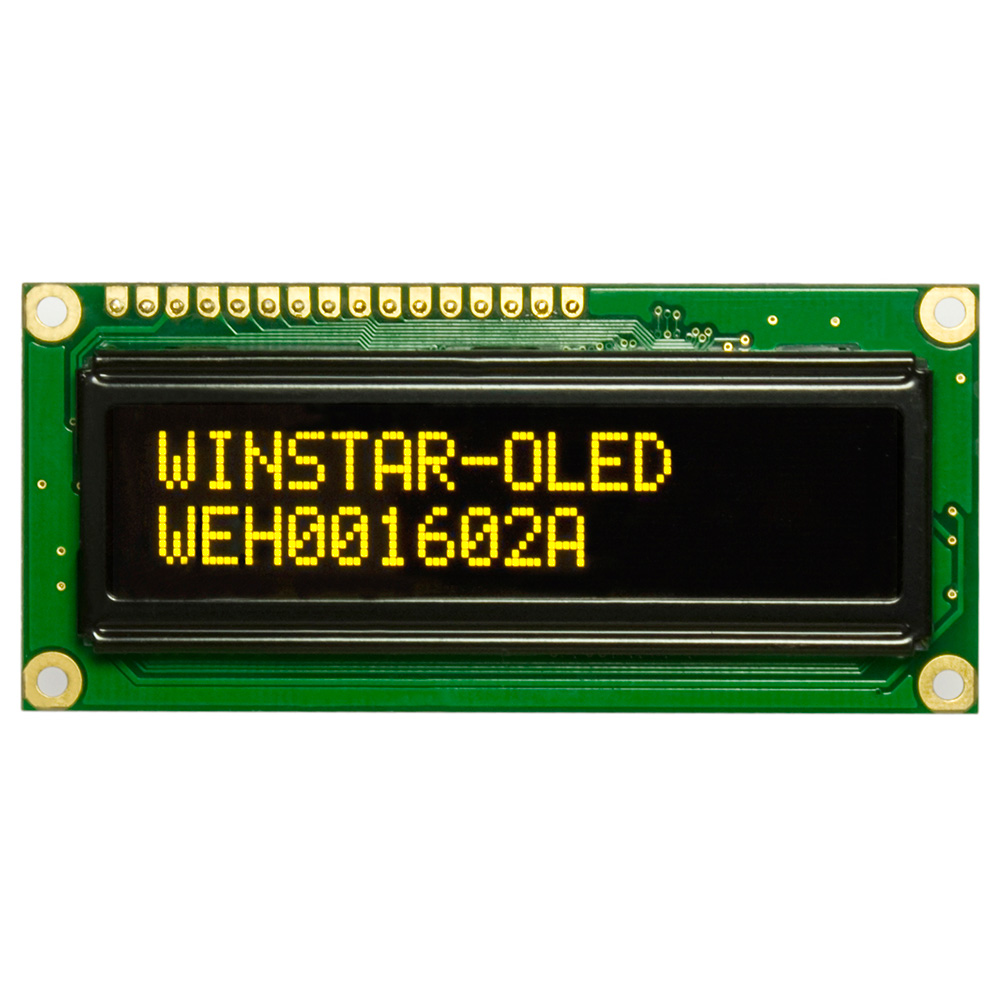

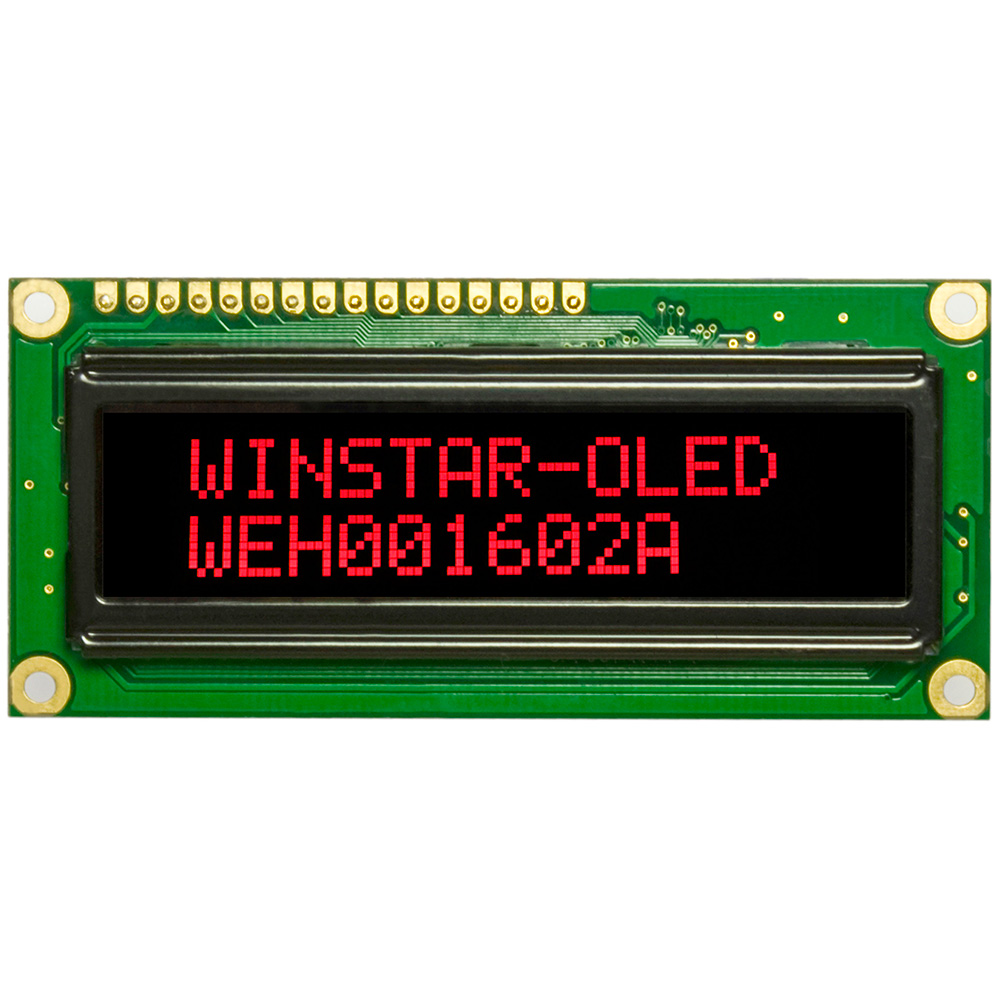

►Display Color: White / Yellow / Blue / Green / Red
DESCRIPTION
The OLED WEH001602A has the same outline size, VA size and pin out as Winstar LCD item no. WH1602B. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. There are different interfaces optional for this model; its default 6800, available options 8080 and SPI. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).
- Faster response time "At +25 ℃ 10 μsec."
- Unlimited viewing angle "Up to 175 degree"
- Thin – No need of backlight, self emitting
- High Brightness
- High contrast ratio "Up to 2000:1"
- Wide Operation Temperature "-40 ℃ ~ 80 ℃"
- Lower power consumption - reduce CO2 emissions

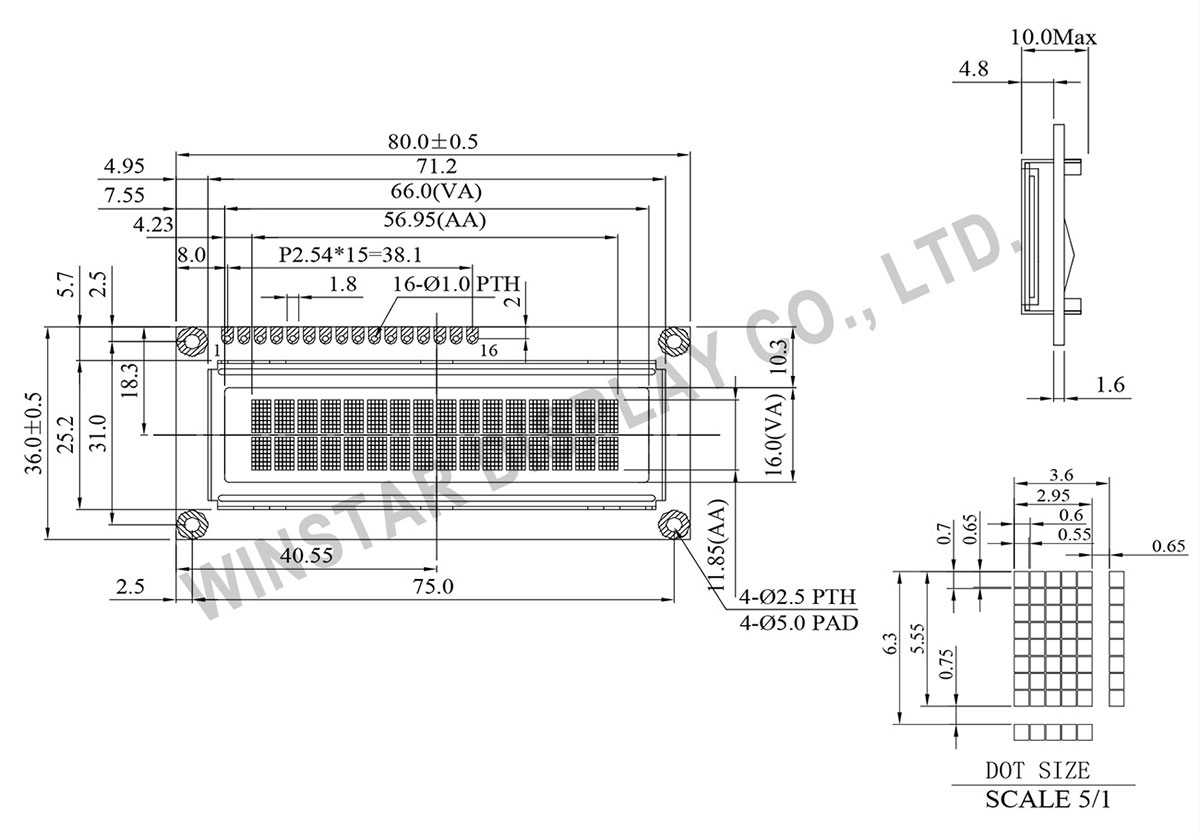

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 80.0 × 36.0 | mm |
| View area | 66.0 × 16.0 | mm |
| Active area | 56.95 × 11.85 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.55 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
