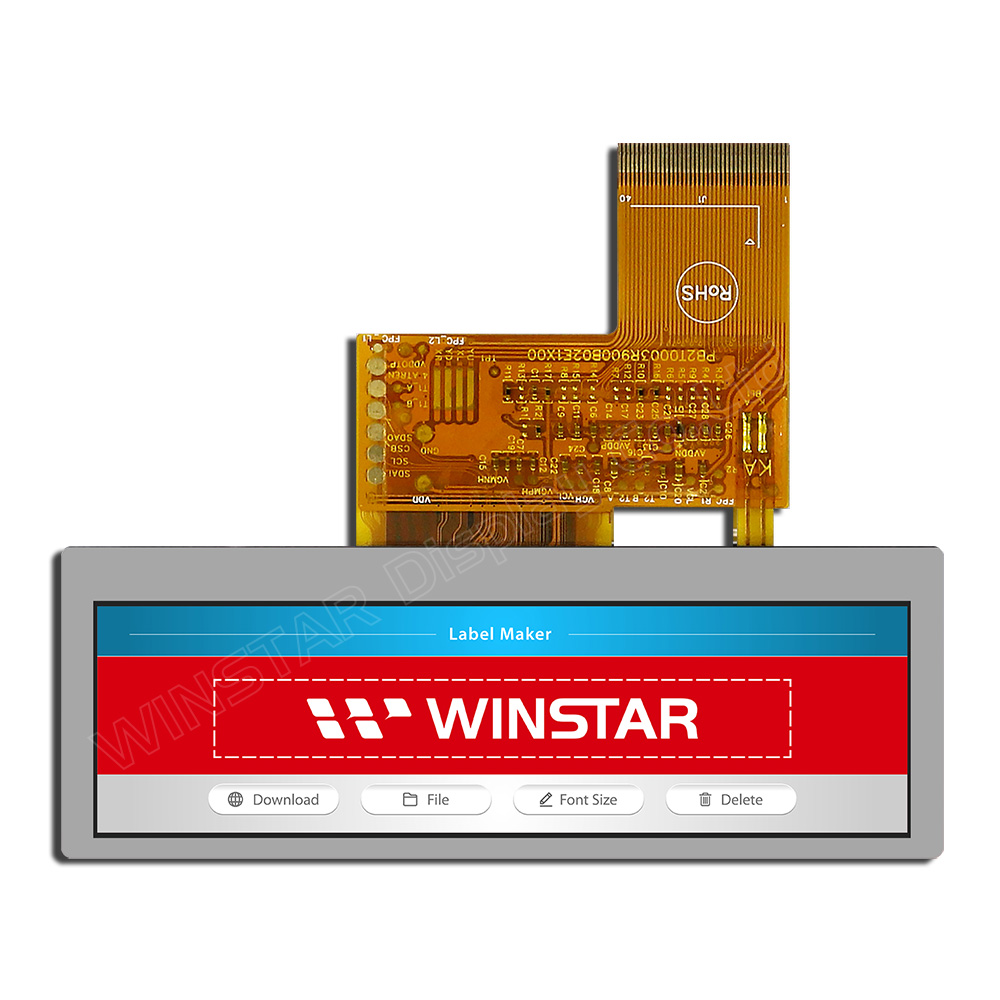

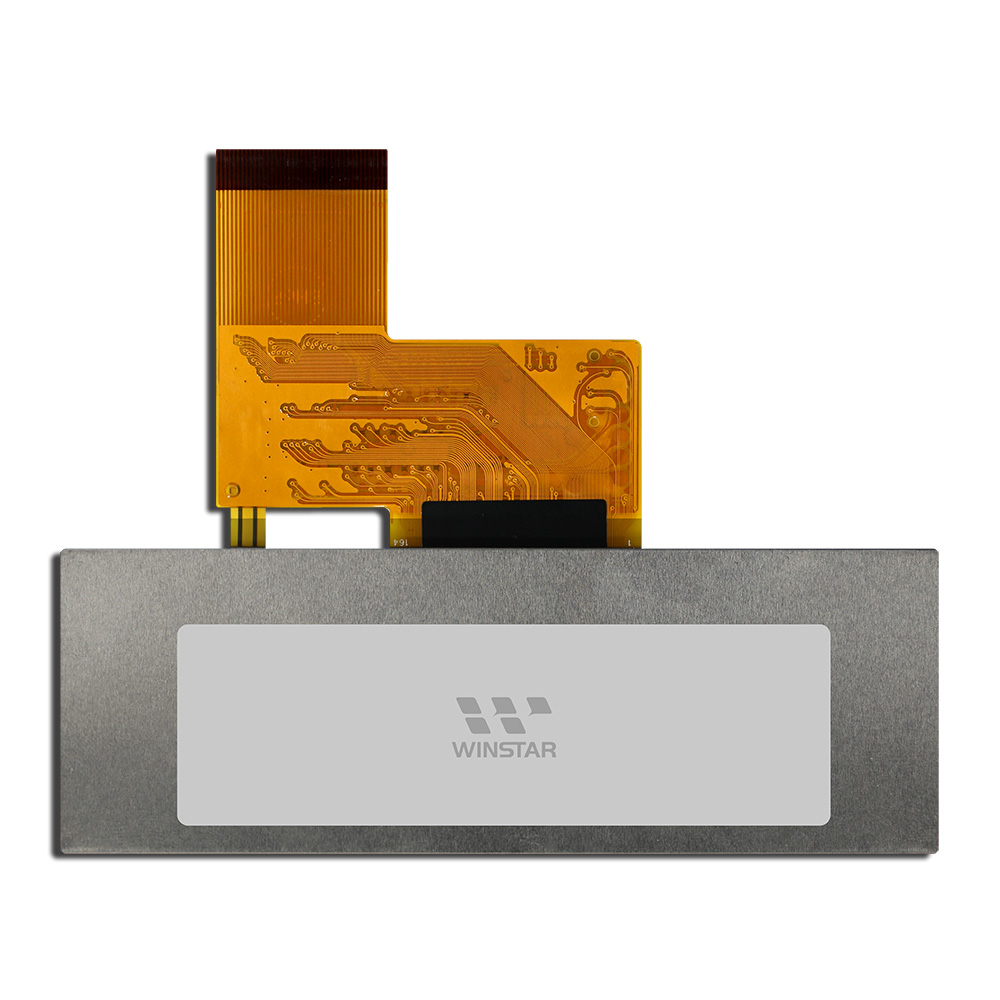

3.9" 480x128 Top View Direction Stretched Bar TFT LCD Display
Model No. WF39CTIASDNN0
►Size : 3.9"
►Resolution : 480×128 dots
►View Direction : 12H
►Interface : RGB
►TFT Driver IC: HX8278-A
►Control-Board : No
►Brightness(cd/m²) : 500
►Frame Through Hole : No
►Touch Screen : No
DESCRIPTION
Winstar released a new version 3.9 inch Bar Type TFT-LCD WF39C display which featured with resolution 480x128 pixels. WF39CTIASDNN0 is built-in with Driver IC HX8278-A, it supports 24-bit RGB interface; 3.3V (typical) power supply voltage; supports SYNC mode or DE mode, default SYNC mode. It's brightness is 500 nits; contrast ratio of 500, view direction 12 o'clock (top view direction), gray scale inversion direction 6 o'clock, and Anti-glare surface glass. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WF39C is top-view direction TFT module, if customers require bottom-view (6 o'clock), please choose WF39B model.
This widescreen Bar Type 3.9" WF39C TFT-LCD offers high quality and colorful image; it is especially suitable for server system, audio system, auto/aviation/marine equipment, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment and etc.

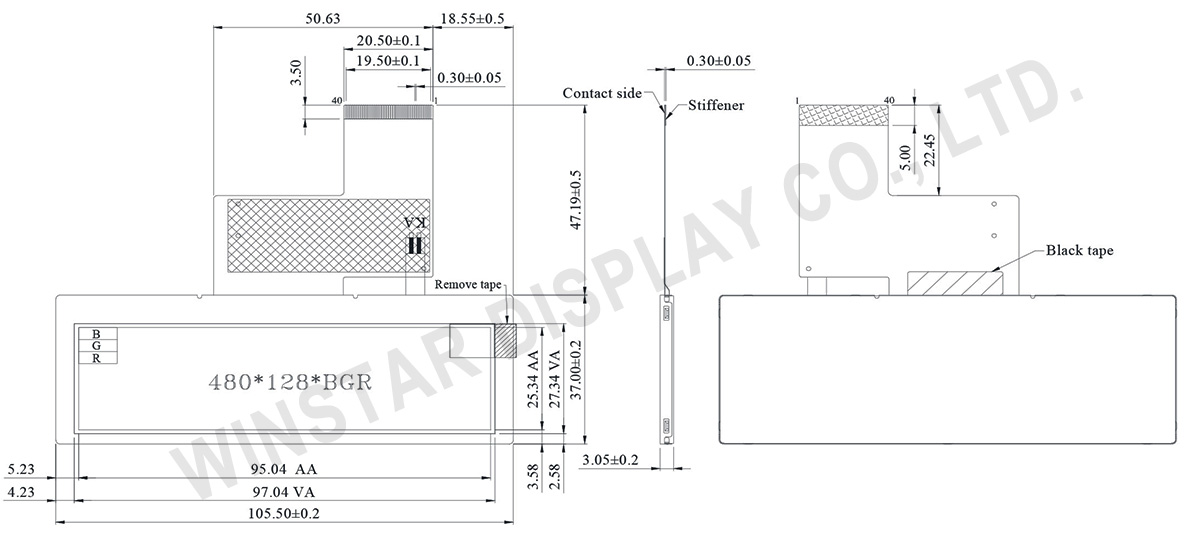

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| No. | Symbol | Description |
|---|---|---|
| 1 | VLED- | Backlight LED Cathode |
| 2 | VLED+ | Backlight LED Anode. |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | System Ground |
| 30 | DCLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vrtical Sync signal |
| 34 | NC | No connection (Option DE) |
| 35 | NC | No connection |
| 36 | GND | System Ground |
| 37 | NC | No connection (Option XR for RTP) |
| 38 | NC | No connection (Option YD for RTP) |
| 39 | NC | No connection (Option XL for RTP) |
| 40 | NC | No connection (Option YU for RTP) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 3.9 | inch |
| Dot Matrix | 480 ×128 × RGB (TFT) | dots |
| Module dimension | 105.5(W) × 37.0(H) × 3.05(D) | mm |
| Active area | 95.04 × 25.34 | mm |
| Dot pitch | 0.066(W) × 0.198(H) | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | Bar Type | |
| TFT Driver IC | HX8278-A or Equal | |
| TFT Interface | RGB-24BIT | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Without touch screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VCC | - | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | ICC | - | - | 15 | 25 | mA |
