TFT Resistive Touch Panel with TFT LCD Controller Boards 7"
Model No. WF70QTIFGDBT0
►Size : 7 inch
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : MCU
►Built-in Controller : SSD1963
►Control-Board : Yes
►Brightness(cd/m²): 320
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel (RTP)
DESCRIPTION

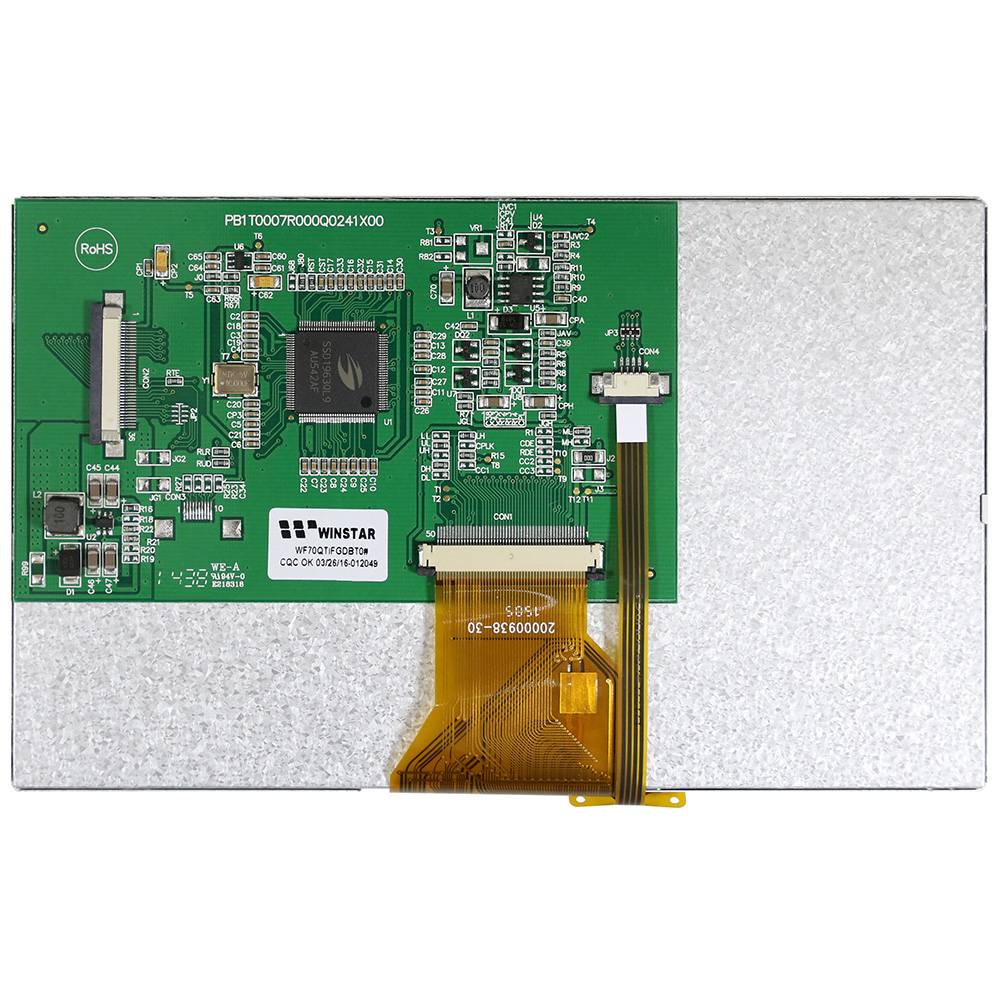

This 7 inch TFT Display WF70QTIFGDBT0 is built in with SSD1963 controller board plus a 36 pin-out connector on board. This model is available in 8080 family MPU 8bit/16bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This display is with the module dimension of 165 x 100 mm and including a RTP touch screen on module.

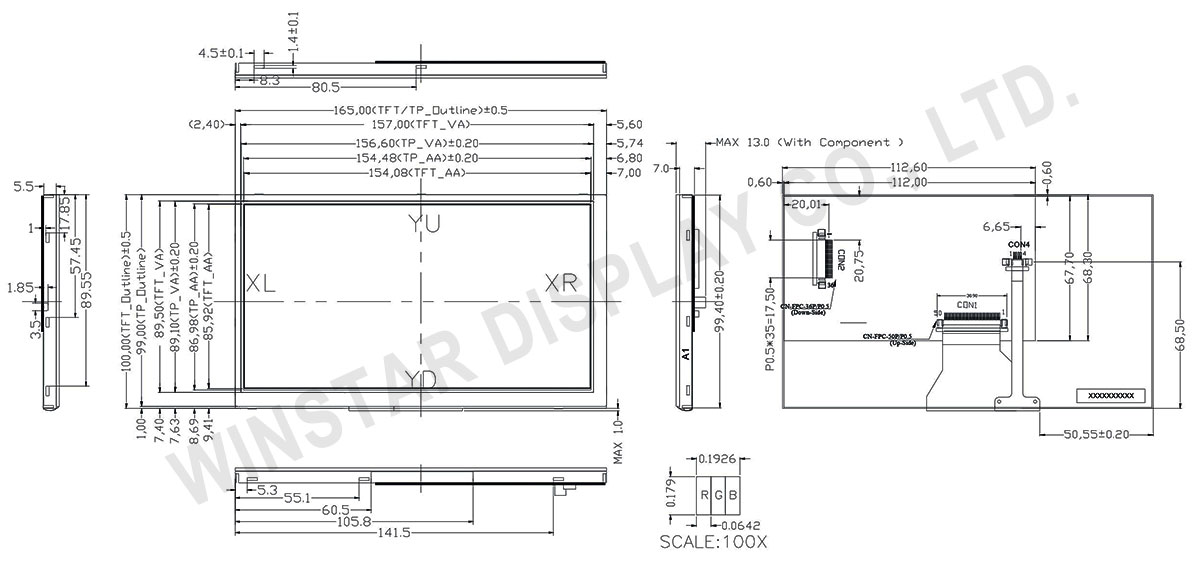

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | System ground pin of the IC . Connect to system ground. |
| 2 | VDD | Power Supply : +3.3V |
| 3 | BLE | Backlight control signal , H: On \ L: Off |
| 4 | D/C | Data/Command select |
| 5 | WR | Write strobe signal |
| 6 | RD | Read strobe signal |
| 7~14 | DB0~DB7 | Data bus |
| 15~22 | DB8~DB15 | Data bus (When select 8bits Mode, this pin is NC) |
| 23~24 | NC | No connect |
| 25 | CS | Chip select |
| 26 | RST | Hardware reset |
| 27 | L/R | Left / right selection; Default L/R=H |
| 28 | U/D | Up/down selection; ; Default U/D=L |
| 29 | XL | Left electrode |
| 30 | YU | Top electrode |
| 31 | XR | Right electrode |
| 32 | YD | Bottom electrode |
| 33~34 | VLED- | Power for LED Driver IC(GND) |
| 35~36 | VLED+ | Power for LED Driver IC(+5V) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 800 × RGB × 480(TFT) | dots |
| Module dimension | 165.0(W) × 100.0(H) × 13.0(D) | mm |
| Active area | 154.08 × 85.92 | mm |
| Dot pitch | 0.0642 × 0.179 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Backlight Type | LED, Normally White | |
| Controller IC | SSD1963 | |
| Interface | Digital 8080 family MPU 8bit/16bit | |
| Touch Panel | Resistive touch panel (RTP) | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | － | 3.0 | 3.1 | 3.3 | V |
| Supply Current For LCM | IDD | － | － | 300 | 450 | mA |
