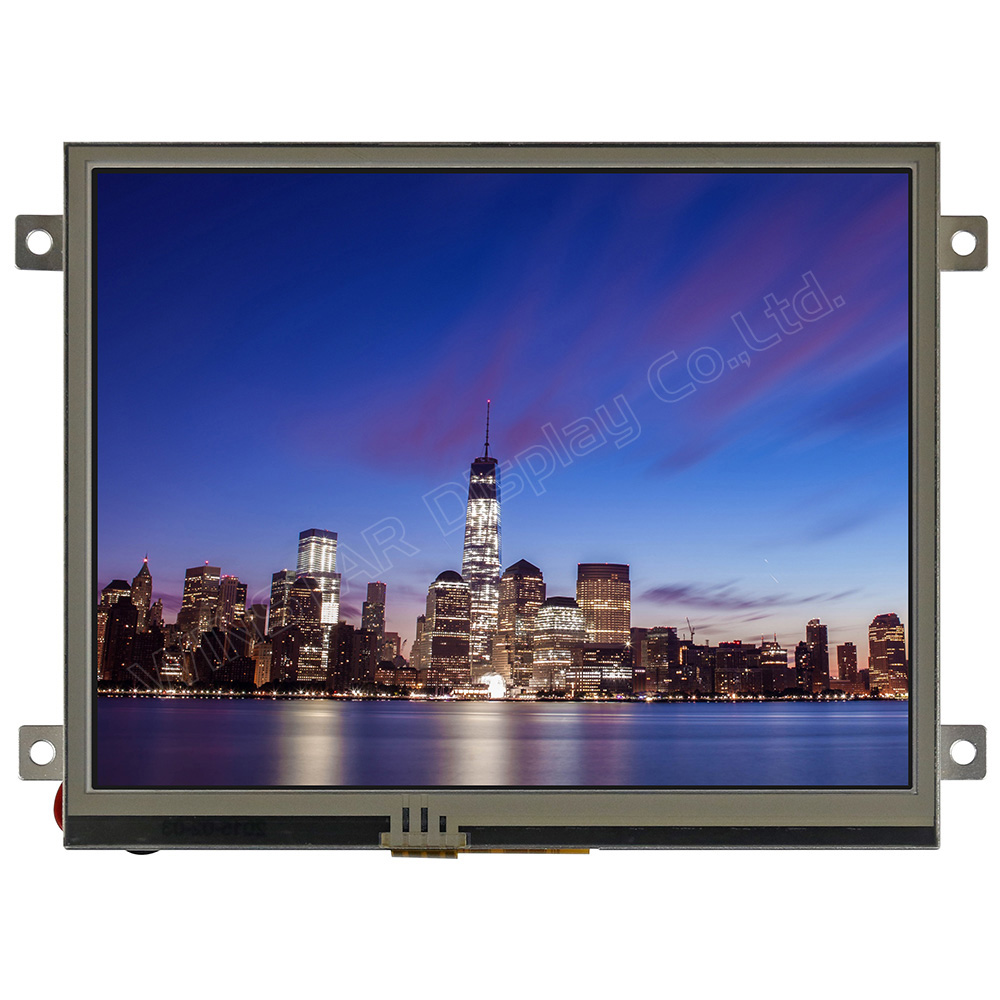

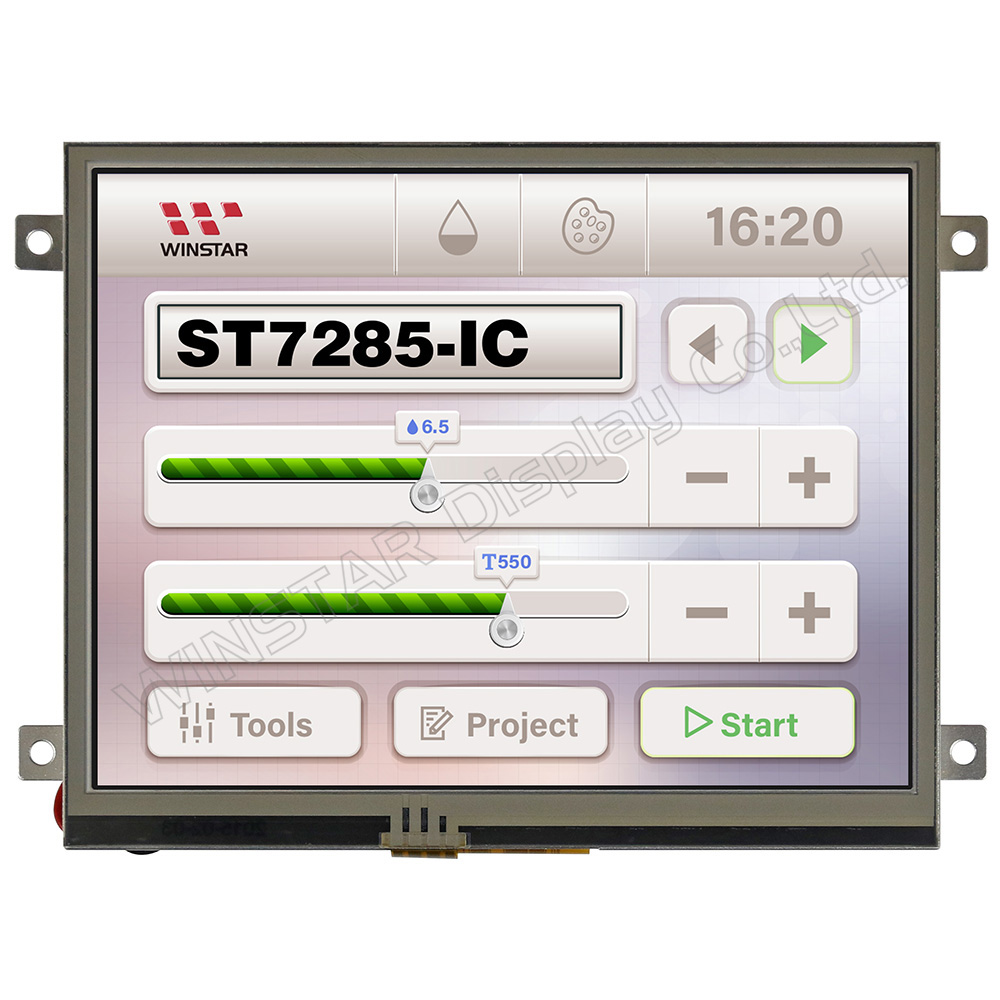

5.7" TFT Panel (RTP) with LCD Controller Board
Model No. WF57QTIBCDBT0
►5.7" Touch Screen TFT LCD Display
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : MCU
►Built-in Controller : SSD1963
►Control-Board : Yes
►Brightness (cd/m²) : 350
►Frame Through Hole : Yes
►Touch Screen : Resistive Touch Panel (RTP)
►O-Film: Option
DESCRIPTION

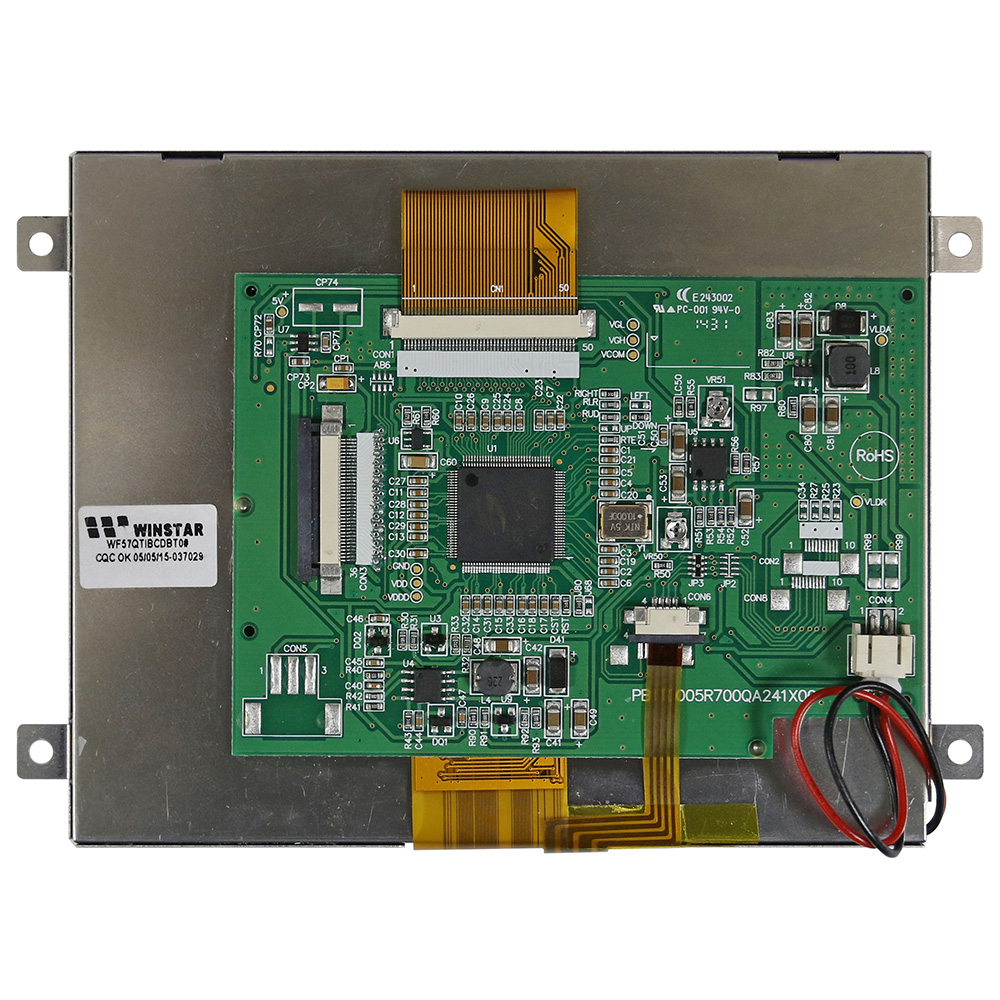

The WF57Q 5.7" TFT Panel is SSD1963 controller board plus a 36 pin-out connector on board. This model is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. The WF57QTIBCDBT0 display is with the module dimension of 141.12 x 101.55 mm and including a Resistive Touch Screen on module. If you are interested in Winstar Touch Screen TFT Panel products, welcome to contact us.
DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | System ground pin of the IC . Connect to system ground. |
| 2 | VDD | Power Supply : +3.3V |
| 3 | BLE | Backlight control signal , H: On \ L: Off |
| 4 | D/C | Data/Command select |
| 5 | WR | Write strobe signal |
| 6 | RD | Read strobe signal |
| 7~14 | DB0~DB7 | Data bus |
| 15~22 | DB8~DB15 | Data bus (When select 8bits Mode, this pin is NC) |
| 23~24 | NC | No connect |
| 25 | CS | Chip select |
| 26 | RESET | Hardware reset |
| 27 | L/R | Left / right selection; Default L/R=H |
| 28 | U/D | Up/down selection; ; Default U/D=L |
| 29 | XL | Left electrode |
| 30 | YU | Top electrode |
| 31 | XR | Right electrode |
| 32 | YD | Bottom electrode |
| 33~34 | VLED- | Power for LED Driver IC(GND) |
| 35~36 | VLED+ | Power for LED Driver IC(+5V) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.7 | inch |
| Dot Matrix | 320 × RGB × 240(TFT) | dots |
| Module dimension | 141.12 × 101.55 × 15.0 | mm |
| Active area | 115.2 × 86.4 | mm |
| Dot pitch | 0.12 × 0.36 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Backlight Type | LED ,Normally White | |
| Controller IC | SSD1963 | |
| Interface | Digital 8080 family MPU 8bit/16bit | |
| Touch Panel | Resistive touch panel (RTP) | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | － | 3.0 | 3.1 | 3.3 | V |
| Supply Current For LCM | IDD | － | － | 350 | 550 | mA |
