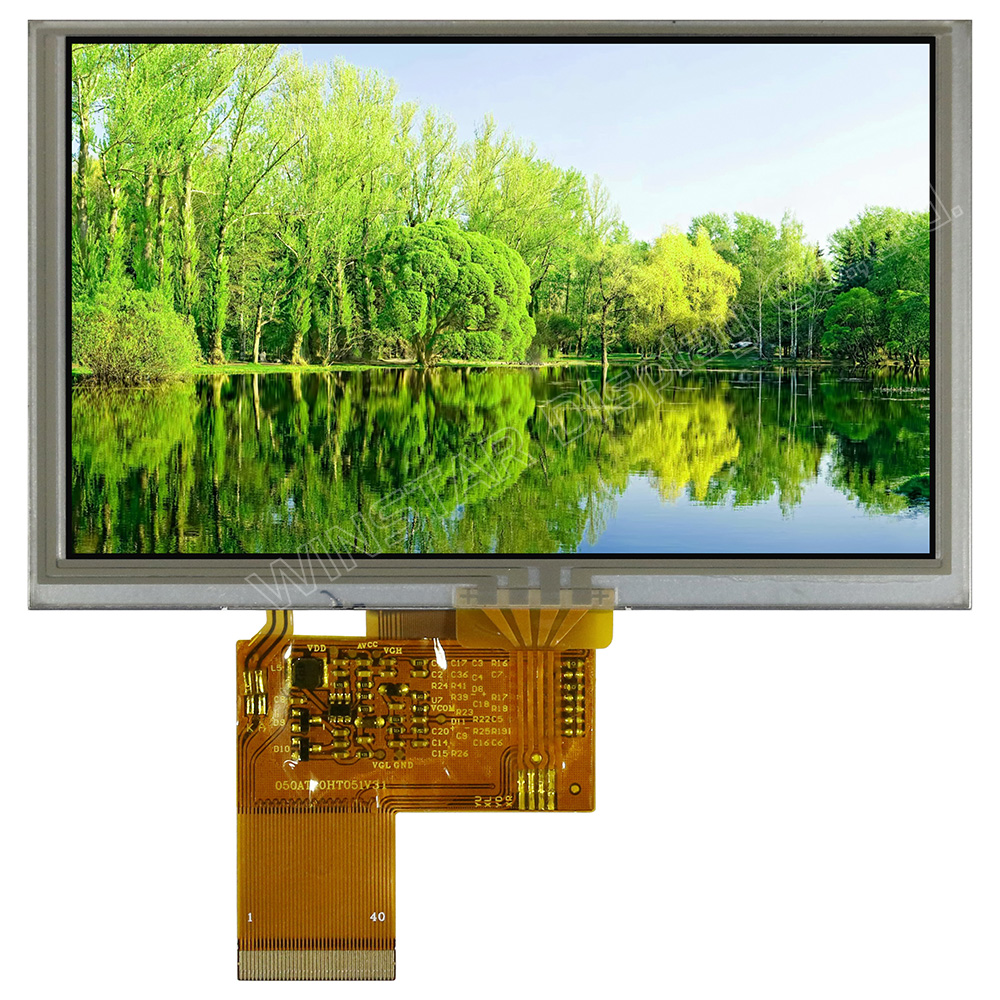

5 inch TFT LCD Display, TFT 5 inch
Model No. WF50BTIAGDNT0
►Size : 5" TFT LCD
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m²) : 350
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel
DESCRIPTION
Winstar Display 5 inch standard higher resolution TFT LCD model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but the WF50B is with a better resolution. The resolution of our existing standard 4.3" is with 480x272 resolution and 5.7" TFT is with 320x240, as to the WF50B is with 800x480 resolution. The display WF50B is a good option for customers while designing a new project which request a better resolution or competitive price. The display WF50B is with outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. The WF50B 5" TFT module can be operating at temperatures from –20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This display WF50BTIAGDNT0 TFT LCD module is a 5 inch diagonal, 800xRGBx480, full color TFT-LCD module.

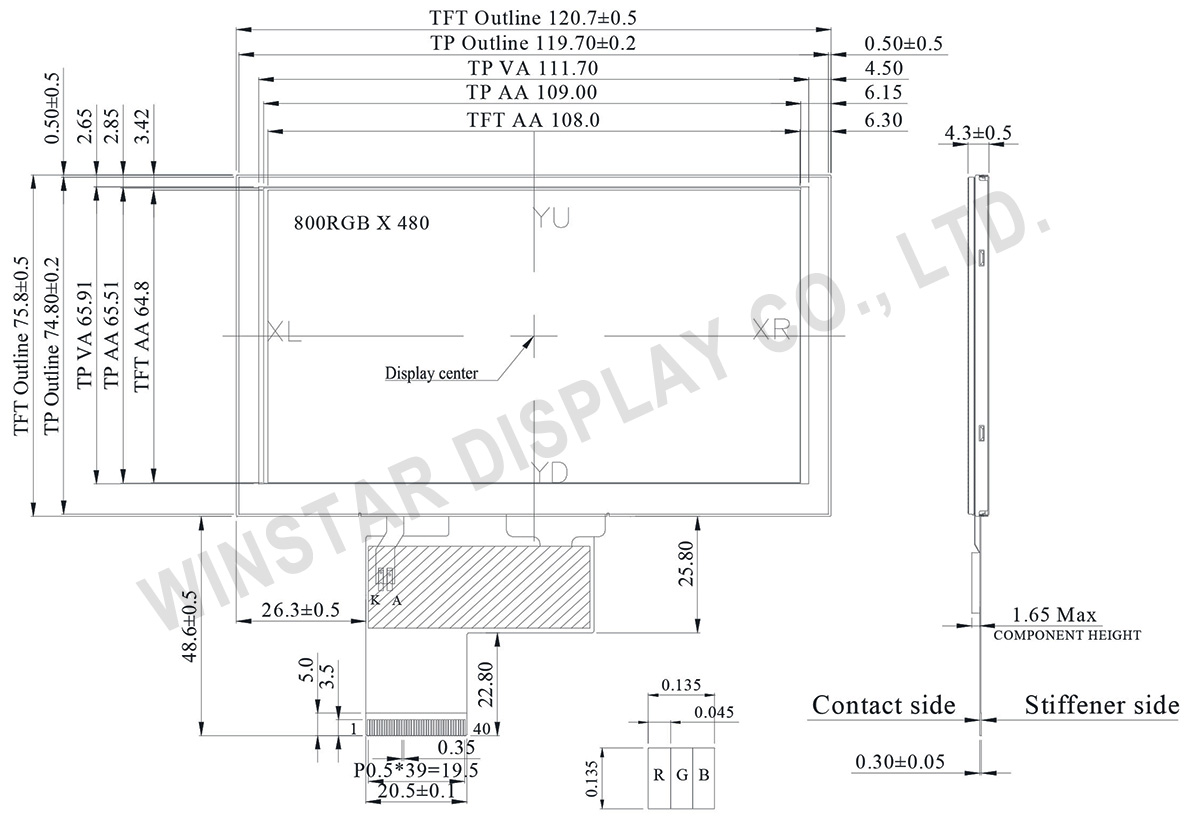

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
FPC Connector is used for the module electronics interface.
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight (Cathode) |
| 2 | VLED+ | Power for LED backlight (Anode) |
| 3 | GND | Power Ground |
| 4 | VDD | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6 | R1 | Red data |
| 7 | R2 | Red data |
| 8 | R3 | Red data |
| 9 | R4 | Red data |
| 10 | R5 | Red data |
| 11 | R6 | Red data |
| 12 | R7 | Red data(MSB) |
| 13 | G0 | Green data(LSB) |
| 14 | G1 | Green data |
| 15 | G2 | Green data |
| 16 | G3 | Green data |
| 17 | G4 | Green data |
| 18 | G5 | Green data |
| 19 | G6 | Green data |
| 20 | G7 | Green data(MSB) |
| 21 | B0 | Blue data(LSB) |
| 22 | B1 | Blue data |
| 23 | B2 | Blue data |
| 24 | B3 | Blue data |
| 25 | B4 | Blue data |
| 26 | B5 | Blue data |
| 27 | B6 | Blue data |
| 28 | B7 | Blue data(MSB) |
| 29 | GND | Power Ground |
| 30 | CLK | Sample clock |
| 31 | DISP | Display on/off |
| 32 | NC/HSync | No connection /Horizontal sync input |
| 33 | NC/VSync | No connection /Vertical sync input |
| 34 | DE | Data input enable |
| 35 | NC | No connection |
| 36 | GND | Power Ground |
| 37 | XR | Right electrode |
| 38 | YD | Down electrode |
| 39 | XL | Left electrode |
| 40 | YU | Top electrode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.0 | inch |
| Dot Matrix | 800 × RGB × 480 | dots |
| Module dimension | 120.7(W) × 75.8(H) × 4.3(D) | mm |
| Active area | 108 (W) × 64.8(H) | mm |
| Dot pitch | 0.135(W) × 0.135(H) | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Resistive touch panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ | Max. | |||
| Power voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Current for Driver(Black) | IDD | - | 110 | 170 | mA |
| Input logic high voltage | VIH | 0.7 VDD | - | VDD | V |
| Input logic low voltage | VIL | 0 | - | 0.3 VDD | V |
