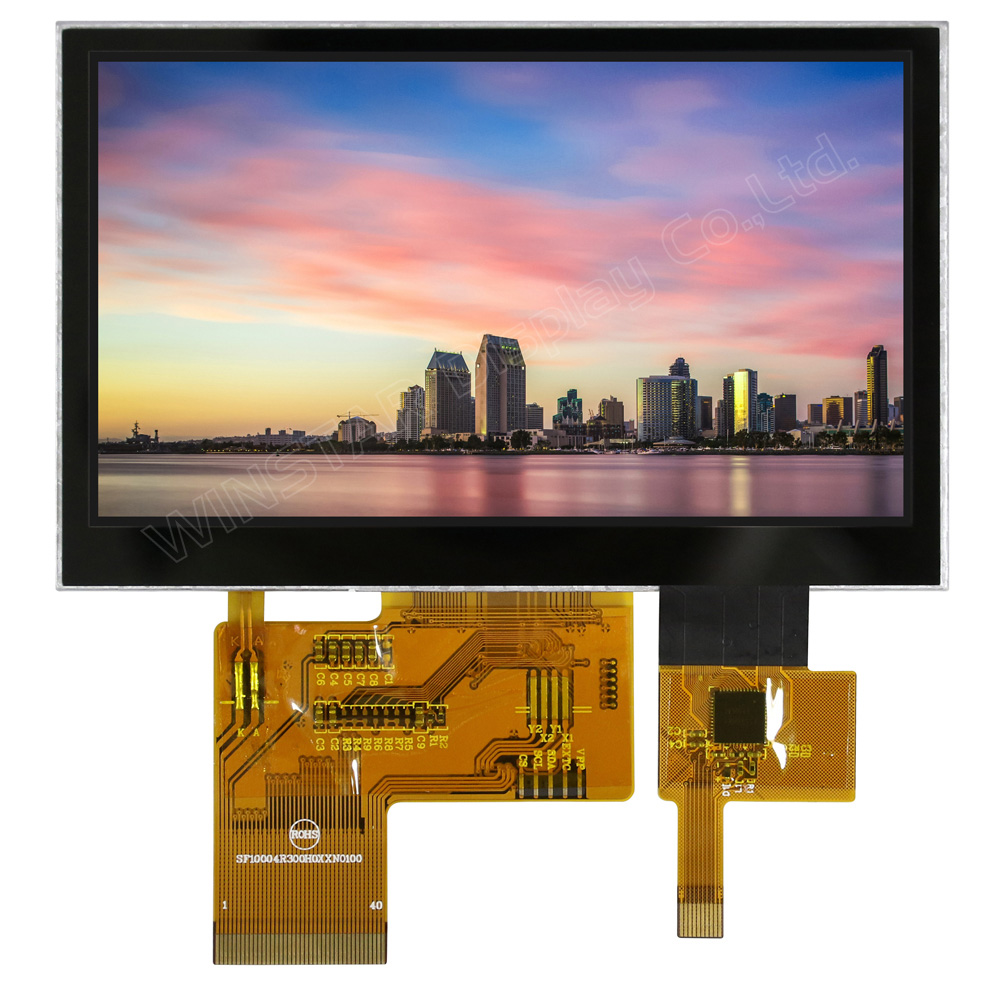

4.3" High Brightness TFT Display

Model No. WF43VSZAEDNG0

►Size : 4.3”
►Resolution : 480x272 dots
►View Direction : O-TFT
►Interface : RGB
►TFT Driver IC : ST7282
►Control-Board : No
►Brightness(cd/m2) : 600
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 5 Fingers
►O-Film: Yes

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

The WF43VSZAEDNG0 is 480x272 dots TFT module with 4.3" TFT projected capacitive touch screen (PCAP). This 4.3" TFT Touch Screen module can be used for outdoor applications which require display in high brightness and colorful image.

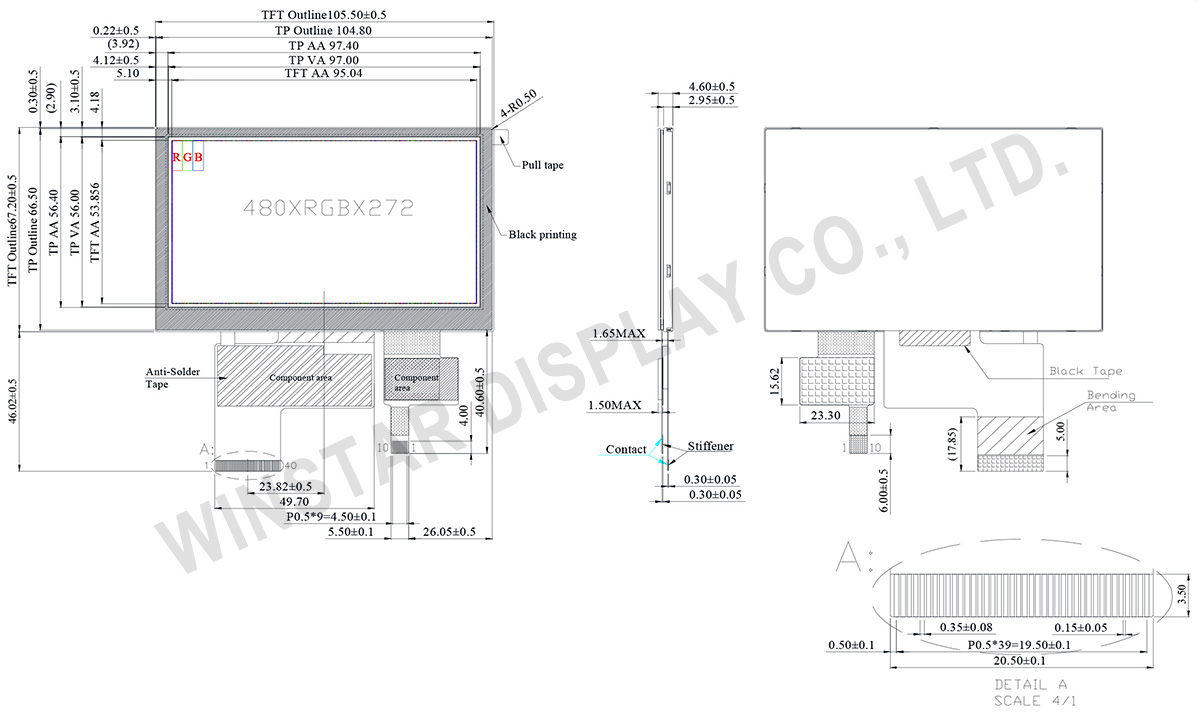

DRAWING

4.3" High Brightness TFT Display - WF43VSZAEDNG0

SPECIFICATIONS

Interface

LCM PIN Definition

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	DE	Data Enable
35	NC	No connection
36	GND	Power ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

PCAP PIN Definition

Pin	Symbol	Function
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.0V
3	SCL	I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 x RGB x 272(TFT)	dots
Module dimension	105.5(W) x 67.2(H) x 4.6(D)	mm
Active area	95.04 x 53.856	mm
Dot pitch	0.066 x 0.198	mm
LCD type	TFT, Normally White, Transmissive
Aspect Ratio	16:9
TFT Driver IC	ST7282
Interface	24-bit RGB
Backlight Type	LED, Normally White
PCAP FW Version	3
PCAP IC	FT5426DQ8 or equivalent
PCAP Interface	I2C
Touch Panel	Projected capacitive touch panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For Logic	Vcc	3.1	3.3	3.5	V
Supply Voltage For Touch Logic	VDDT	2.8	—	3.3	V
Digital operation current	ICC		22	33	mA
