Interface
| Pin |
Symbol |
Function |
| 1 |
VLED- |
Power for LED backlight cathode |
| 2 |
VLED+ |
Power for LED backlight anode |
| 3 |
GND |
Power ground |
| 4 |
VDD |
Power voltage |
| 5 |
R0 |
Red data (LSB) |
| 6~11 |
R1~R6 |
Red data |
| 12 |
R7 |
Red data (MSB) |
| 13 |
G0 |
Green data (LSB) |
| 14~19 |
G1~G6 |
Green data |
| 20 |
G7 |
Green data (MSB) |
| 21 |
B0 |
Blue data (LSB) |
| 22~27 |
B1~B6 |
Blue data |
| 28 |
B7 |
Blue data (MSB) |
| 29 |
GND |
Power ground |
| 30 |
CLK |
Pixel clock |
| 31 |
DISP |
Display on/off |
| 32 |
HSYNC |
Horizontal sync signal; negative polarity |
| 33 |
VSYNC |
Vertical sync signal; negative polarity |
| 34 |
DE |
Data Enable |
| 35 |
NC |
No connection |
| 36 |
GND |
Power ground |
| 37 |
XR |
Right electrode |
| 38 |
YD |
Down electrode |
| 39 |
XL |
Left electrode |
| 40 |
YU |
Top electrode |

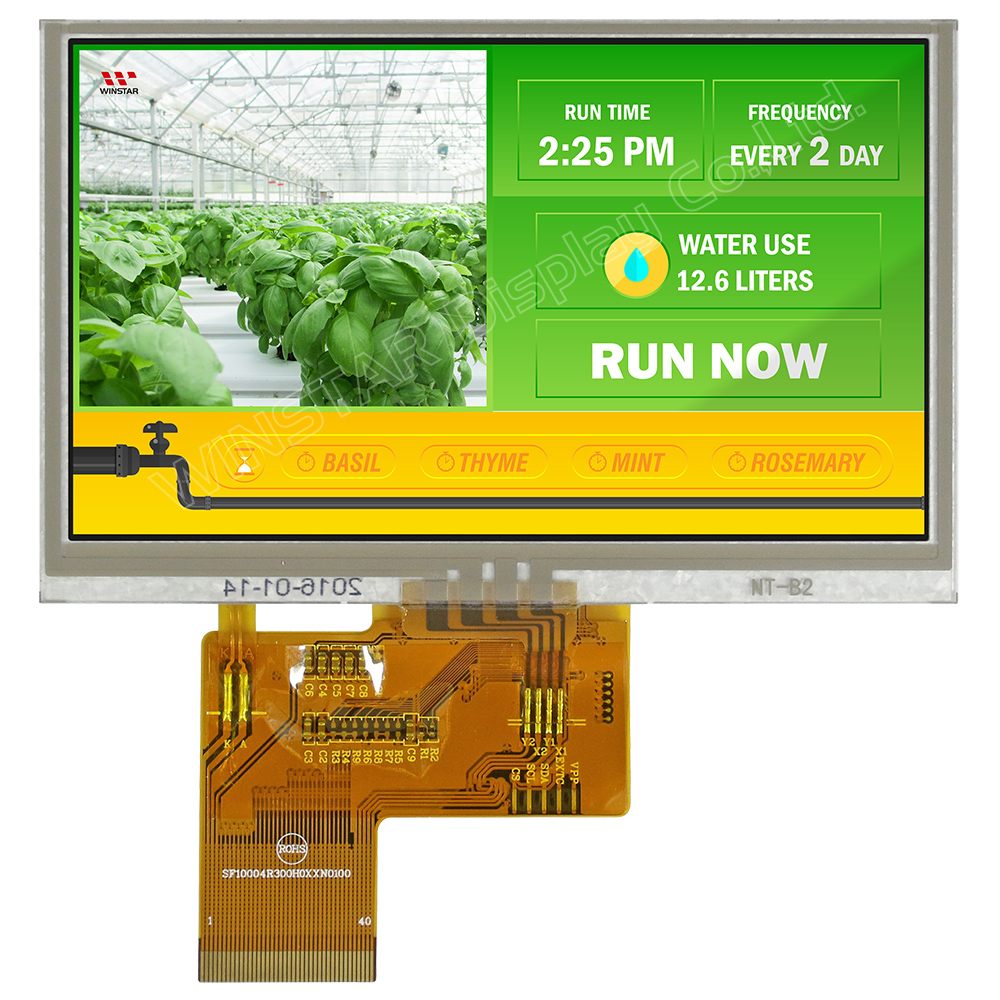

General Specifications
| Item |
Dimension |
Unit |
| Size |
4.3 |
inch |
| Dot Matrix |
480 × RGB × 272(TFT) |
dots |

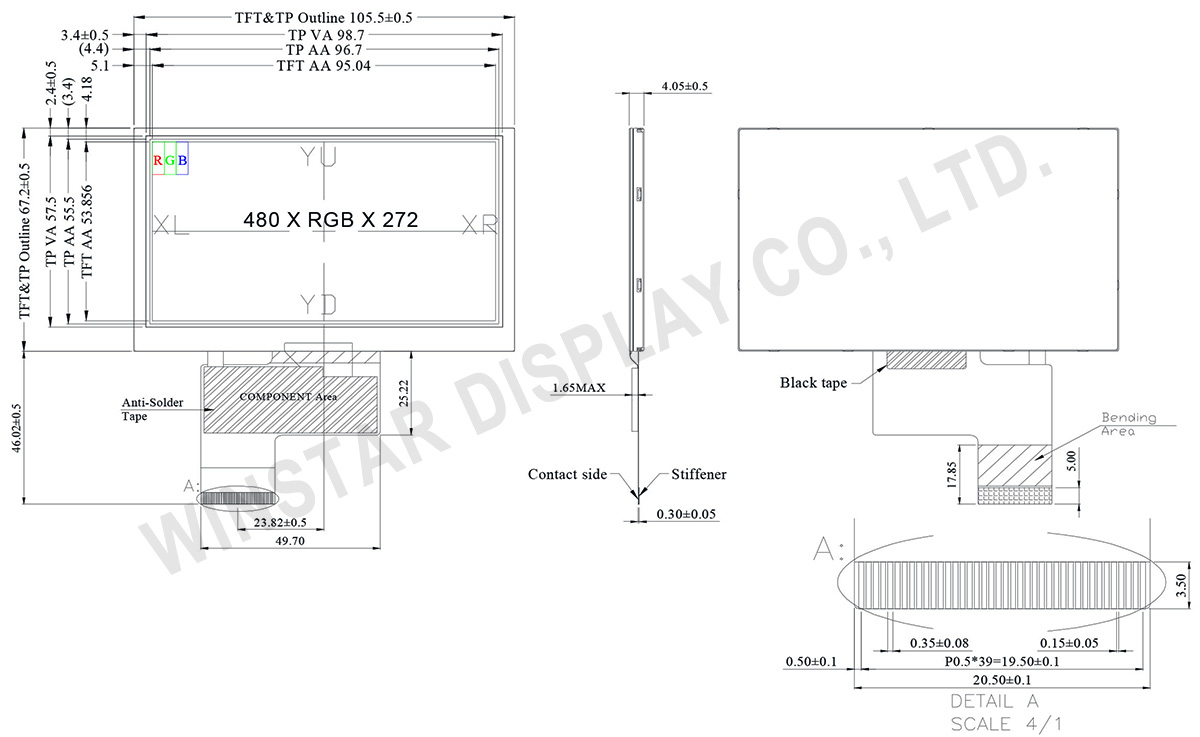

| Module dimension |
105.5(W) × 67.2(H) × 4.05(D) |
mm |
| Active area |
95.04 × 53.856 |
mm |
| Dot pitch |
0.066 × 0.198 |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| View Direction |
12 o'clock |
| Gray Scale Inversion Direction |
6 o'clock |
| Aspect Ratio |
16:9 |
| TFT Driver IC |
ST7282-G4-1L |
| Interface |
24-bit RGB |
| Backlight Type |
LED, Normally White |
| Touch Screen |
Resistive touch screen (RTP) |
| Surface |
Anti-Glare |
Absolute Maximum Ratings
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
Electrical Characteristics
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Power Supply For Logic |
VCC |
3.1 |
3.3 |
3.5 |
V |
| Power Supply For Current |
ICC |
- |
22 |
33 |
mA |
