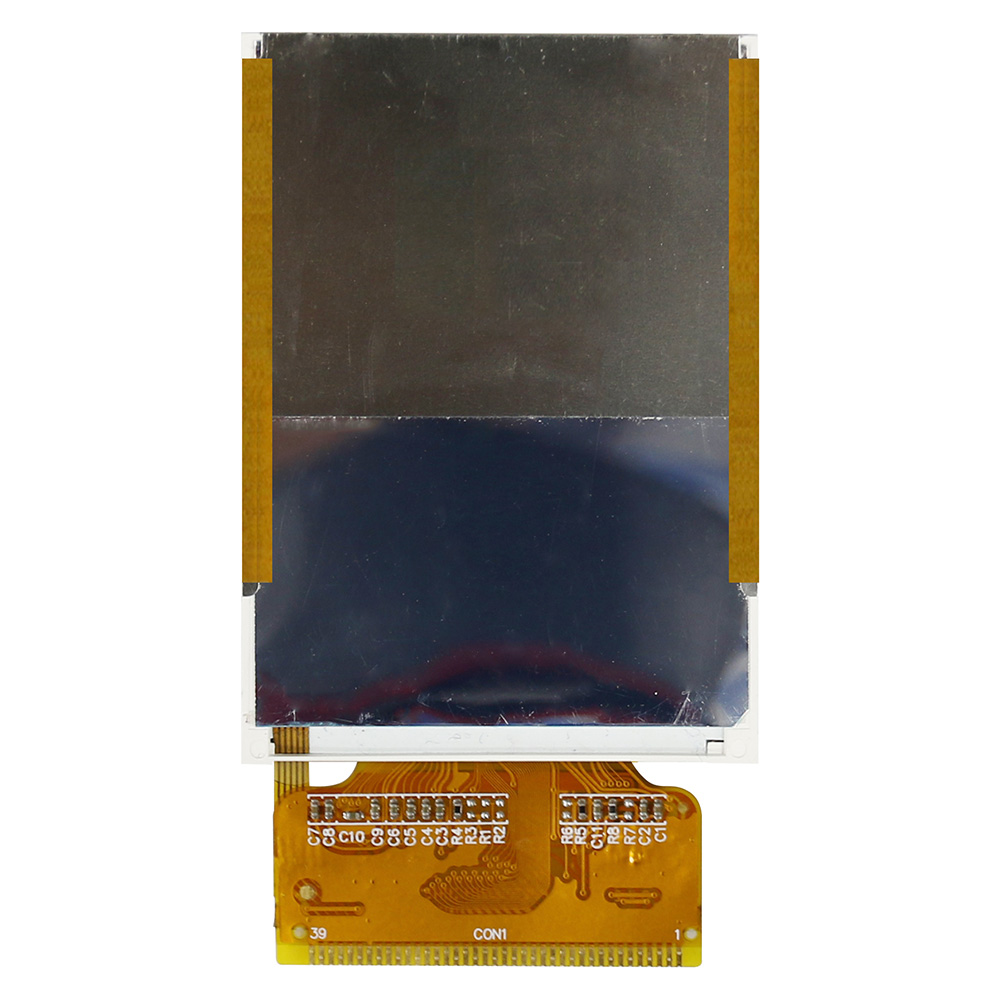

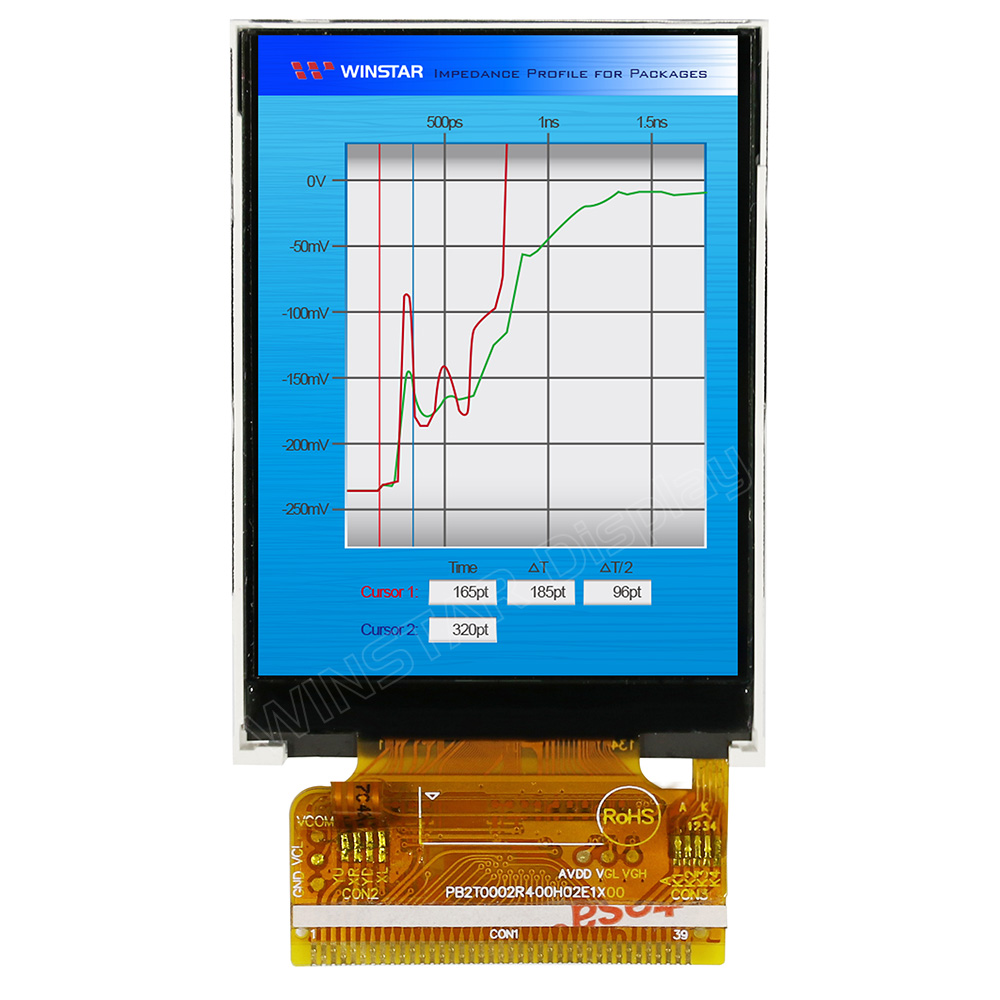

2.4 inch TFT LCD Display, 2.4" TFT LCD Module
Model No. WF24HTLAJDNN0
►2.4" TFT LCD / TFT 2.4"
►Resolution: 240×320 dots
►View Direction: 6H
►Interface: MCU
►Built-in Controller: ILI9341
►Control-Board: No
►Brightness(cd/m²): 500
►Frame Through Hole: No
►Touch Screen: Without Touch Screen
DESCRIPTION
Winstar WF24H is a 2.4 inch diagonal full color 240x320 TFT LCD display module. This 2.4 inch TFT LCD module is built in with ILI9341V IC; it supports 8/16-bit 8080-series Parallel MCU Interface. WF24H model is having module dimension of 42.72 x 60.26 mm and Active area size of 36.72 x 48.96 mm; it integrated ILI9341V controller on module, logic supply voltage range from 2.4V to 3.3V.
This 2.4” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2.4" LCD module is featured with brightness up to 500 cd/m2(typical value), it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
This 2.4” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2.4" LCD module is featured with brightness up to 500 cd/m2(typical value), it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

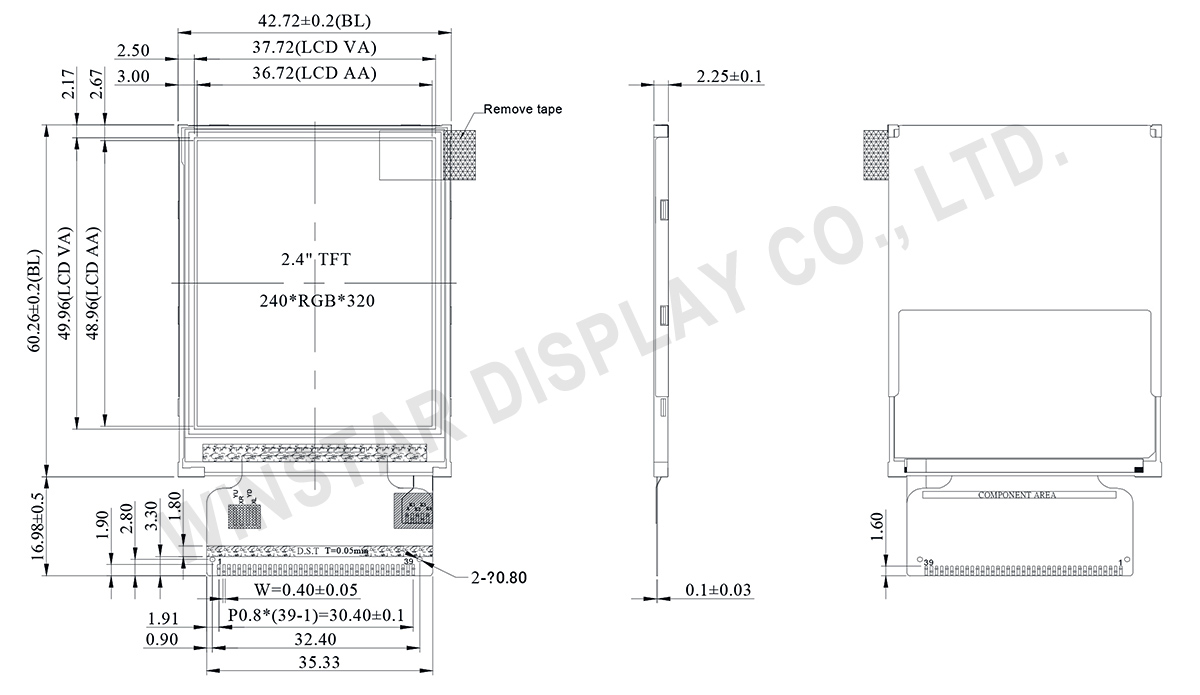

DRAWING
SPECIFICATIONS
Interface
| NO | Symbol | Function | I/O |
|---|---|---|---|
| 1 | GND | Ground | P |
| 2-5 | NC | No connect | - |
| 6 | LCD_ID | No connect | - |
| 7 | VCC | power supply(TYP:2.8V). | P |
| 8 | IOVCC | power supply(TYP:1.8V/2.8V). | P |
| 9 | FMARK | Synchronies MCU to frame rate | I |
| 10 | CS | Chip select signal. | I |
| 11 | RS | register select | I |
| 12 | WR | Write data when WRX is Low. | I |
| 13 | RD | Read strobe signal. Read out data when RDX is Low. | I |
| 14-29 | DB0- DB15 | Data bus | I/O |
| 30 | RESET | System reset pin. | I |
| 31 | IM0 | Data interface select IM0= IOVCC 16Bit DB0-DB15 IM0= GND 8Bit DB8-DB15 |
I |
| 32 | NC | No connect | - |
| 33 | GND | Ground | P |
| 34-37 | LEDK1-K4 | Cathode of LED backlight. | P |
| 38 | LEDA | Anode of LED backlight. | P |
| 39 | GND | Ground | P |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 2.4 | inch |
| Dot Matrix | 240 × RGB × 320(TFT) | dots |
| Module dimension | 42.72(W) × 60.26(H) × 2.25(D) | mm |
| Active area | 36.72 × 48.96 | mm |
| Dot pitch | 0.051 × 0.153 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 6 o'clock | |
| Gray Scale Inversion Direction | 12 o'clock | |
| Aspect Ratio | Portrait | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without Touch Screen | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Analog | VCC | － | 2.4 | 3.3 | V | |
| Supply Voltage For Logic | VCCIO | 1.65 | 3.3 | V | ||
| Supply Current For LCM | ICC | － | － | 5 | 7.5 | mA |
