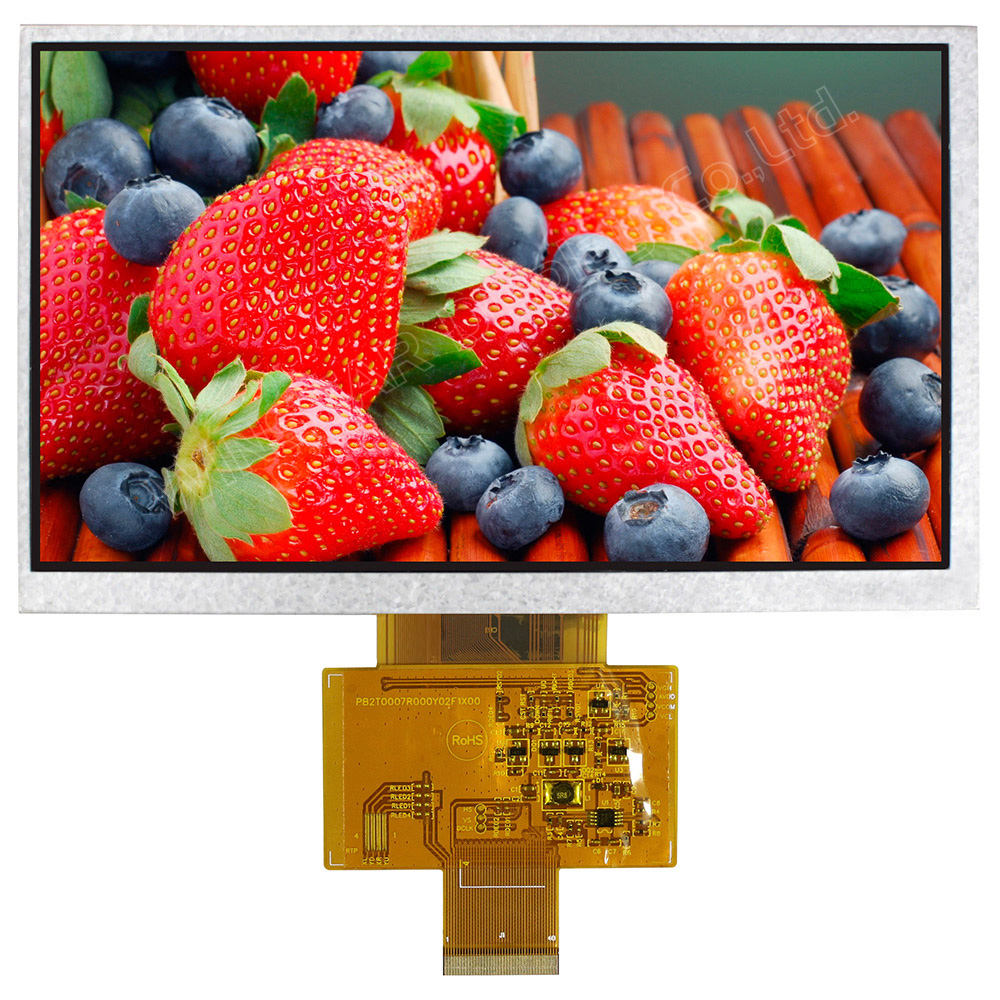

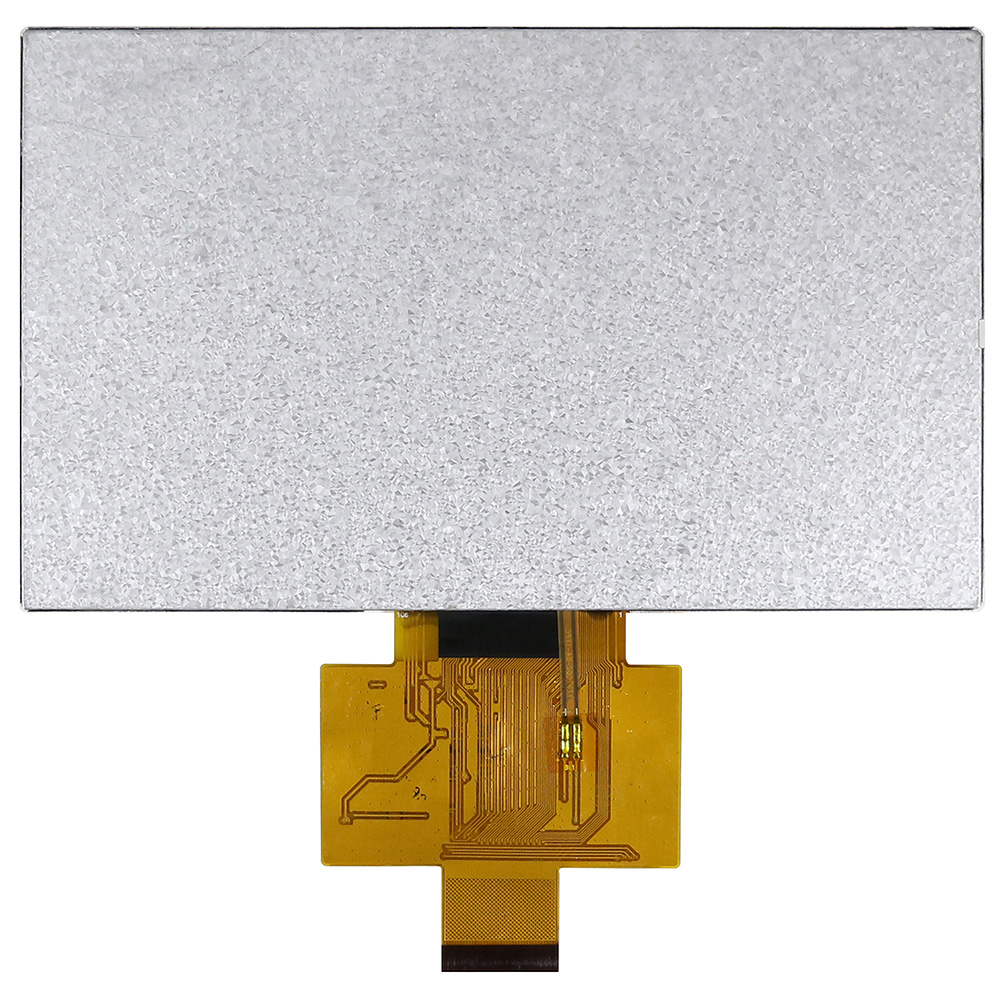

7" Color TFT LCD Modules
Model No. WF70YTIAGDNN0
►Size : 7"
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►Built-in Controller : --
►Control-Board : Without control board
►Brightness(cd/m²): 460
►Frame Through Hole : No
►Touch Screen : Without touch screen
DESCRIPTION
Key Advantages of Winstar TFT Y Series:
- All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
- All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
- Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.
DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Backlight ground |
| 2 | VLED+ | Power supply for backlight |
| 3 | GND | Power ground |
| 4 | VCC | Power for Digital Circuit |
| 5 | R0 | Red data(LSB) |
| 6 | R1 | Red data |
| 7 | R2 | Red data |
| 8 | R3 | Red data |
| 9 | R4 | Red data |
| 10 | R5 | Red data |
| 11 | R6 | Red data |
| 12 | R7 | Red data(MSB) |
| 13 | G0 | Green data(LSB) |
| 14 | G1 | Green data |
| 15 | G2 | Green data |
| 16 | G3 | Green data |
| 17 | G4 | Green data |
| 18 | G5 | Green data |
| 19 | G6 | Green data |
| 20 | G7 | Green data(MSB) |
| 21 | B0 | Blue data(LSB) |
| 22 | B1 | Blue data |
| 23 | B2 | Blue data |
| 24 | B3 | Blue data |
| 25 | B4 | Blue data |
| 26 | B5 | Blue data |
| 27 | B6 | Blue data |
| 28 | B7 | Blue data(MSB) |
| 29 | GND | Power Ground |
| 30 | CLK | Sample clock |
| 31 | R/L | Right /Left selection ; Default R/L is Pull High |
| 32 | Hsync | Horizontal Sync Input |
| 33 | Vsync | Vertical Sync Input |
| 34 | NC | No connection |
| 35 | U/D | Up/down selection |
| 36 | RESET | Global reset pin. |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39 | NC | No connection |
| 40 | NC | No connection |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 800 × RGB × 480(TFT) | dots |
| Module dimension | 165.0(W) × 100(H) × 5.7(D) | mm |
| Active area | 154.08 × 85.92 | mm |
| Dot pitch | 0.0642 × 0.179 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Interface | 24-bit RGB | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without touch panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | 3.0 | 3.3 | 3.6 | V |
| Power Supply For Current | VCC =3.3V | 110 | 165 | mA |
