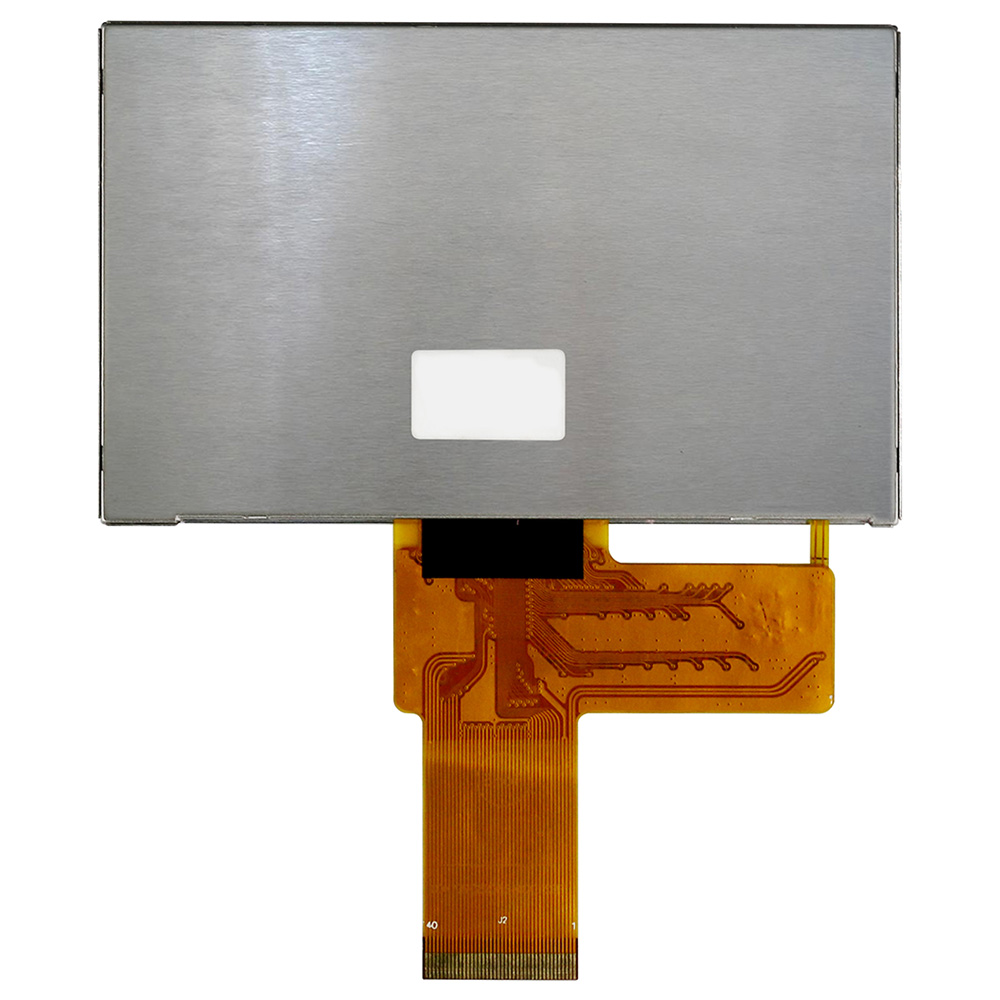

4.3" Wide Temperature Active Matrix TFT LCD Display
Model No. WF43STVAEDNN0
►Active Matrix Display
►Size : 4.3 TFT
►Resolution : 480 x 272 dots
►View Direction : VA
►Interface : RGB
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m²) : 600
►Frame Through Hole : No
►Touch Screen : No
►Operating Temperature : -30~80 °C (Wide Temperature)
DESCRIPTION

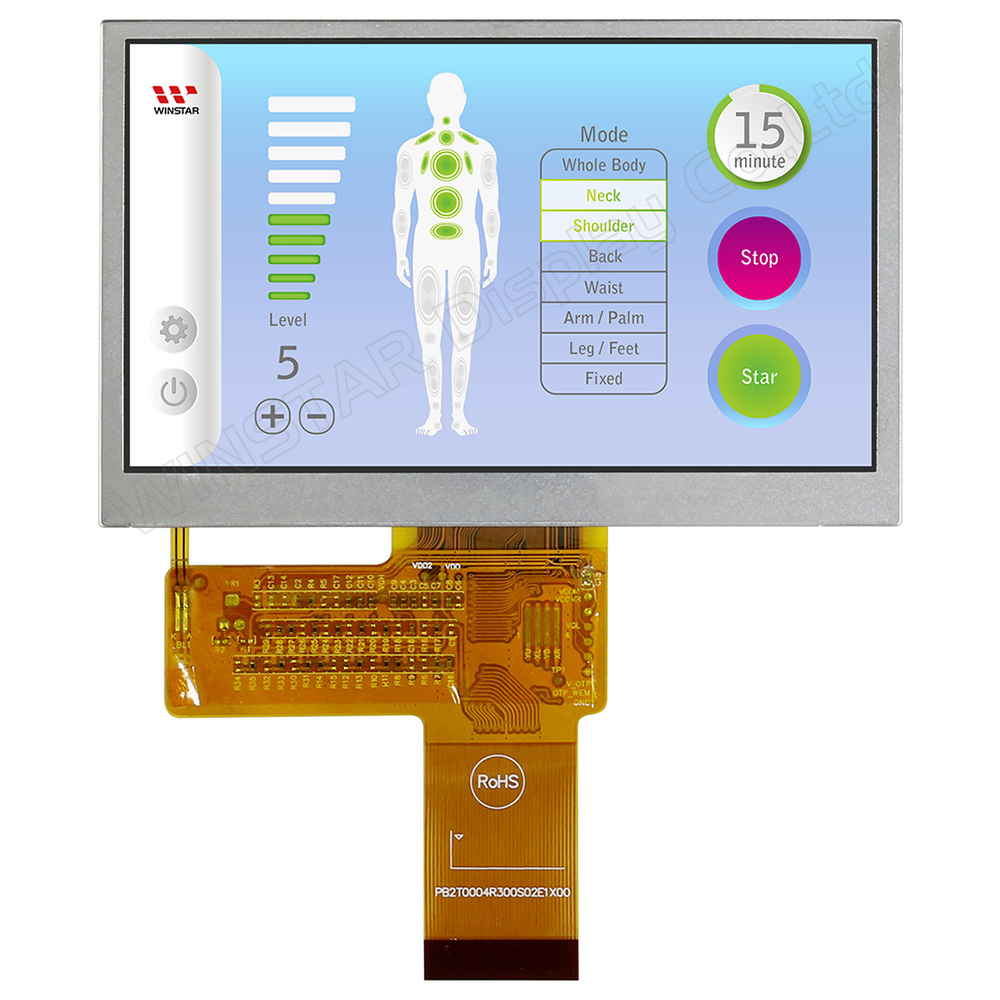

WF43STVAEDNN0 is a 4.3 inch TFT-LCD module with resolution of 480x272 pixels. This TFT-LCD is featured with VA panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and wider temperature. It can be operating at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.
This 4.3 inch module is a landscape mode TFT-LCD, it supports parallel 24 bit RGB interface, having Anti-Glare surface panel and its aspect ratio is 16:9. This TFT-LCD featured with great brightness of 600cd/m2 and wide temperature, it is very suitable for industrial equipment & outdoor application, and etc.

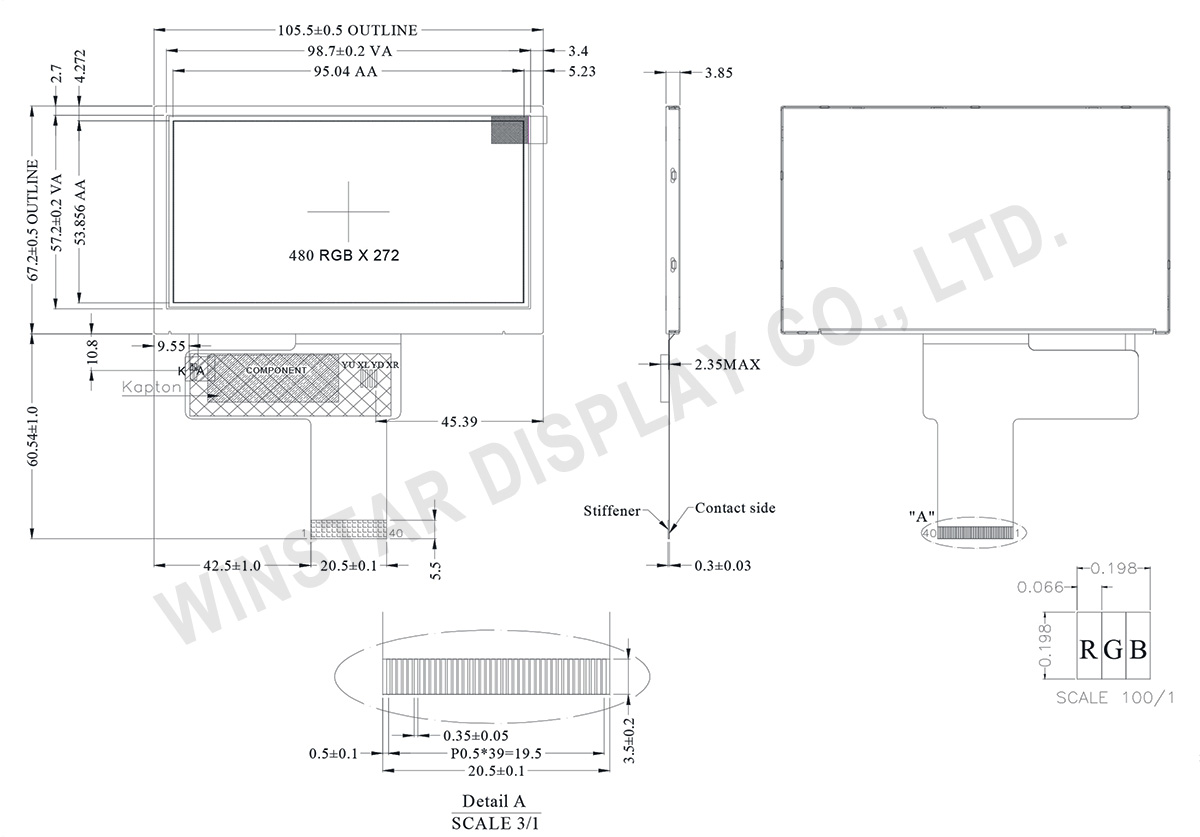

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED_A | Power for LED backlight anode |
| 2 | VLED_K | Power for LED backlight cathode |
| 3 | VCC | Power voltage |
| 4 | VCC | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6~11 | R1~R6 | Red data |
| 12 | R7 | Red data (MSB) |
| 13 | GND | Power ground |
| 14 | G0 | Green data (LSB) |
| 15~20 | G1~G6 | Green data |
| 21 | G7 | Green data (MSB) |
| 22 | GND | Power ground |
| 23 | B0 | Blue data (LSB) |
| 24~29 | B1~B6 | Blue data |
| 30 | B7 | Blue data (MSB) |
| 31 | GND | Power ground |
| 32 | PCLK | Pixel clock |
| 33 | DISP | Display on/off |
| 34 | HSYNC | Horizontal sync signal; negative polarity |
| 35 | VSYNC | Vertical sync signal; negative polarity |
| 36 | DE | Data Enable |
| 37~40 | NC | No connection |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 4.3 | inch |
| Dot Matrix | 480 × RGB × 272(TFT) | dots |
| Module dimension | 105.5 × 67.2 × 3.85 | mm |
| Active area | 95.04 × 53.856 | mm |
| Dot pitch | 0.066 × 0.198 | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| View Direction | Wide View | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Without Touch Screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -30 | － | +80 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Digital operation current | ICC | - | 17 | 25 | mA |
