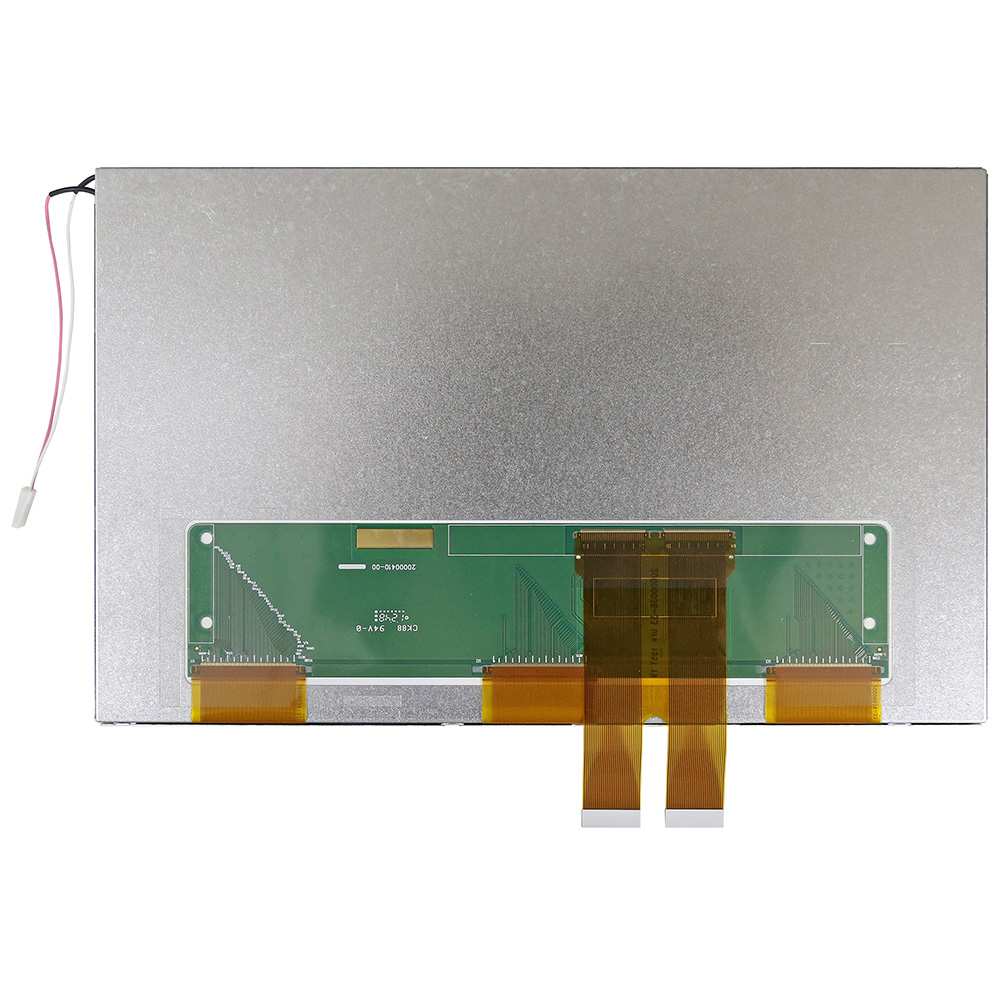

Active Matrix TFT Colour LCD 10.2" (Wide Temperature)

Model No. WF102ATIAGDNN0

►Active Matrix TFT Colour LCD
►Size : 10.2”
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►IC Part No.: --
►Control-Board : No
►Brightness (cd/m²): 350
►Frame Through Hole : No
►Touch Screen : No
►Operating Temperature : -30~+85°C (Wide Temperature)

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

WF102A is a 10.2” wider temperature TFT LCD display. WF102ATIAGDNN0 is having the module dimension of 235 x 145.8 mm, AA size of 222 x 132.48 mm and It’s resolution is 800 RGB x 480 dots. WF102A TFT Display can be operating at temperatures from–30℃ to +85℃.

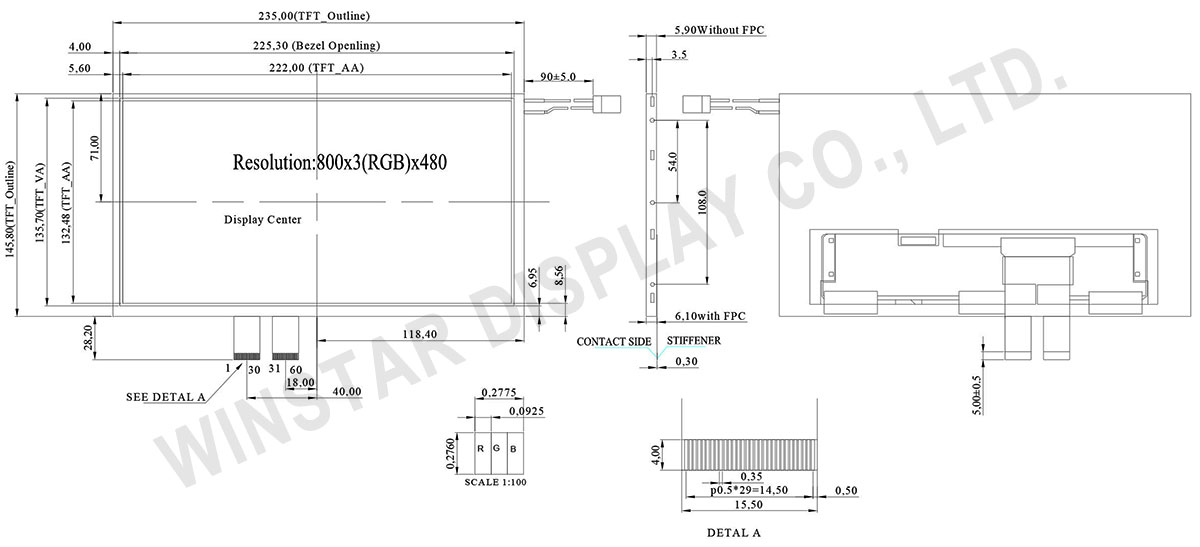

DRAWING

Winstar 10.2 Wide Temperature TFT-LCD Module - WF102ATIAGDNN0

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	POL	I	Polarity selection
2	STVD	I/O	Vertical start pulse input when U/D= H
3	OEV	I	Output enable
4	CKV	I	Vertical clock
5	STVU	I/O	Vertical start pulse input when U/D= L
6	GND	P	Power ground
7	EDGSL	I	Select rising edge or rising/falling edge
8	VCC	P	Power supply for digital circuit
9	V9	I	Gamma voltage level 9
10	VGL	P	Gate OFF voltage
11	V2	I	Gamma voltage level 2
12	VGH	P	Gate ON voltage
13	V6	I	Gamma voltage level 6
14	U/D	I	Up/down selection
15	VCOM	I	Common voltage
16	GND	P	Power ground
17	AVDD	P	Power supply for analog circuit
18	V14	I	Gamma voltage level 14
19	V11	I	Gamma voltage level 11
20	V8	I	Gamma voltage level 8
21	V5	I	Gamma voltage level 5
22	V3	I	Gamma voltage level 3
23	GND	P	Power ground
24	R5	I	Red data(MSB)
25~28	R4~R1	I	Red data
29	R0	I	Red data(LSB)
30~31	GND	P	Power ground
32	G5	I	Green data(MSB)
33~36	G4~G1	I	Green data
37	G0	I	Green data(LSB)
38	STHL	I/O	Horizontal start pulse input when R/L = L
39	REV	P	Control signal are inverted or not
40	GND	I	Power ground
41	DCLK	I	Sample clock
42	VCC	P	Power supply for digital circuit
43	STHR	I/O	Horizontal start pulse input when R/L = H
44	LD	I	Latches the polarity of outputs and switches the new data to outputs
45	B5	I	Blue data (MSB)
46	B4	I	Blue data
47~49	B3 ~B1	I	Blue data
50	B0	I	Blue data (LSB)
51	R/L	I	Right/ left selection
52	V1	I	Gamma voltage level 1
53	V4	I	Gamma voltage level 4
54	V7	I	Gamma voltage level 7
55	V10	I	Gamma voltage level 10
56	V12	I	Gamma voltage level 12
57	V13	I	Gamma voltage level 13
58	AVDD	P	Voltage for analog circuit
59	GND	P	Power ground
60	VCOM	I	Common voltage

I: input, O: output, P: Power

General Specifications

Item	Dimension	Unit
Size	10.2	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	235 × 145.8 × 6.1	mm
Active area	222 × 132.48	mm
Dot pitch	0.0925 × 0.2775	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Backlight Type	LED, Normally White
Touch Panel	Without touch panel
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+85	℃
Storage Temperature	TST	-30	－	+85	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCC	－	3.0	3.3	3.6	V
	AVDD	－	9.0	9.2	9.4	V
	VGH	－	15.3	16	16.7	V
	VGL	－	-7.7	-7.0	-6.3	V
Input signal voltage	VCOM	－	3.65	3.85	4.05	V
	V1~V7	－	0.4 AVDD	－	AVDD-0.1	V
	V8~V14	－	0.1	－	0.6AVDD	V
