3 inch LCD Display, Graphic LCD 160x80
Model No. WG16080D
►Graphic LCD 160x80
►3 inch LCD Display
►160x80 dots
►Built-in controller RA6963
►+5V power supply
►1/80 duty cycle
►Negative Voltage Built-in
►Interface: 8080
DESCRIPTION

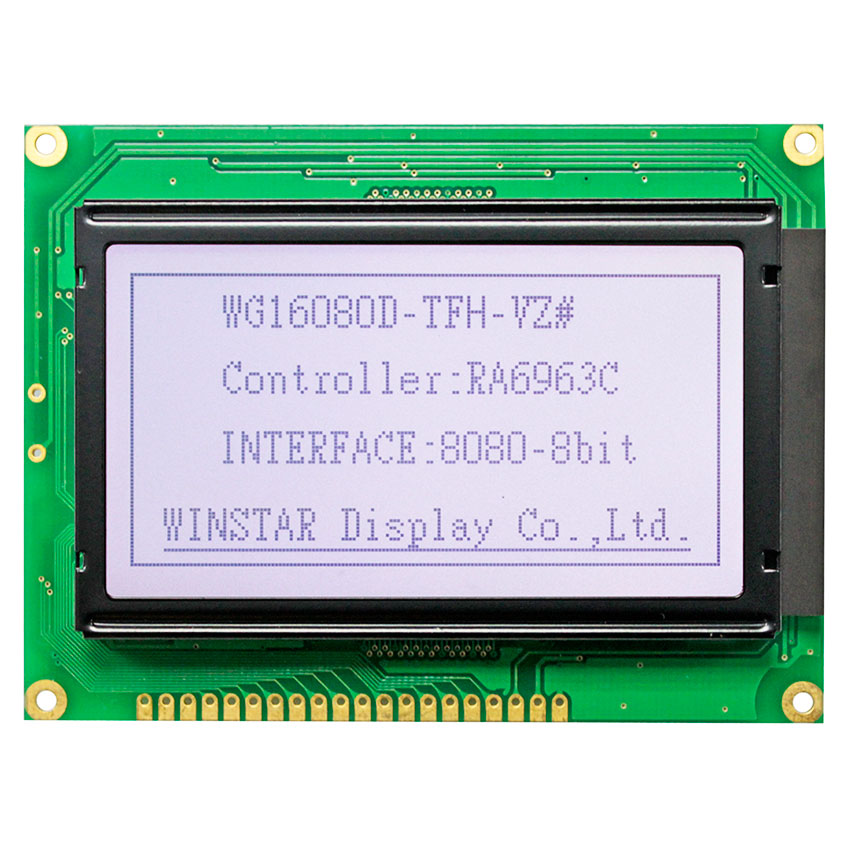

WG16080D is a monochrome LCD 160x80 dot matrix display module which is having the module dimension of 93x70 mm and AA size of 66.17x33.57 mm; diagonal size 3 inch LCD Display. This WG16080D model is built in with RA6963 controller; it communicates via 8080 8-bit parallel interface; 5V power supply negative voltage . This module is available for graphic mode or Character Generator mode (Character font) optional. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

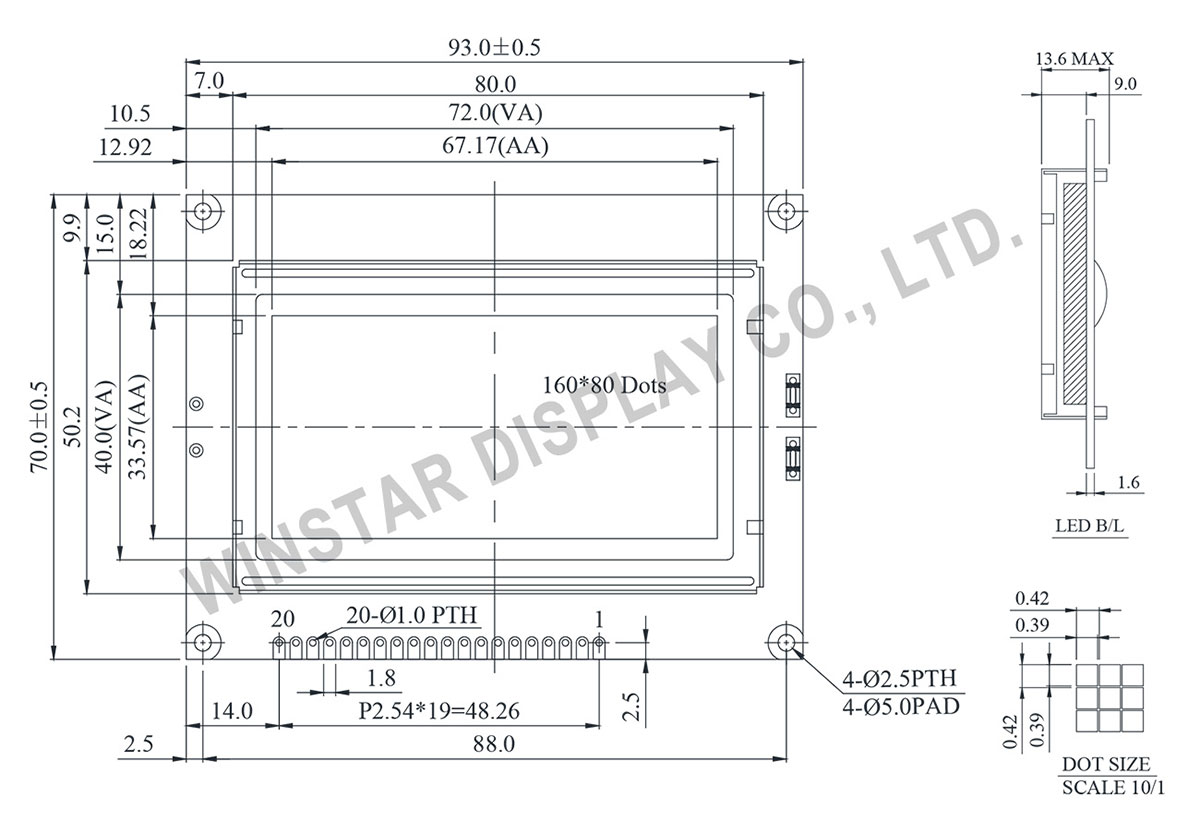

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power supply for logic |
| 3 | VO | Contrast Adjustment |
| 4 | /WR | Data write. Write data into LCD Controller |
| 5 | /RD | Data read. Read data from LCD Controller |
| 6 | C/D | Data/ Instruction select signal |
| 7~14 | DB0~DB7 | Data bus line |
| 15 | /CE | Enable signal |
| 16 | NC/FS | No connection |
| 17 | /RST | Controller reset signal, Active Low |
| 18 | VEE | Negative Voltage Output |
| 19 | A | Power supply for B/L + |
| 20 | K | Power supply for B/L - |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 93.0 × 70.0 | mm |
| Viewing Area | 72.0 × 40.0 | mm |
| Mounting Hole | 88.0 × 65.0 | mm |
| Dot Pitch | 0.42 × 0.42 | mm |
| Dot Size | 0.39 × 0.39 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |
| Recommended LCD Driving Voltage for Normal Temp. Version module @25°C |
VDD-VO | 13.5 | V |
Search Keyword: 160x80 lcd, 160 x 80 lcd, lcd 160 x 80
