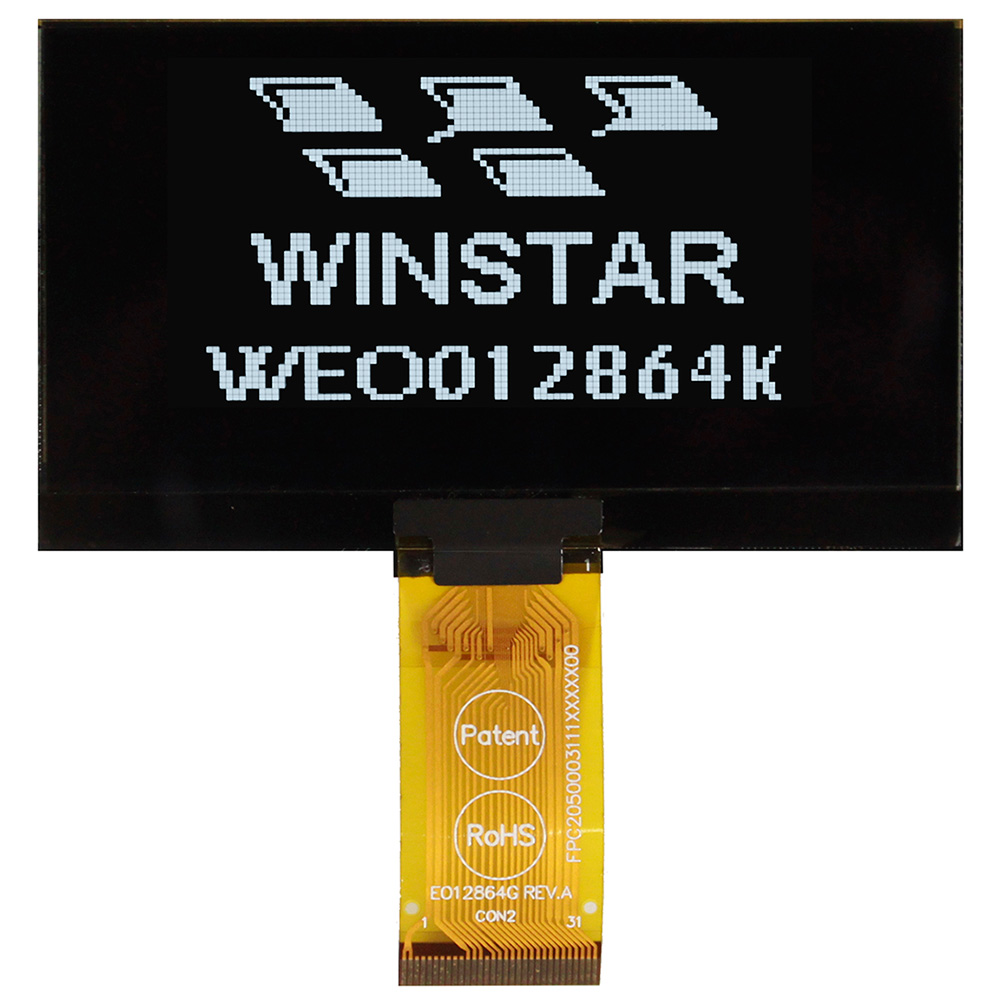

2.7" Graphic OLED Monochrome 128x64

Model No. WEO012864K

►Type: Graphic
►Structure: COG; Frame Option
►Size: 2.7 inch
►128 x 64 Dot Matrix
►Built-in controller SSD1309
►3V Power supply
►1/64 duty
►Interface: 6800, 8080, SPI, I2C
►Display Color: White / Yellow / Sky Blue / Green
►Other FPC options available in below table

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

Winstar OLED Monochrome Display WEO012864K is made of 128x64 pixels, diagonal size is 2.7 inch. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.

Frame Option | FPC Options

DRAWING

Winstar WEO012864K 2.7 Graphic OLED Monochrome 128x64

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No Connection
2	VSS	Ground Oin
3~10	NC	No Connection
11	VDD	Voltage for logic
12~13	BS1~BS2	Interface selection
14	NC	No Connection
15	CS#	Chip Select Pin
16	RES#	Reset Signal Pin
17	D/C#	Data/Command Control Pin
18	R/W#	Read/Write Control
19	E/RD#	Chip Enable Signal
20~27	D0~D7	Data Bus
28	IREF	SEG output current refer pin
29	VCOMH	COM deselected level
30	VCC	Panel driving voltage
31	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	73.0 × 41.86	mm
Viewing area	63.41 × 32.69	mm
Active area	61.41 × 30.69	mm
Dot pitch	0.48 × 0.48	mm
Dot size	0.45 × 0.45	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	2.8	3.0	3.3	V

Frame Option:

Drawing	Material	FR No.	Detailed Drawing	Create Date
	SUS-304	FFL60128640A221XXX00	View	20120131

FPC Options:

FPC Length	PIN	pitch	ZIF FPC or HOTBAR FPC	Interface	FPC No.	Create Date
37	31	0.5	ZIF	6800, 8080, SPI, I2C	FPC2050003111XXXXX01	20140923
70.85	22	0.5	ZIF	6800, 8080, SPI, I2C	FPC2050002211XXXXX03	20161207
106.57	30	0.5	ZIF	6800, 8080, SPI, I2C	FPC2050003011XXXXX11	20170406
43.05	24	0.5	ZIF	6800, 8080, SPI, I2C	FPC2050002411XXXXX11	20191218
