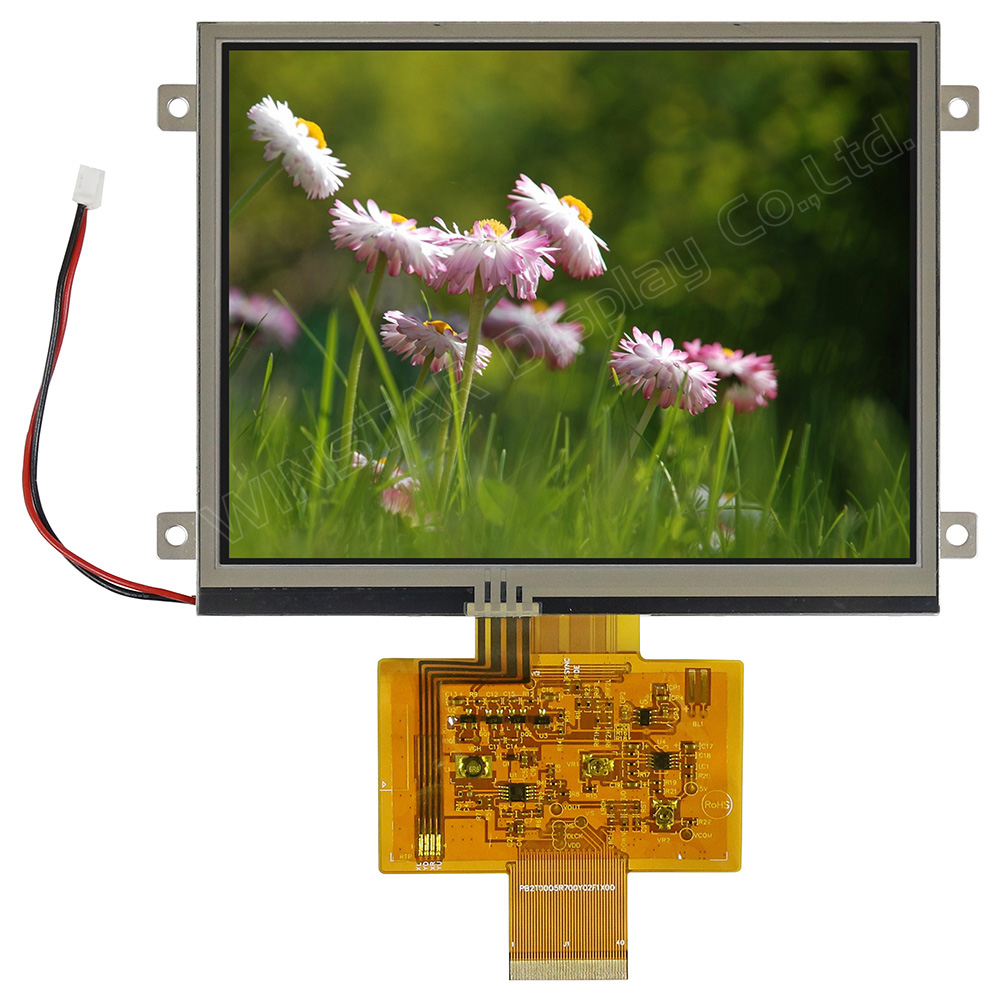

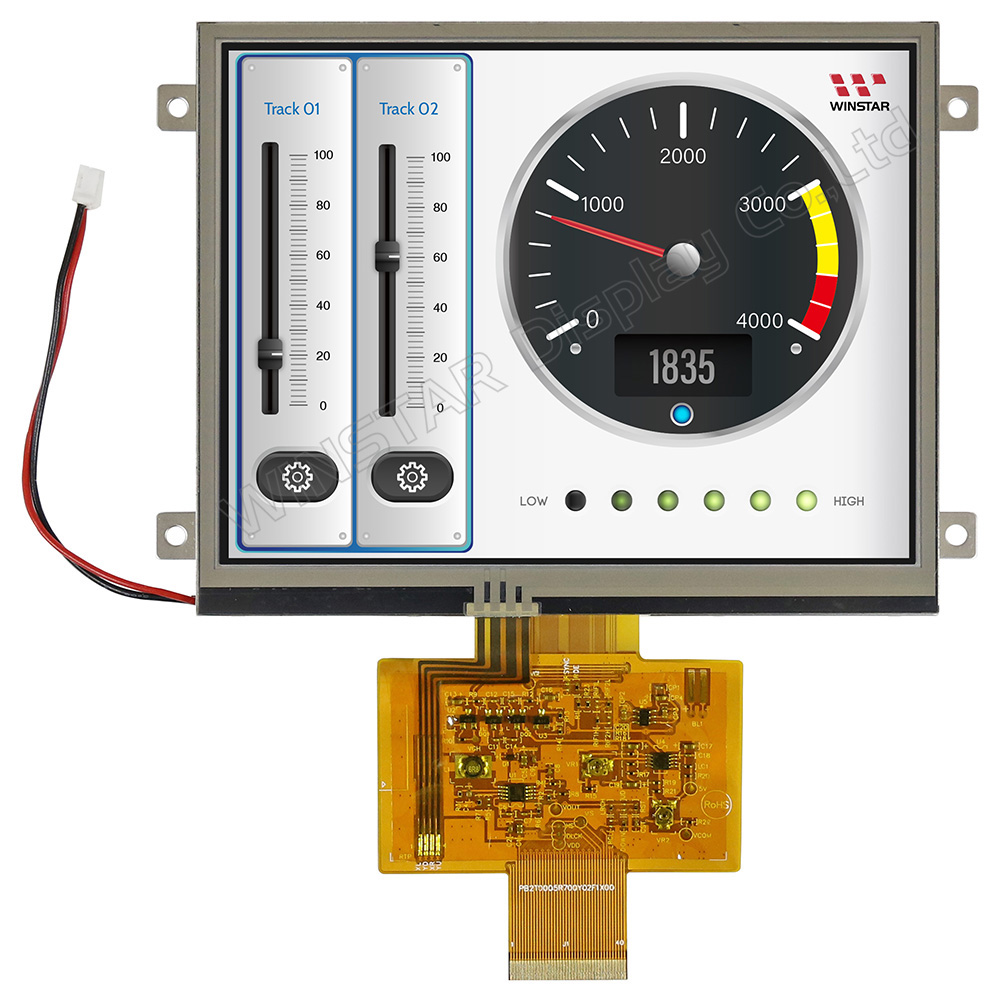

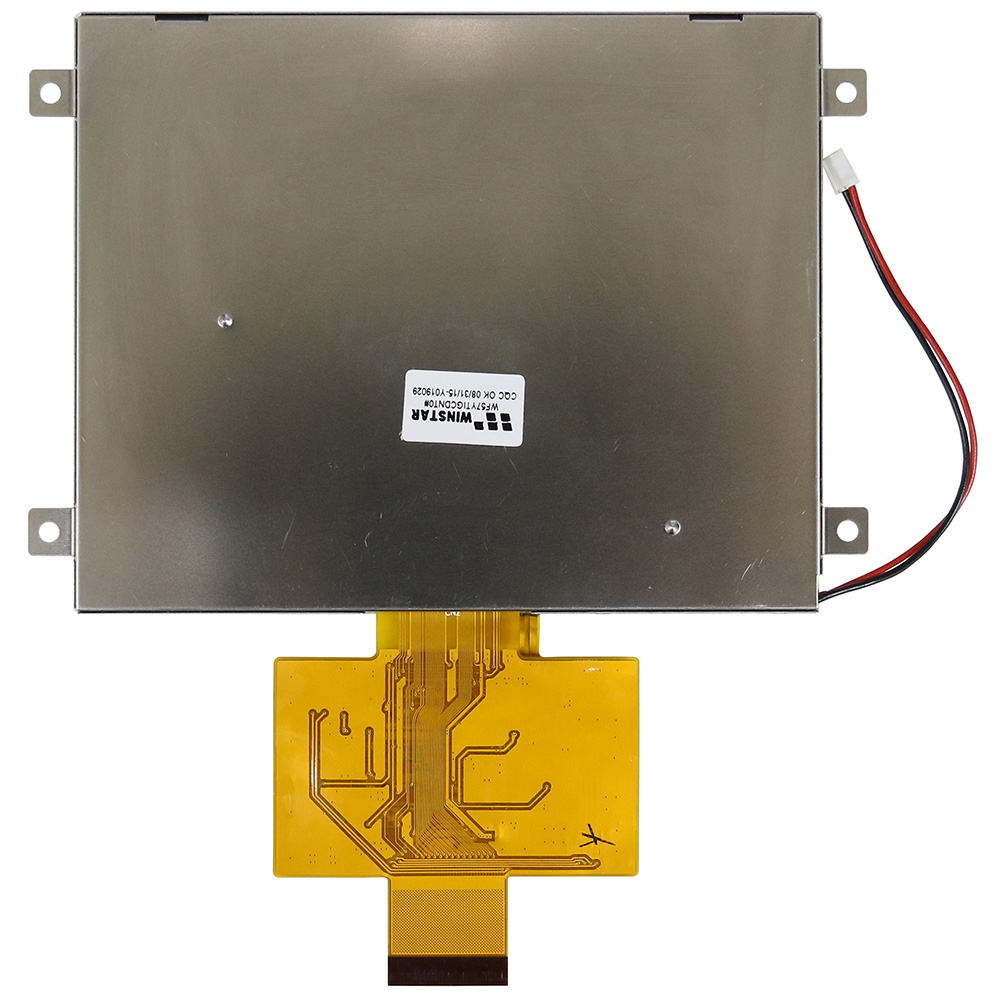

5.7" Touch Panel TFT LCD Display Module
Model No. WF57YTIGCDNT0
►Size : 5.7 inch
►Resolution : 320x240 dots
►View Direction : 12H
►Interface : RGB
►Built-in Controller: --
►Control-Board : Without control board
►Brightness(cd/m²): 600
►Frame Through Hole : Yes
►Touch Screen : Resistive Touch Panel
DESCRIPTION
The WF57YTIGCDNT0 type is the 5.7 inch Winstar Y Series TFT LCD module which is the derivative model from WF57E. The key feature of WF57Y is having the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series. The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module. This model WF57Y is SYNC mode and DE mode optional and it built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM). WF57YTIGCDNT0 is the WF57Y model with RTP module, there are CTP and without TP options available.
Key Advantages of Winstar TFT Y Series:
Key Advantages of Winstar TFT Y Series:
- All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
- All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
- Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.
DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1~2 | NC | No connection |
| 3 | GND | System ground pin of the IC. Connect to system ground. |
| 4 | VCC | Power Supply |
| 5 | R0 | Red Data bit(LSB) |
| 6~11 | R1~R6 | Red Data bit |
| 12 | R7 | Red Data bit (MSB) |
| 13 | G0 | Green Data bit(LSB) |
| 14~19 | G1~G6 | Green Data bit |
| 20 | G7 | Green Data bit (MSB) |
| 21 | B0 | Blue Data bit(LSB) |
| 22~27 | B1~B6 | Blue Data bit |
| 28 | B7 | Blue Data bit (MSB) |
| 29 | GND | System ground pin of the IC. Connect to system ground. |
| 30 | CLK | Dot data clock |
| 31 | L/R | Shift direction of device internal shift register control. |
| 32 | Hsync | Horizontal sync signal |
| 33 | Vsync | Vertical sync signal |
| 34 | DE | Data Enable signal |
| 35 | U/D | Up/down selection |
| 36 | RESET | Hardware reset |
| 37 | XR | Right electrode |
| 38 | YD | Bottom electrode |
| 39 | XL | Left electrode |
| 40 | YU | Top electrode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.7 | inch |
| Dot Matrix | 320 × RGB × 240 (TFT) | dots |
| Module dimension | 141.12(W) × 101.55(H) × 8.0(D)(MAX) | mm |
| Active area | 115.2 × 86.40 | mm |
| Dot pitch | 0.12 × 0.36 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Resistive Touch Panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Supply Current | ICC | VCC=3.3V | － | 140 | 210 | mA |
