OLED Character Display 16x2
Model No. WEH001602C
►Type: Character
►Structure: COB
►16 characters x 2 Lines
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080, SPI
►Compatible to STN LCD WH1602C

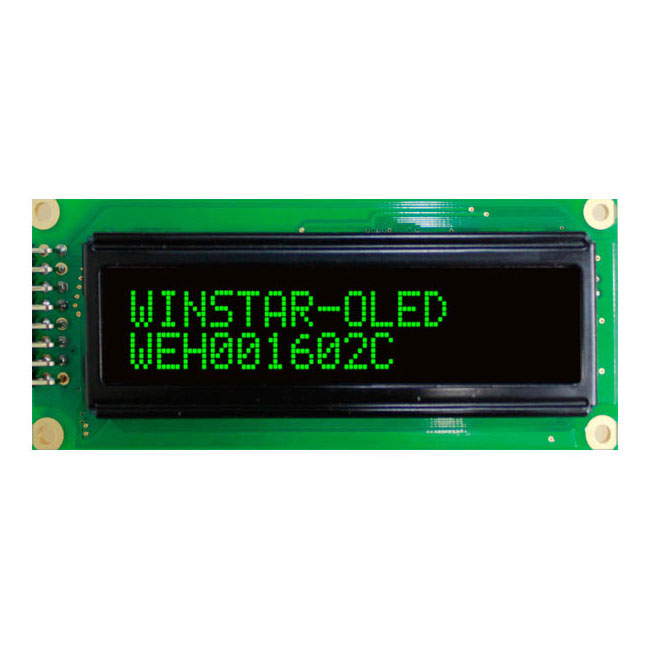

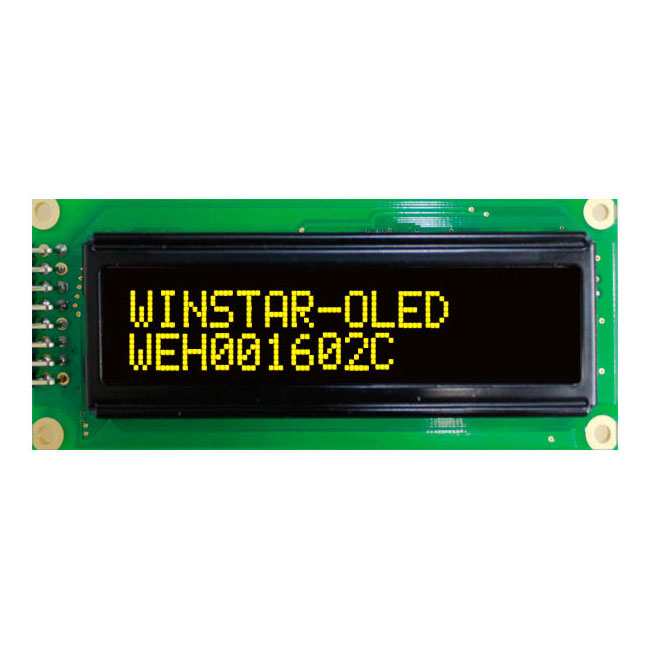

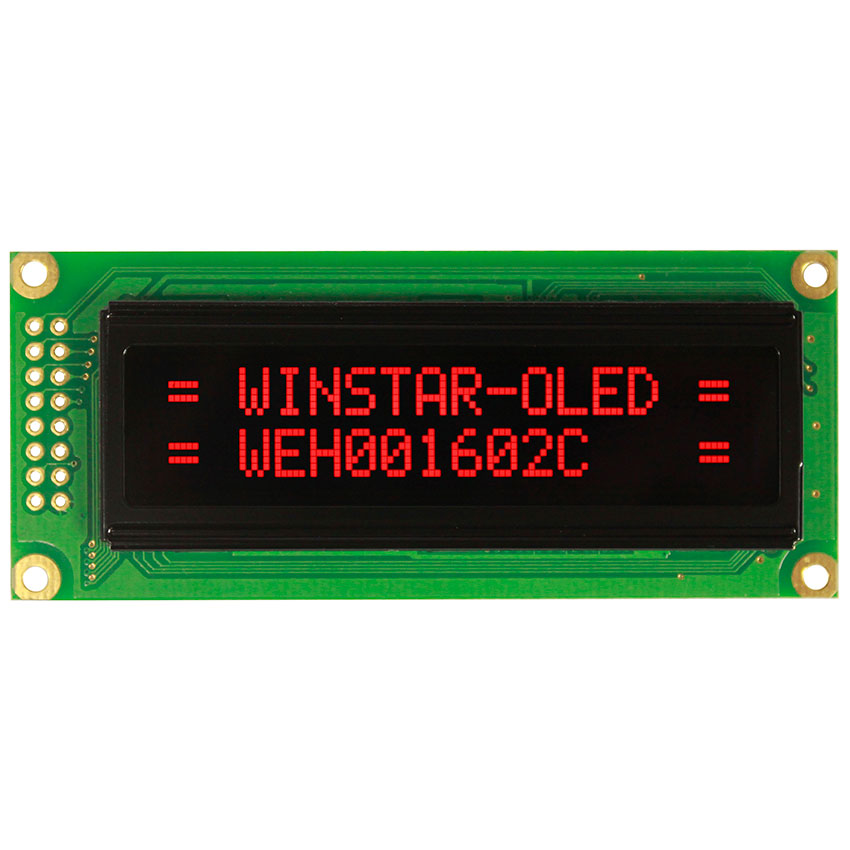

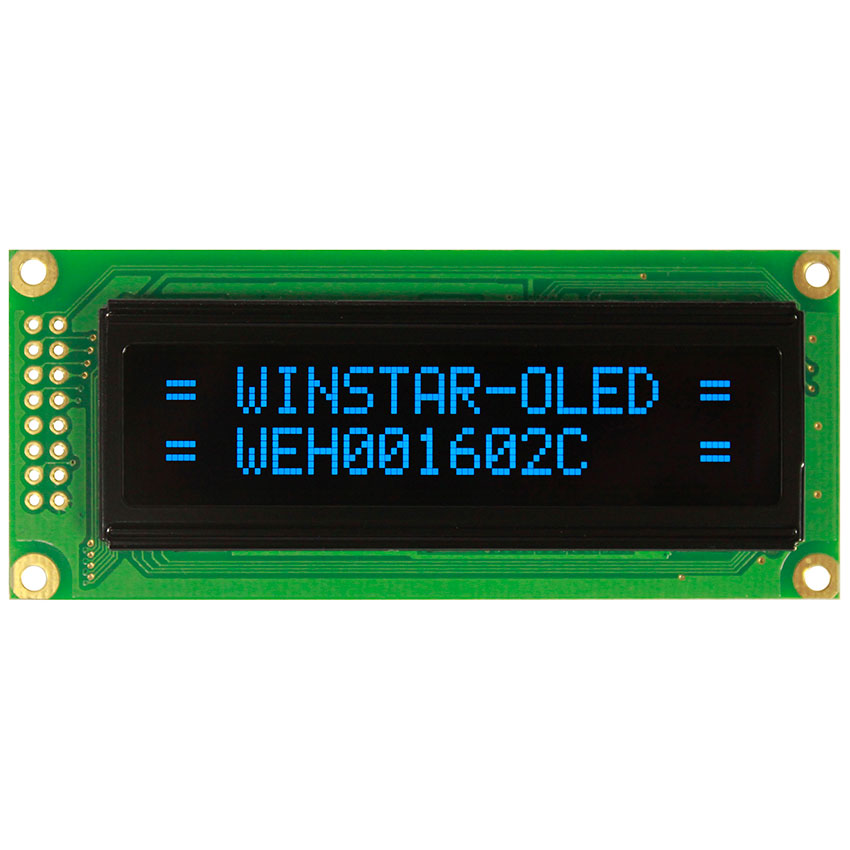

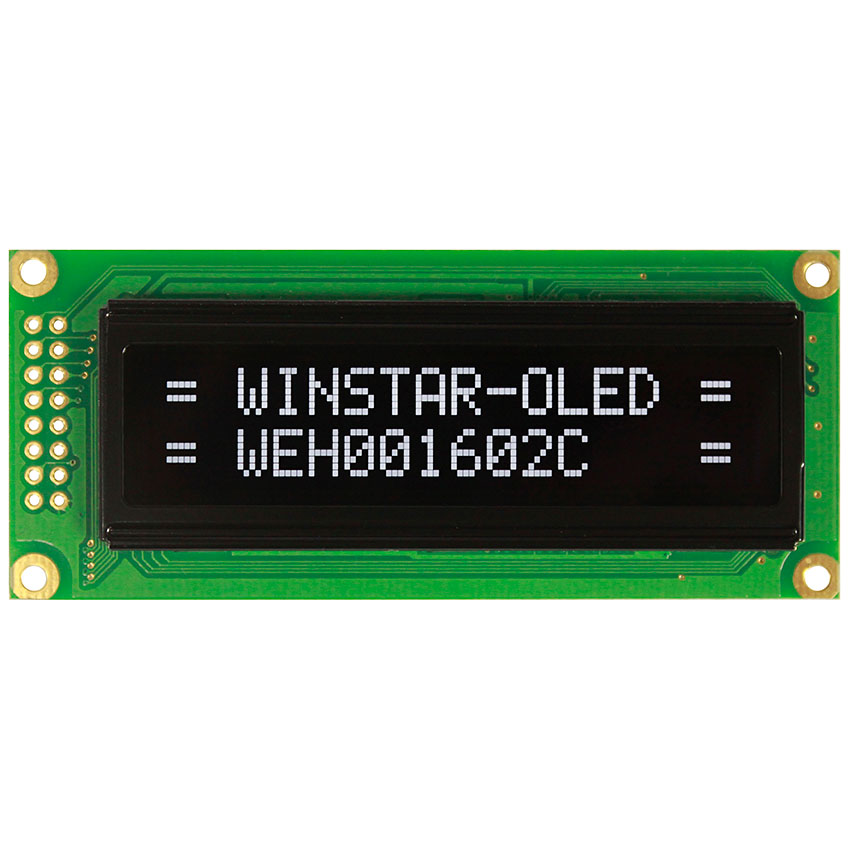

►Display Color: White / Yellow / Blue / Green / Red
DESCRIPTION
The OLED WEH001602C has the same outline size, VA size and pin out as Winstar LCD item no. WH1602C. This OLED WEH001602C model can be used as compatible replacement for STN LCD WH1602C. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

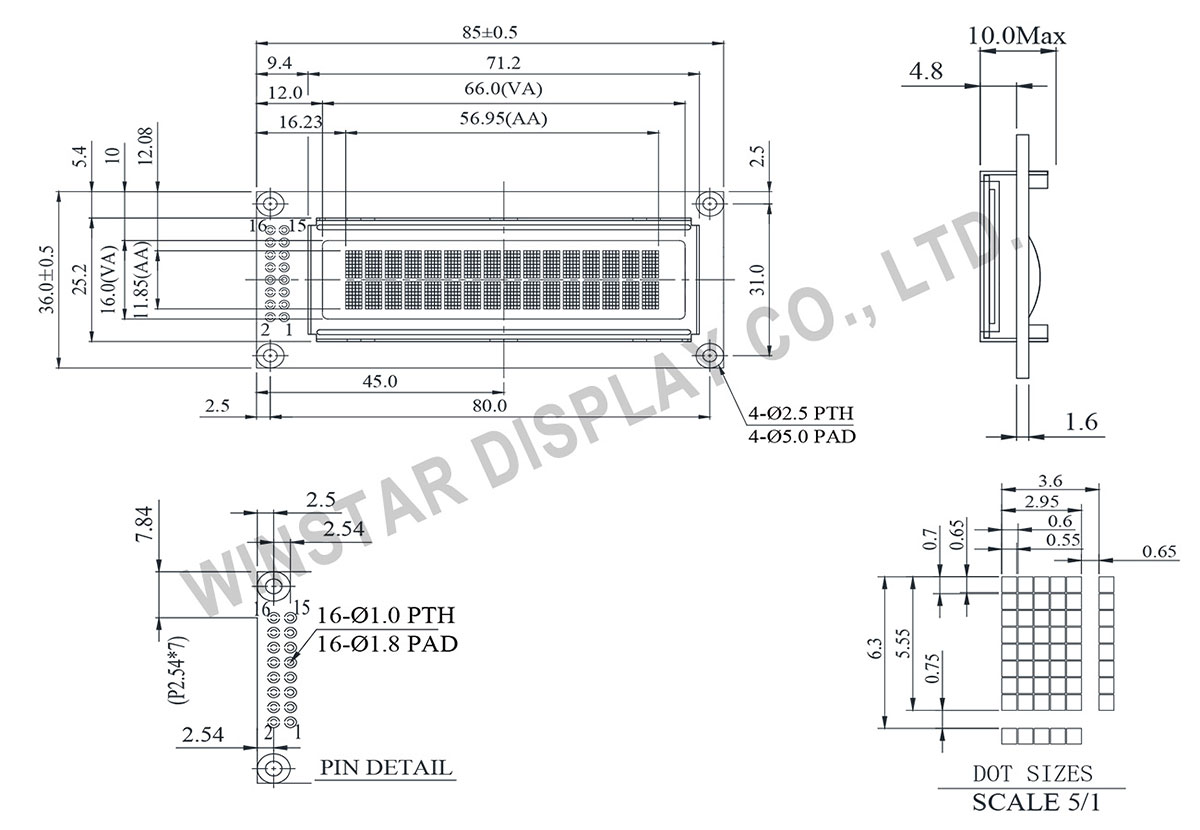

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 85.0 × 36.0 | mm |
| View area | 66.0 × 16.0 | mm |
| Active area | 56.95 × 11.85 | mm |
| Dot pitch | 0.60 × 0.70 | mm |
| Dot size | 0.55 × 0.65 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
