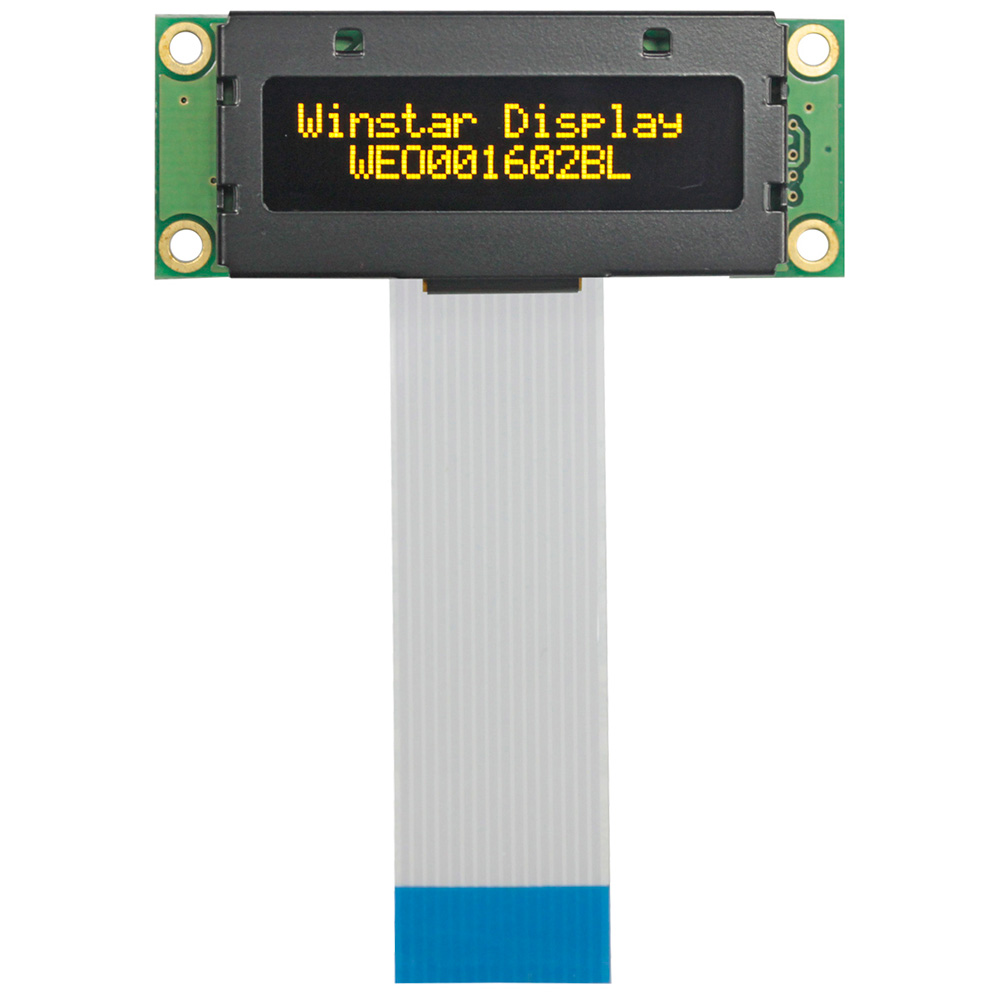

Character OLED 16x2
Model No. WEO001602B
►Type : Character (With Frame)
►Structure : COG+PCB
►16 characters x 2 Lines
►Built-in Controller WS0012
►5V power supply
►1/16 duty cycle

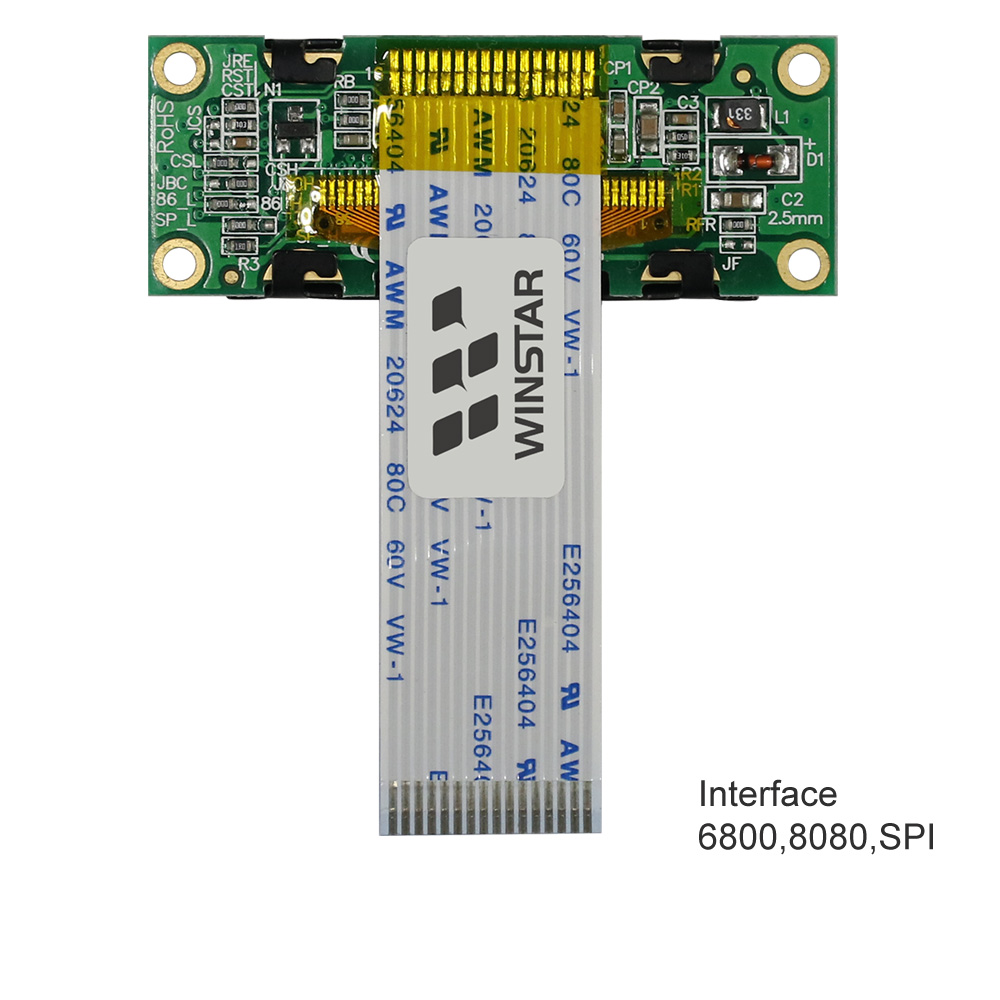

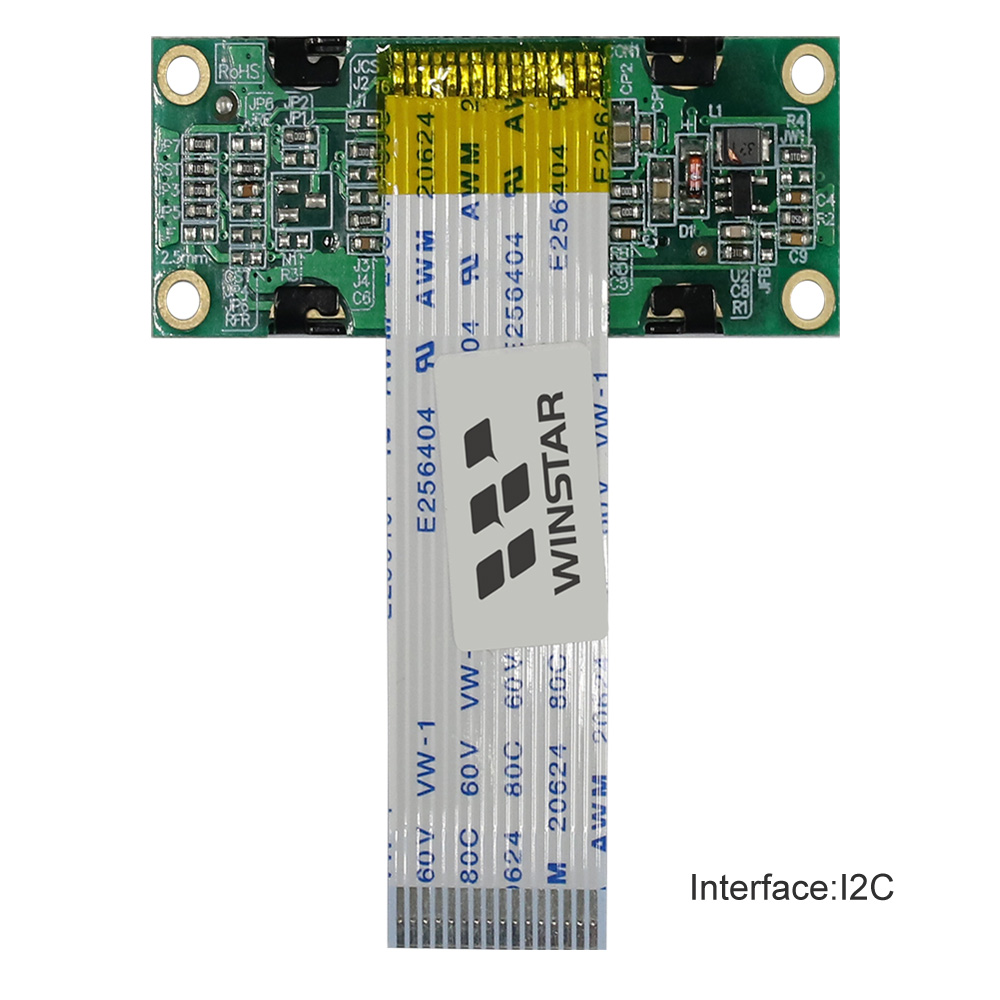

►Interface: 6800, option 8080, SPI, I2C
►Display Color: White / Yellow
DESCRIPTION
Winstar WEO001602B is a COG 16 Character x 2 lines OLED display module. This OLED display is built-in WS0012 IC which has different interfaces optional; it is default 6800, available options 8080, SPI and I2C. These OLED displays are higher brightness, higher contrast, wider viewing angles, faster response time, self-illuminating and lower current consumption. The WEO001602B is a COG structure with a PCB on module which has the advantage of easily fixed modules on customers’ applications because of having PCB board on it.

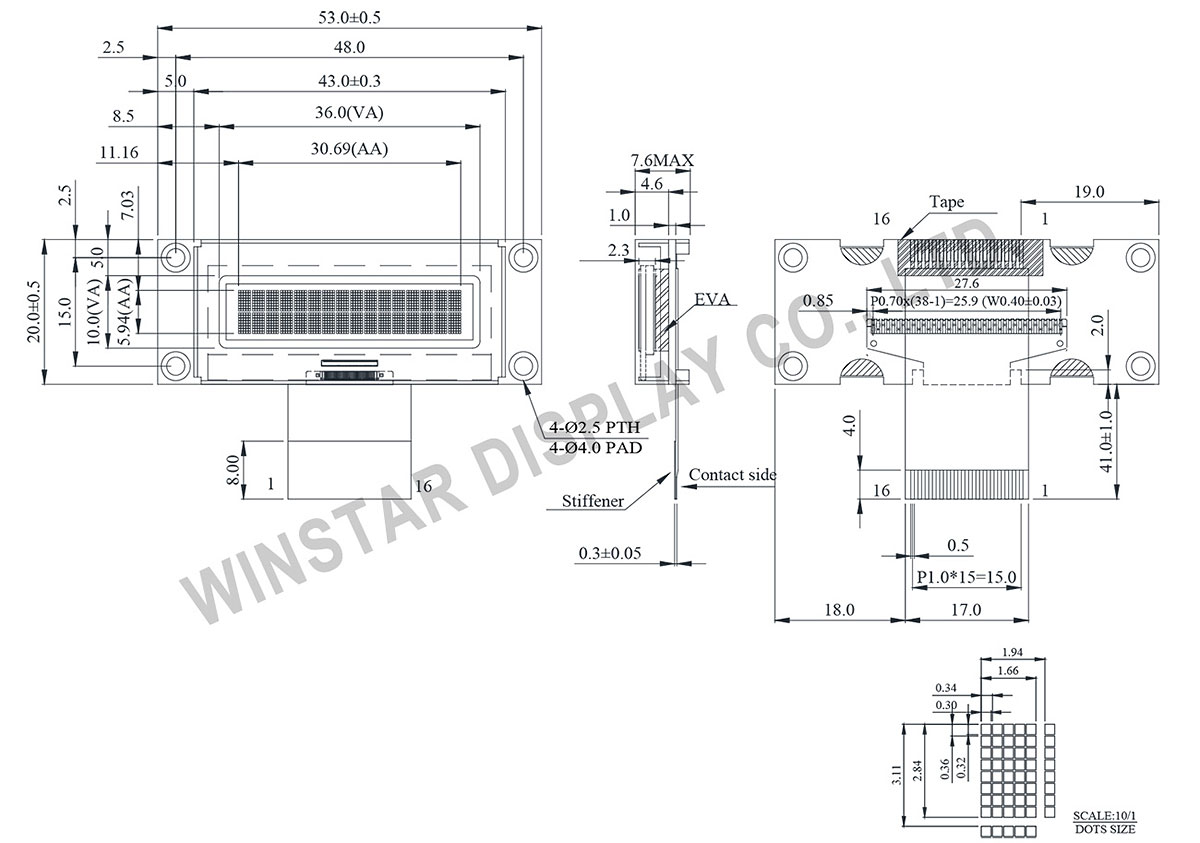

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Ground Pin |
| 2 | VDD | Voltage for logic |
| 3 | NC | No Connection |
| 4 | RS | Register Select |
| 5 | R/W | Read/Write Control |
| 6 | E | Chip Enable Signal |
| 7~14 | DB0~DB7 | Data Bus |
| 15~16 | NC | No Connection |
Mechanical Data
| Item | Dimension | Unit |
|---|---|---|
| Module dimension | 53.0 × 20.0 | mm |
| View area | 36.0 × 10.0 | mm |
| Active area | 30.69 × 5.94 | mm |
| Dot pitch | 0.34 × 0.36 | mm |
| Dot size | 0.30 × 0.32 | mm |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage | VDD | --- | 4.8 | 5.0 | 5.3 | V |
