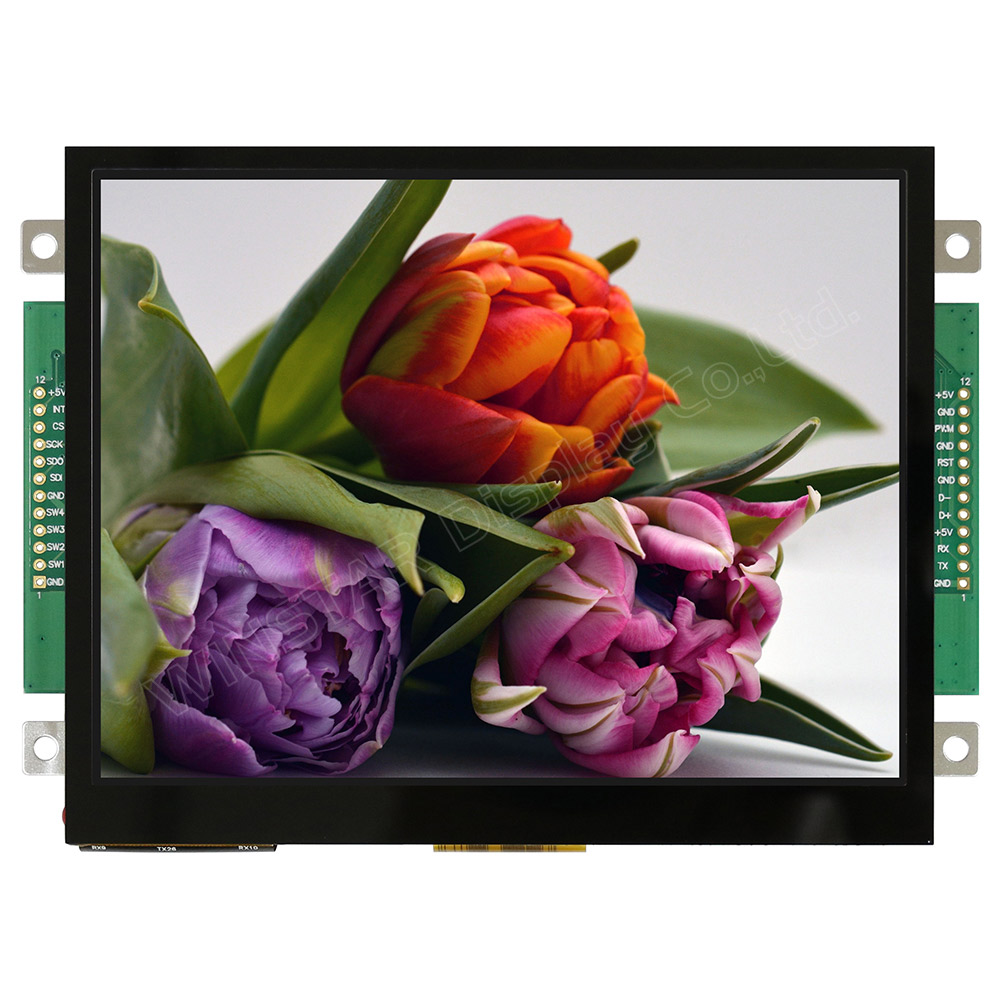

All in One TFT LCD Displays (Clever System) 5.7"

Model No. WF57MTIBCDRGB

►Size : 5.7”
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : UART/SPI
►Built-in Controller : PIC24
►Control-Board : Yes
►Brightness(cd/m2) : 700
►Frame Through Hole : Yes
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 1 Finger
►O-Film: Option
►Development board optional:
--For test function
--Part no. WWTFT-10#
--Dimension: 37 x 50 x12 mm
--USB input

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

This model WF57MTIBCDRGB all-in-one TFT Display is with module dimension of 141.12 x 101.55 mm and AA size of 115.2 x 86.4 mm. This model is featured with Projected Capacitive Touch Panel (PCAP) and supports UART/SPI interface. This TFT LCD Display can be operating at temperatures from -20℃ to +70℃, its storage temperatures range is from -30℃ to +80℃. Winstar designs an optional development board which Part no. is WWTFT-10# for customers to accelerate the project for test function.

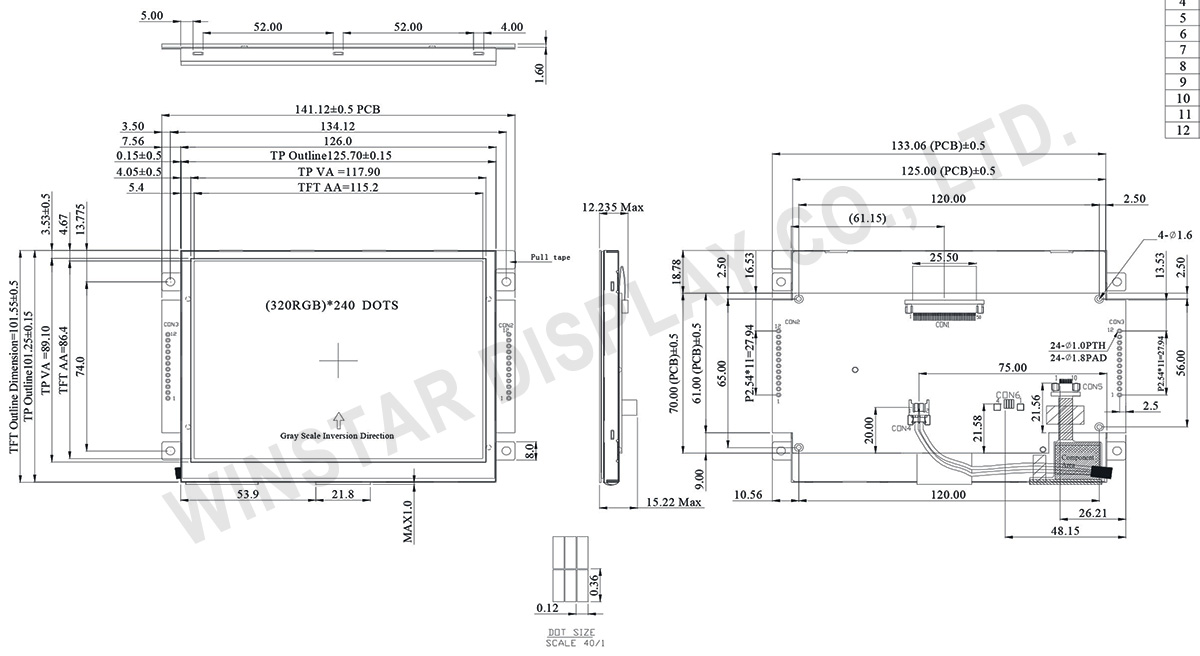

DRAWING

SPECIFICATIONS

Interface

CON 2

Pin	Symbol	I/O	Function
1	GND	Power Supply	Power Ground
2	TX	O	Uart Transmit pin
3	RX	I	Uart Receive pin
4	VBUS	Power Supply	Power supply : 5V
5	D+	I/O	USB Data +
6	D-	I/O	USB Data -
7	GND	Power Supply	Power Ground
8	/REST	I	Reset (active Low)
9	GND	Power Supply	Power Ground
10	PWM	O	Pulse width modulation
11	GND	Power Supply	Power Ground
12	VBUS	Power Supply	Power supply : 5V

CON 3

Pin	Symbol	I/O	Function
1	GND	Power Supply	Power Ground
2~5	SW1~SW4	I	Switch (active low)
6	GND	Power Supply	Power Ground
7	SDI	O	Master Input Slave Output (MISO)
8	SDO	I	Master Output Slave Input (MOSI)
9	SCK	I	Serial Clock
10	CS	I	Serial Chip selection
11	SPI_INT	O	Serial Interrupt
12	VBUS	Power Supply	Power supply : 5V

Note: I: input, O: output, P: Power

General Specifications

Item	Dimension	Unit
Size	5.7	inch
Dot Matrix	320 × RGB × 240(TFT)	dots
Module dimension	141.12(W) × 101.55(H) × 15.22 (D)	mm
Active area	115.2 × 86.4	mm
Dot pitch	0.12 × 0.36	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Backlight Type	LED, Normally White
Interface	Uart 19200 Baud rate/SPI
PCAP IC	FT5426
PCAP Interface	I2C
PCAP FW Version	FN058A001_FT5426_V02_20180604_all.bin
Touch Panel	Projected capacitive touch panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VBUS	－	4.5	5	5.5	V
Supply Current For LCM	IBUS	－	－	521	－	mA
Power Consumption	－	VBUS=5V	－	2605		mW
