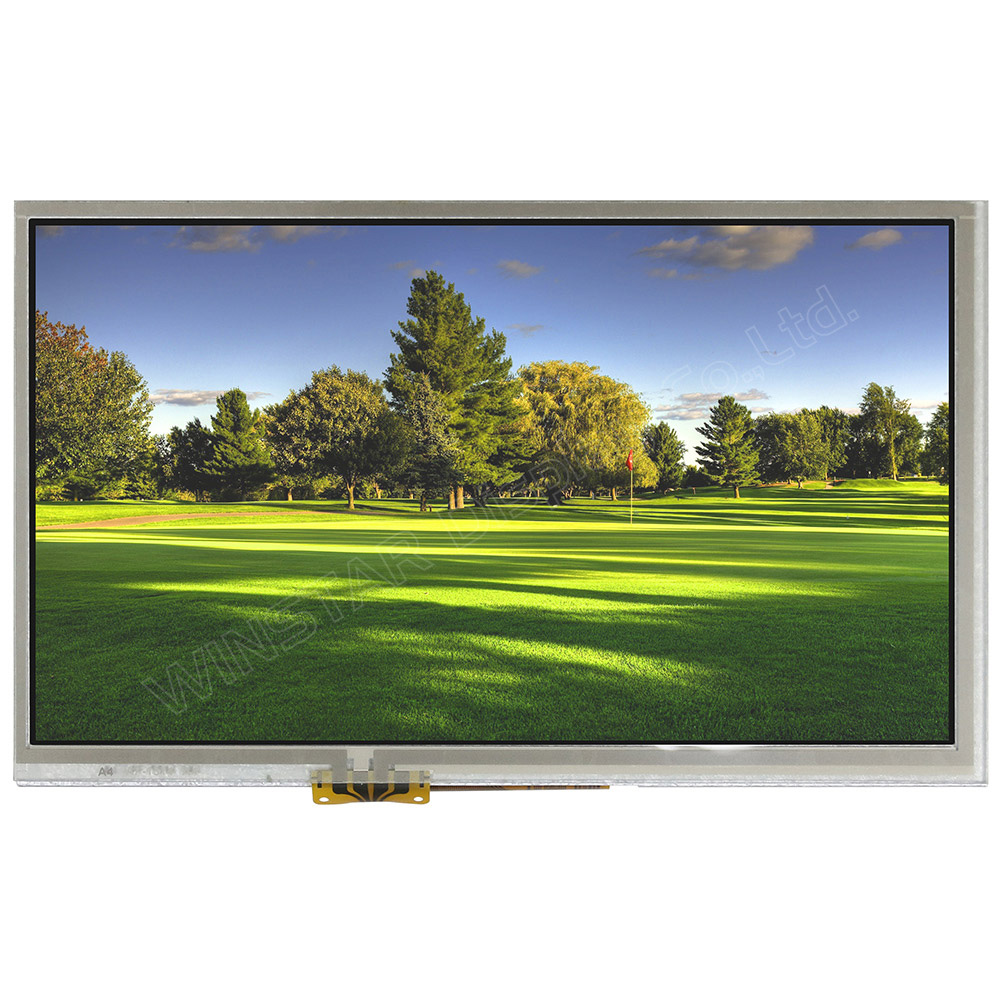

Display TFT 7" with Display Controller Board (RTP)
Model No. WF70PTIFGDBT0
►Size : 7 inch
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : MCU
►Built-in Controller : RA8875
►Control-Board : Yes
►Brightness(cd/m2) : 320
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel (RTP)
DESCRIPTION
WF70PTIFGDBT0: Winstar P Series Display TFT 7" with Resistive Touch Screen. Benefits include:

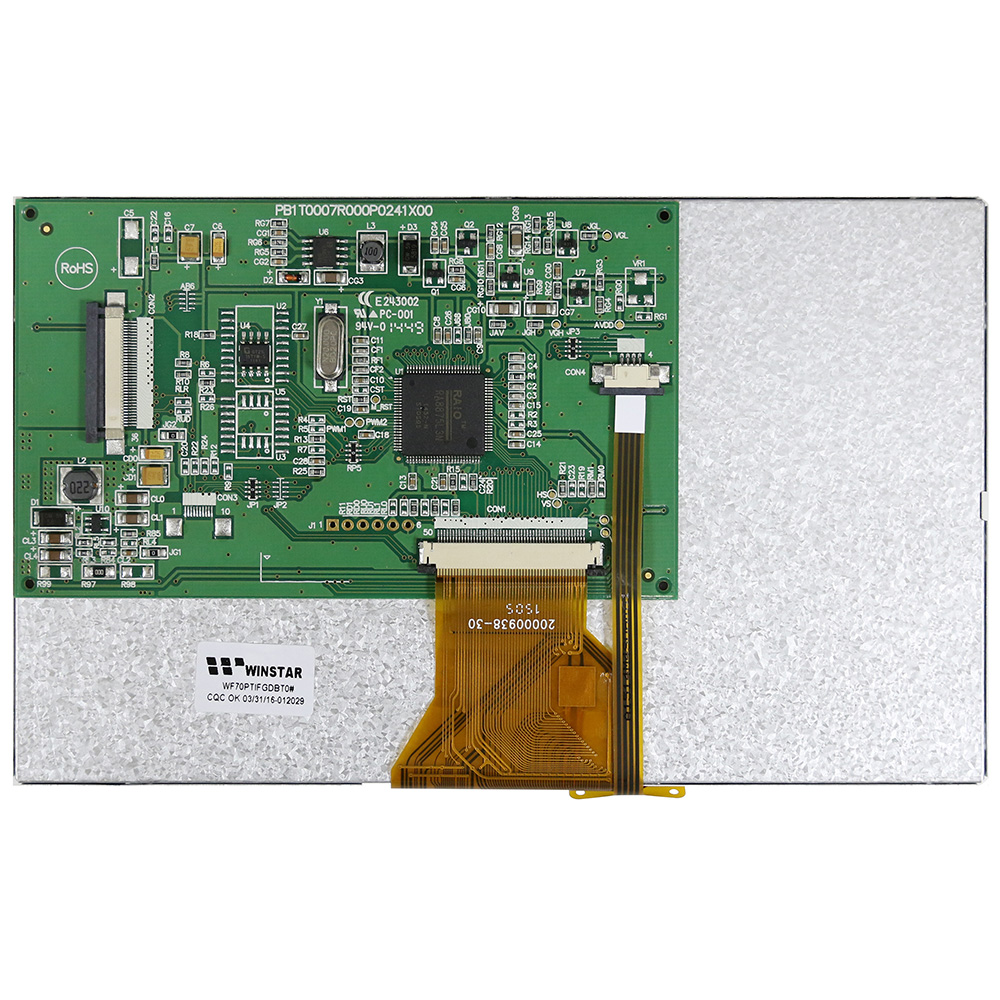

- P Series display TFT modules integrated a 36 pin-out connector on RA8875 controller board and all connectors are the same direction.
- P Series TFT LCD modules are available in 8 bit and 16 bit parallel interface options.
- The pin no. 33 ~ 36 pre-defined as backlight supply.
- P Series display TFT modules are built in backlight driver IC.
- Resistive Touch Screen option is built-in on the RA8875 controller board.
- P Series dispaly TFT support Chinese character, backlight brightness adjustment, Flash Memory and touch panel driver.

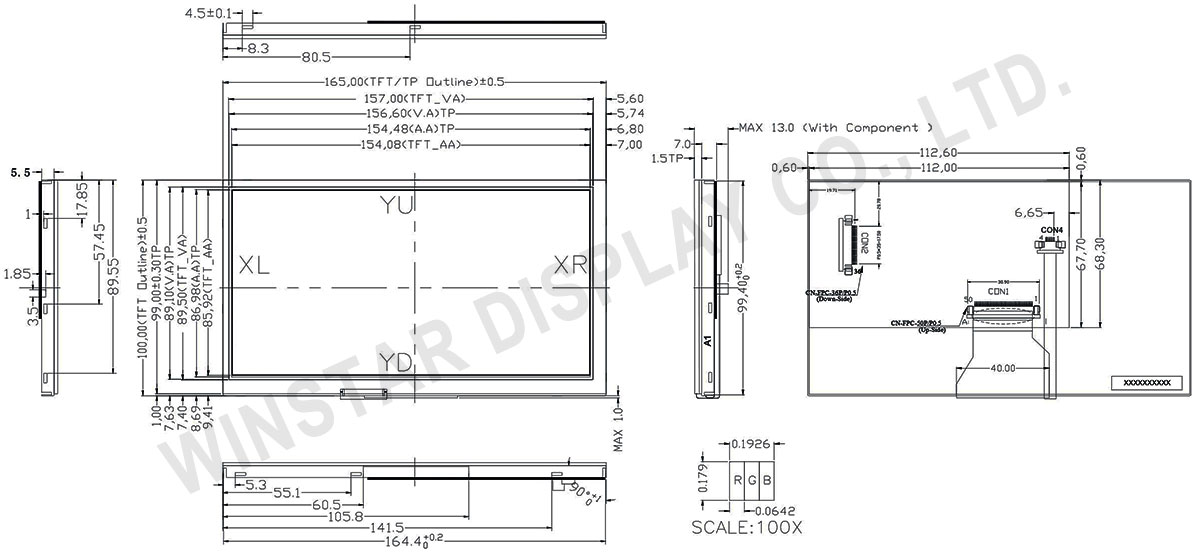

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | System ground pin of the IC . Connect to system ground. |
| 2 | VDD | Power Supply : +3.3V |
| 3 | BLE | Backlight control signal , H: On \ L: Off |
| 4 | RS | Data/Command select |
| 5 | WR | Write strobe signal |
| 6 | RD | Read strobe signal |
| 7~14 | DB0~DB7 | Data bus |
| 15~22 | DB8~DB15 | Data bus (When select 8bits Mode, this pin is NC) |
| 23 | WAIT | Wait Signal Output(H:active) |
| 24 | NC | No connect |
| 25 | CS | Chip select |
| 26 | RST | Hardware reset |
| 27 | L/R | Left / right selection; Default L/R=H |
| 28 | U/D | Up/down selection; ; Default U/D=L |
| 29~32 | NC | No connect |
| 33~34 | VLED- | Power for LED Driver IC(GND) |
| 35~36 | VLED+ | Power for LED Driver IC(+5V) |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 7.0 | inch |
| Dot Matrix | 800 × RGB × 480(TFT) | dots |
| Module dimension | 165.0(W) × 100.0(H) × 13.0(D) | mm |
| Active area | 154.08 × 85.92 | mm |
| Dot pitch | 0.0642 × 0.179 | mm |
| LCD type | TFT, Negative, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Backlight Type | LED,Normally White | |
| Controller IC | RA8875 | |
| Interface | Digital 8080 family MPU 8bit/16bit | |
| Touch Screen | Resistive touch screen (RTP) | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | － | 3.2 | 3.3 | 3.4 | V |
| Supply Current For LCM | IDD | － | － | 120 | 180 | mA |
