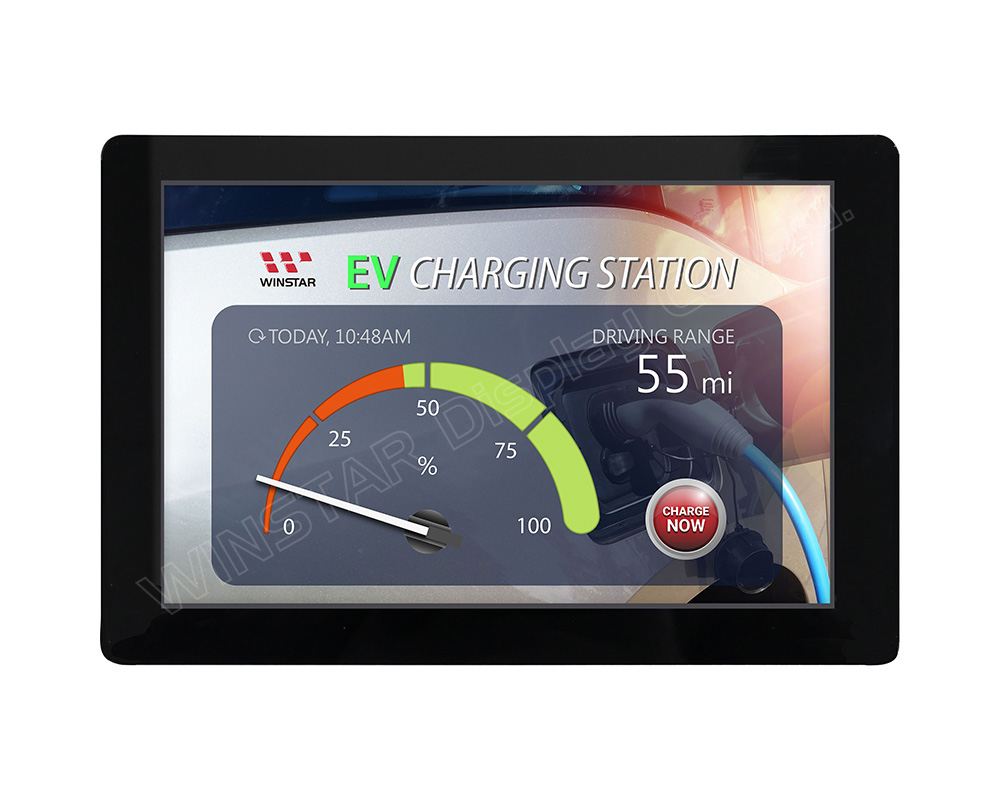

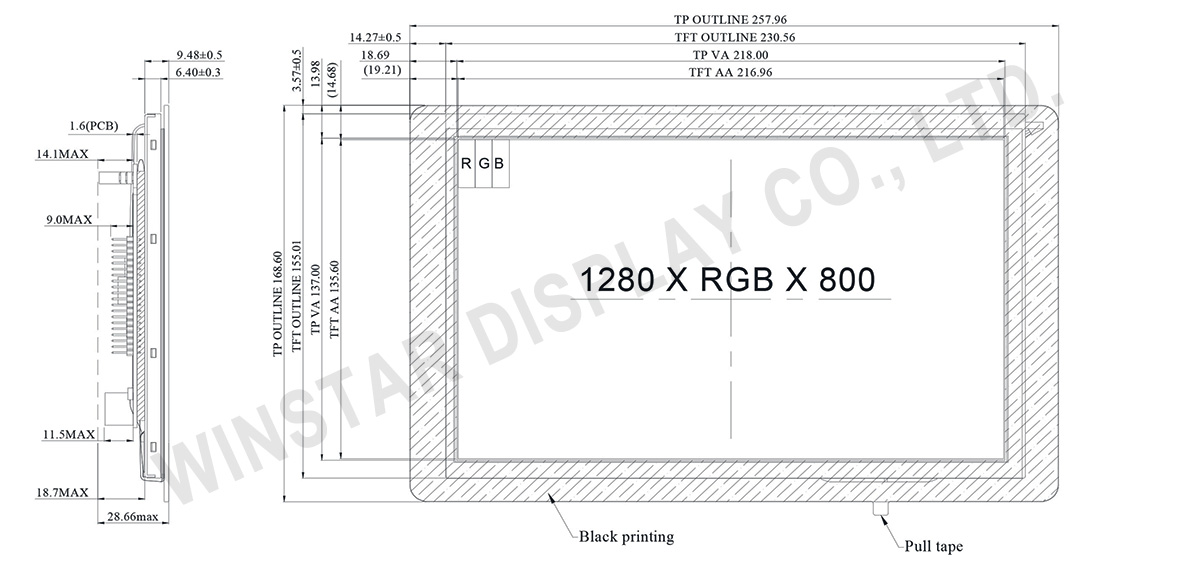

WF101FSYFPLHGV is a 10.1 inch high brightness version TFT display with incredibly high resolution and great angle-visibility. WF101F model is having IPS TFT panel with a HDMI interface output, it's made of high resolution WXGA 1280x800, high brightness 900 cd/m2. This model WF101FSYFPLHGV comes with a control board which supports HDMI signal interface output; it is designed to make Raspberry Pi usage become easily. WF101FSYFPLHGV has a USB interface Projected Capacitive Touch Screen overlay on TFT panel. Winstar designed a connector part no. WWHDMI-00# for option, the customers can use it to connect WF101FSYFPLHGV module with your Raspberry Pi directly. Also, we provide USB HID Mouse Bootloader for one finger and two fingers programming tool. Please contact us for detail.

You can simply use this TFT display with your Raspberry Pi, or also you can use is as a computer display with any device which support HDMI signal output. This 10.1" TFT model comes in 1280x800 resolutions that would be good for embedded computing usage. Please note, this part no. WF101FSYFPLHGV does not include an HDMI connector or USB cable.

Part No. WWHDMI-00# (Optional component)
▪Support HDMI connector (Only DVI Signal) for TFT module and Raspberry Pi

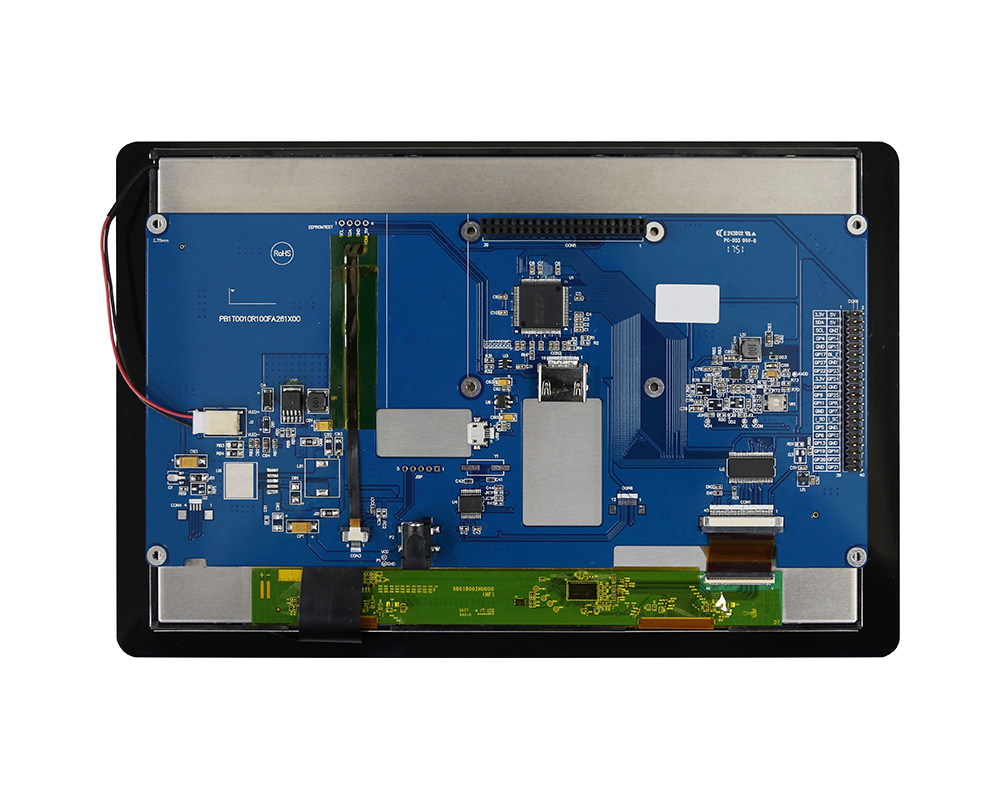

WF101FSYFPLHGV#: with a 40-pin header connector on board, supports up to Raspberry Pi 3B+ (contain Pi 4B) version.  If customers choose Raspberry Pi 4 version, please note the interface is Micro HDMI; customers need to use the Micro HDMI to HDMI cable for Winstar this series products.
WF101FSYFPLHGX#: with a 40-pin header connector on board, supports ahead of Raspberry Pi 3 version only.
WF101FSYFPLHG0#: without connector on board (do not support Raspberry Pi)
