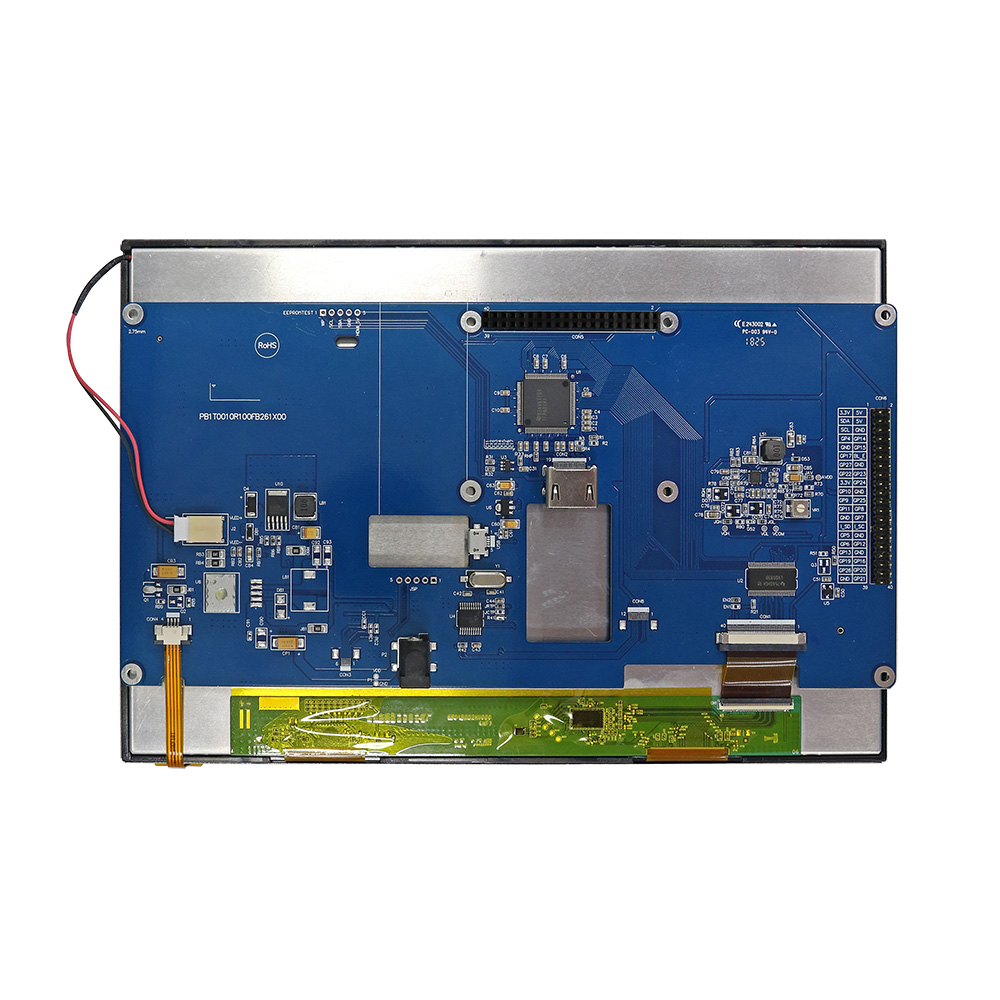

WF101FSYFPLHTV is a 10.1 inch high brightness version TFT display with incredibly high resolution and great angle-visibility. This 10.1” TFT display is having IPS TFT panel which supports HDMI signal interface output, it's made of high resolution WXGA 1280x800. This 10.1" TFT WF101FSYFPLHTV comes with a control board which supports HDMI signal interface signal input; it is designed to make Raspberry Pi usage become easily. WF101FSYFPLHTV has a USB interface Resistive Touch screen overlay on TFT panel. Also Capacitive Touch Panel is available. Winstar has  a connector part no. WWHDMI-00# for option, the customers can use it to connect WF101FSYFPLHTV module with your Raspberry Pi directly.  If customers do not require a 40-pin header connector on board, please choose WF101FSYFPLHT0.

You can simply use this TFT display with your Raspberry Pi, or also you can use is as computer display with any device which supports HDMI signal output. This 10.1" TFT model comes in 1280x800 resolutions that would be good for embedded computing usage. Please note, this part no. WF101FSYFPLHTV does not include an HDMI connector or USB cable.

Part No. WWHDMI-00# (Optional component)
▪Support HDMI connector (Only DVI Signal) for TFT module and Raspberry Pi

WF101FSYFPLHTV#: with a 40-pin header connector on board, supports up to Raspberry Pi 3B+ (contain Pi 4B) version.  If customers choose Raspberry Pi 4 version, please note the interface is Micro HDMI; customers need to use the Micro HDMI to HDMI cable for Winstar this series products.
WF101FSYFPLHTX#: with a 40-pin header connector on board, supports ahead of Raspberry Pi 3 version only.
WF101FSYFPLHT0#: without connector on board(do not support Raspberry Pi)
