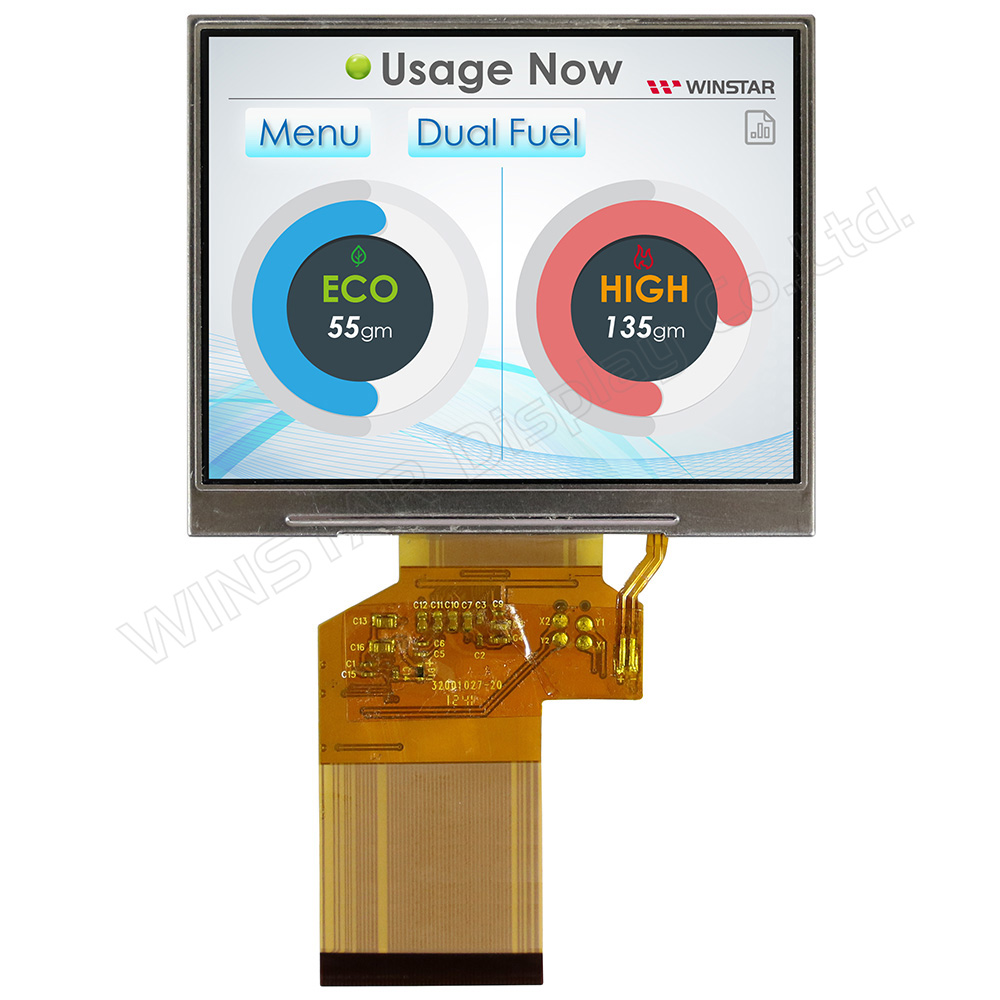

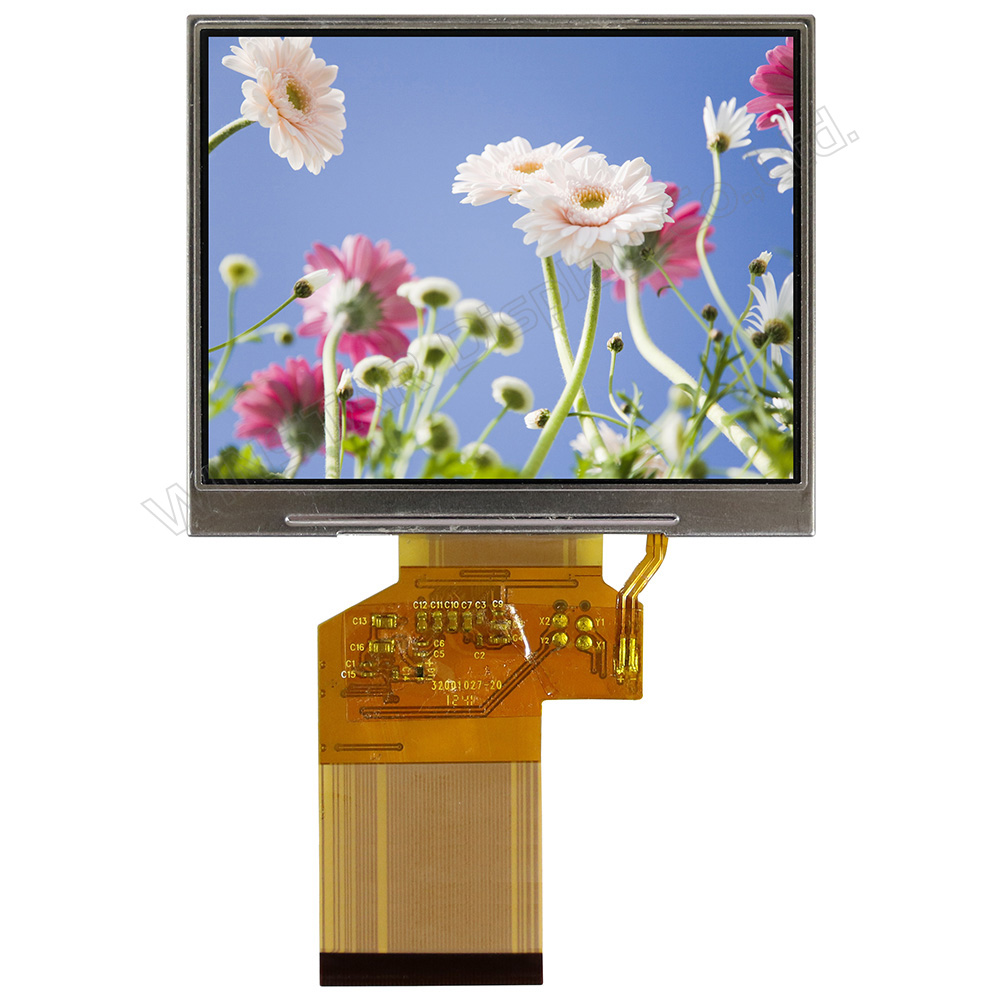

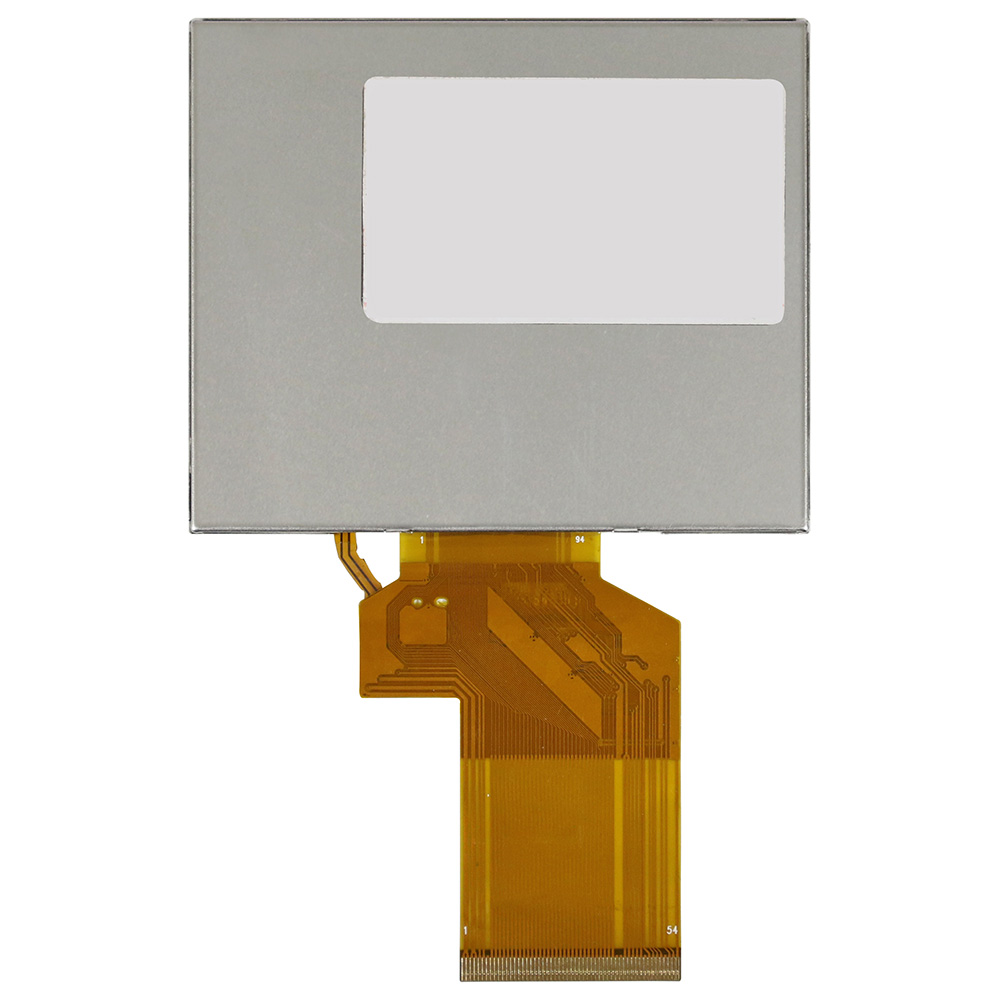

3.5 inch High Brightness TFT LCD
Model No. WF35LSIACDNN0
►3.5 inch LCD Display
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : RGB
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m2) : 1100
►Frame Through Hole : Option
►Touch Screen : No
DESCRIPTION
Winstar high brightness TFT LCD display is featured with brightness up from 800 nits to 1100 nits. The WF35LSIACDNN0 model is a 3.5 inch high brightness display with the outline dimension of 76.9 x 63.9 mm, AA size of 70.08 x 52.56 mm. Winstar High Brightness TFT LCD display modules are suitable for outdoor applications, for example, outdoor measuring equipment.

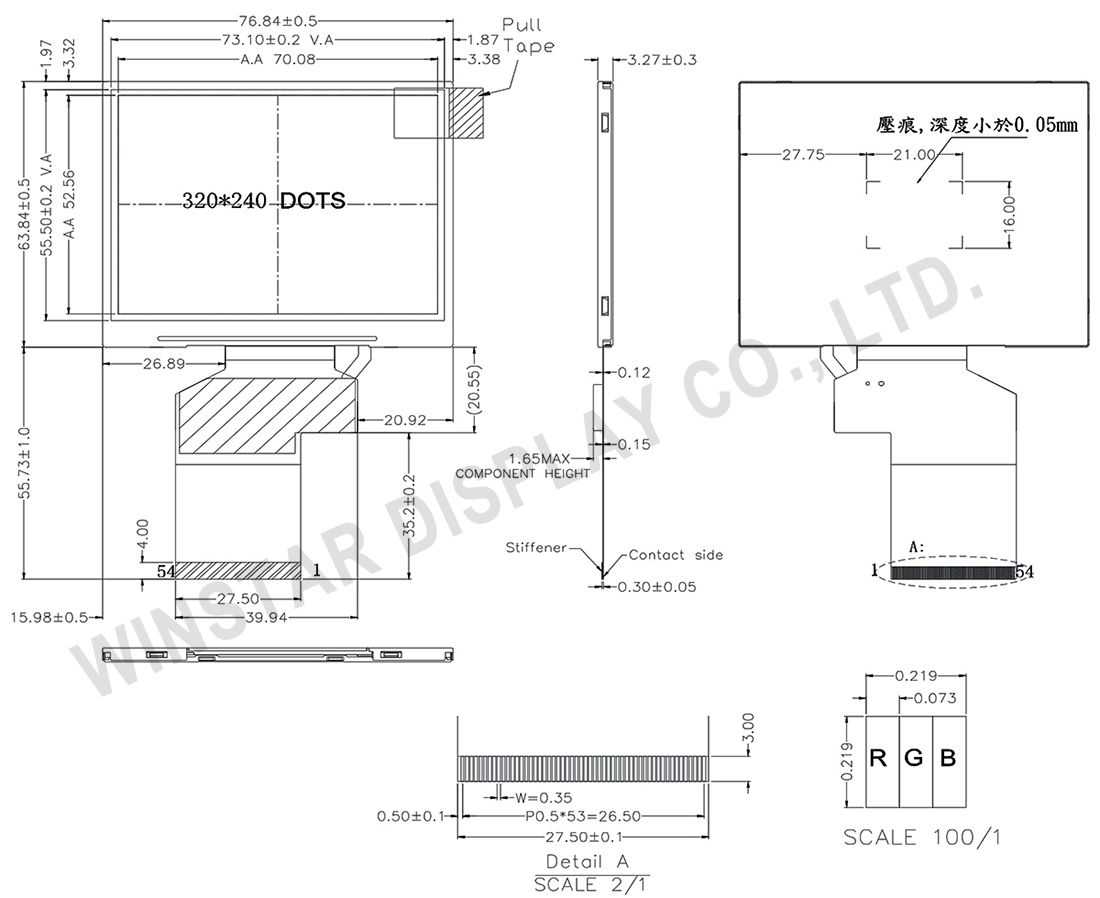

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1~2 | LED- | Power for LED backlight cathode |
| 3~4 | LED+ | Power for LED backlight anode |
| 5~7 | NC | No connect |
| 8 | /RESET | Hardware reset |
| 9 | SPENA | Chip select pin of serial interface |
| 10 | SPCLK | Clock pin of serial interface |
| 11 | SPDAT | Data input pin in serial mode |
| 12~19 | B0~B7 | Data bus |
| 20~27 | G0~G7 | Data bus |
| 28~35 | R0~R7 | Data bus |
| 36 | HSYNC | Line synchronization signal |
| 37 | VSYNC | Frame synchronization signal |
| 38 | DCLK | Dot-clock signal and oscillator source |
| 39~40 | NC | No connect |
| 41~42 | VCC | Power Supply |
| 43~47 | NC | No connect |
| 48~50 | SEL2~SEL0 | Input pin to select input interface mode |
| 51 | NC | No connect |
| 52 | DE | Display enable pin from controller. Internal pull high Connect to VCCIO or floating if not used |
| 53 | DGND | System ground pin of the IC. Connect to system ground. |
| 54 | AVSS | Grounding for analog circuit -Connect to system ground |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 3.5 | inch |
| Dot Matrix | 320 × RGB × 240(TFT) | dots |
| Module dimension | 76.9(W) × 63.9(H) × 3.27(D) | mm |
| Active area | 70.08 × 52.56 | mm |
| Dot pitch | 0.073 × 0.219 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without touch panel | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | ICC | － | — | 8.6 | 15 | mA |
