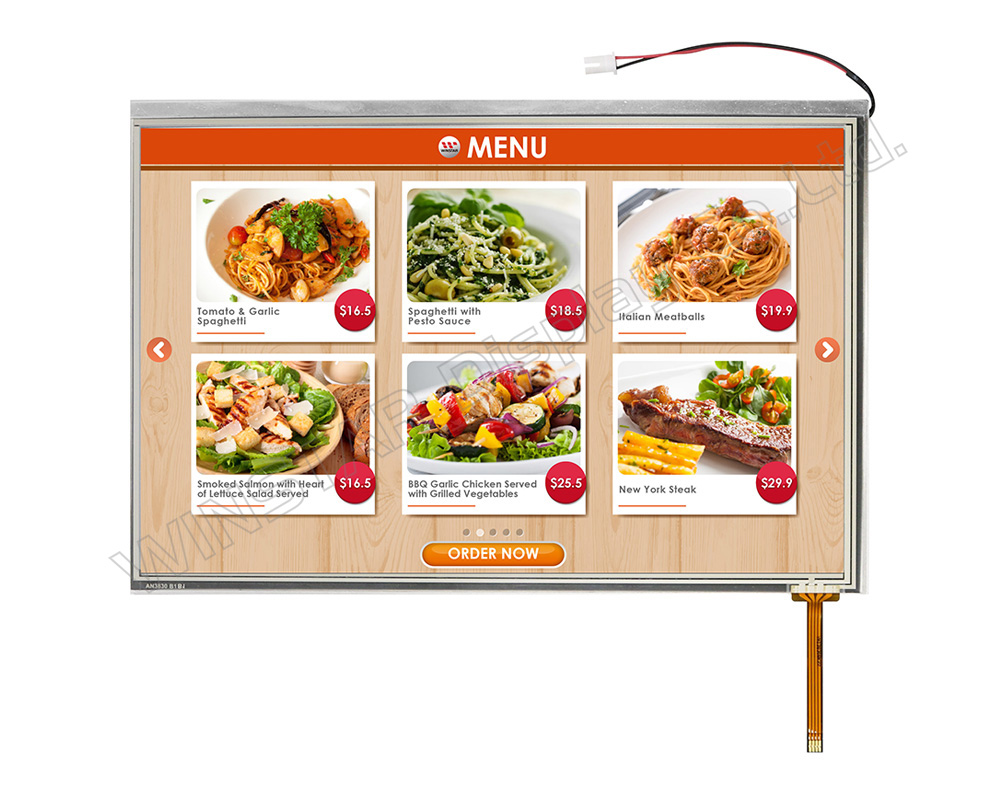

10.1" LVDS Display 1280x800 Resolution RTP Touch Screen IPS LCD Display

Model No. WF101FSYAPLNT0

►1280x800 LCD, 1280x800 Display, 1280x800 IPS
►Size : 10.1 inch
►1280x800 Resolution
►View Direction : IPS
►Interface : LVDS
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m2) : 750
►Frame Through Hole : No
►Touch Screen : Resistive Touch Panel (RTP)

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

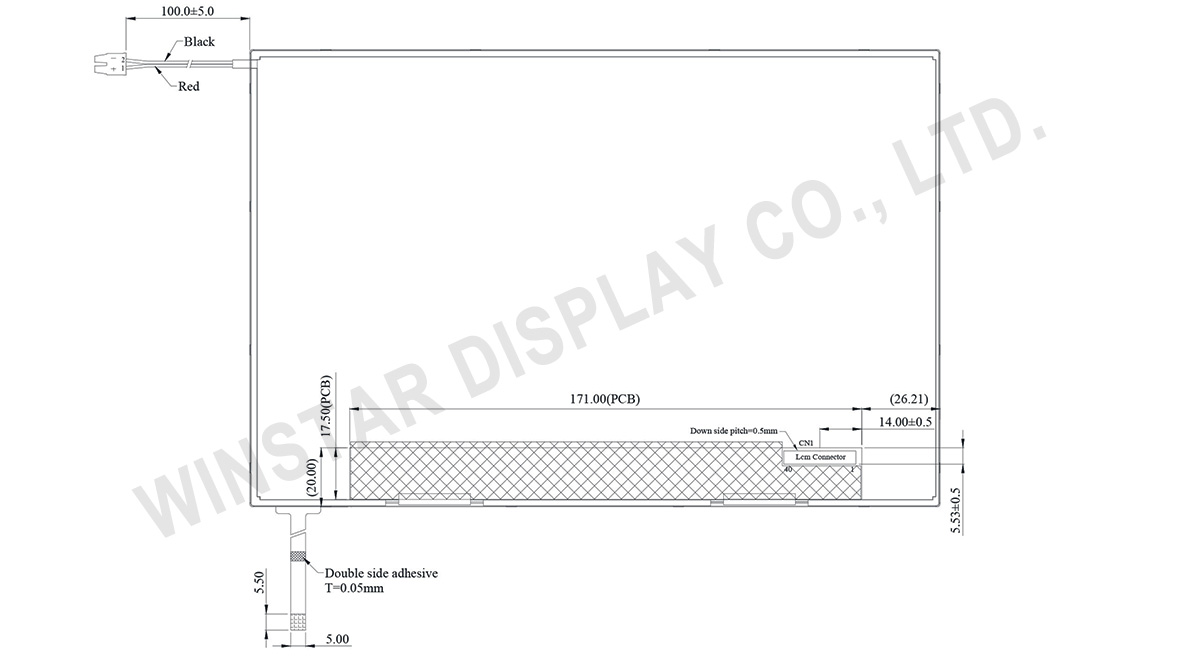

DRAWING

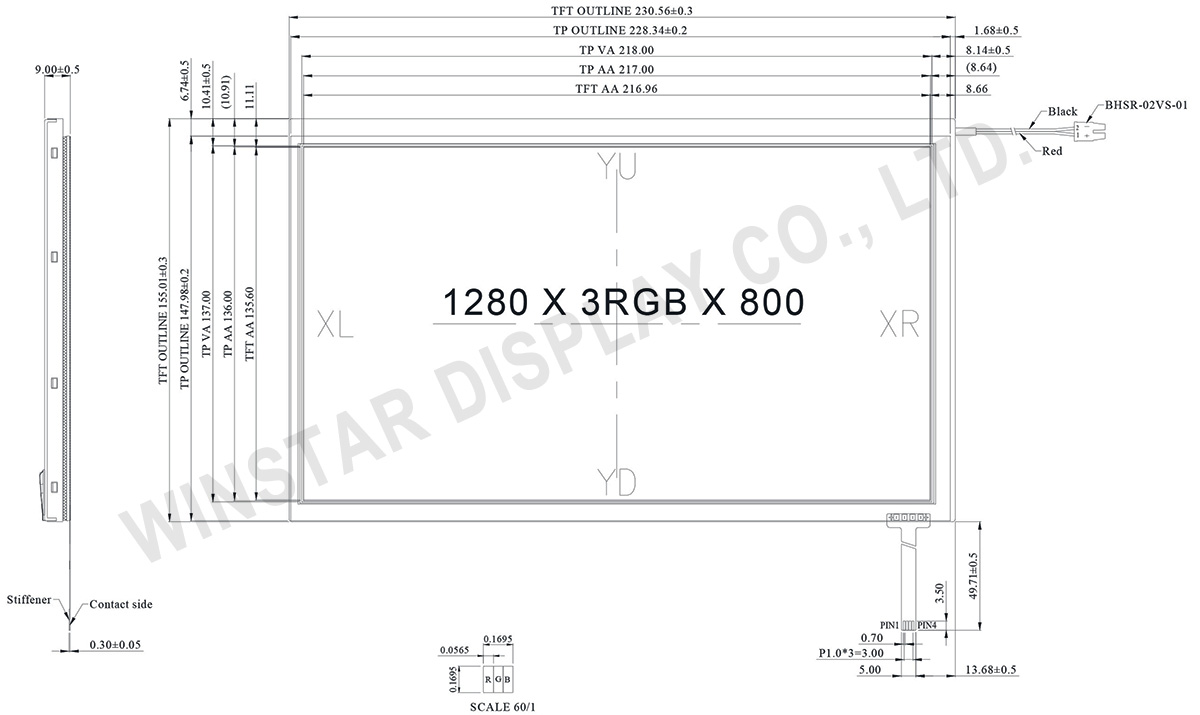

1280x800 Display, 1280x800 IPS, 1280x800 LCD, 1280x800 Resolution 1280x800 Touch Screen 10.1- WF101FSYAPLNT0

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	VCOM	P	Common Voltage
2~3	VDD	P	Power Supply
4~6	NC	-	No connection
7	GND	P	Ground
8	Rxin0-	I	-LVDS Differential Data Input
9	Rxin0+	I	+LVDS Differential Data Input
10	GND	P	Ground
11	Rxin1-	I	-LVDS Differential Data Input
12	Rxin1+	I	+LVDS Differential Data Input
13	GND	P	Ground
14	Rxin2-	I	-LVDS Differential Data Input
15	Rxin2+	I	+LVDS Differential Data Input
16	GND	P	Ground
17	RxCLK-	I	-LVDS Differential Clock Input
18	RxCLK+	I	+LVDS Differential Clock Input
19	GND	P	Ground
20	Rxin3-	I	-LVDS Differential Data Input
21	Rxin3+	I	+LVDS Differential Data Input
22	GND	P	Ground
23~24	NC	-	No connection
25	GND	P	Ground
26~28	NC	-	No connection
29	AVDD	P	Power for Analog Circuit
30	GND	P	Ground
31~34	NC	-	No connection
35	VGL	P	Gate OFF Voltage
36~37	NC	-	No connection
38	VGH	P	Gate ON Voltage
39~40	NC	-	No connection

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 × 3(RGB) × 800	dots
Module dimension	230.56 × 155.01 × 9.0	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black
Pixel Arrangement	R.G.B. Vertical Stripe
Backlight Type	LED,Normally White
Aspect Ratio	16:9
Electrical Interface (Logic)	LVDS
Touch Screen	Resistive Touch Screen
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-20	－	+70	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min	Typ	Max	Unit
Power voltage	VDD	2.3	2.5	2.7	V
	AVDD	8.0	8.2	8.4	V
	VGH	21.7	22	22.3	V
	VGL	-7.3	-7	-6.7	V
Input signal voltage	VCOM	2.7	3.0	3.3	V
