5.7" RGB Interface TFT LCD
Model No. WF57ESIACDNN0
►Size : 5.7”
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : RGB (RGB Interface LCD)
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m2) : 1100
►Frame Through Hole : Yes
►Touch Screen : No
►O-Film : Option
DESCRIPTION

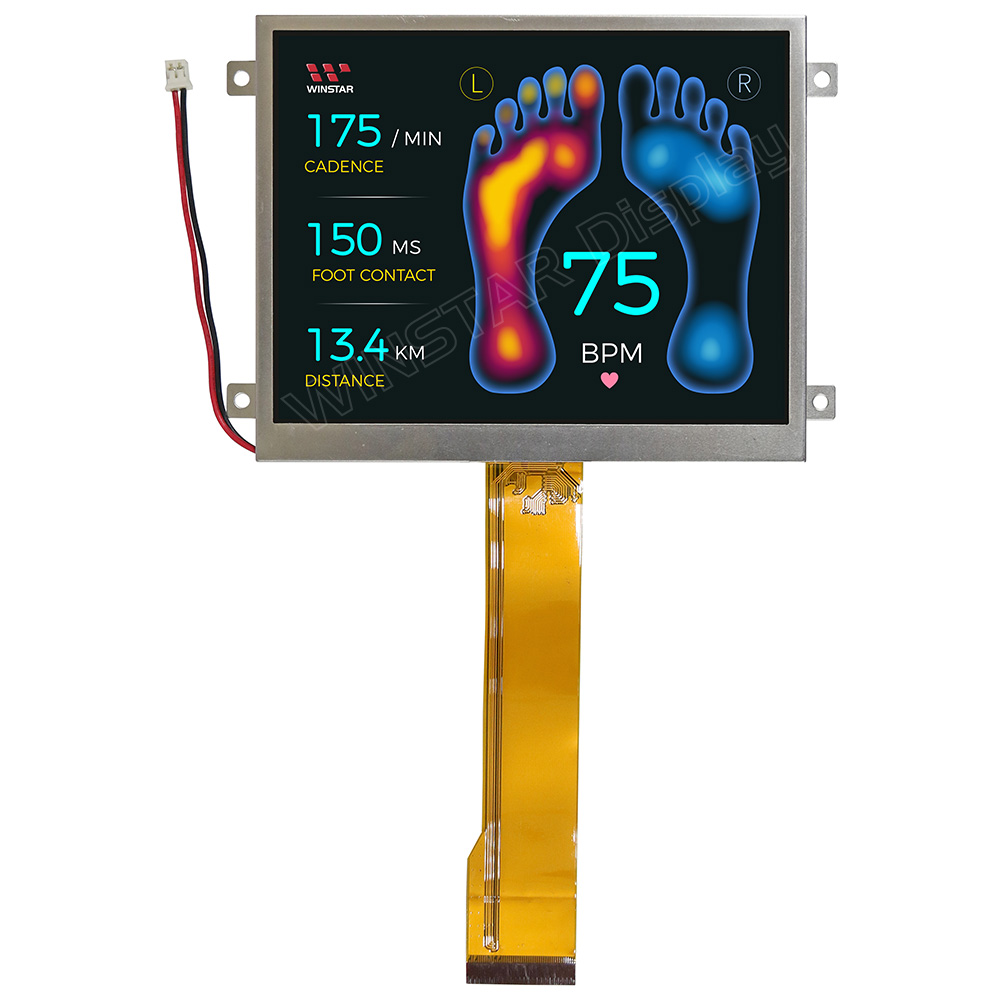

The WF57ESIACDNN0 is Winstar 5.7 inch sunlight readable LCD display with RGB interface. This TFT LCD display is with the brightness of 1100 nits and outline dimension is 141.12 x 101.55 mm and the AA size is 115.2 x 86.4 mm.; it's perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments ..etc.

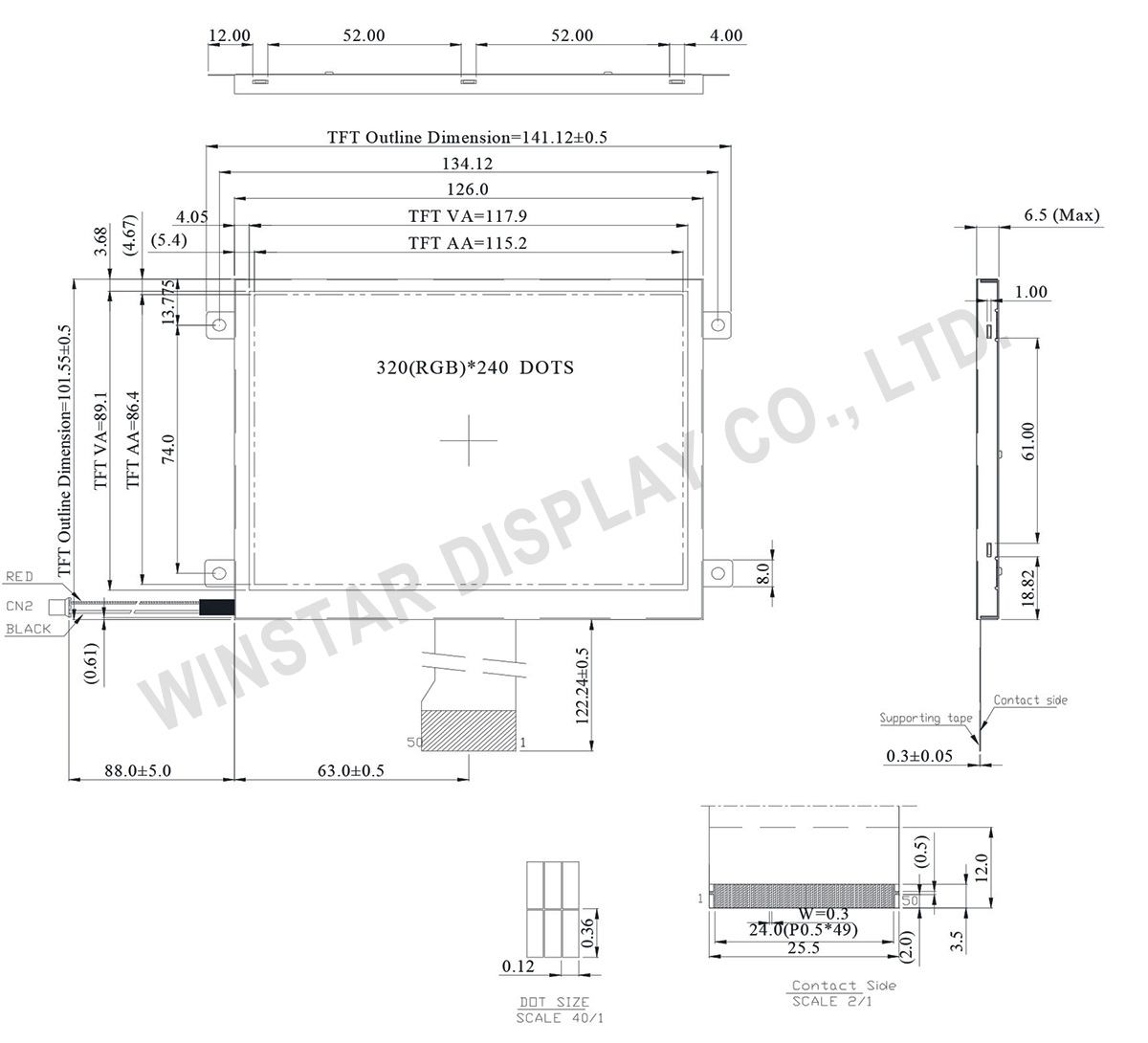

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1~2 | IF1~IF2 | Input data format control |
| 3 | POL | Polarity Signal connect to VCOM driving circuit. |
| 4 | RESET | Hardware reset |
| 5 | SPENA | Chip select |
| 6 | SPCL | Serial Clock |
| 7 | SPDA | Serial Data |
| 8~15 | B0~B7 | Blue Data bit |
| 16~23 | G0~G7 | Green Data bit |
| 24~31 | R0~R7 | Red Data bit |
| 32 | Hsync | Horizontal synchronous signal |
| 33 | Vsync | Vertical synchronous signal |
| 34 | Data CLK | Dot data clock |
| 35~36 | AVDD(analog) | Analog power: 4.5V~5.5V |
| 37~38 | VCC(Digital) | Digital power: 3V~3.6V |
| 39 | NPC | NTSC/PAL mode Auto detection result H:NTSC/L:PAL |
| 40~41 | VGL | Gate off power |
| 42 | UD | Up/down selection |
| 43 | VGH | Gate on power |
| 44 | LRC | Shift direction of device internal shift register control. |
| 45 | GND | System ground pin of the IC. Connect to system ground. |
| 46~47 | VCOM | VCOM driving input |
| 48 | ENB | Signal to settle the horizontal display position |
| 49~50 | GND | System ground pin of the IC. Connect to system ground. |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.7 | inch |
| Dot Matrix | 320 × RGB × 240 (TFT) | dots |
| Module dimension | 141.12(W) × 101.55(H) × 6.5(D) MAX | mm |
| Active area | 115.2 × 86.40 | mm |
| Dot pitch | 0.12 × 0.36 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Without touch screen | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Input High Volt. | VIH | － | 0.7 VCC | － | VCC | V |
| Input Low Volt. | VIL | － | 0 | － | 0.3 VCC | V |
| LCD Driving Supply Voltage | VGH x1 | Ta=25℃ | 15 | V x 3 | ||
| VGL x2 | -10 | |||||
| VcomH | 2.5 | 5.5 | ||||
| VcomL | -2.0 | 0 | ||||
| Supply Current | IVCC | VCC=3.3V | － | 5 | 8 | mA |
