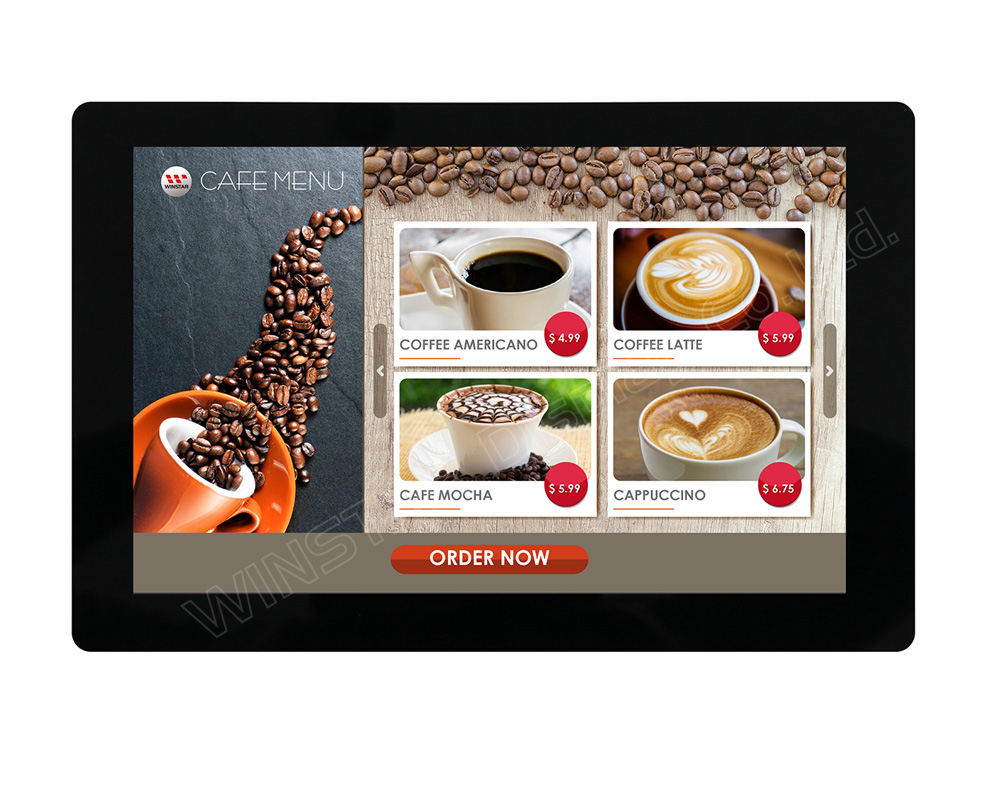

10.1" LVDS IPS Touch Screen Display

Model No. WF101FSYAPLNG0

►LVDS Touch Screen Display
►Size : 10.1 inch
►Resolution : 1280×800 dots
►View Direction : IPS
►Interface : LVDS
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m2) : 900
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 5 Fingers

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

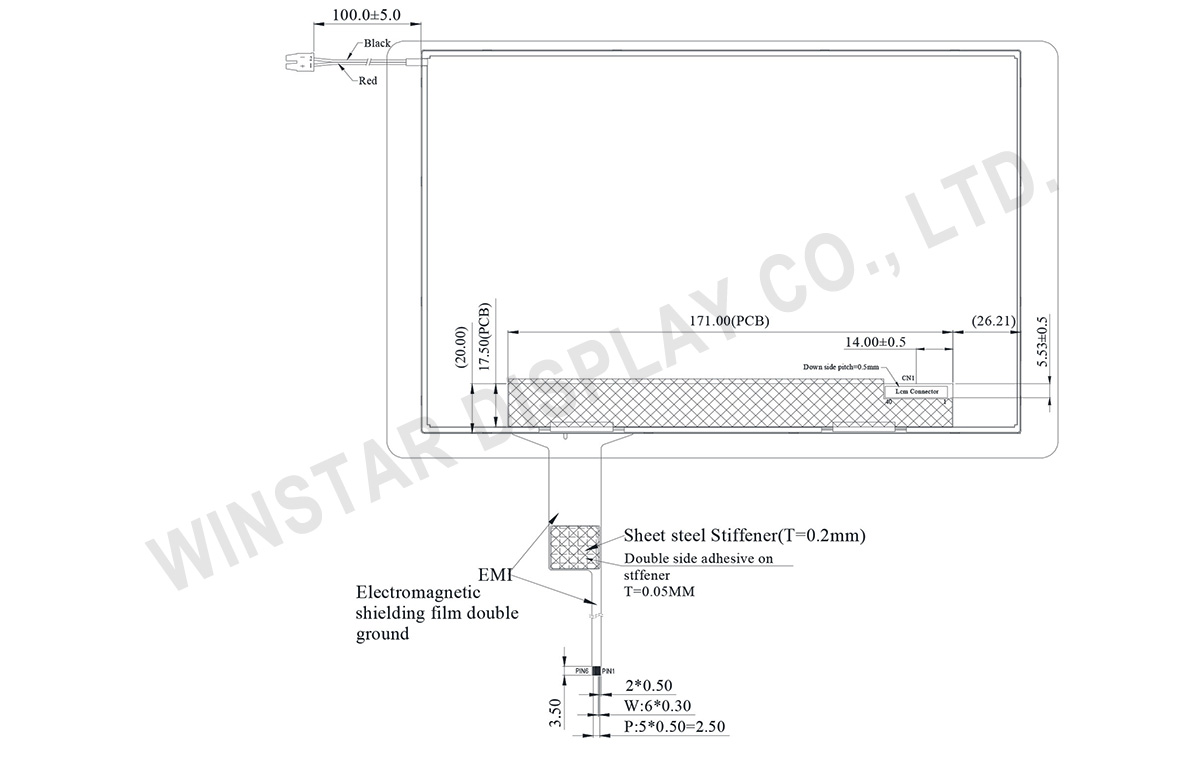

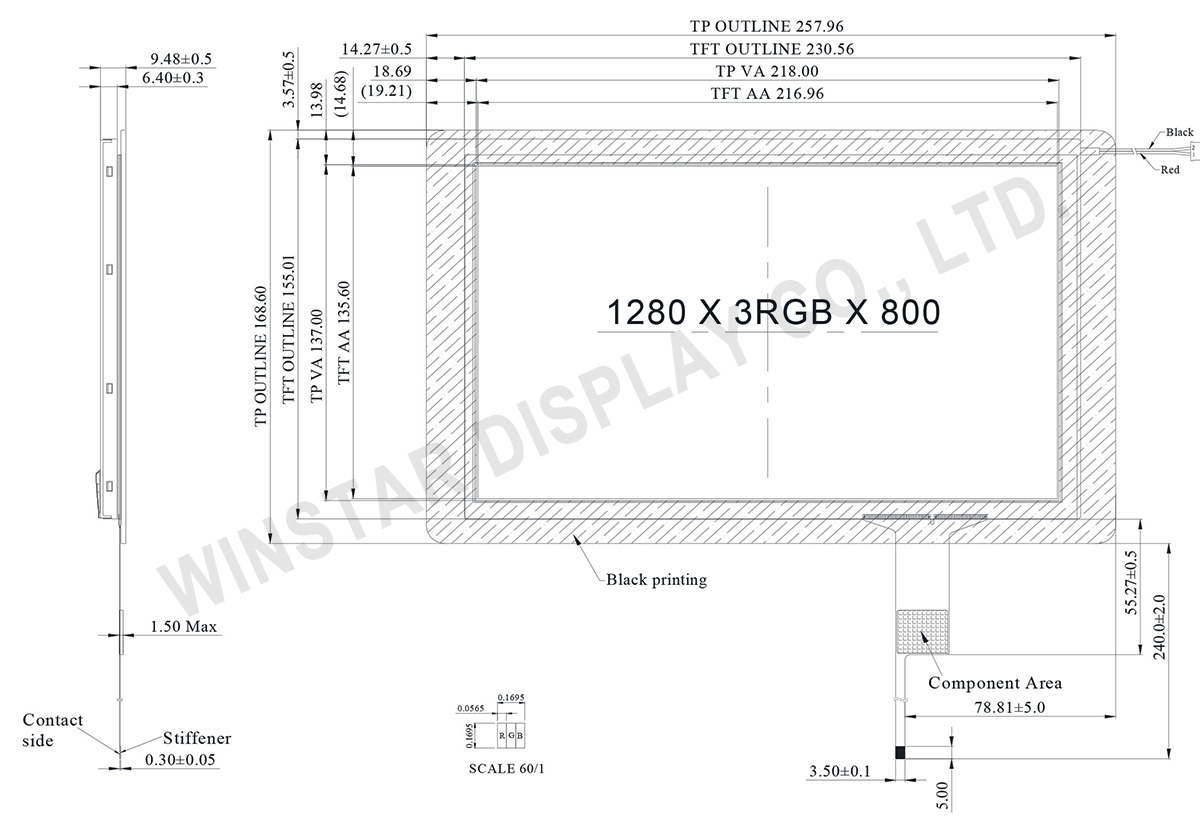

DRAWING

10.1" LVDS Touch Screen Display - Winstar Display

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	VCOM	P	Common Voltage
2~3	VDD	P	Power Supply
4~6	NC	-	No connection
7	GND	P	Ground
8	Rxin0-	I	-LVDS Differential Data Input
9	Rxin0+	I	+LVDS Differential Data Input
10	GND	P	Ground
11	Rxin1-	I	-LVDS Differential Data Input
12	Rxin1+	I	+LVDS Differential Data Input
13	GND	P	Ground
14	Rxin2-	I	-LVDS Differential Data Input
15	Rxin2+	I	+LVDS Differential Data Input
16	GND	P	Ground
17	RxCLK-	I	-LVDS Differential Clock Input
18	RxCLK+	I	+LVDS Differential Clock Input
19	GND	P	Ground
20	Rxin3-	I	-LVDS Differential Data Input
21	Rxin3+	I	+LVDS Differential Data Input
22	GND	P	Ground
23~24	NC	-	No connection
25	GND	P	Ground
26~28	NC	-	No connection
29	AVDD	P	Power for Analog Circuit
30	GND	P	Ground
31~34	NC	-	No connection
35	VGL	P	Gate OFF Voltage
36~37	NC	-	No connection
38	VGH	P	Gate ON Voltage
39~40	NC	-	No connection

I: input, O: output, P: Power

PCAP PIN Definition

Pin	Symbol	Function
1	SDA	I2C data input and output
2	SCL	I2C clock input
3	RST	External Reset, Low is active
4	INT	External interrupt to the host
5	VDDT	Power Supply : +3.3V
6	GND	Ground for analog circuit

General Specifications

Item	Dimension	Unit
Screen Diagonal	10.1	inch
Number of Pixels	1280 × 3(RGB) × 800	dots
Module dimension	257.96 × 168.6 × 9.48	mm
Active area	216.96 (H) × 135.6(V)	mm
Pixel pitch	0.1695 × 0.1695	mm
Display Mode	Normally Black
Pixel Arrangement	R.G.B. Vertical Stripe
Backlight Type	LED, Normally White
Aspect Ratio	16:9
Electrical Interface (Logic)	LVDS
PCAP IC	GT928 or Equivalent
PCAP Interface	I2C
PCAP FW Version	0X50
Touch Panel	Projected capacitive touch Panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-20	－	+70	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min	Typ	Max	Unit
Power voltage	VDD	2.3	2.5	2.7	V
	AVDD	8.0	8.2	8.4	V
	VGH	21.7	22	22.3	V
	VGL	-7.3	-7	-6.7	V
Input signal voltage	VCOM	2.7	3.0	3.3	V
Supply Voltage For Touch Logic	VDDT	2.8	－	3.3	V
