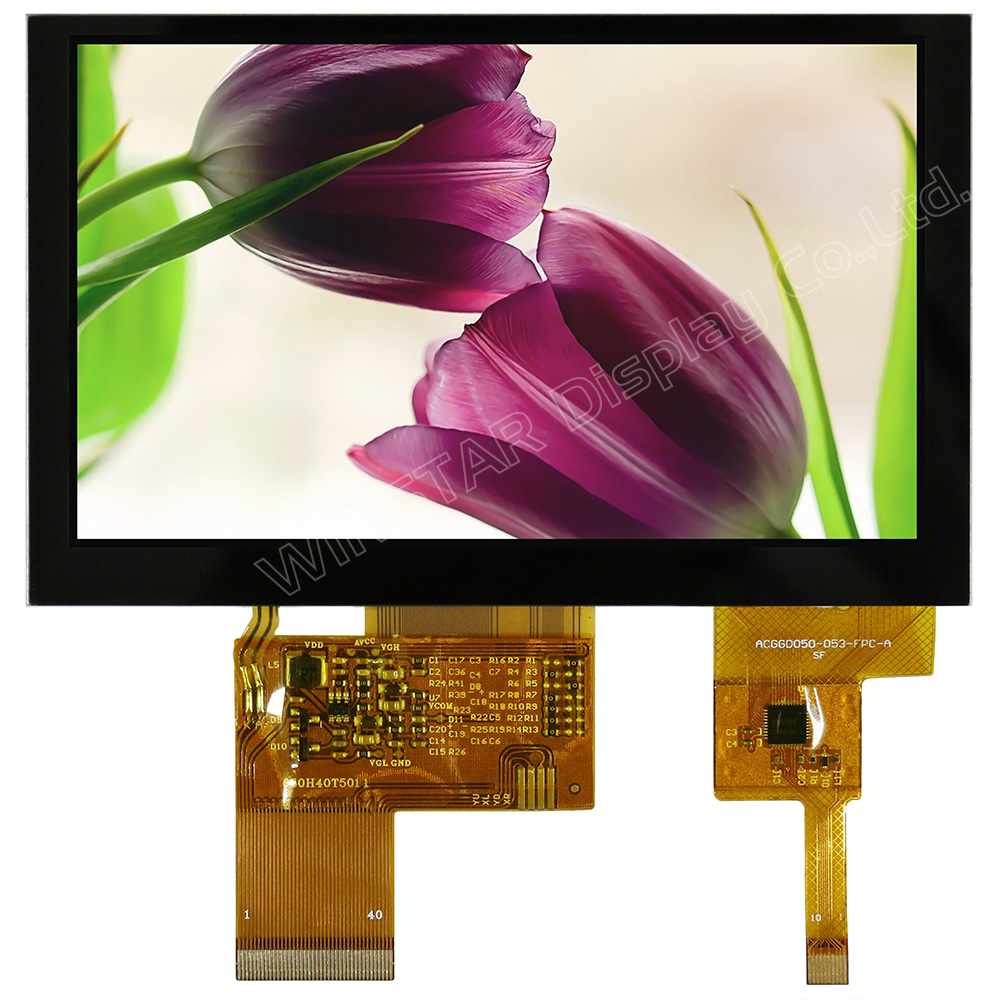

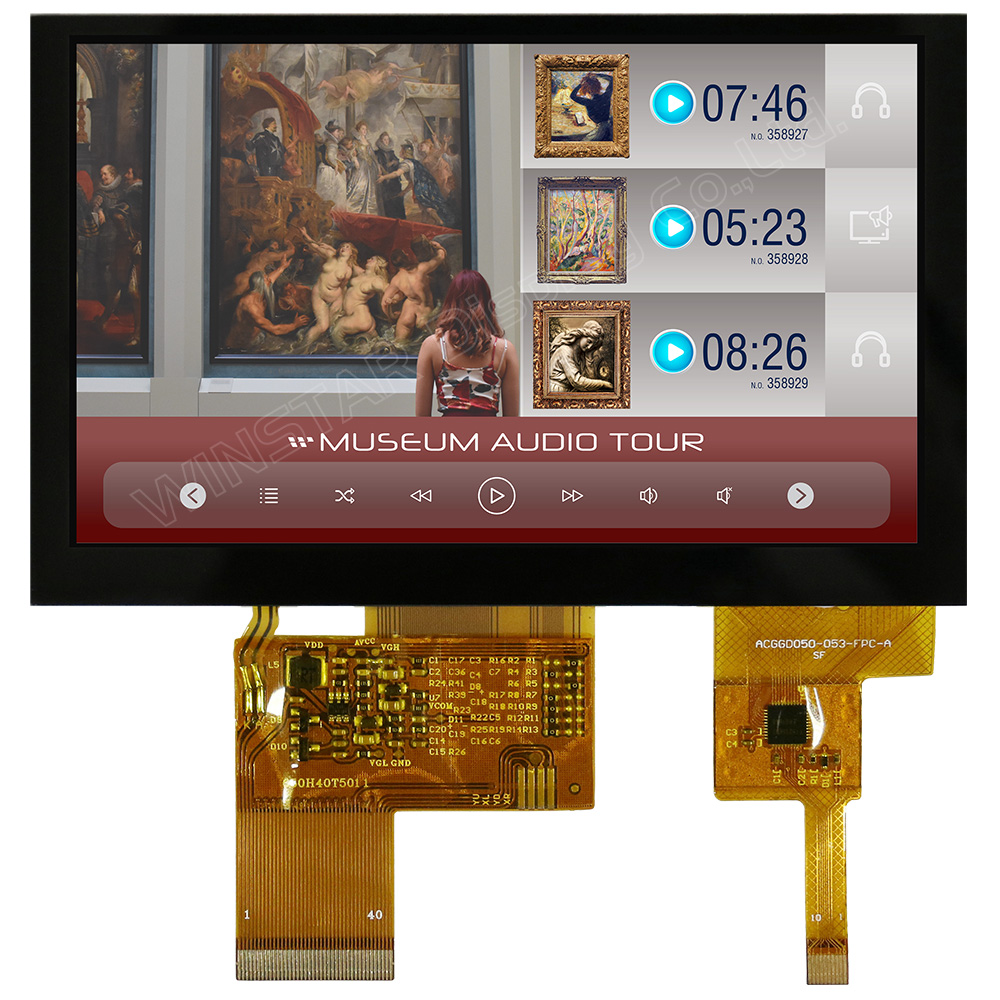

5" PCAP Touch Screen TFT LCD Module - WF50BTIAGDNGC

5" PCAP Touch Screen TFT LCD Module

Model No. WF50BTIAGDNGC

►Size : 5"
►Resolution : 800 x 480 dots
►View Direction : 12H
►Interface : RGB
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m²): 400
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Screen (PCAP)
►Detect Point : 5 Fingers

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

Winstar Display 5 inch standard higher resolution TFT model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but the WF50B is with a better resolution. The resolution of our existing standard 4.3" is with 480x272 resolution and 5.7" TFT is with 320x240, as to the WF50B is with 800x480 resolution. The display WF50B is a good option for customers while designing a new project which request a better resolution or competitive price. The 5" touch screen TFT LCD WF50BTIAGDNGC is with outline dimension of 120.7 x 75.8 mm and AA size of 108 x 64.8 mm. The WF50BTIAGDNGC module can be operating at temperatures from –20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

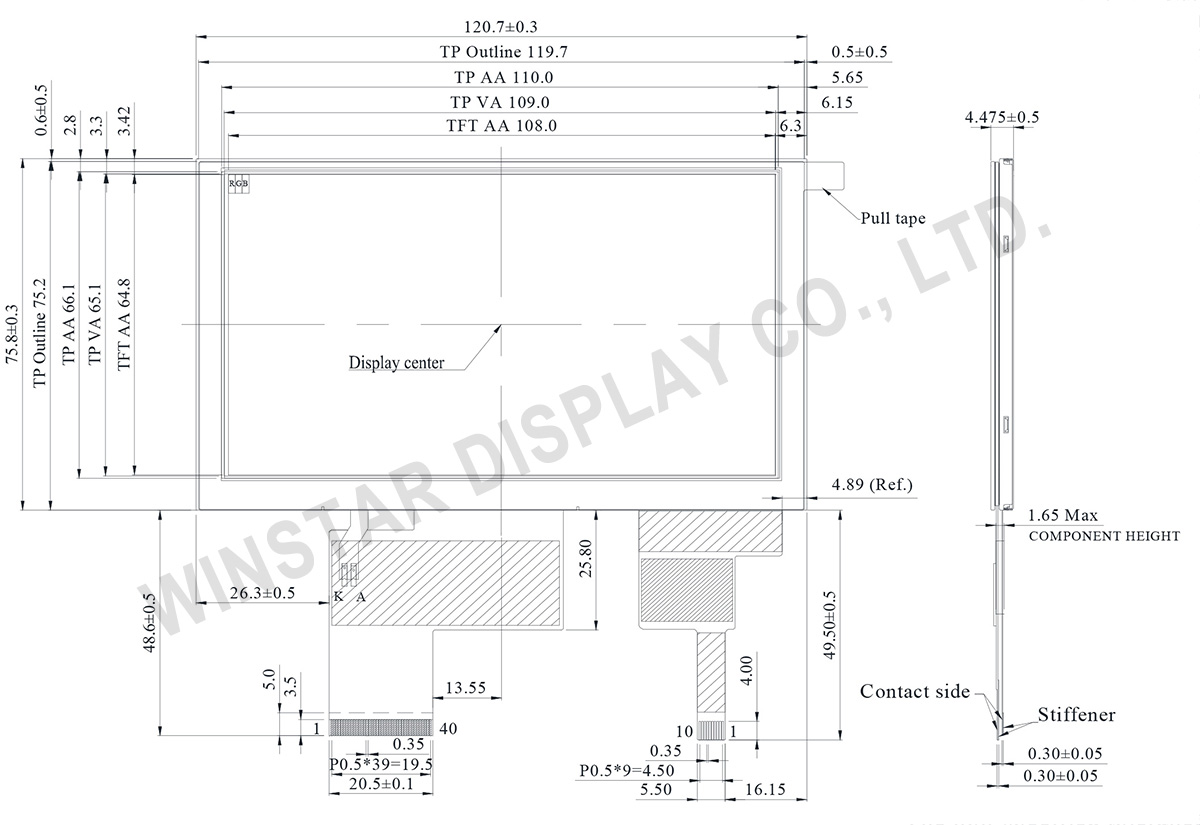

DRAWING

5" Touch Screen TFT LCD - WF50BTIAGDNGC - Winstar

SPECIFICATIONS

Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin	Symbol	Function
1	VLED-	Power for LED backlight (Cathode)
2	VLED+	Power for LED backlight (Anode)
3	GND	Power Ground
4	VDD	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Power Ground
30	CLK	Sample clock
31	DISP	Display on/off
32	NC/HS	No connection /Horizontal sync input
33	NC/VS	No connection /Vertical sync input
34	DE	Data input enable
35	NC	No connection
36	GND	Power Ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

PCAP PIN Definition

Pin	Symbol	Function
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.0V
3	SCL	I2C clock inputI2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800 × 3(RGB) × 480	dots
Module dimension	120.7(W) × 75.8(H) × 4.475 (D)	mm
Active area	108(W) × 64.8(H)	mm
Dot pitch	0.135(W) × 0.135(H)	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
TFT Interface	24-bit RGB
Aspect Ratio	16:9
Backlight Type	LED, Normally White
PCAP IC	FT5426DQ8 Or Equal
PCAP Interface	I2C
PCAP FW Version	2
Touch Screen	Projected Capacitive Touch Screen
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Values			Unit
Item	Symbol	Min	Typ	Max	Unit
Power voltage	VDD	3.0	3.3	3.6	V
Current for Driver (Black)	IDD	-	110	170	mA
Input logic high voltage	VIH	0.7 VDD	-	VDD	V
Input logic low voltage	VIL	0	-	0.3 VDD	V
